GM-1100
- Intel® 14/13/12 代 Core™ i9/i7/i5/i3 處理器（最大 65 W TDP）
- 支援 1x MXM 3.1 Type A/B 規格的 GPU 模組擴充。
- 1x 2.5GbE LAN、1x 20Gbps USB3.2 Gen2 x2、Type C 連接器
- 1x M.2 Key M 2280 型插槽，用於 PCIe Gen4x4 NVMe 儲存
- 1x M.2 Key E 2230 型插槽，用於無線 / Intel CNVi 模組擴充
- 1x M.2 Key B 3052/3042 型插槽，用於 5G / 儲存 / 擴充卡擴充
- 2x M.2 Key B 2242 型插槽，用於儲存 / 擴充卡擴充
- 選配 CMI & CFM 模組，用於 I/O 擴充及電源點火感應功能
- 寬廣操作溫度範圍 -40°C 至 70°C

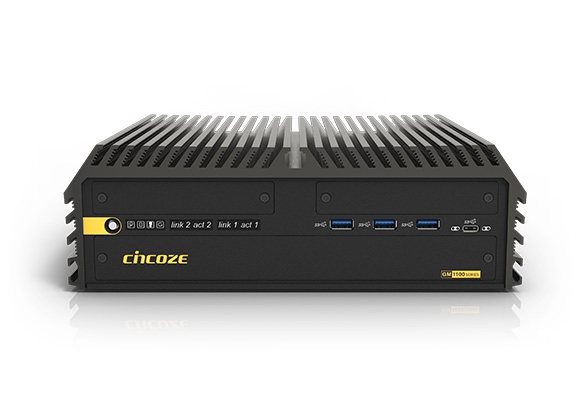

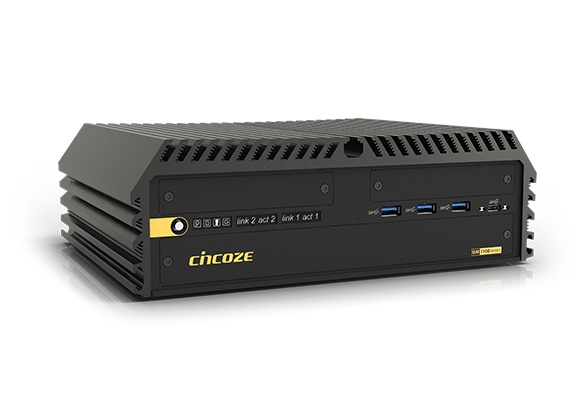

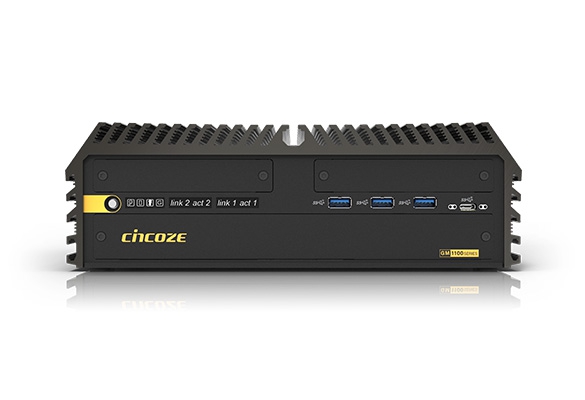

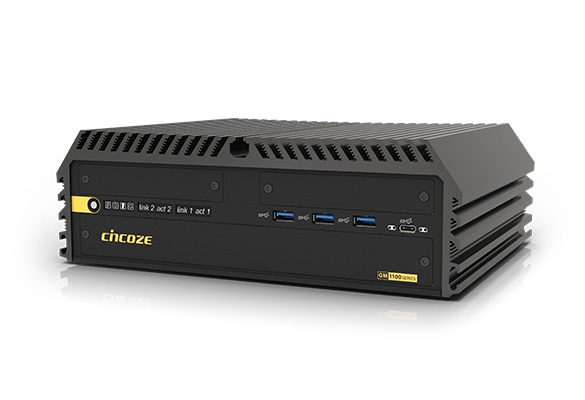

GM-1100 是一款可搭載 MXM GPU 的強固型嵌入式電腦，專為高效能運算需求所打造。除了具備強大的運算與圖形處理能力外，緊湊的體積與高彈性的擴充能力，特別適合安裝空間受限的邊緣 AI 應用。
3X 效能大躍進
——
搭載第 14 代 Intel® Raptor Lake-S Refresh Core 處理器，運算效能較前代機種提升三倍。無論是高複雜型或是專精型任務，可根據需求選擇 Hybrid 或 P-core Monolithic 架構，展現最佳效能。
MXM GPU 模組
——
支援 Type A 和 Type B 的 MXM GPU 模組，無論是輕量 AI 應用或是需要高效能 AI 推理應用，都能自由選擇。此外，特殊的模組化設計，能輕鬆換置更高階的 MXM 模組，實現未來效能的無縫升級。
高速傳輸與 資料儲存
——
為了有效提高影像或檔案的傳輸效率，GM-1100 擁有原生 2.5GbE LAN 以及 20Gbps USB 3.2 Gen2x2 Type-C 高速 I/O 接口。儲存選擇除了 2x 2.5" HDD/SSD 外，也提供 NVMe SSD 的高速儲存選項。
移動型應用的 理想選擇
——
除了緊湊的尺寸 (260 x 200 x 85 mm) 及豐富的 M.2 擴充槽可支援 5G 或 Wi-Fi 等無線通訊模組外，GM-1100 還符合軌道交通認證 (EN50121-3-2) 和車載認證 (E-mark)，是移動型應用的最佳選擇。
優異的 散熱解決方案
——
特殊的散熱規劃，能有效將 CPU 和 GPU 的熱能分別引導至鋁擠外殼的上蓋與側邊，提高散熱效率。同時結合外部風扇，為穩定且可靠的運行提供堅實基礎。
強固 安全
——
為克服 Edge AI 安裝環境的嚴苛挑戰，除工業級的防護如支援 -40 至 70°C 寬溫範圍與 9 - 48 VDC 寬壓外，還通過美國軍規衝擊震動標準（MIL-STD-810H），確保產品的穩定安全性。
![[ 產品聚焦 ] Cincoze GPU 嵌入式電腦](data/images/202412/1733453021940588469.jpg)
| Model Name | GM-1100 | |
|---|---|---|
| System | Processor | • 14th Generation Intel® Raptor Lake-S Refresh Series CPU: |
| Chipset | • Intel R680E Chipset | |
| Memory | • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | • Supports Triple Independent Display | |
| DP | • 1x DisplayPort Connector (4096 x 2304@60Hz) *Verified maximum resolution: 3840x2160@ 60Hz | |
| HDMI | • 1x HDMI Connector (4096 x 2160@30Hz) *Verified maximum resolution: 3840x2160@ 30Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |

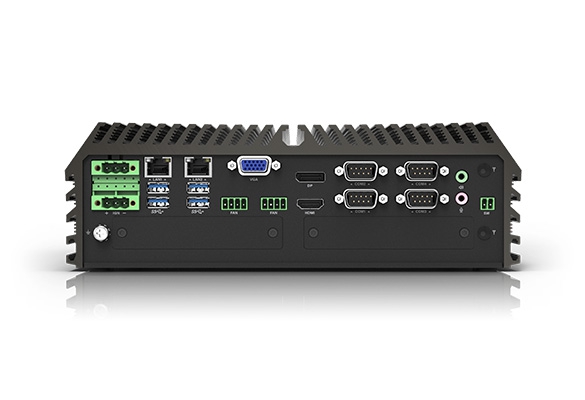

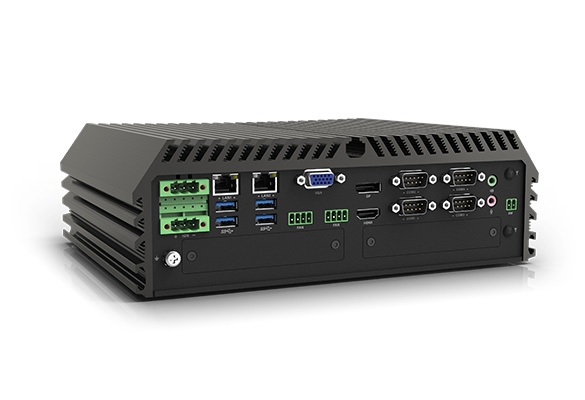

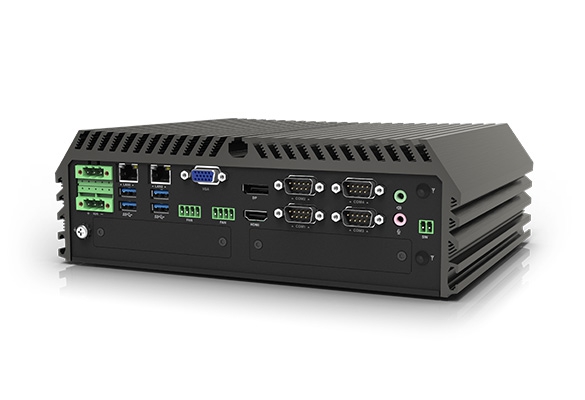

| I/O | LAN | • 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219 |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 1x 20Gbps USB3.2 Gen2 x2, Type C • 3x 10Gbps USB3.2 Gen2 x1, Type A • 4x 5Gbps USB3.2 Gen1 x1, Type A | |
| Storage | SSD/HDD | • 2x 2.5" Front Accessible SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0) (Up to 15mm in Height) |
| M.2 SSD | • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0) • 1x M.2 SSD Shared by M.2 Key B Type 3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA SSD (SATA3.0) • 2x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4x2 NVMe SSD or SATA SSD (SATA3.0) | |
| RAID | • Support RAID 0/1/5/10 | |
| Expansion | MXM Socket | • 1x MXM Carrier Board Socket for MXM GPU Module Expansion |
| M.2 E Key Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion | |
| M.2 B Key Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 2x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion | |
| SIM Socket | • 2x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x High Speed CMI Interface for optional CMI Module Expansion • 1x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 2x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna Holes | • 2x Antenna Holes | |
| Status LED Indicator | • HDD LED、GPIO LED、IGN LED、GPU LED、Ethernet LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9-48 VDC, Single Power Source Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A • Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Max. Power Consumption | • 35W CPU: 187.51W • 65W CPU: 258.96W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing. | |
| Inrush Current (Peak) | • 35W CPU: 5.467A@24V • 65W CPU: 5.725A@24V | |
| Physical | Dimension ( W x D x H ) | • 260 x 200 x 85 mm |
| Weight Information | • 4.73 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 30A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 313,541 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu Desktop 22.04 LTS | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor with external FAN: -40°C to 60°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • UL, cUL , CB, IEC, EN 62368-1 | |
| Model No. | Description |
|---|---|
| GM-1100-R10 | 14/13/12th Gen Intel® Core™ Series Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket |
| GM-1100 GPU Computer x 1 | Remote Function Terminal Block Connector x1 |
| CPU Heatsink Pack x1 | External Fan Terminal Block Connector x2 |
| Screw Pack x1 | Wall Mounting Kit x1 |
| Power Terminal Block Connector x 2 | M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| MXM-A4500-R10 | NVIDIA Embedded RTX A4500 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad |
| MXM-A2000-R10 | NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A1000-R10 | NVIDIA Embedded RTX A1000 MXM Type A, 4G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A500-R10 | NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad |
| MXM-RTX3000-R10 | NVIDIA Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad |
| MXM-T1000-R10 | NVIDIA Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad |
| MXM-HSKA-01 | MXM Type A Heatsink Kit for MXM-A500 |
| MXM-HSKA-02 | MXM Type A Heatsink Kit for MXM-A1000 & MXM-A2000 |
| MXM-HSKA-03 | MXM Type A Heatsink Kit for MXM-T1000 |
| MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
| MXM-HSKB-02 | MXM Type B Heatsink Kit for MXM-RTX3000 |
| Model No. | Description |
|---|---|
| CB-DP02-R10 | Carrier Board with one MXM 3.1 interface and no DisplayPort output for MXM-A500 |
| CB-DP03-R10 | Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output |
| CB-DP04-R10 | Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output for MXM-A4500 |
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN01-R10 | CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port |
| CMI-DIO01 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
| CMI-COM01 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| UB1303 | Universal Bracket with 2x DB9 Cutout |
| UB1310 | Universal Bracket with 4x M12 Cutout |
| UB1312 | Universal Bracket with 4x RJ45 Cutout |
| UB1318 | Universal Bracket with DIO Cutout |
| UB1328 | Universal Bracket with 2x RJ45 Cutout |
| UB1329 | Universal Bracket with 4x DP |
| UB1330-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0932-R10 | Universal Bracket with 3x Antenna Cutout |
| UB1332-R10 | Universal Bracket with 3x Antenna Cutout |
| FAN-EX102 | External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function |
| SIDE-GM | GM Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
| CB-DP02 (compatible with standard UB) | CB-DP03/UB1329 | CB-DP04/UB1329 | |
|---|---|---|---|
| MXM-A500 | V | ||
| MXM-A1000 | V | ||
| MXM-A2000 | V | ||
| MXM-A4500 | V | ||
| MXM-T1000 | V | ||
| MXM-RTX3000 | V |
