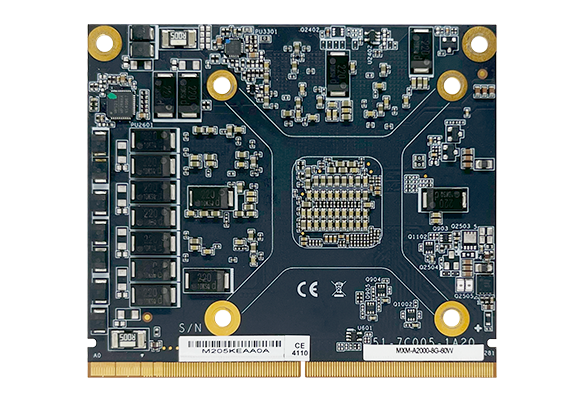

MXM-A2000
NVIDIA Embedded RTX™ A2000 MXM Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® RTX™ A2000 Embedded Graphics
- Standard MXM 3.1 Type A Form Factor (82 x 70 mm)
- 2560 NVIDIA® CUDA® Cores, 20 RT cores, and 80 Tensor cores
- 8.25 TFLOPS Peak FP32 Performance
- PCIe Gen 4 x8 interface
- 5-year Availability
OVERVIEW
MXM-A2000 is an embedded MXM GPU module equipped with an NVIDIA RTX™ GPU based on the Ampere Architecture, using the MXM 3.1 Type A form factor. It features 2560 CUDA® cores, 20 RT cores, 80 Tensor cores, and 8GB GDDR6 memory. With support for 8.25 TFLOPS in FP32, it's ideally suited for high-performance edge computing and machine vision applications.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
GPU | NVIDIA RTX™ A2000 GA107-980 GPU |
---|---|
Memory | 8GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s) |
CUDA Cores | 2560 CUDA cores, 8.25 TFLOPS peak FP32 performance |
Tensor Cores | 80 Tensor Cores |
RT Cores | 20 RT Cores |
Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
Graphics API | DirectX® 12, OpenGL 4.6 |
Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz |
Interface | MXM 3.1, PCI Express Gen4 x8 support |
Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm |
Form Factor | Standard MXM 3.1 Type A |
Power Consumption | 60W |
OS Support | Windows 10 & Linux support by project |
ORDERING INFORMATION
Model No. | Product Description |
---|---|
MXM-A2000-R10 | NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
√ NVIDIA RTX™ Embedded A2000 GPU Card x 1 |
√ GPU Heatsink x 1 |
√ GPU Thermal Pad Kit x1 |
√ Screw Pack x 1 |
