PRODUCTS

Mid Performance & Power-saving (DI Series)|Fanless PC

Mid Performance & Power-saving (DI Series)|Fanless PC

Cincoze DI Series “DIAMOND Intelligent” embedded systems pack the punch of a high-performance, low-power Intel® Core™ i7/i5/i3 CPU (TDP 15W) in a lightweight, compact, and fanless extruded aluminum package. The DI Series is ideal for harsh, space-limited applications that demand uncompromised performance, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance. #Fanless PC
ProductModel NameCPUI/OExpansion

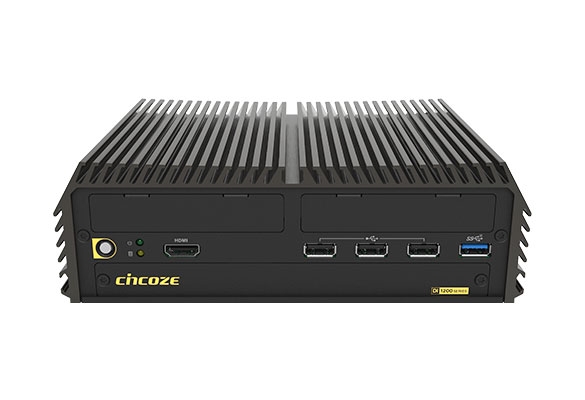

DI-1200DI-1200Onboard Intel® Core™ i3-1215UE Processor
Onboard Intel® Core™ i5-1245UE Processor
Onboard Intel® Core™ i7-1265UE Processor
2x 2.5 GbE LAN
3x USB 3.2
3x USB 2.0
2x COM
1x HDMI
2x DisplayPort
2x M.2 Sockets
2x SIM Socket
2x CMI Interface
1x CFM Interface

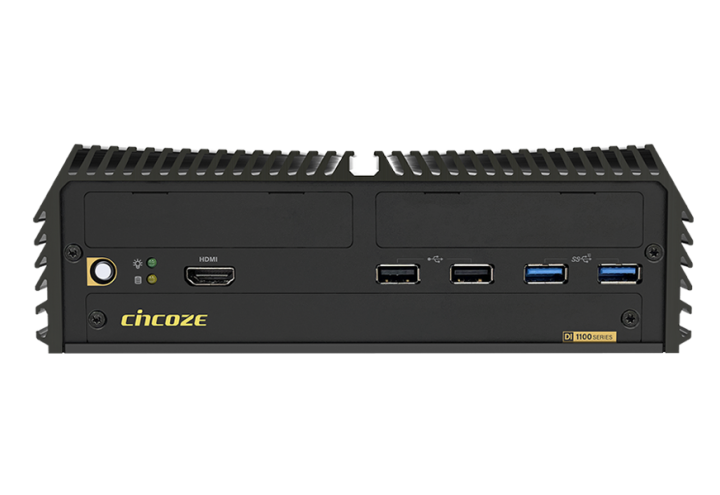

DI-1100DI-1100Onboard Intel® Core™ i3-8145UE Processor
Onboard Intel® Core™ i5-8365UE Processor
Onboard Intel® Core™ i7-8665UE Processor
2x LAN
4x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI
1x DisplayPort
1x VGA
2x Full-size Mini-PCIe Sockets
2x SIM Socket
2x CMI Interface
1x CFM Interface

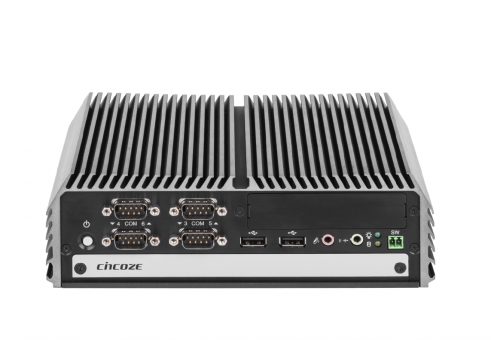

DI-1000DI-1000Onboard Intel® Core™ i3-6100U Processor
Onboard Intel® Core™ i5-6300U Processor
Onboard Intel® Core™ i7-6600U Processor
1x DVI-I
1x DisplayPort
2x GbE LAN
6x COM
4x USB 3.0
2x USB 2.0
1x PS/2
8x Optical Isolated DIO
1x CFM Interface
1x CMI Interface
2x Full-size Mini-PCIe Sockets
1x SIM Socket
