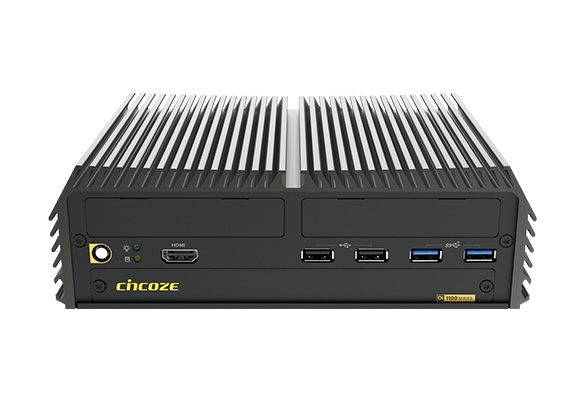

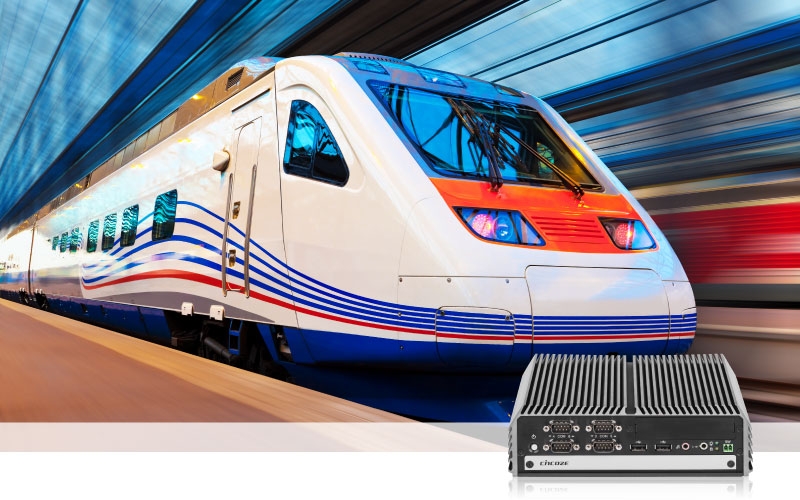

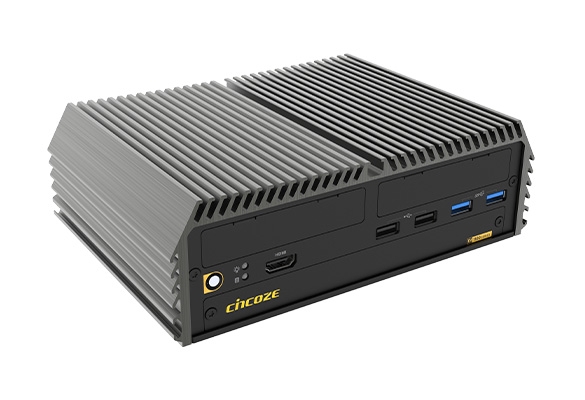

DI-1100

Intel® 8th Gen. Core™ U Series Processor, High Performance and Power Saving Rugged Embedded Computer

PRODUCTS FEATURES
  • Onboard Intel ® 8th Gen. Core™ Ui7/i5/i3 Processor (TDP 15W)
  • 1x 2.5" front-accessible SATA HDD bay for quick access and 1x mSATA socket
  • 2x full-size Mini PCIe sockets for module expansion
  • 2x front-accessible SIM card slots for signal redundancy
  • Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
  • Optional CFM modules (power ignition sensing, or 4x PoE)
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G, E-mark, and EN50155 (EN 50121-3-2 only) certified
OVERVIEW

The DI-1100 packs high performance, lots of I/O ports, and expansion flexibility in a compact form factor. The DI-1100 is powered by an 8th Gen Intel® Core™ U-Series processor (Whiskey Lake) with ultra-low 15W TDP yet delivering uncompromised performance. The DI-1100 shines because it fits multiple I/Os and other expansion options into a very compact chassis, making it the perfect high-performance rugged embedded computer for space-constrained environments. The DI-1100 is ideal for industrial applications, logistics and warehousing, transportation, security and surveillance, IoT deployments, and other applications.

Product Category >>>> Rugged Embedded Fanless PC


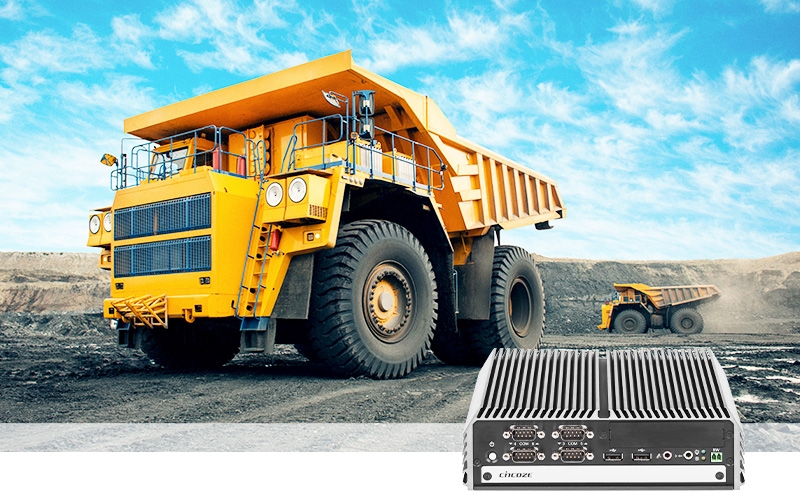

High Performance and Power Saving

High Performance
and Power Saving

power saving icon

——

The DI-1100 has options for an 8th Gen Intel® Core™ U i7, i5, or i3 processor, powered by four cores and eight threads, delivering extraordinary performance and responsiveness to complete computationally intensive tasks more quickly. The processing architecture fulfills the need for increased graphics and computation performance while providing the headroom to consolidate data and applications for IoT deployment. Topped off with a 15W CPU, it's ideal for mobile machinery reducing the time between recharges for maximum efficiency.


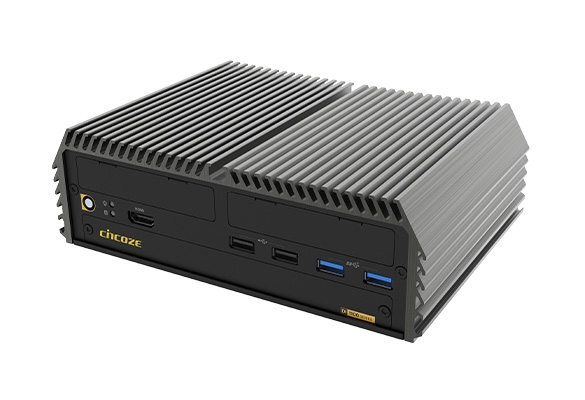

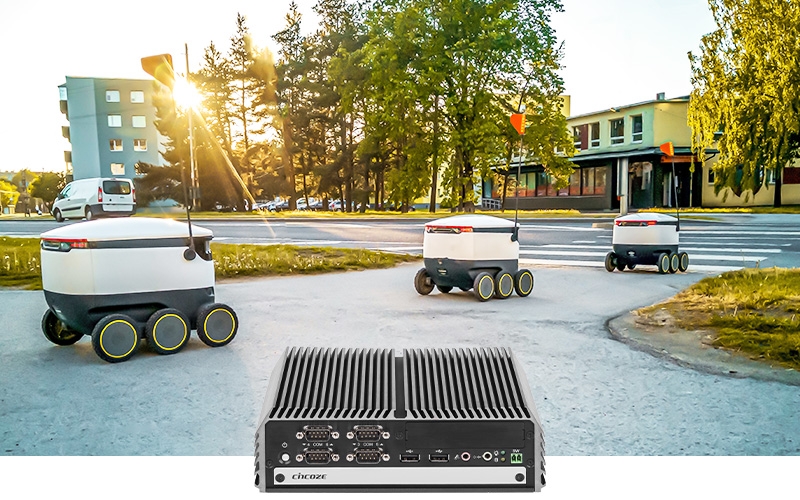

Compact
Form Factor

——

The DI-1100 has a small form factor, measuring only 203 mm (W) x 142 mm (D) x 66.8 mm (H). This compact size makes the DI-1100 easy to install anywhere you can imagine, especially in today's space-limited IoT applications, ranging from equipment such as Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) to vehicles and the small cabinets in factories.

Compact Form Factor

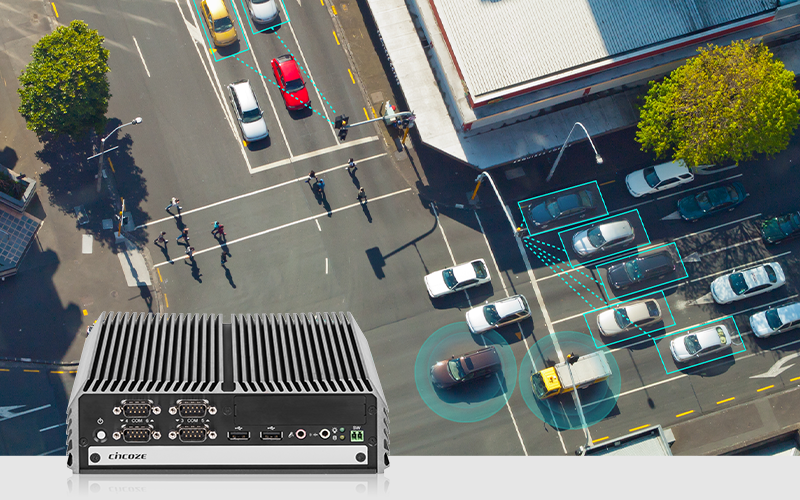

Various Industrial I/O and Functionalities

Various Industrial I/O and
Functionalities

——

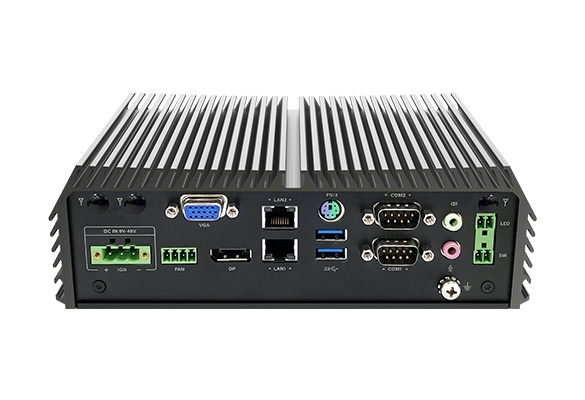

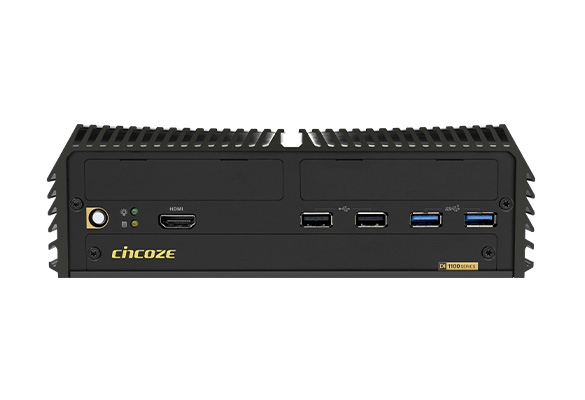

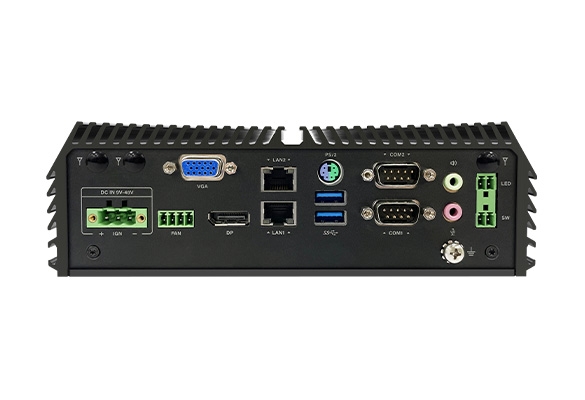

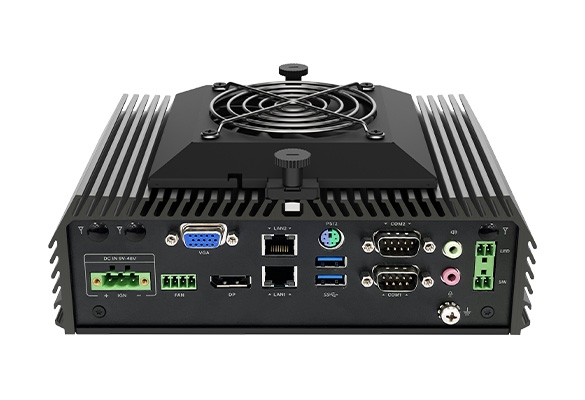

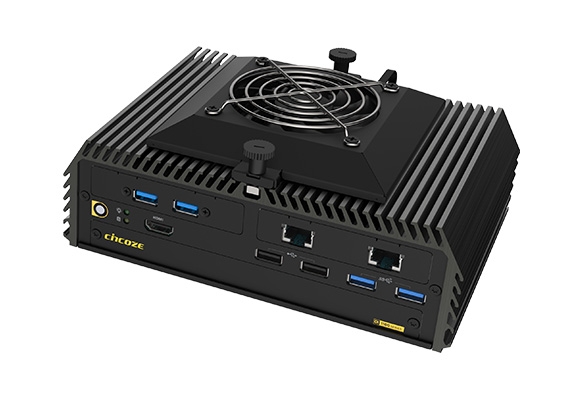

The DI-1100’s compact design doesn’t sacrifice I/O and functionality. The DI-1100 includes 2x GbE LAN, 4x USB 3.2, 2x USB 2.0, and 2x RS232/422/485 to connect high-speed and legacy devices. The DI-1100 also supports 2x full-size Mini PCIe sockets for wireless connectivity as well as 2x SIM card slots for cellular network redundancy to ensure uninterrupted data transmission. In addition, it offers an external fan for additional cooling when using high-watt peripherals like cameras thru PoE.


Exclusive
Expansion Capabilities

——

The DI-1100 provides modular expansion through Combined Multiple I/O (CMI) and Control Function Module (CFM) and can be configured for further I/O and function customization. This flexibility allows integrators to quickly configure the system and rapidly deploy to the market. The CMI modules include extra LAN, 10GbLAN, M12 connections (A- and X-coded), and various I/O interfaces, while CFM provides power ignition sensing or PoE functionality.

Exclusive Expansion Capabilities

Flexible Mounting

Flexible
Mounting

——

Multiple mounting methods are ready for use in various industrial environments, including wall, side, DIN-rail, and VESA mountings. These mounting options help integrators quickly and easily mount the DI-1100 anywhere, whether on the field side, cabinets, or inside of other equipment.


Robust Design with
Industry Certifications

——

The DI-1100 is engineered with a robust design to withstand extreme environments. It features a wide operating temperature range of -40 to 70°C, wide-range voltage input of 9 to 48 VDC, over-voltage protection, over-current protection, and ESD protection. The DI-1100 passed the tests to ensure compliance with MIL-STD-810G, E-mark, and EN50155 (EN 50121-3-2 only).

Certifications icon
Robust Design with Industry Certifications

Video
SPECIFICATION
Model NameDI-1100
SystemProcessorOnboard 8th Intel® Core™ U Processors (Whiskey Lake)
• Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W)
• Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W)
• Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W)
Memory1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 620
Maximum Display OutputSupports Triple Independent Display
HDMI1x HDMI Connector (4096 x 2304@60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2x 10 Gbps USB 3.2 Gen2, Type A
• 2x 5 Gbps USB 3.2 Gen1, Type A
• 2x 480 Mbps USB 2.0, Type A
PS/21x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 )
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAIDSupport RAID 0/1
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket
SIM Socket2x SIM Socket
CMI (Combined Multiple I/O) Interface• 1x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition SensingSupport Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch1 x Clear CMOS Switch
Reset Button1 x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
PowerPower Button1 x ATX Power On/Off Button
Power Mode Switch1 x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget120W
PhysicalDimension ( W x D x H )203 x 142 x 66.8 mm
Weight Information1.74 KG
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 513,628 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindowsWindows® 10
LinuxSupports by project
EnvironmentOperating Temperature

• 15W CPU: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

• 15W CPU + 61.6W PoE + FAN: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* 4 Port PoE Full-load, IEEE 802.3af Class3(15.4 Watt)
* With extended temperature peripherals; Ambient with air flow

Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyIEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
DI-1100-i3-R108th Generation Intel Core i3-8145UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i5-R108th Generation Intel Core i5-8365UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i7-R108th Generation Intel Core i7-8665UE High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
√ DI-1100 Embedded System x1√ Heatsink Pack x1
√ Wall Mount Kit x1√ Screw Pack x1
√ Remote Function Terminal Block Connector x 2√ Power Terminal Block Connector x1
√ Fan Terminal Block Connector x 1

Optional I/O Modules
Model No.Description
CMI-LAN01-R12 / UB1512-R11CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12 / UB1510-R11CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10 / UB1510-R11CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-10GLAN04-R10 / UB1528-R11CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM05-R10 / UB1503-R11CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout
CMI-DIO05-R10 / UB1518-R10CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-LAN-M102-30 / UB1511-R11Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
MEC-COM-M212-TDB9 / UB1503-R11Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout

Optional Function Modules
Model No.Description
CFM-PoE06-R10CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN102CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Accessories
Model No.Description
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
SIDE01SIDE Mount Kit
FAN-EX103External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
(*External fan must be installed when using CFM-PoE module)
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
