MXM-A1000
NVIDIA Embedded RTX™ A1000 MXM Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® RTX™ A1000 Embedded Graphics
- Standard MXM 3.1 Type A Form Factor (82 x 70 mm)
- 2048 NVIDIA® CUDA® Cores, 16 RT cores, and 64 Tensor cores
- 6.66 TFLOPS Peak FP32 Performance
- PCIe Gen 4 x8 interface
- 5-year Availability
OVERVIEW

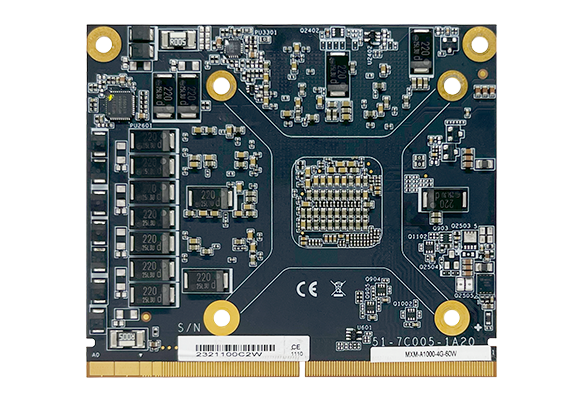

MXM-A1000 is an embedded MXM GPU module equipped with an NVIDIA RTX™ GPU based on the Ampere Architecture, using the MXM 3.1 Type A form factor. It features 2048 CUDA® cores, 16 RT cores, 64 Tensor cores, and 4GB GDDR6 memory. With support for 6.66 TFLOPS in FP32, it's ideally suited for high-performance edge computing and machine vision applications.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
| GPU | NVIDIA RTX™ A1000 GA107-950 GPU |
|---|---|
| Memory | 4GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s) |
| CUDA Cores | 2048 CUDA cores, 6.66 TFLOPS peak FP32 performance |
| Tensor Cores | 64 Tensor Cores |
| RT Cores | 16 RT Cores |
| Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6 |
| Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen4 x8 support |
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type A |
| Power Consumption | 60W |
| OS Support | Windows 10 & Linux support by project |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| MXM-A1000-R10 | NVIDIA Embedded RTX A1000 MXM Type A, 4G, 60W Kit with Heatsink and Thermal Pad |
| √ NVIDIA RTX™ Embedded A1000 GPU Card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
