產品資訊
高階效能 & 緊湊型 (DX系列)
德承DX系列代表“Diamond Extreme”，它是一款帶有極致計算性能的緊湊型工作站，採用英特爾®至強®或酷睿™處理器。它能提供高端應用所需的高性能計算，並有多樣的處理器可供配置。DX系列同時也是模組化設計，它支持靈活的模組化I / O擴展，內置2個前抽取式硬盤托架，可方便維護並滿足空間有限的需求。| Product | Model Name | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|
NEW  | DX-1300 | Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP) | Intel® W880 | 2x 2.5 GbE LAN 4x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 1x HDMI 2x DisplayPort 1x VGA | 1 x M.2 Key B Type 3042/3052 Socket 1 x M.2 Key B Type 2242 Socket 1 x M.2 Key E Type 2230 Socket 1 x SIM Socket 3 x CMI Interface 1 x CFM IGN Interface 1 x CFM TPM Interface |

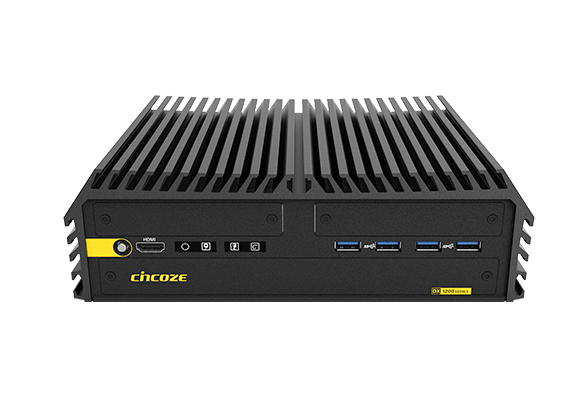

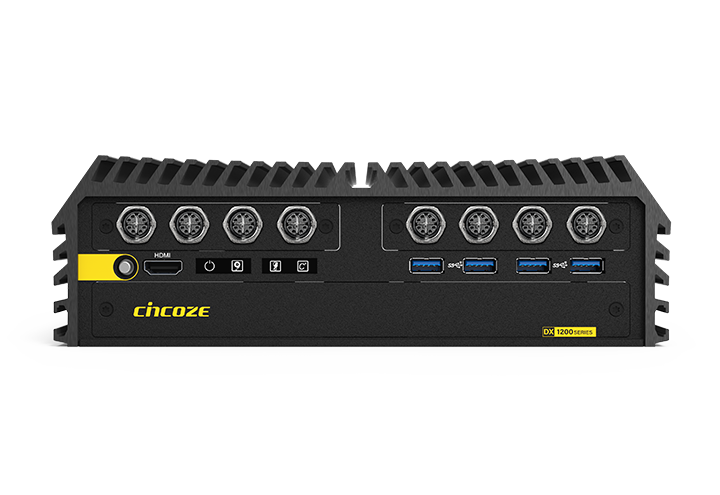

 | DX-1200 | Supports 14/13/12th Generation Intel® Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Series CPU | Intel R680E | 1x DVI-I 1x DisplayPort 1x HDMI 2x 1GbE LAN 4x COM 4x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) | 1x CFM Interface 3x CMI Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module |

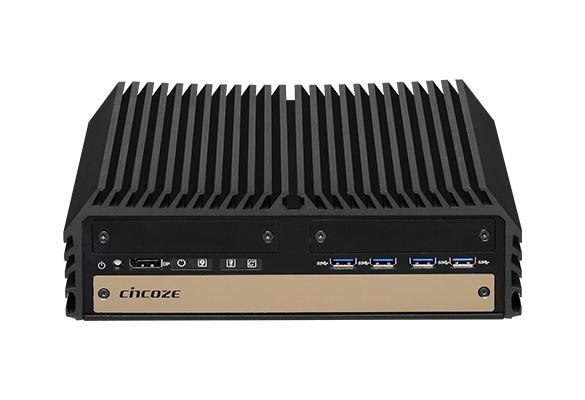

 | DX-1100 | Supports 9/8th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors | Intel C246 | 1x DVI-I 1x DisplayPort 1x HDMI 2x GbE LAN 4x COM 2x USB 3.2 Gen2x1 (10Gbps) 6x USB 3.2 Gen1x1 (5Gbps) | 1x CFM Interface 3x CMI Interface 3x Full-size Mini-PCIe Sockets 1x SIM Socket 1x M.2 E Key Socket (CNVi) |
