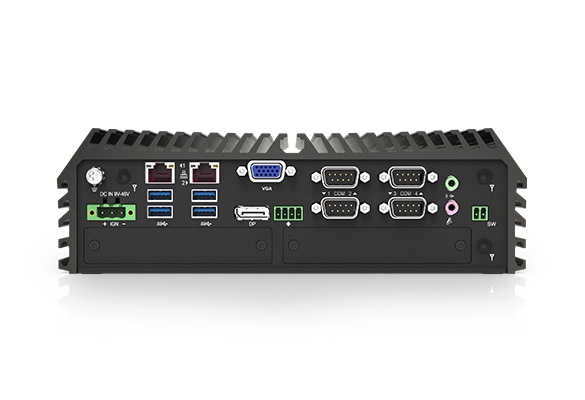

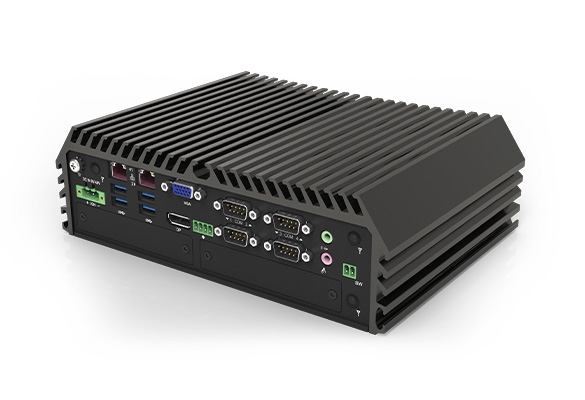

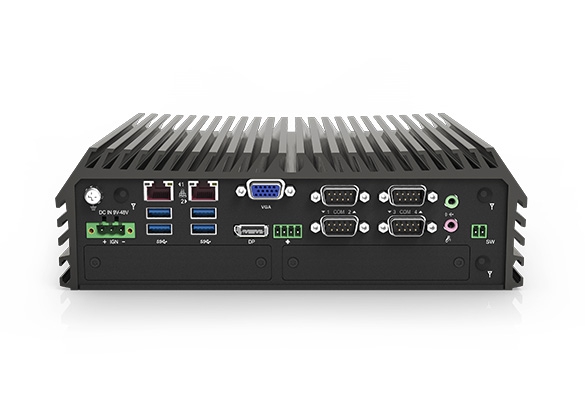

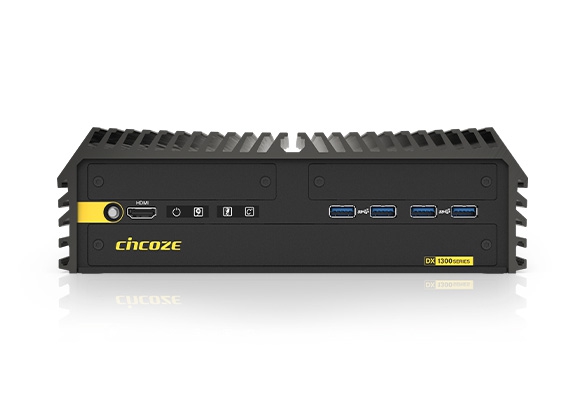

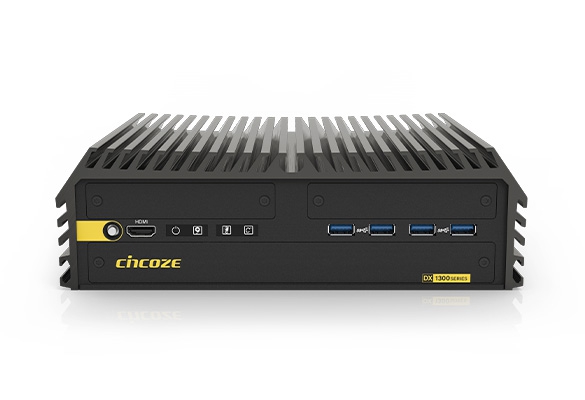

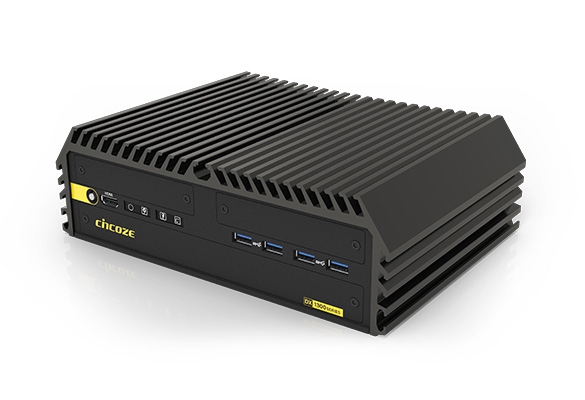

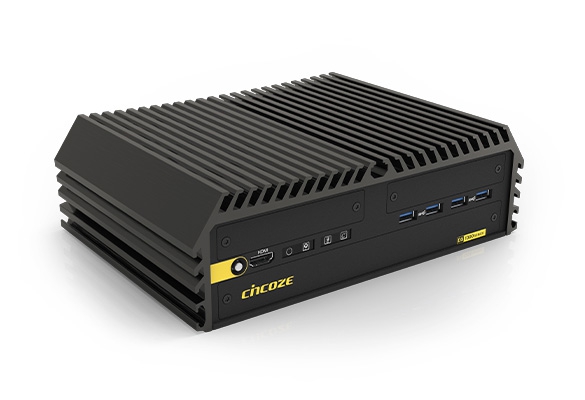

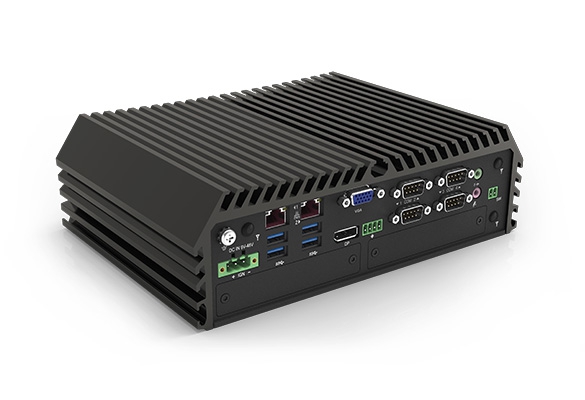

DX-1300

Intel® Arrow Lake-S Core™ Ultra 200S 系列處理器，高效能且精巧的強固型嵌入式電腦
產品特點
  • Intel® Arrow Lake-S Core™ Ultra 200S 系列（最高 65 W TDP）
  • 2× DDR5 SODIMM／CSODIMM 插槽，最高 6,400 MHz，支援 96 GB
  • 寬溫運作範圍：-40 °C 至 60 °C
  • 選配 CMI 模組，支援 I/O 擴充
  • 選配 CFM 模組，支援 硬體 TPM、點火偵測與 PoE
產品認證
  • EN 50121-3-2
  • MIL-STD-810H
  • EN 45545
  • CB
  • UL
加入諮詢清單 規格表
產品介紹

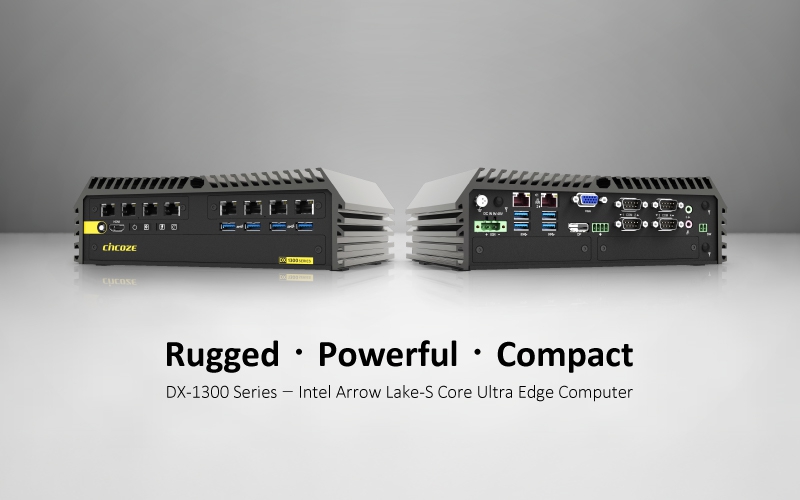

Rugged．Powerful．Compact : DX-1300 Series — Intel Arrow Lake-S Core Ultra Edge Computer

DX-1300 是一款以高效能邊緣運算為核心設計的緊湊型工業電腦，搭載 Intel Arrow Lake-S Core ™ Ultra 200S 系列處理器，能有效支援高階影像處理、AI 推論與多工資料整合等嚴苛的邊緣應用需求。DX-1300 系列憑藉緊湊的體積卻成功整合優異的運算效能與豐富的功能配置，並維持工業等級的高強固性，特別適合追求高效能但安裝空間受限的應用，尤其在製造、車載與軌道交通市場中擁有高度評價。

Product Category >>>> Rugged Embedded Fanless PC



新世代 Edge AI 運算效能

——

搭載 Intel® Core™ Ultra 200S 處理器，透過整合的 CPU、GPU 以及專為 AI 加速設計的 NPU，提供高達 36 TOPS 的 AI 運算效能，較前一代平台提升超過 3.5 倍。

新世代 Edge AI 運算效能
緊湊機身


緊湊機身

——

僅 242 x 173 x 75mm 的緊湊機身，平面安裝面積相當於 11 吋 iPad 大小，可靈活部署於安裝空間受限的控制機櫃、設備內部或車載系統等場域。



豐富多元的擴充性

——

內建多個 M.2 B / E Key 插槽，可彈性支援無線通訊模組（5G／GNSS／Wi-Fi／Bluetooth）、高速儲存（NVMe SSD）與大容量儲存（SATA SSD）以及 I/O 擴充模組，可因應不同應用靈活配置。

豐富多元的擴充性
高速穩定的資料傳輸


高速穩定的資料傳輸

——

高速且穩定的資料傳輸對於影像擷取、監控等應用至關重要。DX-1300 支援多款高速 I/O ，包括 10／2.5／1 GbE LAN 與 USB 3.2，且最高可擴充至 12 x LAN 或 8 x PoE，可有效簡化佈線的難度。



強固與多垂直市場認證

——

除了具備高度強固性外，亦符合軍規（MIL-STD-810H）、軌道交通（EN 50121-3-2 & EN 45545-2），可穩定部署於各類嚴苛應用環境。

強固與多垂直市場認證
詳細規格
Model NameDX-1300
SystemProcessor• Arrow Lake-S Ultra 200S Series CPU:
  - Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W
  - Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W
  - Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W
  - Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W
  - Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W
  - Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W
  - Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W
Chipset• Intel W880 Chipset
Memory• 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type
  - Ultra 9 / 7: Supports Up to 6400MHz, 96GB
  - Ultra 5: Supports Up to 5600MHz, 96GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® Xe LPG Graphics
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1200@60Hz
DP• 1x DP Connector : 4096 x 2304@60Hz
  - Support cable switch HDMI 4096 x 2160@30Hz
  * Verified maximum resolution: 3840x2160 @60Hz
HDMI• 1x HDMI Connector : 4096x2160@30Hz
  * Verified maximum resolution: 3840x2160 @30Hz
AudioAudio Codec• Realtek® ALC888, High-Definition Audio
Line-out• 1x Line-out, Phone Jack 3.5mm
Mic-in• 1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5 GbE LAN, RJ45
  - GbE1~2: Intel® I226
COM• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 4x 10Gbps USB 3.2 Gen2x1, Type A
• 4x 5Gbps USB 3.2 Gen1x1, Type A
Storage / Expansion2.5" SSD / HDD• 2x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion
• 1x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / SATA / USB 2.0), Support Storage / Add-on Card Expansion
M.2 Key E Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless / Bluetooth / Storage / Intel CNVi Module Expansion
SIM• 1x SIM Socket
CMI (Combined Multiple I/O) Socket• 2x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Socket• 1x CFM-IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM-TPM Interface for optional CFM-TPM Module Expansion
Other FunctionRAID• Support RAID 0/1/5/10
External FAN Connector• 1x External FAN Connector, 4-pin Terminal Block
  (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
TPM• Support Discrete TPM2.0 (with Optional CFM Module)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Holes• 3
PowerPower Button• 1x ATX Power On/Off Button
Power Mode Switch• 1x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1x Remote Power LED, 2-pin Terminal Block
Max Power Consumption• 35W CPU: 162W
• 65W CPU: 272.88W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in test
Inrush Current (Peak)• 35W CPU: 5.24 A@24V
• 65W CPU: 4.939 A@24V
PhysicalDimension ( W x D x H )• 242.2 x 173 x 75mm
Weight Information• 3.59 kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall Mount / DIN-Rail / VESA / Side Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 332,808 Hours
  - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 24.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉)
• 65W TDP Processor: -40°C to 50°C (-40℉ to 122℉) With External Fan Kit
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C (-40℉ to 185℉)
Relative Humidity• 95%@60°C (non-Condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges:  AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Railway• EMC:
  EN 50155: 2021 Clause 4.4.6, 13.4.9
  - EN 50121-1 : 2017
  - EN 50121-3-2: 2016 + A1: 2019
Industrial Environment• EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
Maritime Application• EMC
  - IEC 60945
    (Compliant with additional power protection module)
Fire Protection• EN 45545-2
Safety• UL, cUL, CB, IEC, EN 62368-1
訂購資訊
Available Models
Model No.Product Description
DX-1300-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and Compact Rugged Embedded Computer

Package Checklist
DX-1300 Series Embedded System x1Power Terminal Block Connector x1
CPU Heatsink Pack x1Remote Power On/Off Terminal Block Connector x 1
Screw Pack x1Fan Terminal Block Connector x 1
Wall Mounting Kit x1M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.Description
CFM-PoE01CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-TPM02-R10CFM Module with Hardware TPM 2.0
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4 x M12 Intel I210 1GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports
CMI-2P5GLAN01-R10CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port
CMI-10GLAN05-R10CMI Module with 2x Intel 10GbE LAN, RJ45 Port
CMI-10GXM12LAN01-R10CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector
CMI-DIO01CMI Module with 16DIO (8in 8out)
CMI-COM01CMI Module with 2x RS232/422/485 (Support 5V/12V)
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-CAN-2814iM.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector, Cervoz
MEC-COM-2012M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-LAN-2002iM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz
MEC-LAN-2002i-SM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0℃~+70℃),  2x RJ45 Connector, Cervoz
UB0930-R10Universal Bracket with 4x M12 X-Coded Cutout
UB0932-R10Universal Bracket with 3x Antenna Cutout
UB1303Universal Bracket with 2x DB9 Cutout
UB1311Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1318Universal Bracket with DIO Cutout
UB1710-R10Universal Bracket with 4x M12 A-Coded Cutout
UB1712-R10Universal Bracket with 4x RJ45 Cutout
UB1728-R10Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
UB1737-R10Universal Bracket with 2x M12 X-coded Cutout
AC-BE01-R10M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
SIDE-DXDX Series side mount kit
DIN01DIN-RAIL Mount Kit, KMRH-K175
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI
RSD-200D-24Railway Single Output DC-DC Converter 200W / DC 24V
FAN-EX101External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
