工業觸控顯示器 (CV-100/M1000系列)

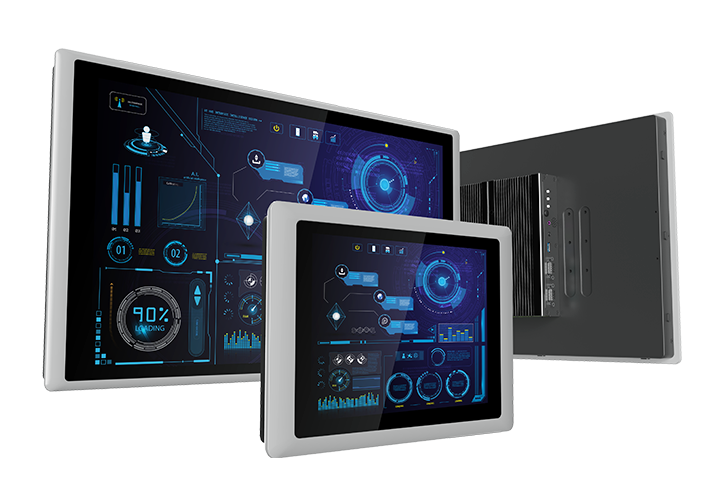

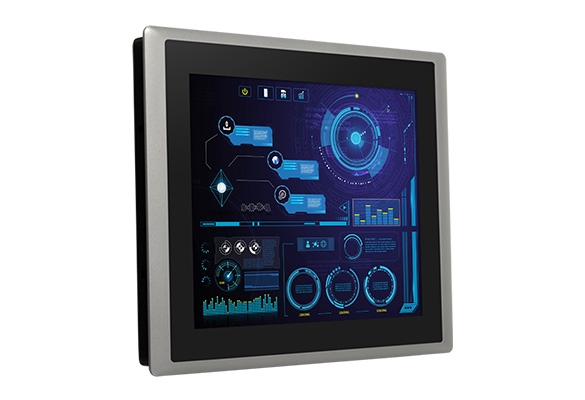

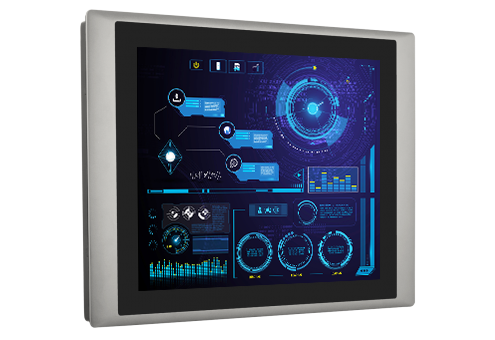

德承工業觸控顯示器是一體化的設備，它集成了高解析度的 TFT-LCD 螢幕、5 線式電阻或電容式觸控螢幕。可選尺寸從 8“到 24”與 4:3 和 16:9 的顯示器解析度。 Mylar 膜、背蓋、前方鋁板的顏色與商標皆可以客制，可適應客戶不同的設備或操作環境，並且提供相同的產品外觀與使用感受。| Product | Model Name | LCD Size | Touch Type | Resolution / Brightness | I/O |
|---|---|---|---|---|---|
 | CV-108 / M1101 Series | 8.4" TFT | Resistive / Capacitive | 800x600 (SVGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-110 / M1101 Series | 10.4" TFT | Resistive / Capacitive | 800x600 (SVGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-110H / M1101 Series | 10.4" TFT | Resistive / Capacitive | 1024x768 (XGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-112H / M1101 Series | 12.1" TFT | Resistive / Capacitive | 1024x768 (XGA) / 500 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-115 / M1101 Series | 15" TFT | Resistive / P-CAP / P-CAP (AG) | 1024x768 (XGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-117 / M1101 Series | 17" TFT | Resistive / Capacitive / without Touch | 1280x1024 (SXGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-119 / M1101 Series | 19" TFT | Resistive / Capacitive / without Touch | 1280x1024 (SXGA) / 350 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-W115 / M1101 Series | 15.6" TFT | Resistive / Capacitive | 1366x768 (WXGA) / 400 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
NEW  | CV-W115FH / M1101 Series | 15.6" TFT | Resistive / Capacitive | 1920x1080 (Full HD) / 350nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-W121 / M1101 Series | 21.5"TFT-LCD | Resistive / Capacitive / without Touch | 1920x1080 (Full HD) / 300 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
 | CV-W124 / M1101 Series | 24"TFT-LCD | Resistive / Capacitive / without Touch | 1920x1080 (Full HD) / 300 nits | 1x VGA 1x DisplayPort 1x HDMI 1x USB 2.0 (480Mbps) 1x COM 1x Audio |
