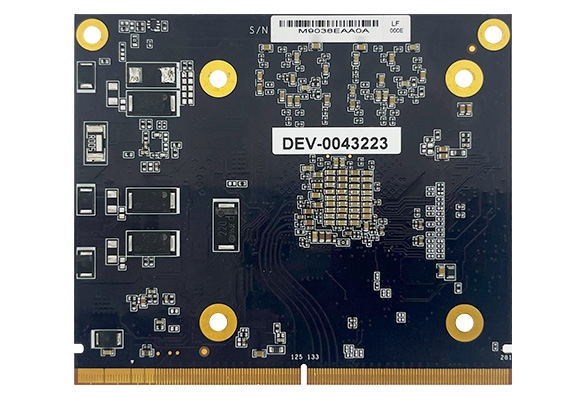

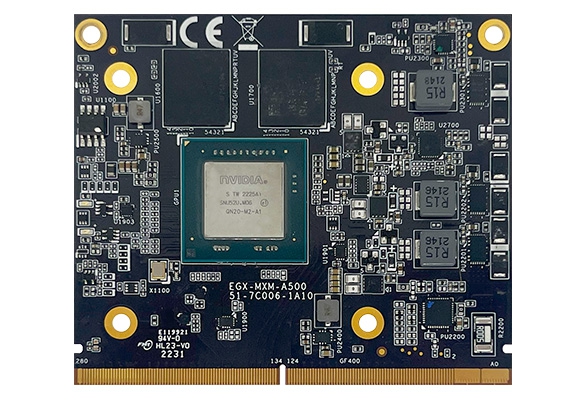

MXM-A500
NVIDIA Embedded RTX™ A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® RTX™ A500 Embedded Graphics
- Standard MXM 3.1 Type A Form Factor (82 x 70 mm)
- 2048 NVIDIA® CUDA® Cores, 16 RT cores, and 64 Tensor cores
- 6.54 TFLOPS Peak FP32 Performance
- PCIe Gen 4 x4 interface
- 5-year Availability
OVERVIEW
MXM-A500 is an embedded MXM GPU module equipped with an NVIDIA RTX™ GPU based on the Ampere Architecture, using the MXM 3.1 Type A form factor. It features 2048 CUDA® cores, 16 RT cores, 64 Tensor cores, and 4GB GDDR6 memory. With support for 6.54 TFLOPS peak FP32 performance, it's ideally suited for entry-performance edge computing and machine vision applications.
SPECIFICATION
GPU | NVIDIA RTX™ A500 GA107-950 GPU |
---|---|
Memory | 4GB GDDR6 memory, 64-bit (Bandwidth: 96 GB/s) |
CUDA Cores | 2048 CUDA cores, 6.54 TFLOPS peak FP32 performance |
Tensor Cores | 64 Tensor Cores |
RT Cores | 16 RT Cores |
Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
Graphics API | DirectX® 12, OpenGL 4.6 |
Display Outputs | N/A |
Interface | MXM 3.1, PCI Express Gen4 x4 support |
Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm |
Form Factor | Standard MXM 3.1 Type A |
Power Consumption | 40W |
OS Support | Windows 11, Windows 10 & Linux support by project |
ORDERING INFORMATION
Model No. | Description |
---|---|
MXM-A500-R10 | NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad |
NVIDIA RTX™ Embedded A500 GPU Card x 1 | GPU Heatsink x 1 |
GPU Thermal Pad Kit x 1 | Screw Pack x 1 |
Model No. | Product Description |
---|---|
MXM-HSKA-01 | MXM Type A Heatsink Kit for MXM-A500 |
* The MXM module kit includes a heat sink and thermal pads. The MXM Heat Sink Kit is intended for cases where an additional standalone heat sink and thermal pads are required.
DOWNLOADS
Subject | Release Date | Download |
---|---|---|
MXM-A500 Datasheet | 2024/11/08 | Download |
