MXM-T1000
Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® Quadro® T1000 Embedded Graphics
- Standard MXM 3.1 Type A Form Factor (82 x 70 mm)
- 896 NVIDIA® CUDA® Cores
- 2.6 TFLOPS Peak FP32 Performance
- 4GB GDDR6 Memory, 128-bit
- 5-year Availability
OVERVIEW

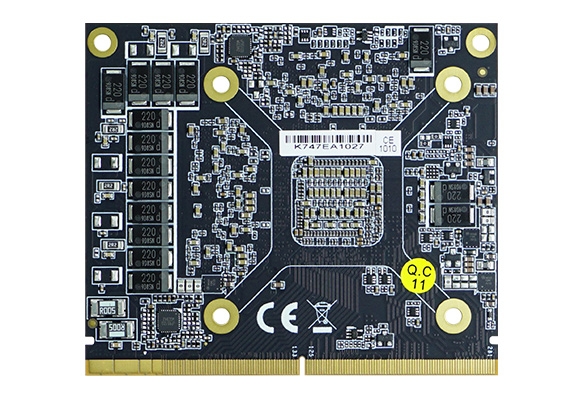

The MXM-T1000 is an Embedded MXM GPU module that features advanced NVIDIA Quadro GPU with NVIDIA® Turing™ GPU technology in MXM 3.1 Type A form factor. With 896 CUDA® cores, 2.6 TFLOPS Peak FP32, and 4GB GDDR6 memory, MXM-T1000 offers high performance in image processing and analytics for edge applications.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
| GPU | NVIDIA® Quadro® T1000 | |
|---|---|---|
| Memory | 4GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s) | |
| CUDA Cores | 896 CUDA® cores, 2.6TFLOPS peak FP32 performance | |
| Compute API | CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2 | |
| Graphics API | DirectX® 12, OpenGL 4.6, Vulkan 1.0 API | |
| Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz | |
| Interface | MXM 3.1, PCI Express Gen3 x16 support | |
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm | |
| Interface | PCI Express Gen3 x8 support | |
| Dimensions | 82 (W) x 70 (D) mm | |
| Form Factor | Standard MXM 3.1 Type A | |
| Power Consumption | 50W | |
| OS Support | Windows 10, Linux support by project | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| MXM-T1000-R10 | Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad |
| √ NVIDIA® Quadro® Embedded T1000 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
