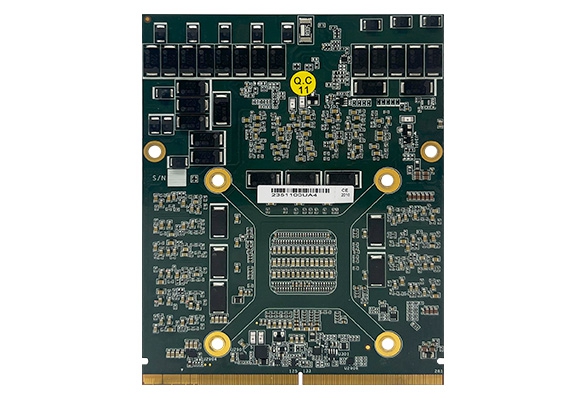

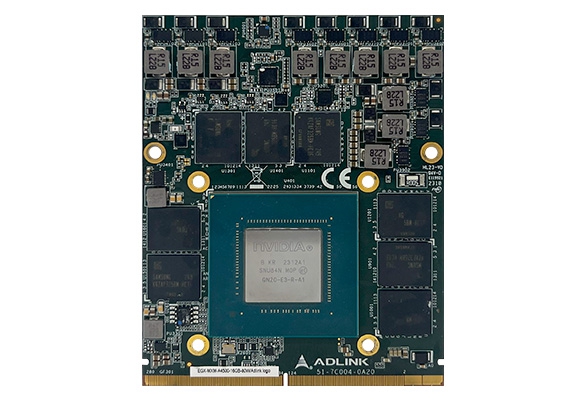

MXM-A4500
Nvidia Embedded RTX™ A4500 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® RTX™ A4500 Embedded Graphics
- Standard MXM 3.1 Type B Form Factor (82 x 105 mm)
- 5888 NVIDIA® CUDA® Cores, 46 RT cores, and 184 Tensor cores
- 17.66 TFLOPS Peak FP32 Performance
- PCIe Gen 4 x16 interface
- 5-year Availability
OVERVIEW
MXM-A4500 is an embedded MXM GPU module equipped with an NVIDIA RTX™ GPU based on the Ampere Architecture, using the MXM 3.1 Type B form factor. It features 5888 CUDA® cores, 46 RT cores, 184 Tensor cores, and 16GB GDDR6 memory. With support for 17.66 TFLOPS peak FP32 performance, it's ideally suited for high-performance edge computing and machine vision applications.
SPECIFICATION
GPU | NVIDIA RTX™ A4500 GA104-955 GPU |
---|---|
Memory | 16GB GDDR6 memory, 256-bit (Bandwidth: 512 GB/s) |
CUDA Cores | 5888 CUDA cores, 17.66 TFLOPS peak FP32 performance |
Tensor Cores | 184 Tensor Cores |
RT Cores | 46 RT Cores |
Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
Graphics API | DirectX® 12, OpenGL 4.6 |
Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz |
Interface | MXM 3.1, PCI Express Gen4 x16 support |
Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
Form Factor | Standard MXM 3.1 Type B |
Power Consumption | 80W |
OS Support | Windows 11, Windows 10 & Linux support by project |
ORDERING INFORMATION
Model No. | Description |
---|---|
MXM-A4500-R10 | NVIDIA Embedded RTX A4500 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad |
NVIDIA RTX™ Embedded A4500 GPU Card x 1 | GPU Heatsink x 1 |
GPU Thermal Pad Kit x 1 | Screw Pack x 1 |
Model No. | Description |
---|---|
MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
* The MXM module kit includes a heat sink and thermal pads. The MXM Heat Sink Kit is intended for cases where an additional standalone heat sink and thermal pads are required.
