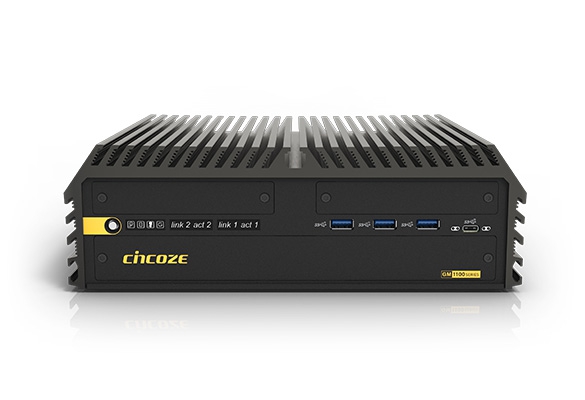

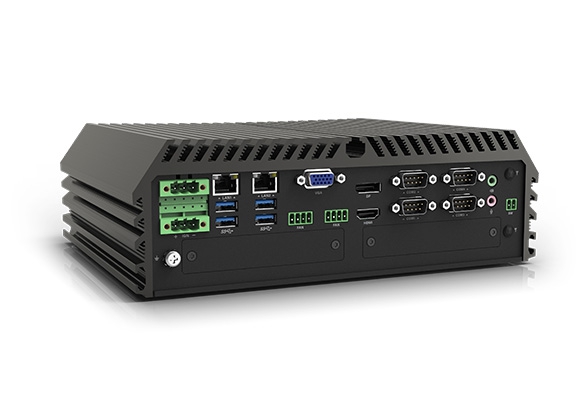

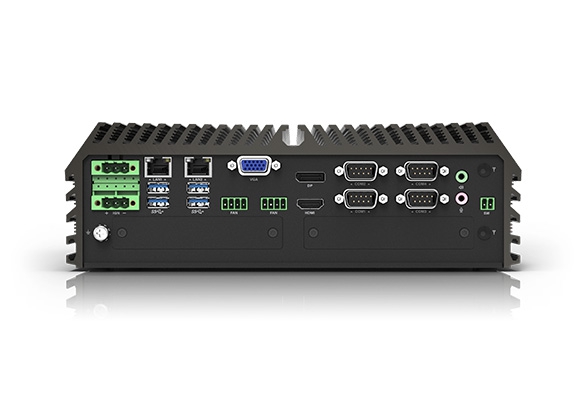

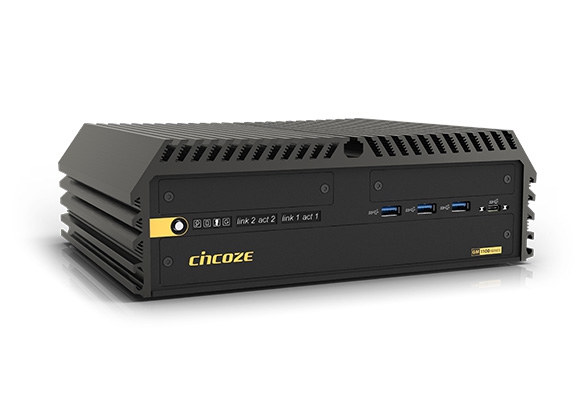

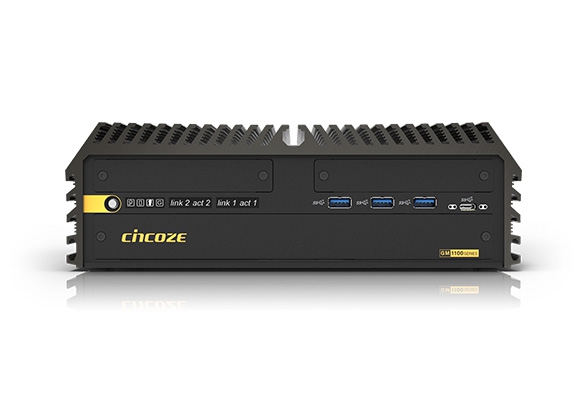

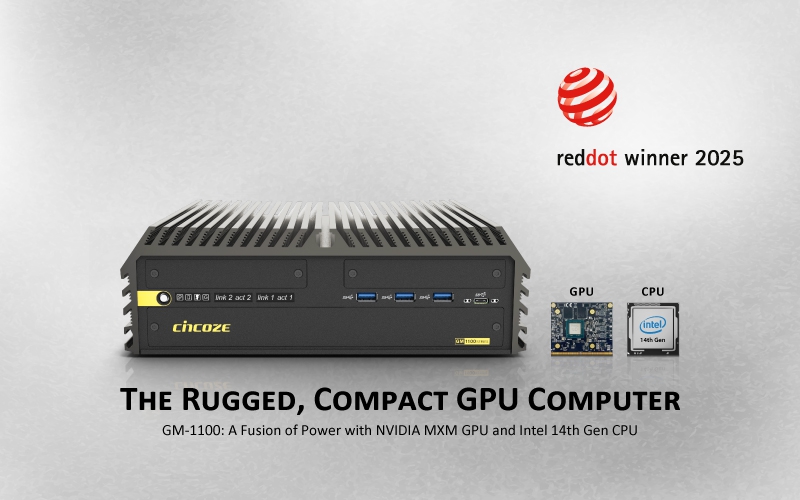

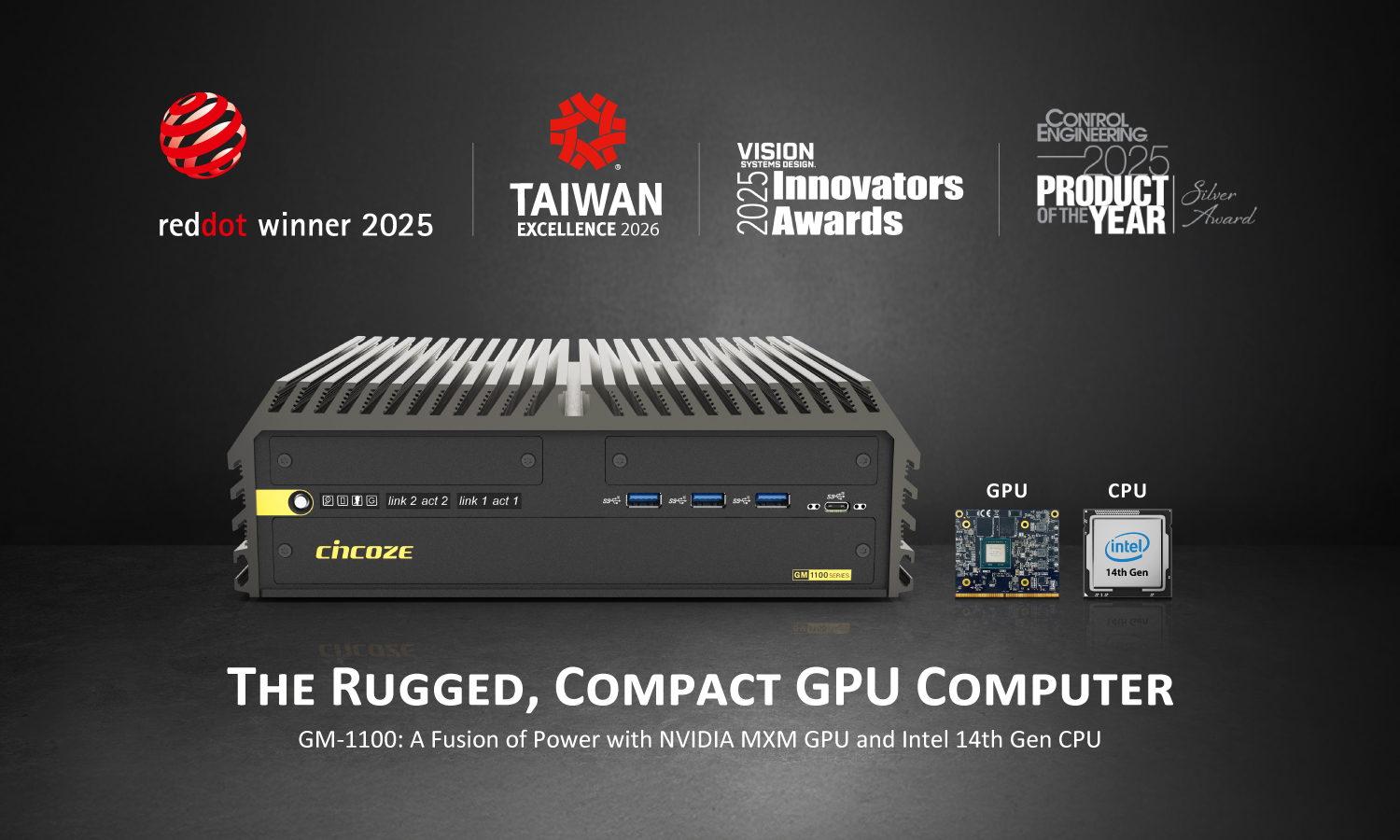

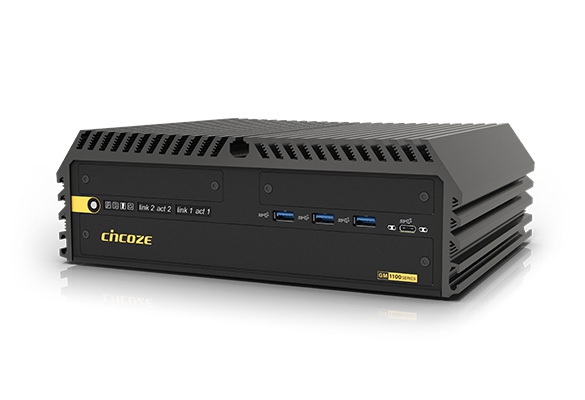

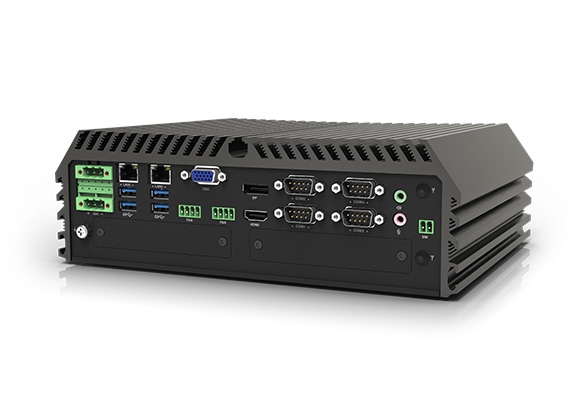

GM-1100

14/13/12th Gen Intel® Core™ Series Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket

PRODUCTS FEATURES

Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
Supports 1x MXM 3.1 Type A/B form factor GPU module expansion.
1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector
1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage
1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
2 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
Wide operating temperature -40°C to 70°C

CERTIFICATIONS

OVERVIEW
SPECIFICATION
ORDERING INFORMATION
DOWNLOADS

OVERVIEW

The GM-1100 is a compact and rugged embedded MXM GPU computer for high-performance computing needs. It combines powerful computing and graphics processing capabilities with highly flexible expansion, making it ideal for edge AI applications with limited installation space.

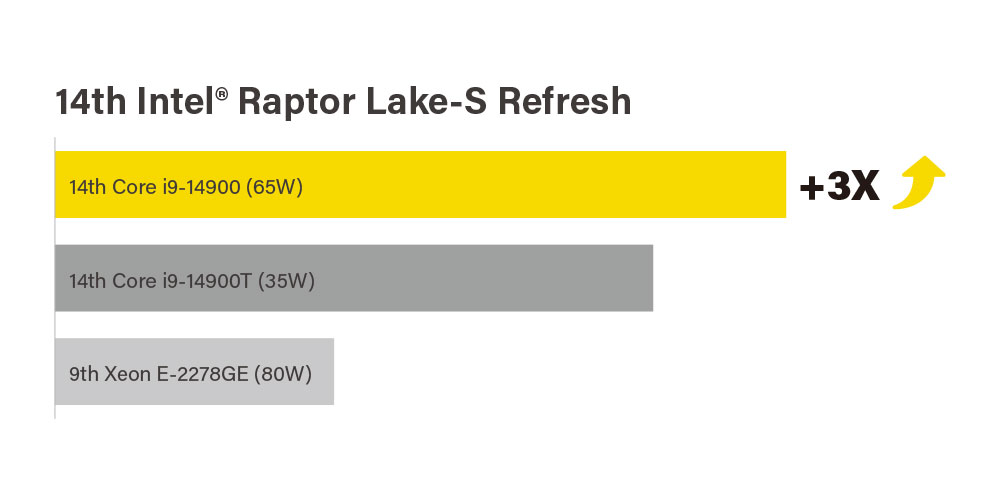

3X Performance boost

——

Equipped with a 14th generation Intel® Core (Raptor Lake-S Refresh) processor, the GM-1100 is capable of three times the computing performance of its predecessor. For highly complex or specialized tasks the hybrid or P-core monolithic architecture can be chosen for the best performance based on specific needs.

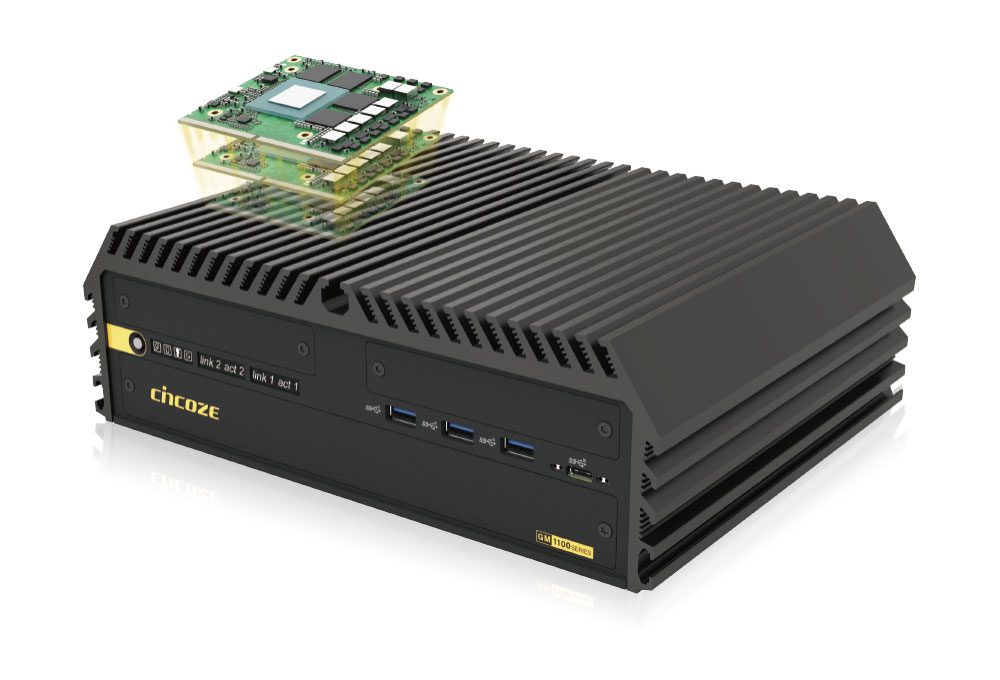

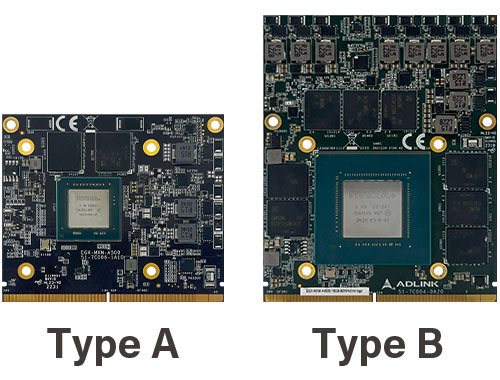

MXM GPU module

——

Type A and B MXM GPU modules allow comprehensive options to suit lightweight AI or high-performance AI inference applications. The special modular design also means painless upgrades to higher-end MXM modules to bolster performance in the future.

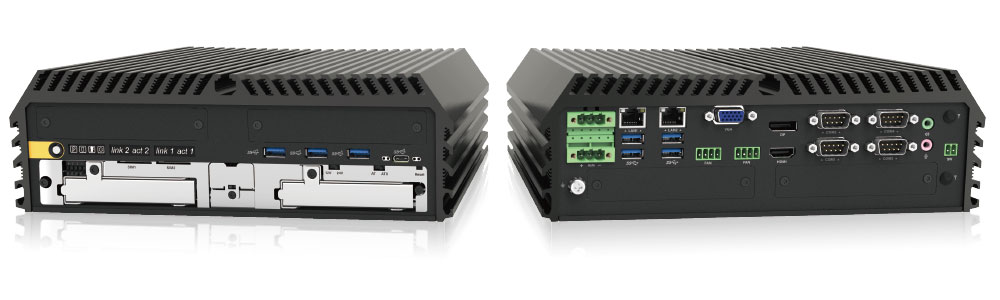

High-speed connections and
data storage

——

Native 2.5GbE LAN and 20Gbps USB 3.2 Gen2x2 Type-C high-speed connections effectively improve the efficiency of image and file transfer. Storage options include two 2.5” HDD/SSD bays and options for high-speed NVMe SSD storage.

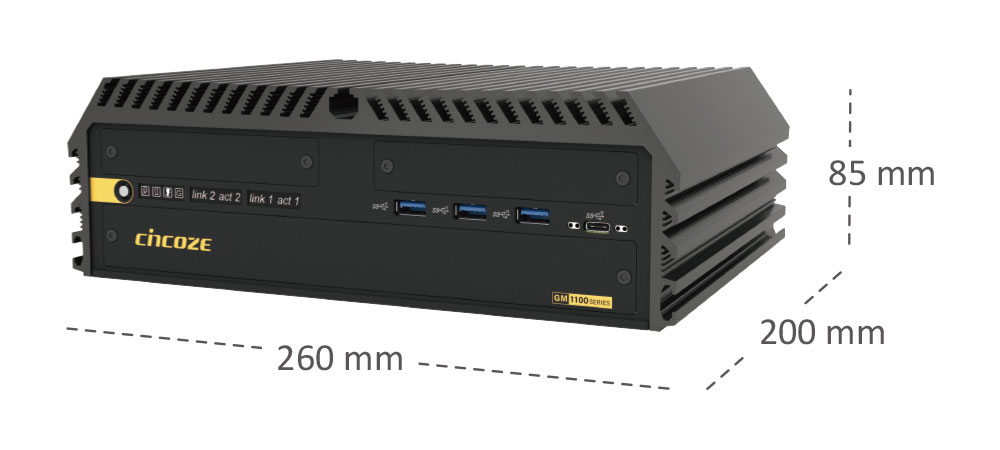

Ideal for mobility applications

——

Compact size (260 x 200 x 85 mm), multiple M.2 expansion slots for 5G of Wi-Fi communication modules, and compliance with rail transit certification (EN50121-3-2) and vehicle certification (E-mark) make the GM-1100 ideal for mobility applications.

Superior cooling performance

——

The innovative thermal design improves system cooling by providing independent heat dissipation channels for the CPU and GPU to the upper cover and sides of the extruded aluminum case. Combined with an external fan, it provides a solid foundation for stable and reliable operation.

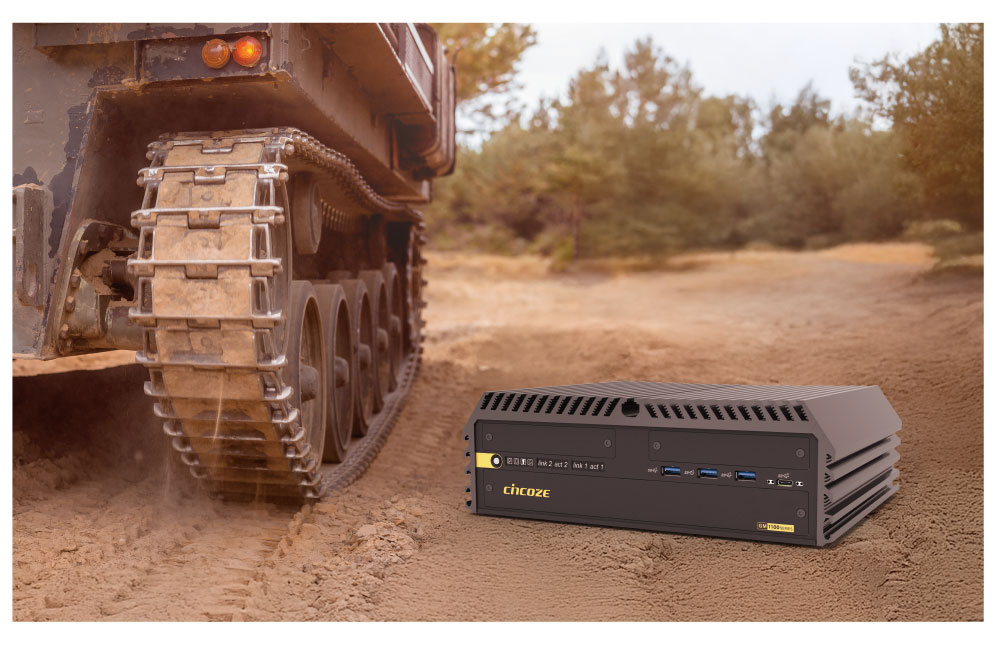

Rugged safety

——

The harsh challenges of the Edge AI environment are overcome with industrial grade wide temperature (-40 to 70°C) and wide voltage (9 to 48 VDC) support, and passing the US military shock standard (MIL-STD-810H) to ensure product stability and safety.

Video

NEED HELP ?

info@cincoze.com

SPECIFICATION

Model Name		GM-1100
System	Processor	14th Generation Intel® Raptor Lake-S Refresh Series CPU (Coming Soon) 13th Generation Intel® Raptor Lake-S Series CPU: • Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W • Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W • Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 65W • Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W • Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W 12th Generation Intel® Alder Lake-S Series CPU: • Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W • Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W • Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W • Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W • Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W • Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W • Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W • Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W • Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W • Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W • Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	• Intel R680E Chipset
	Memory	• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
	Maximum Display Output	• Supports Triple Independent Display
	DP	• 1x DisplayPort Connector (4096 x 2304@60Hz) *Verified maximum resolution: 3840x2160@ 60Hz
	HDMI	• 1x HDMI Connector (4096 x 2160@30Hz) *Verified maximum resolution: 3840x2160@ 30Hz
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	• Realtek® ALC888, High Definition Audio
	Line-out	• 1x Line-out, Phone Jack 3.5mm
	Mic-in	• 1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219
	COM	• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 1x 20Gbps USB3.2 Gen2 x2, Type C • 3x 10Gbps USB3.2 Gen2 x1, Type A • 4x 5Gbps USB3.2 Gen1 x1, Type A
Storage	SSD/HDD	• 2x 2.5” Front Accessible SATA HDD/SSD Drive Bay ( SATA3.0 ) (up to 15mm in Height)
	M.2 SSD	• 1x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0) • 1x M.2 SSD Shared by M.2 Key B Type 3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA SSD (SATA3.0) • 2x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4x2 NVMe SSD or SATA SSD (SATA3.0)
	RAID	• Support RAID 0/1/5/10
Expansion	MXM Socket	• 1x MXM Carrier Board Socket for MXM GPU Module Expansion
	M.2 E Key Socket	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
	M.2 B Key Socket	• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 2x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
	SIM Socket	• 2x SIM Socket
	CMI (Combined Multiple I/O) Interface	• 1x High Speed CMI Interface for optional CMI Module Expansion • 1x Low Speed CMI Interface for optional CMI Module Expansion
	CFM (Control Function Module) Interface	• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function	External FAN Connector	• 2x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
	Power Ignition Sensing	• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	Antenna Holes	• 2x Antenna Holes
	Status LED Indicator	• HDD LED、GPIO LED、IGN LED、GPU LED、Ethernet LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9-48 VDC, Single Power Source Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A • Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Max. Power Consumption	• 35W CPU: 187.51W • 65W CPU: 258.96W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing.
	Inrush Current (Peak)	• 35W CPU: 5.467A@24V • 65W CPU: 5.725A@24V
Physical	Dimension ( W x D x H )	• 260 x 200 x 85 mm
	Weight Information	• 4.73 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / Side / DIN-RAIL / VESA Mount
	Physical Design	• Fanless Design • Cableless Design • Jumper-less Design • Unibody Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 30A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 313,541 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	• Windows®11, Windows®10
Operating System	Linux	• Ubuntu Desktop 22.04 LTS
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor with external FAN: (TBC) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * For GM-1100 + MXM GPU Module operating temperature, please refer to the last page – Operating Temperature Matrix Table for more information (TBC) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• 95%RH @ 70°C (non-Condensing)
	Shock	• MIL-STD-810H
	Vibration	• MIL-STD-810H
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

ORDERING INFORMATION

Available Model
Model No.	Description
GM-1100-R10	14/13/12th Gen Intel® Core™ Series Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket

Package Checklist
GM-1100 GPU Computer x 1	Remote Function Terminal Block Connector x1
CPU Heatsink Pack x1	External Fan Terminal Block Connector x2
Screw Pack x1	Wall Mounting Kit x1
Power Terminal Block Connector x 2	M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional MXM GPU Module & Accessories
Model No.	Description
MXM-A4500-R10	NVIDIA Embedded RTX A4500 MXM Type A, 16G, 80W Kit with Heatsink and Thermal Pad
MXM-A2000-R10	NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad
MXM-A1000-R10	NVIDIA Embedded RTX A1000 MXM Type A, 4G, 60W Kit with Heatsink and Thermal Pad
MXM-A500-R10	NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad
MXM-RTX3000-R10	NVIDIA Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad
MXM-T1000-R10	NVIDIA Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad
MXM-HSKA-01	MXM Type A Heatsink Kit for MXM-A500
MXM-HSKA-02	MXM Type A Heatsink Kit for MXM-A1000 & MXM-A2000
MXM-HSKA-03	MXM Type A Heatsink Kit for MXM-T1000
MXM-HSKB-01	MXM Type B Heatsink Kit for MXM-A4500
MXM-HSKB-02	MXM Type B Heatsink Kit for MXM-RTX3000

Optional Modules and Accessories
Model No.	Description
CB-DP02-R10	Carrier Board with one MXM 3.1 interface and no DisplayPort output for MXM-A500
CB-DP03-R10	Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output
CB-DP04-R10	Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output for MXM-A4500
CMI-LAN01-R12	CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12	CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10	CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN01-R10	CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port
CMI-DIO01	CMI Module with 16x Optical Isolated DIO (8 in/8 out)
CMI-COM01	CMI Module with 2x RS232/422/485 (Support 5V/12V)
CFM-PoE01	CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
UB1303	Universal Bracket with 2x DB9 Cutout
UB1310	Universal Bracket with 4x M12 Cutout
UB1312	Universal Bracket with 4x RJ45 Cutout
UB1318	Universal Bracket with DIO Cutout
UB1328	Universal Bracket with 2x RJ45 Cutout
UB1329	Universal Bracket with 4x DP
UB1330-R10	Universal Bracket with 4x M12 X-Coded Cutout
UB1332-R10	Universal Bracket with 3x Antenna Cutout
FAN-EX102	External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function
SIDE-GM	GM Series side mount kit
DIN01	DIN-RAIL Mount Kit, KMRH-K175
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST360A24-CIN	Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
RSD-200D-24	Railway Single Output DC-DC Converter 200W / DC 24V

Carrier Board and MXM GPU Compatibility Matrix
	CB-DP02 (compatible with standard UB)	CB-DP03/UB1329	CB-DP04/UB1329
MXM-A500	V
MXM-A1000		V
MXM-A2000		V
MXM-A4500			V
MXM-T1000		V
MXM-RTX3000		V
