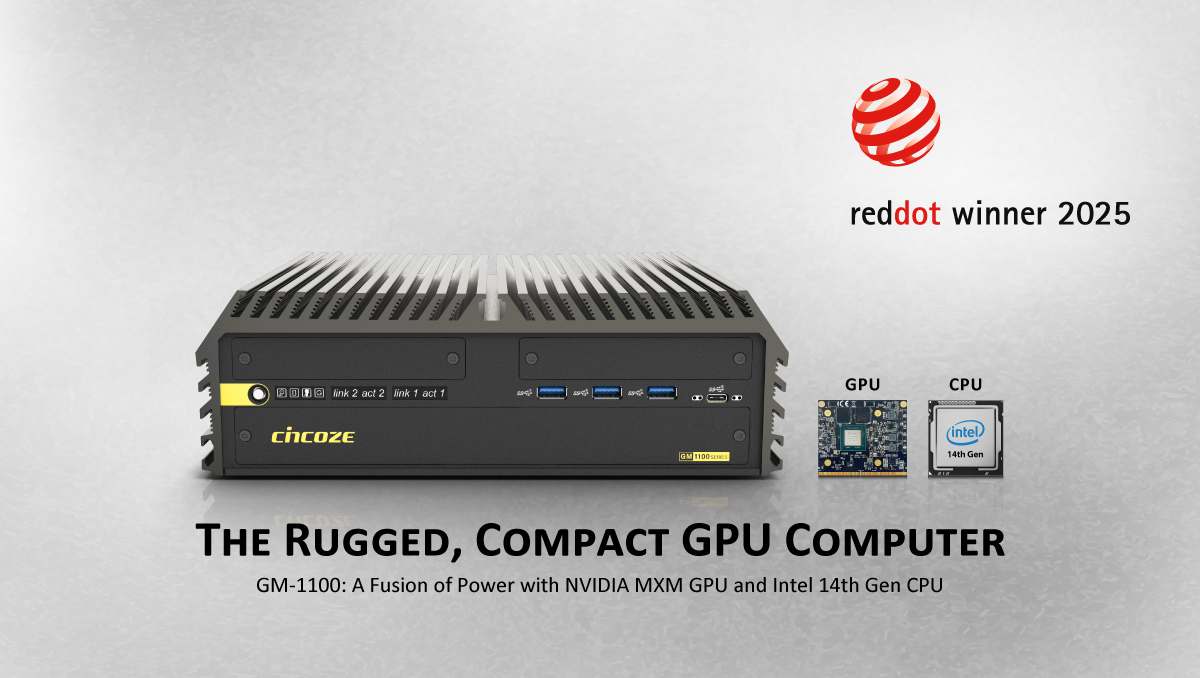

[ Product Spotlight ] Cincoze GM-1100 Embedded MXM GPU Computer
The GM-1100, part of the Cincoze GPU Computing — GOLD product line, is a rugged embedded computer that supports an MXM GPU for high-performance computing needs. It combines powerful computing and graphics processing capabilities with highly flexible expansion and compact size, making it ideal for edge AI applications with limited installation space.
CPU & GPU Powerful Performance
Superior computing performance with a 14th-generation Intel® Raptor Lake-S Refresh processor and NVIDIA MXM Type A or Type B GPU card.
Flexible Expansion
Rich native I/O interface, plus expandable I/O and functions through Cincoze’s exclusive CMI/CFM modules.
High-speed Transmission and Storage
Ideal for the high-speed transmission and storage requirements of Edge AI. Up to 10 GbE LAN and 20 Gbps USB 3.2 Type C. Includes NVMe SSD storage options.
Compact Size & Flexible Installation
Perfect for space-limited deployments. The main body measures 260 × 200 × 85 mm and supports multiple installation methods, including wall mounting, side mounting, and DIN Rail.
Why choose the Cincoze GM-1100?

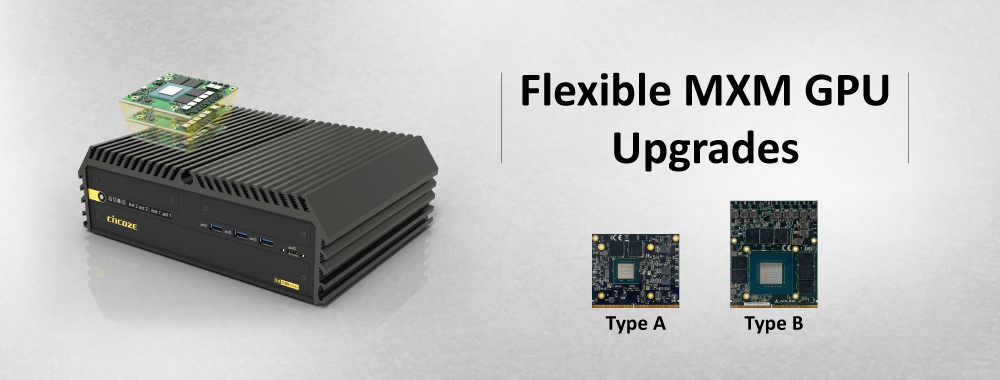

Exclusive MXM GPU carrier board for easy upgrades
Through its exclusive carrier board design, the GM-1100 supports MXM Type A and Type B GPU modules, offering flexible options for both lightweight and high-performance AI applications. This modular architecture makes subsequent upgrades more convenient, as you only need to replace the MXM GPU modules, simplifying the upgrade process.

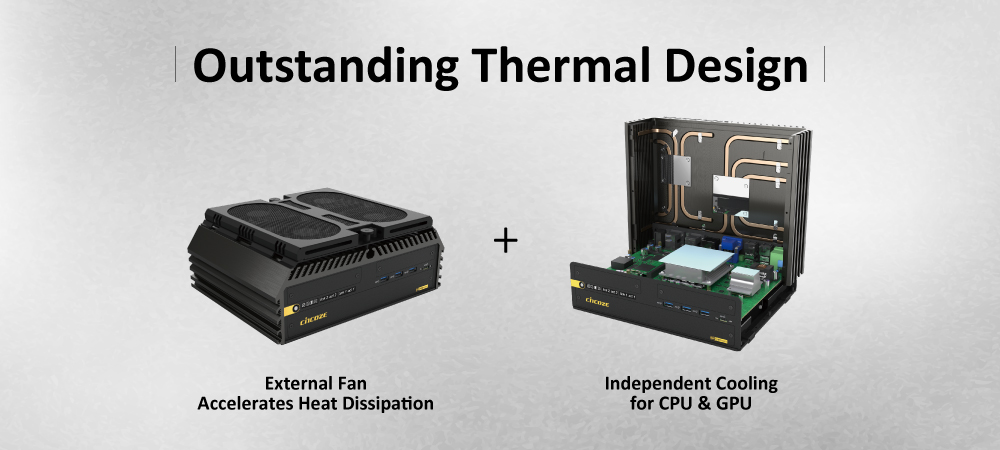

Unique heat dissipation design for stable operation
The innovative thermal design enhances system cooling by providing independent heat dissipation channels for the CPU and GPU to the upper cover and sides of the extruded aluminum case. Combined with an external fan for increased heat dissipation, it ensures long-term stable operation.

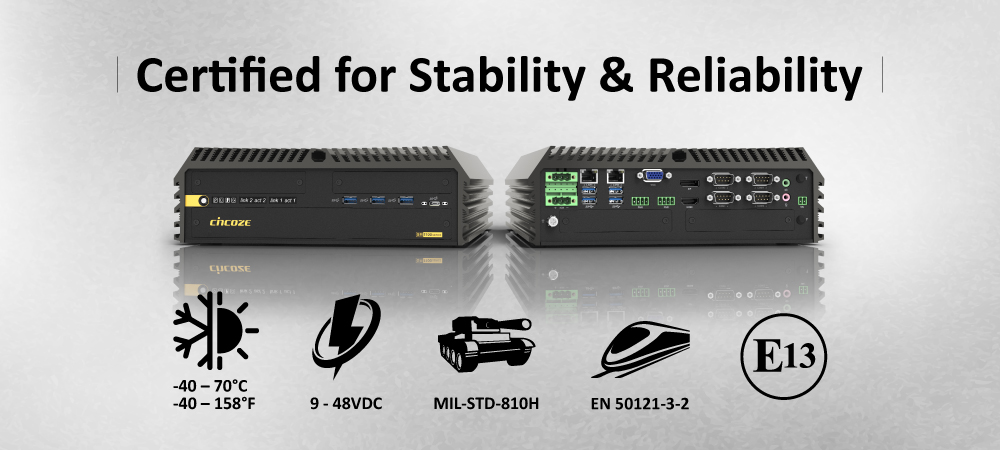

International certifications ensure safety and stability
The GM-1100 supports a wide temperature range of -40 to 70°C and a wide voltage input of 9-48VDC, passing the MIL-STD-810H military standard. It has obtained international certifications, including EN 50121-3-2 rail EMC certification and E-mark vehicle certification. The GM-1100 meets the application needs of various industry verticals.

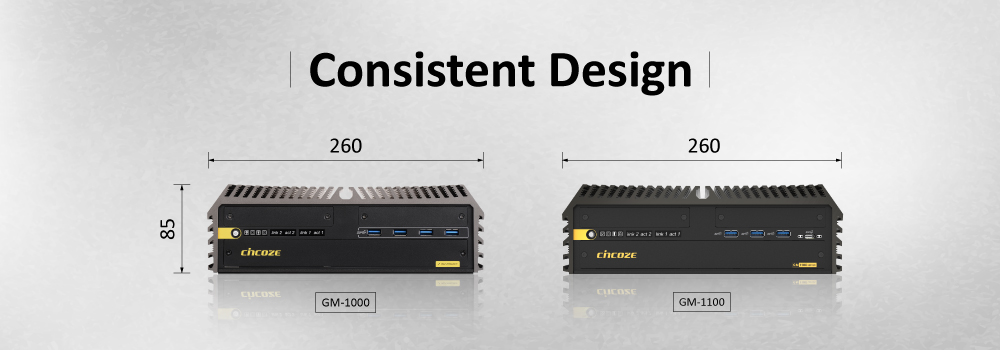

Design consistency for time and cost savings
Cincoze series products maintain consistent appearance, size, and lock hole configuration across each series, allowing for seamless upgrades to the next generation of products without altering the original mechanical design. Expansion modules are also directly compatible, further reducing the time and cost of upgrades and maintenance.
Cincoze GM-1100 Embedded MXM GPU Computer
 | ||||
| GM-1100 | ||||
| CPU | Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors | |||
| MXM GPU | Entry-Level MXM-A500 (Type A) | Mid-Range MXM-A1000 (Type A) | Mid-Range MXM-A2000 (Type A) | High-End MXM-A4500 (Type B) |
| Memory | 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 64GB | |||
| Native I/O | 1x 2.5GbE LAN 1x 1GbE LAN 4x RS-232/422/485 1x 20Gbps USB3.2 Gen2 x2, Type C 3x 10Gbps USB3.2 Gen2 x1, Type A 4x 5Gbps USB3.2 Gen1 x1, Type A | |||
| Expansion | 2x CMI & 1x CFM interface for I/O and function expansion 1x M.2 Key B Type 3042/3052 Socket 2x M.2 Key B Type 2242 Socket | |||
| Size | 260 x 200 x 85 mm | |||
