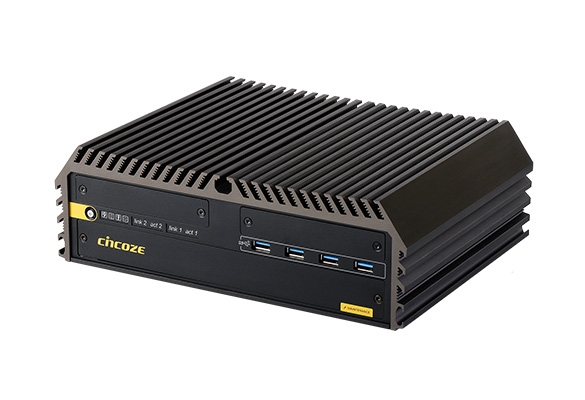

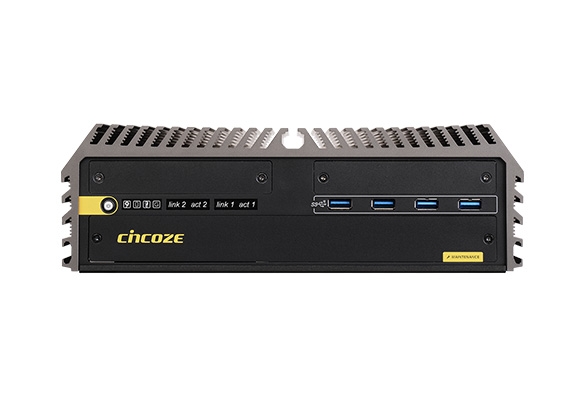

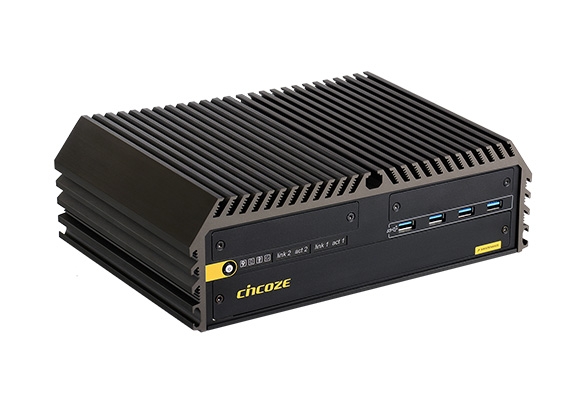

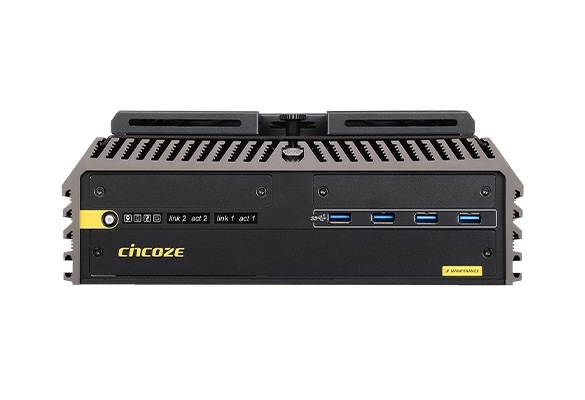

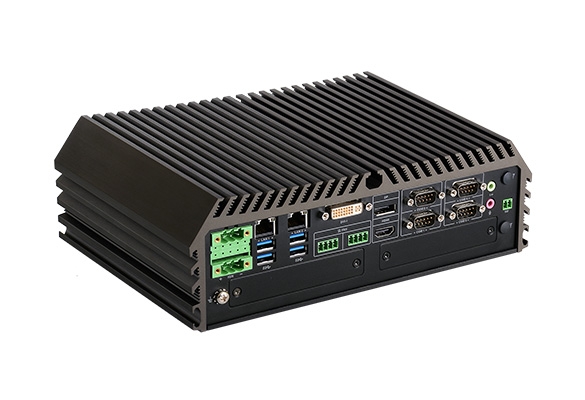

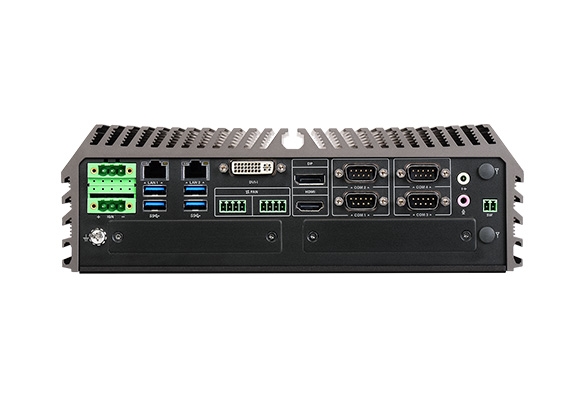

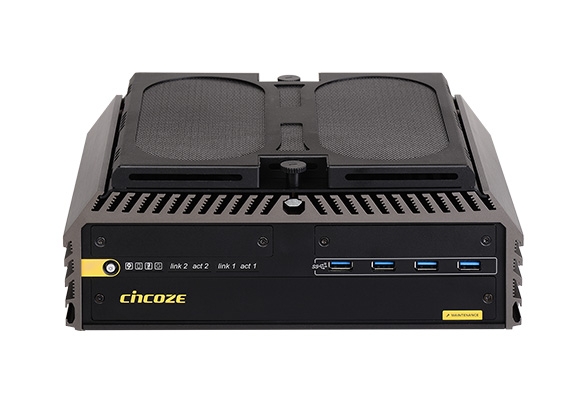

GM-1000
9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket
PRODUCTS FEATURES
- Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores
- Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
- 2x DDR4 SO-DIMM sockets, up to 2666MHz, 128GB
- Supports wide operating temperature (-40°C - 70°C) and vibration/shock tolerance (5G/50G)
- 260 mm x 200 mm x 85 mm compact footprint
- Flexible functionality expansions:
- M.2 E key (CNVi), full-size Mini-PCIe and M.2 M Key (NVMe SSD)
- Proprietary CMI interface for various I/O expandability
- Proprietary CFM interface for PoE+ or Power Ignition Sensing
OVERVIEW
Many computers struggle to handle the high-speed image capture and processing demands of machine vision applications. Both CPU computing power and GPU graphics acceleration are needed because the combination provides the fastest and most accurate results for image processing and data analysis, improving productivity and efficiency. Machine vision is an essential element of automatic inspection, process control, and robot guidance.
The Cincoze GM-1000 is a machine vision computer designed for machine vision applications, but with enough extra for artificial intelligence and image processing. All this in a tough, compact, and reliable package.

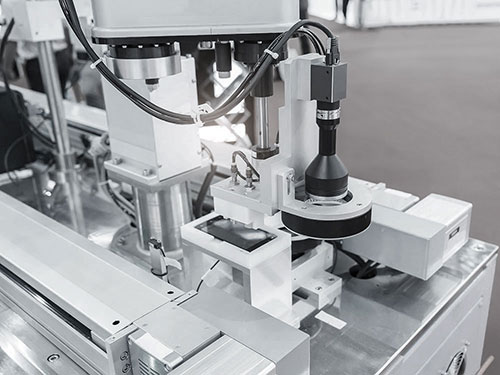

Machine Vision and Inspection
Industrial Automation
Video Surveillance

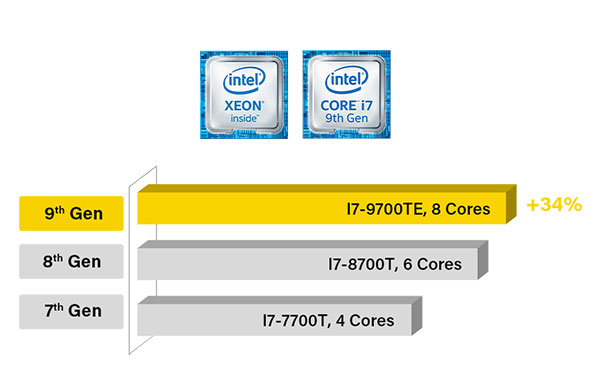

34% Faster
Core Performance
——
Intel® Xeon® and Core™ (8/9th gen) CPU options with up to 8 cores, deliver 34% more performance than previous generations and support up to 128 GB of DDR4 memory.

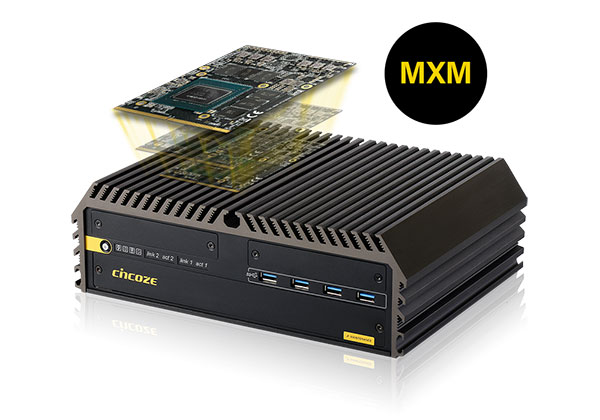

MXM
GPU Expansion
——
GPUs are the key to super-fast image processing. The MXM 3.1 Type A/B expansion slot supports modern MXM GPUs. Standard options are an Nvidia Quadro RTX3000/T1000 or AMD Radeon E9174 GPU, but upgrades to even faster MXM GPUs (up to 160 W) can further accelerate performance.

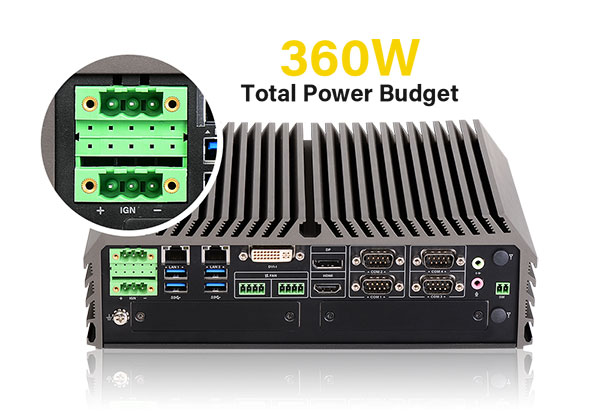

Generous 360W Power Budget
Core Performance
——
The specialized power design of the GM-1000 provides a 360W power budget that counters the typical limitations of fanless embedded systems. A unique thermal design, combining independent cooling systems for CPU and GPU and extruded aluminum case with integrated copper heat piping, ensure operational reliability in the field.

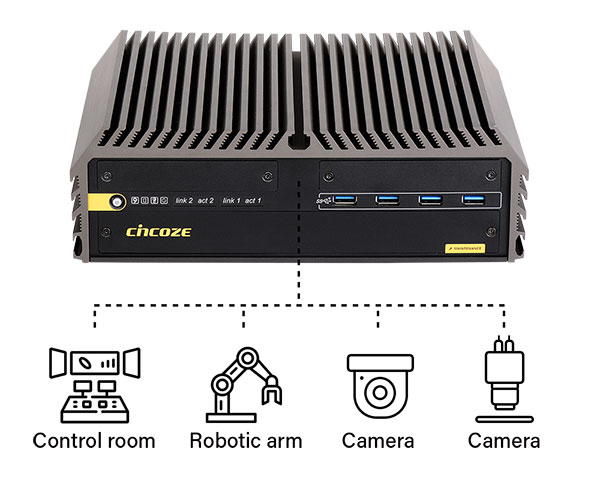

High Speed I/O
——
High-speed vision cameras require high-speed connections for near-instantaneous data transfer for image processing and analysis. GM-1000 provides high-speed I/O interfaces, including USB3.2 Gen2 and GbE LAN. PoE, additional LAN, and 10GbE are available through proprietary modules.

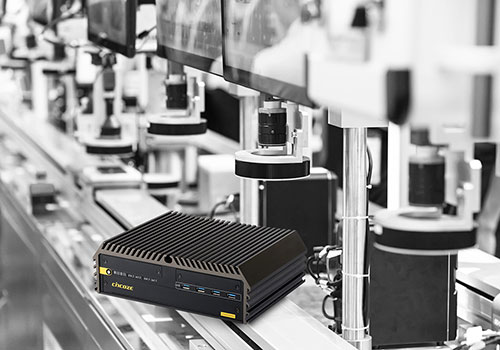

Compact Size
——
The compact GM-1000 is a diminutive 260x200x85 mm (WxLxH) but still includes essential I/O out-the-box, making it a compelling choice for space-constrained applications like robotic arms and AOI equipment.

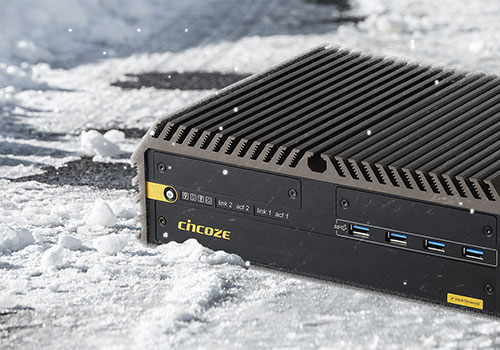

Industrial Grade
Rugged Design
——
The GM-1000 can operate in extreme industrial temperatures from -40 to 70°C. It has 50G/5G anti-shock and vibration resistance, wide-range voltage input from 9 to 48 VDC, as well as over-voltage, over-current, and ESD protection for applications in the harshest conditions.
Product Category >>>> Embedded GPU Computer
RESOURCES
SPECIFICATION
| Model Name | GM-1000 | |
|---|---|---|
| System | Processor | • 9th Generation Intel® Coffee Lake-R CPU: - Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake CPU: - Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W - Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W - Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W - Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W - Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W |
| Chipset | Intel C246 | |
| Memory | • 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Support up to 64 GB (Un-buffered and non-ECC type) * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400 MHz | |
| Graphics | • Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI) | |
| Audio | Realtek® ALC888, High Definition Audio | |
| BIOS | AMI BIOS | |

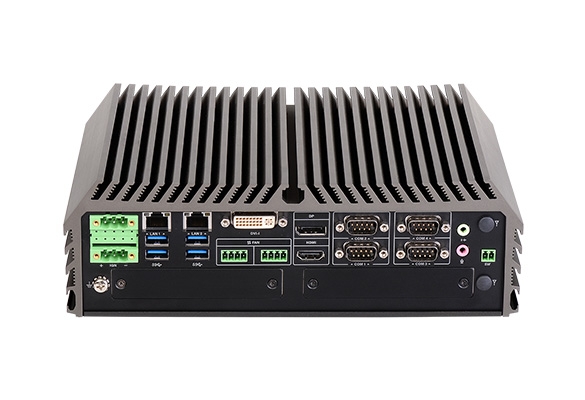

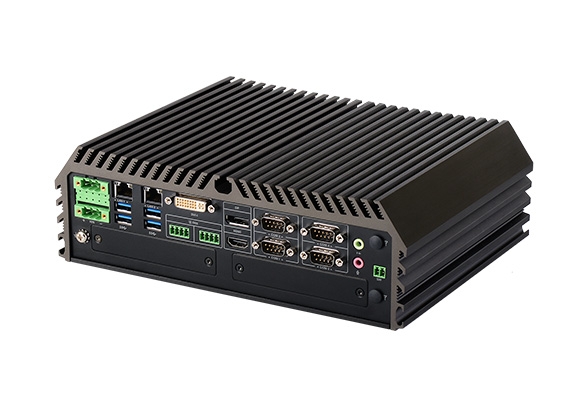

| I/O Interface | DVI | 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60Hz) |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| HDMI | 1x HDMI Connector (4096 x 2160 @ 30Hz) | |
| LAN | 2x GbE LAN Ports (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 | |
| Serial Port | 4x RS-232/422/485 Ports with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | 4x 10Gbps USB3.2 Gen2 Ports, Type-A 4x 5Gbps USB3.2 Gen1 Ports, Type-A | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Reset Button | 1x Reset Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| External FAN Connector | 2x External Fan Connectors, 4-pin Terminal Block (Supports Smart Fan by BIOS) | |
| Storage | SSD/HDD | 2x SATA III (6Gbps) Front Accessible 2.5” HDD/SSD Trays (up to 15mm in Height) |
| mSATA | 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| RAID | Supports S/W RAID 0, 1, 5 & 10 | |
| PCIe | 1x PCIe x4 M.2 Key M 2280 Socket, Supports NVMe SSD | |
| Expansion | MXM Socket | 1x MXM Carrier Board Interface for MXM GPU Module Expansion |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules - CFM-IGN01: Ignition Sensing Function | |
| CMI (Combine Multiple I/O) Interface | 1x High Speed CMI Interface for I/O Expansion - CMI-10GLAN01 : 2x 10G Intel® X550 RJ45 LAN - CMI-LAN01 : 4x 1G Intel® I210 RJ45 LAN - CMI-M12LAN01 : 4x 1G Intel® I210 M12 LAN 1x Low Speed CMI Interface - CMI-COM01 : 2x RS232/422/485, Support 5V/12V - CMI-DIO01 : 16x DIO (8 in, 8 out) | |
| Mini PCI Express | 3x Full-size Mini-PCIe Sockets | |
| M.2 Key E Socket | 1x M.2 Key E Type 2230 Socket, Support Wireless/Intel CNVi Module Expansion | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing | Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch | |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Total Power Budget | 360W | |
| Power Input Voltage | 9-48 VDC, Single Power Source | |
| Connector | 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector | |
| Power Adapter | Optional AC/DC Adapter - AC/DC 24V Power Adapter, 220W | |
| Physical | Dimension (WxDxH) | 260 x 200 x 85 mm |
| Weight Information | 4.6 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / DIN Rail / Side | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 30A | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by project | |
| Environment | Operating Temperature | - 35W CPU: -40°C - 70°C - 65W CPU + FAN: -40°C - 60°C - 80W CPU + FAN: -40°C - 55°C * PassMark BurnInTest: 100% CPU, 2D Graphics (without thermal throttling) * For GM-1000 + MXM GPU Module operating temperature, please refer to product datasheet * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
| MTBF | 331,596 Hours Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| GM-1000-R10 | 9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket |
| √ GM-1000 GPU Computer x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ CPU Heat Sink and Thermal Pad x 1 | √ Fan Terminal Block Connector x 2 |
| √ Screw Pack x1 | √ DVI-I to VGA Adaptor |
| √ Power Terminal Block Connector x 2 | √ Wall Mount Kit x1 |
| Model No. | Description |
|---|---|
| MXM-A2000-R10 | NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A1000-R10 | NVIDIA Embedded RTX A1000 MXM Type A, 4G, 60W Kit with Heatsink and Thermal Pad |
| MXM-RTX3000-R10 | NVIDIA Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad |
| MXM-T1000-R10 | NVIDIA Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad |
| MXM-HSKA-01 | MXM Type A Heatsink Kit for MXM-A500 |
| MXM-HSKA-02 | MXM Type A Heatsink Kit for MXM-A1000 & MXM-A2000 |
| MXM-HSKA-03 | MXM Type A Heatsink Kit for MXM-T1000 |
| MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
| MXM-HSKB-02 | MXM Type B Heatsink Kit for MXM-RTX3000 |
| Model No. | Description |
|---|---|
| CB-DP01-R10 | Carrier Board Module with 1x MXM 3.1 Interface and 4x DisplayPort Output / 1x Universal Bracket with 4x DP Cutout |
| CB-DP02-R10 | Carrier board with one MXM 3.1 interface and no DisplayPort output for MXM-A500. (Compatible with GM-1000 standard universal bracket) |
| CB-DP04-R10/UB1329 | Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output for MXM-A4500 / 1x Universal Bracket with 4xDP Cutout |
| CMI-LAN01-R12/UB1312 | CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series |
| CMI-10GLAN01-R10/UB1328 | CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GM Series |
| CMI-M12LAN01-R12/UB1310 | CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series |
| CMI-XM12LAN01-R10/UB1330-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| CMI-DIO01/UB1318 | CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX & GM Series |
| CMI-COM01/UB1303 | CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series |
| CMI-LAN01-R12/UB1312/CFM-PoE01 | CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W |
| CMI-M12LAN01-R12/UB1310/CFM-PoE01 | CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-PoE01 | PoE Control Function Module, Power Boost 50-57V |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| UB1320-R10 | Universal Bracket with 3x Antenna Cutout |
| MEC-COM-M212-TDB9/UB1303 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series |
| MEC-COM-M334-TDB9/2xUB1303 | Mini-PCIe Module with 4x RS232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout forDX & GM Series |
| MEC-LAN-M102-30/UB1311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX & GM Series |
| MEC-USB-M102-30/UB1314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable / 1x Universal Bracket with 2x USB Cutout |
| FAN-EX102 | External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function |
| SIDE-GM | GM Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| CB-DP01 | CB-DP02 (compatible with standard UB) | CB-DP04/UB1329 | |
|---|---|---|---|
| MXM-A500 | V | ||
| MXM-A1000 | V | ||
| MXM-A2000 | V | ||
| MXM-A4500 | V | ||
| MXM-T1000 | V | ||
| MXM-RTX3000 | V |
