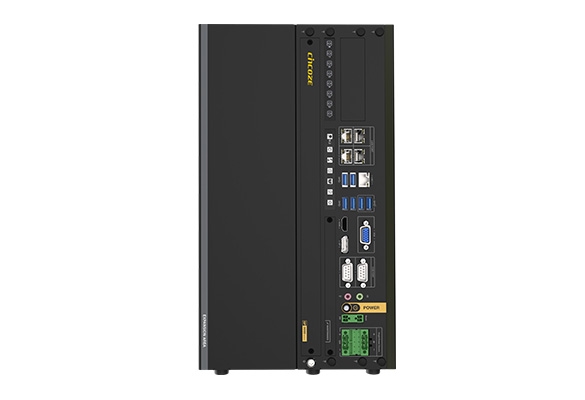

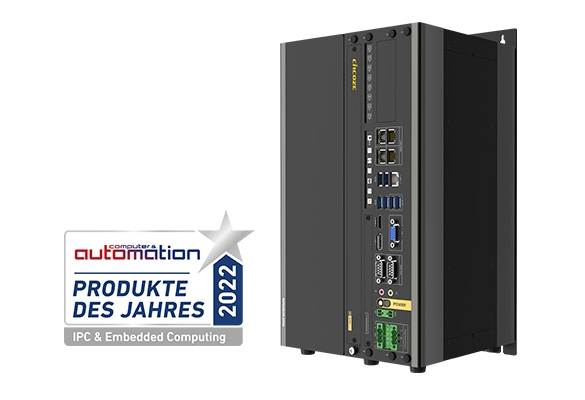

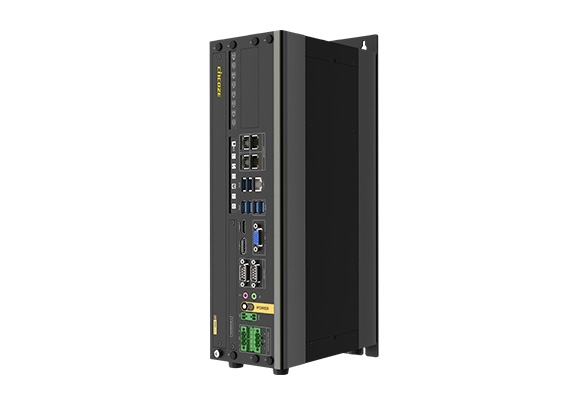

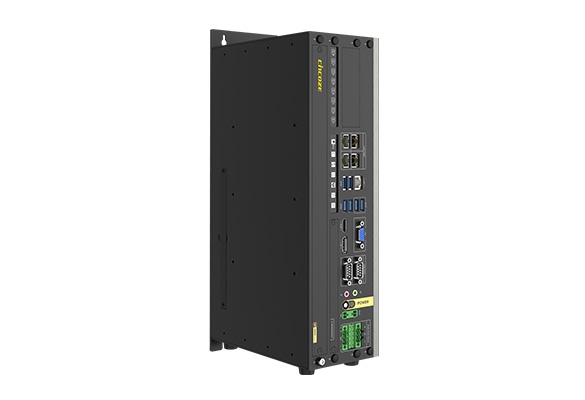

GP-3000
Dual Full-length GPU Expandable Computer
- Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
- 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
- 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
- 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
- 2 x Front Accessible SIM Card Slots for Signal Redundancy
- CMI Technology for Various I/O Module Expansions
- CFM Technology for Power Ignition Sensing & PoE Function
- Versatile Mounting Methods (Wall / Desktop / Face-up / 19" Rack Mount)
- Military Standard Shock & Vibration Proof
GPUs have evolved—and AI processing, simulation, and 3D graphics rendering have all benefited. Now, powerful GPU-based acceleration is baked into edge computing solutions to provide intensive processing parallelism and performance-driven analytics not possible with traditional PCs. Only these GPU systems can provide the real-time decision-making, predictive analytics, and optimized control at the edge needed to achieve the high efficiency and growth required for industrial operations. Powerful GPU computing drives these applications and necessitates dedicated robust hardware to provide processing and inferencing capabilities.
Cincoze is a professional provider of highly reliable and rugged embedded systems to support customers in the industrial field. Deploying our rugged, high-performance GP-3000 machine vision computer provides the power to manage the most complex artificial intelligence and machine vision workloads.
Product Category >>>> Embedded GPU Computer
Machine Vision
- Vision guided robotics
- Automated optical inspection
- Artificial Intelligence
In-vehicle Computing
- Autonomous driving
- Predictive maintenance
- Fatigue driving detection
Intelligent Transportation
- Traffic monitoring
- Environmental monitoring
- Object screening
Security & Surveillance
- Object tracking & detection
- Real-time pose estimation
- Video analytics
Cutting-Edge
Performance
——
The GP-3000 is powered by a 9th generation Intel® Xeon®/Core™ processor and supports up to two 250 W high-end graphics cards adding blazing-fast performance for AI, machine learning, machine vision, and big data analysis. 9th generation Intel® processors are up to 34% percent faster than the previous generation. GP-3000 supports two ECC or non-ECC DDR4-2666 (up to 128 GB) for exceptional speed and responsiveness. The GP-3000 is one of the most formidable industrial AI and machine vision computers available today.
Scalability and Upgradability
With GEB
——

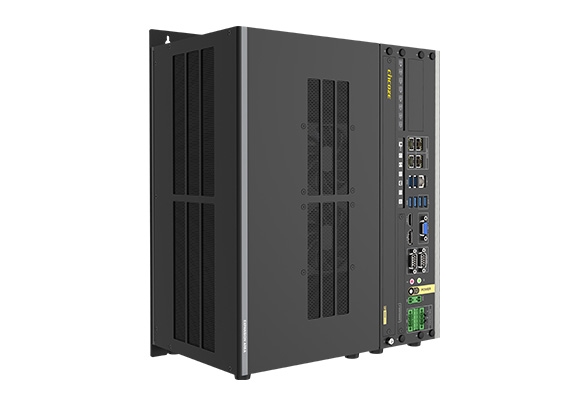

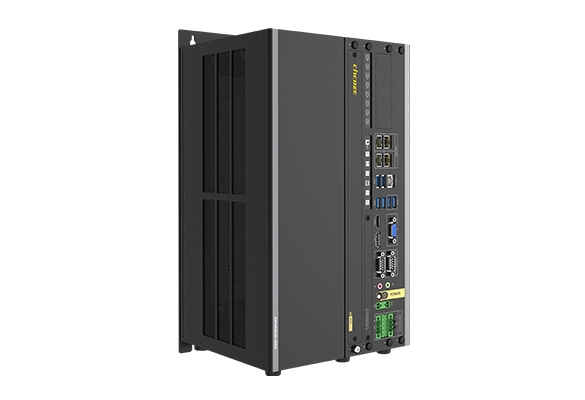

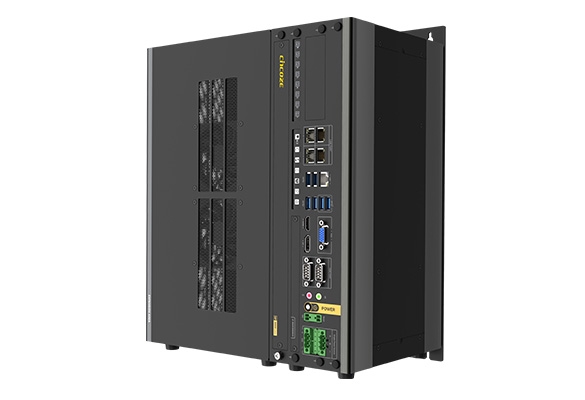

The GP-3000 provides an exclusive GPU Expansion Box (GEB), a scalable GPU solution for performance upgradability and flexibility. It supports the expansion of up to two 250 W 328 mm full-length graphics cards in the market. GP-3000 is the core processing unit, and a single- or dual-GPU GEB connects externally to add GPU processing power and other PCIe add-on cards.
Patent No. I779496Total Power Budget
Up to 720W
——
GP-3000 has a 720 W total system power budget and supports a wide range DC power input from 9 to 48 V for high-end GPU computing. GP-3000 can power up to 500 W for its GEB with its specialized power design, ideal for dual 250 W graphics cards.

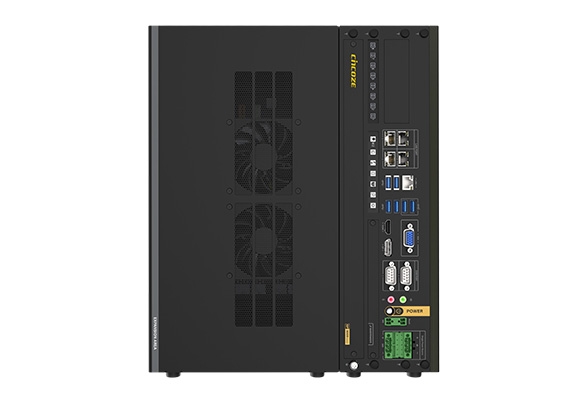

Intelligent Cooling Design
for Enhanced Thermal Support
——
Better performance, higher power requirements. To solve the power consumption and thermal challenges, the GP-3000’s mechanical structure and isolated external smart fan kits on both sides of the chassis effectively dissipate heat under full workloads in extreme conditions.
Patent No. I778522Multiple Native and
Expandable I/O
——
GP-3000 has multiple native I/O interfaces built-in. Cincoze’s proprietary CMI/CFM modules offer customization for additional I/O or other functionality such as 8x GbE LAN/POE, 6x USB 3.2, and 2x 10 GbE LAN. GP-3000 supports four 2.5" hot-swap SATA SSDs and has one M.2 M key socket for NVMe SSD storage.
Robust Design
Enabling Reliable Operation
——
GP-3000 packs versatility and performance into a robust design for ultimate GPU computing. GP-3000 has passed a series stringent quality assurance tests and industry standards including MIL-STD-810G military standard, E-mark for in-vehicle applications and EN50155 (EN 50121-3-2 only) for rolling stock environments. It can withstand hot and cold temperature extremes, shock and vibration, and high electromagnetic radiation.
Model Name | GP-3000 | |
---|---|---|
System | Processor | • 9th Generation Intel Coffee Lake-R S Series CPU: - Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel Coffee Lake S Series CPU: - Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W - Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W - Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W - Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W - Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W |
Chipset | Intel C246 | |
Memory | 2x DDR4 2666/2400 MHz SO-DIMM Sockets * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz Supports ECC / non-ECC Type Up to 64GB | |
Graphics | • Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (VGA/DisplayPort/HDMI) | |
Audio | Realtek® ALC888, High Definition Audio | |
BIOS | AMI BIOS | |
I/O Interface | HDMI | 1x HDMI Connector (4096 x 2160 @ 30Hz) |
DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
VGA | 1x VGA Connector (1920 x 1200 @30Hz ) | |
LAN | 5x GbE LAN, RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 - GbE3: Intel® I210 - GbE4: Intel® I210 - GbE5: Intel® I210 | |
COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
USB | 2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A | |
Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
Power Button | 1x ATX Power On/Off Button | |
Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
Remote Reset | 1x Remote Reset, 2-pin Terminal Block | |
AT/ATX Switch | 1x AT/ATX Mode Switch | |
Reset Button | 1x Reset Button | |
Clear CMOS Switch | 1x Clear CMOS Switch | |
Storage | SSD/HDD | 4x 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0), Supports Up to 15mm in Height |
M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
RAID | Supports RAID 0 / 1 / 5 / 10 | |
Expansion | PCIe | Optional GPU Expansion Box - 1 x PCIe x 4 + 1 x PCIe x 16 - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4 |
Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
M.2 | 1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD | |
Universal Bracket | 1x Universal Bracket | |
SIM Socket | 2x SIM Socket | |
Antenna Holes | 7x Antenna Holes | |
Cincoze Modular Technology | CMI Interface | 1x High Speed CMI (Combined Multiple I/O) Interface 1x Low Speed CMI (Combined Multiple I/O) Interface |
CMI Module | Optional Modules: - 4x GbE LAN, RJ45 - 4x GbE LAN, M12 A-Coded - 2x 10GbE LAN, RJ45 - 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 - 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block | |
CFM Interface | 1x CFM(Control Function Module) IGN Interface 1x CFM(Control Function Module) PoE Interface | |
CFM Module | Optional Module • 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V • 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W | |
MEC Module | Optional Modules: • 2x 5Gbps USB 3.2 Gen1, Type A | |
Other | Fan | 2x Fan Kits ( Air-flow isolated from the electronics ) |
Instant Reboot | Support 0.2sec Instant Reboot Technology | |
Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
Power Requirement | Power Type | AT/ATX |
Power Input Voltage | 9-48 VDC, Single Power Source | |
Total Power Budget | 720W (with GEB-3601-R10) | |
Connector | 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector. | |
Power Supply | Optional AC/DC or DC/DC 24V 480W Power Supply Optional AC/DC or DC/DC 24V 1000W Power Supply | |
Physical | Dimension ( W x D x H ) | 105 x 195 x 370 mm |
Weight Information | 8kg | |
Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |

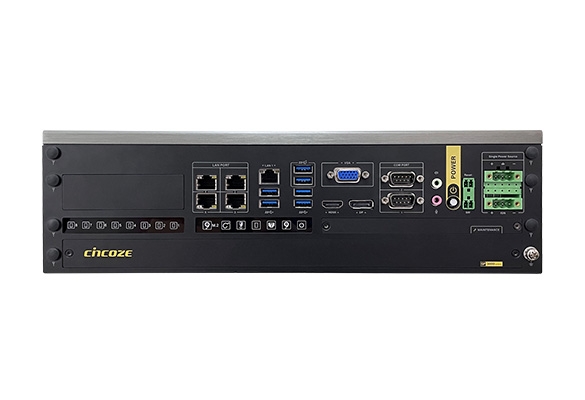

Mounting | Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount | |
Unibody Design | Yes | |
Jumper-less Design | Yes | |
Protection | Reverse Power Input Protection | Yes |
Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
Over Current Protection | 30A | |
Operating System | Windows | Windows® 10 |
Linux | Support by project | |
Environment | Operating Temperature | 35W CPU: -40°C to 70°C 65W CPU: -40°C to 60°C 80W CPU: -40°C to 50°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 * 100% CPU and without thermal throttling |
Storage Temperature | -40°C to 85°C | |
Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
Shock | MIL-STD-810G | |
Vibration | MIL-STD-810G | |
EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
Safety | LVD IEC/EN 62368-1 | |
MTBF | 441,283 hr | |
Fire Protection | EN 45545-2 |
Model No. | Product Description |
---|---|
GP-3000-R10 | 9th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W |
√ Wall Mount Bracket | √ Rubber Foot Kit x 1 |
√ Desktop Mount Kit x 1 | √ Power Terminal Block Connector x 2 |
√ CPU Heatsink and Thermal Pad Kit | √ Remote Function Terminal Block Connector x 2 |
√ Screw Pack x4 |
Model No. | Description |
---|---|
GEB-3301-R10 | GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots for GP-3000 Series |
GEB-3601-R10 | GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots for GP-3000 Series |
Model No. | Description |
---|---|
CMI-LAN01-R12/UB1412 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GP-3000 Series |
CMI-M12LAN01-R12/UB1410 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GP-3000 Series |
CMI-XM12LAN01-R10/UB1410 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 Cutout for GP-3000 Series |
CMI-10GLAN02-R10/UB1428 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GP-3000 Series |
CMI-COM04-R10/UB1403 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for GP-3000 Series |
CMI-DIO04-R11/UB1418 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for GP-3000 Series |
MEC-USB-M102-30/UB1414 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable / 1 x Universal Bracket with 2x USB Cutout for GP-3000 Series |
Model No. | Description |
---|---|
CFM-PoE07-R10 | CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for CMI-LAN01-R12, CMI-M12LAN01-R12, CMI-XM12LAN01-R10) |
CFM-PoE01 | CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for onboard LAN 2 to LAN 5) |
CFM-IGN03-R10 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
Model No. | Description |
---|---|
RM01-R10 | 19" Rack Mount Kit for GP-3000 |
RM02-R10 | 19" Rack Mount Kit for GP-3000/GEB-33 Series |
RM03-R10 | 19" Rack Mount Kit for GP-3000/GEB-36 Series |
Model No. | Description |
---|---|
SDR-480-24 | DIN Rail Power Supply 480W 24V, SDR-480-24 |
HEP-1000-24 | Power Supply 1000W 24V, HEP-1000-24 |
US Power Cord | 1.8M US Power Cord, Stripped and Tinned End with Tube |
EU Power Cord | 1.8M EU Power Cord, Stripped and Tinned End with Tube |
Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
