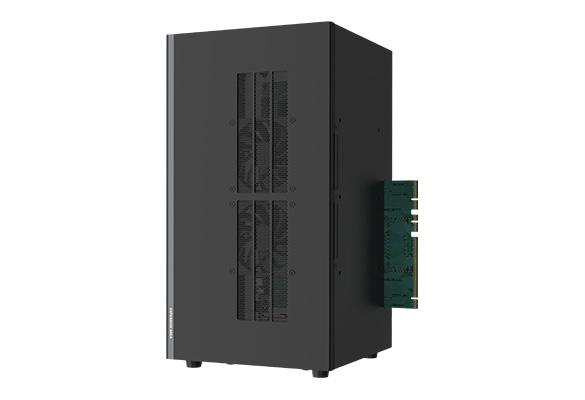

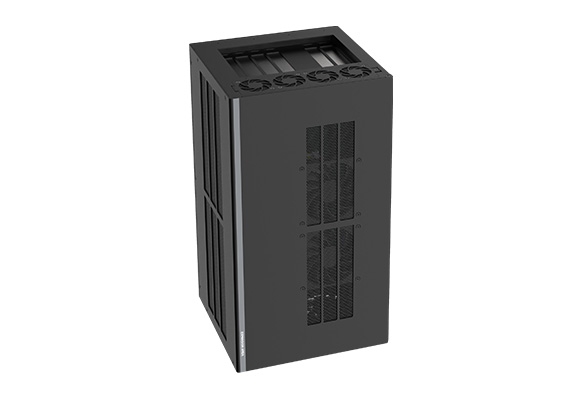

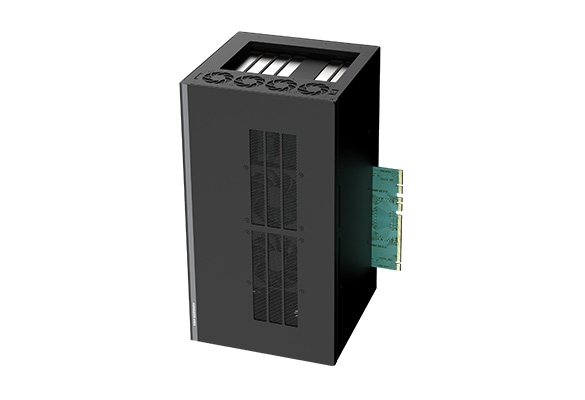

GEB-3601

GPU Expansion Box with 2 x PCIe x16 (Signal PCIe x8), 1 x PCIe x4 and 1 x PCIe x1 Slots

PRODUCTS FEATURES

Supports NVIDIA RTX 30 Series GPU Card
Supports 2 x PCIe x16 Slots for full-length GPU cards Expansion
Supports 1 x PCIe x4 Slot and 1 x PCIe x1 slot for Add-on cards
Intelligent Cooling Design for High Performance GPU Card
Military Standard Shock & Vibration Proof
Designed with adjustable GPU card retainer
(TW Patent Certificate No: I763318)
(US Patent Certificate No: US 11,470,738 B2)

CERTIFICATIONS

OVERVIEW
SPECIFICATION
ORDERING INFORMATION
DOWNLOADS

OVERVIEW

The GEB-3601 is a selectable expansion box that is compatible with GP-3000 series. In addition to 2x PCIex 16 (signal PCIe x8) for GPU graphics card installation, it has other 1x PCIe x 4 and 1 x PCIe x 1 slots for extended functions such as high speed I/O, data collection, frame grabber card and motion card. GEB-3601 supports a maximum of dual 250 W 328 mm full-length NVIDIA®/AMD® graphics card expansion.

Product Category >>>> Embedded GPU Computer

NEED HELP ?

info@cincoze.com

SPECIFICATION

Expansion Slot	• 2 x PCIe x 16 Slot ( PCIe x 8 Signal ) for GPU Card * 1x GPU: Max 300W * 2x GPU: Max 500W • 1 x PCIe x 4 Slot (Max. 25W) • 1 x PCIe x 1 Slot (Max. 25W)
GPU Card Dimension	• Card Length: 328mm • Card Height: 64mm ( Standard Triple-Deck ) • Card Width: 138mm
Internal USB	• 1 x USB 2.0, Type A
Internal Power Connector	• 4 x 8-Pin Connector for GPU Card
Weight Information	• 5.2kg
Dimension ( W x D x H )	• 200 x 195 x 360 mm
MTBF	• 1,661,177 hr
Shock	• MIL-STD-810H * Test with system (w/ GP series)
Vibration	• MIL-STD-810H * Test with system (w/ GP series)
EMC	• CE, UKCA, FCC, ICES-003 Class A * Test with system (w/ GP series)
EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety	• UL, cUL, CB, IEC, EN62368-1
Railway	• EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 * Test with system (w/ GP series)
In-Vehicle	• E-mark * Test with system (w/ GP series)

ORDERING INFORMATION

Available Models
Model No.	Product Description
GEB-3601-R10	GPU Expansion Box with 2 x PCIe x 16 (Signal PCIe x 8), 1 x PCIe x 4 and 1 x PCIe x 1 Slots

Package Checklist
√ Wall Mount Bracket
√ 8 Pin to 6+2 Pin GPU Power Cable x 4
√ Screw Pack x 2
√ GPU Card Retainer Screw Pack x 1
√ Rubber Foot Kit x 1
√ Sponge x 4

Compatible GPU List
Model	Architecture	Dimesion (D x W mm)	Slot	Power Consumption
RTX PRO 6000 Blackwell Max-Q Workstation Edition	Blackwell	266.7 x 111.8	dual slot	300W
RTX PRO 5000 Blackwell	Blackwell	266.7 x 111.8	dual slot	300W
RTX PRO 4500 Blackwell	Blackwell	241.3 x 111.8	dual slot	200W
RTX PRO 4000 Blackwell	Blackwell	266.7 x 111.8	single slot	140W
RTX 6000	Ada Lovelace	266.7 x 111.8	dual slot	300W
RTX 5000	Ada Lovelace	266.7 x 111.8	dual slot	250W
RTX 4500	Ada Lovelace	266.7 x 111.8	dual slot	210W
RTX 4000	Ada Lovelace	241.3 x 111.8	single slot	130W
RTX 4000 SFF	Ada Lovelace	167.6 x 68.6	dual slot	70W
RTX 2000	Ada Lovelace	167.6 x 68.6	dual slot	70W
A800 40GB Active	Ampere	266.7 x 111.8	dual slot	240W
RTX A6000	Ampere	266.7 x 111.8	dual slot	300W
RTX A5500	Ampere	266.7 x 111.8	dual slot	230W
RTX A5000	Ampere	266.7 x 111.8	dual slot	230W
RTX A4500	Ampere	266.7 x 111.8	dual slot	200W
RTX A4000	Ampere	241.3 x 111.8	single slot	140W
RTX A2000 \| RTX A2000 12GB	Ampere	167.6 x 68.6	dual slot	70W

DOWNLOADS

Datasheet
Subject	Release Date	Download
GEB-3601 Datasheet	2025/06/20	Download
