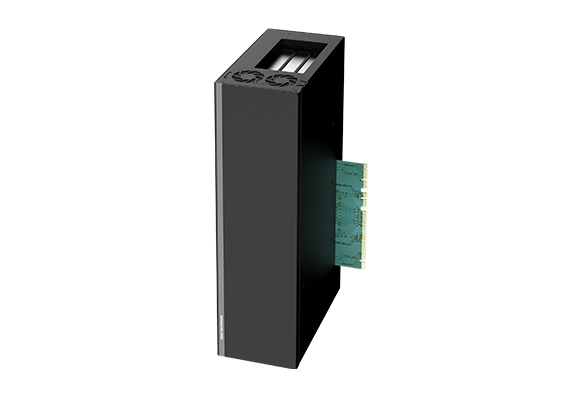

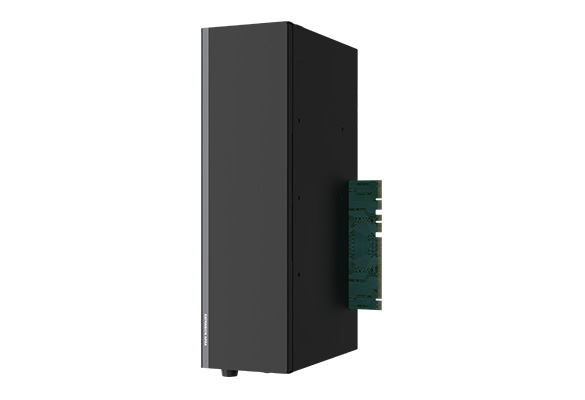

GEB-3301
GPU Expansion Box with 1 x PCIe x16 and 1 x PCIe x4 Slots for GP-3000 Series
PRODUCTS FEATURES
- Supports NVIDIA RTX 30 Series GPU Card
- Support 1 x PCIe x16 Slot for full-length GPU card Expansion
- Support 1 x PCIe x4 Slot for Add-on card Expansion
- Intelligent Cooling Design for High Performance GPU Card
- Military Standard Shock & Vibration Proof
- Designed with adjustable GPU card retainer
(TW Patent Certificate No: I763318)
(US Patent Certificate No: US 11,470,738 B2)
OVERVIEW
The GEB-3301 is a selectable expansion box that is compatible with GP-3000 series. It comprises 1x PCIe x 16 for GPU graphics card installation and 1x PCIe x 4 slot for add-on card expansion such as high speed I/O, data collection and frame grabber card. GEB-3301 supports a maximum of one 350 W 328 mm full-length NVIDIA®/AMD® graphics card expansion.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
| Expansion Slot | • 1 x PCIe x 16 Slot for GPU Card • 1 x PCIe x 4 Slot |
| GPU Card Dimension | • Card Length : 328mm • Card Height : 64mm ( Standard Triple-Deck ) • Card Width : 138mm |
| Internal USB | 1 x USB 2.0, Type A |
| Internal Power Connector | 2 x 8-Pin Connector for GPU Card |
| Total Power Budget | 300W |
| Weight Information | 3.2kg |
| Dimension ( W x D x H ) | 104 x 195 x 360 mm |
| MTBF | 2,713,254 hr |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| GEB-3301-R10 | GPU Expansion Box with 1 x PCIe x 16 and 1 x PCIe x 4 Slots for GP-3000 Series |
| √ Wall Mount Bracket |
| √ 8 Pin to 6+2 Pin GPU Power Cable x 2 |
| √ Screw Pack x 2 |
| √ GPU Card Retainer Screw Pack x 1 |
| √ Rubber Foot Kit x 1 |
| √ Sponge x 2 |
DOWNLOADS
| Subject | Release Date | Download |
|---|---|---|
| GEB-3301 Datasheet | 2021/05/13 | Download |
