Display Module (CV-100 Series)

Display Module (CV-100 Series)

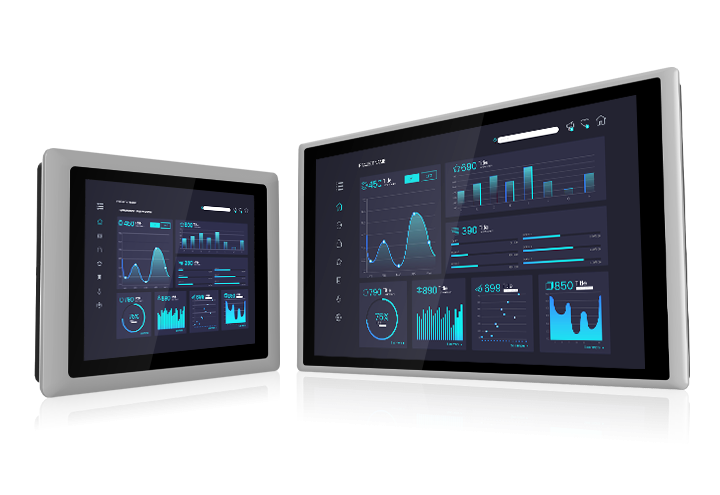

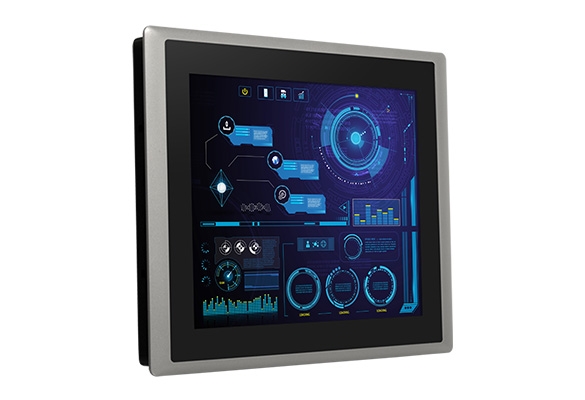

CV-100 Series is Convertible Display Module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1920 x 1080 (Full HD) and brightness up to 500 nits. CV-100 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with the aluminum die-cast front frame, it is rugged and reliable for industrial applications and harsh environment.

With supporting for Convertible Display System (CDS Technology) CV-100 Series allows you to configure and upgrade your Convertible Display System with the maintenance-free operation.
ProductModel NameLCD SizeBrightnessTouch TypeResolution
CV-108 SeriesCV-108 Series8.4" TFT-LCD (4:3)400 nitsResistive / Capacitive800x600 (SVGA)
CV-110 SeriesCV-110 Series10.4" TFT-LCD (4:3)400 nitsResistive / Capacitive800x600 (SVGA)
CV-110H SeriesCV-110H Series10.4" TFT-LCD (4:3)400 nitsResistive / Capacitive1024x768 (XGA)
CV-112H SeriesCV-112H Series12.1" TFT-LCD (4:3)500 nitsResistive / Capacitive1024x768 (XGA)
CV-115 SeriesCV-115 Series15" TFT-LCD (4:3)350 nitsResistive / Capacitive1024x768 (XGA)
CV-117 SeriesCV-117 Series17" TFT-LCD (5:4)350 nitsResistive / Capacitive / without Touch1280x1024 (SXGA)
CV-119 SeriesCV-119 Series19" TFT-LCD (5:4)350 nitsResistive / Capacitive / without Touch1280x1024 (SXGA)
CV-W115 SeriesCV-W115 Series15.6" TFT-LCD (16:9)400 nitsResistive / Capacitive1366x768 (WXGA)
CV-W121 SeriesCV-W121 Series21.5" TFT-LCD (16:9)300 nitsResistive / Capacitive / without Touch1920x1080 (Full HD)
CV-W124 SeriesCV-W124 Series24" TFT-LCD (16:9)300 nitsResistive / Capacitive / without Touch1920x1080 (Full HD)
