CV-108 Series
8.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch / Projected Capacitive Touch
PRODUCTS FEATURES
- 8.4" SVGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
- 30,000 hrs LED Backlight Life
- Resolution up to 800 x 600 (SVGA)
- 400 nits Brightness
- Designed with Aluminum Die-cast Front Frame
- IP 65 Compliant Front Panel
- Convertible Display System (CDS) Supported
- Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW

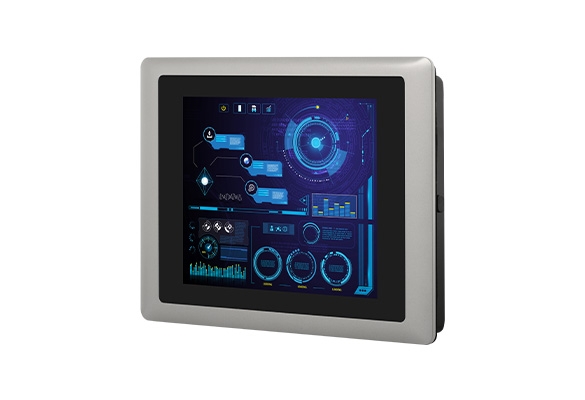

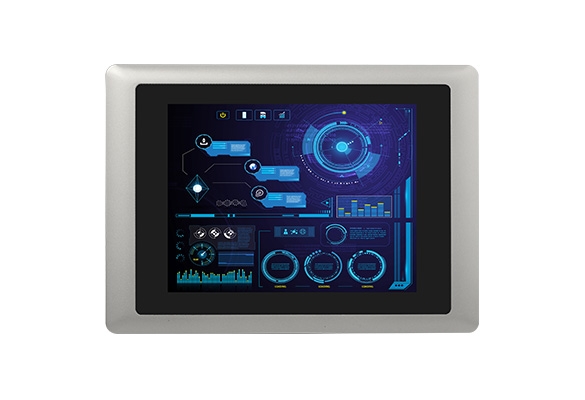

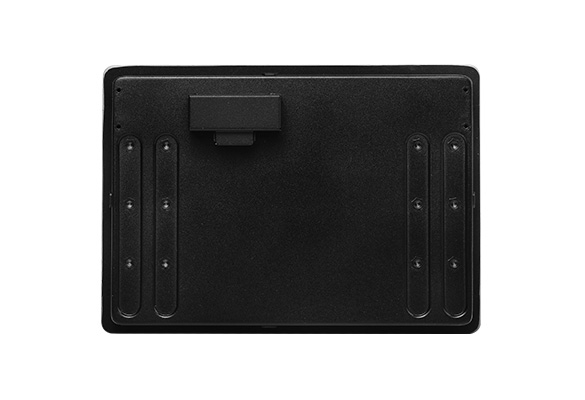

CV-108 Series is 8.4" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-108 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-108 Series allows you to configure, upgrade and maintain your Convertible Display System easily.
>>>> Panel PC Technology
>>>> Panel PC Technology
RESOURCES
![[ Product Spotlight ] Cincoze Panel PC Solution Lineup](data/images/202407/1721099187139892399.jpg)
SPECIFICATION
CV-108 Series
| Model Name | CV-108R | CV-108C | |
|---|---|---|---|
| Display | LCD Size | 8.4" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 400 | ||
| Contrast Ratio | 600 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | ||
| Viewing Angle (H-V) | 150 / 130 | ||
| Backlight LED Life Time | 30,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 262 x 186.2 x 56.2 mm | |
| Weight Information | 1.62 kg | 1.56 kg | |
| Mechanical Construction | Die-Casting Flat Surface | ||
| Power | Power Consumption | 4.93W (Max.) | 4.88W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | ||
| Storage Temperature | -30°C to 80°C | -20°C to 70°C | |
| Relative Humidity | 90% RH @ 60°C (Non-condensing) | 85% RH @ 60°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CV-108R-R10 | 8.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch |
| CV-108C-R10 | 8.4" TFT SVGA 4:3 Display Module with Projected Capacitive Touch |
| √ CV-108 Series Display Module x 1 | √ Panel Mounting Kit x 1 |
