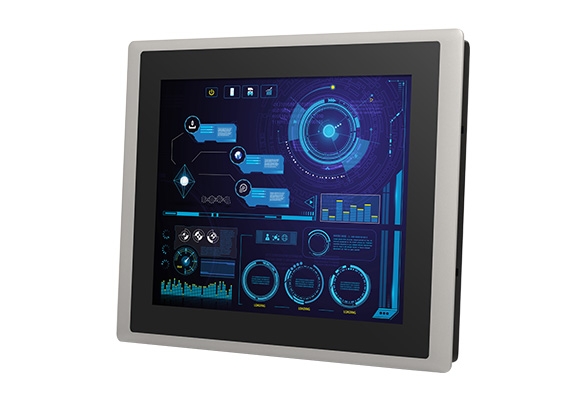

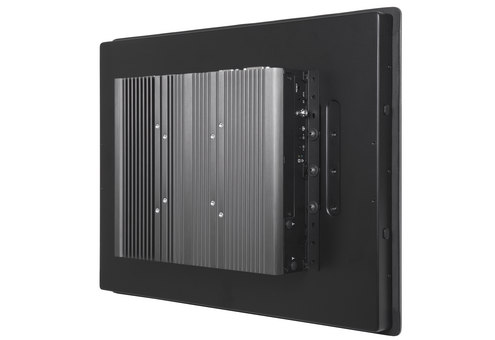

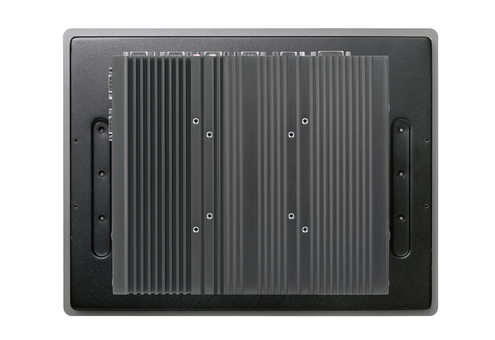

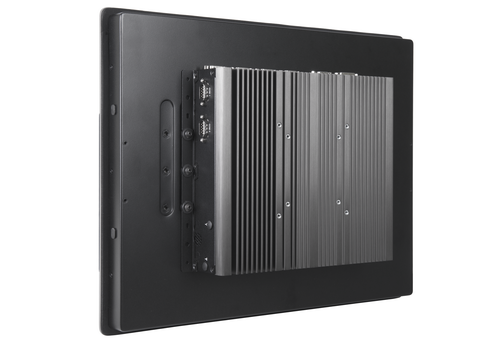

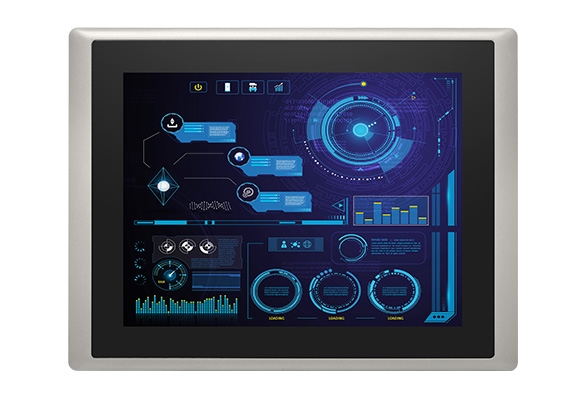

CV-112H / P2002 Series
12.1" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology
PRODUCTS FEATURES
- 12.1" XGA TFT-LCD with Resistive 5-wire / Projected Capacitive Touch
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Integrated Intel® HD Graphics 520 Support Triple Display
- 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
- IP65 Compliant Aluminum Die-Cast Front Frame
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Support CFM Technology for PoE and Ignition Sensing Functions
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- Support Instant Reboot Technology
- Wide Operating Temperature (-20°C to 70°C)
- SuperCap integrated for CMOS Battery Maintenance-Free
- PCI/PCIe Expandable Version Available (For P2002E only)
OVERVIEW
Cincoze CV-112H/P2002 Series is a 12.1” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.
The CV-112H/P2002 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-112H/P2002 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.
The CV-112H/P2002 Series is a truly rugged computing system supporting wide operating temperature from -20°C to 70°C, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-112H/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.
Product Category >>>> Modular Panel PC & Industrial Monitor
The CV-112H/P2002 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-112H/P2002 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.
The CV-112H/P2002 Series is a truly rugged computing system supporting wide operating temperature from -20°C to 70°C, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-112H/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.
Product Category >>>> Modular Panel PC & Industrial Monitor
RESOURCES
![[ Product Spotlight ] Cincoze Panel PC Solution Lineup](data/images/202407/1721099187139892399.jpg)
SPECIFICATION
CV-112H Series
| Model Name | CV-112HR | CV-112HC | |
|---|---|---|---|
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 500 | ||
| Contrast Ratio | 700 : 1 | ||
| LCD Color | 16.7M | ||
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 345 x 265.3 x 57 mm | |
| Weight Information | 3.16 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | ||
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | -20°C to 75°C (with Industrial Grade peripherals; Ambient with air flow) | -20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
P2002 Series
| Model Name | P2002 | P2002E | |
|---|---|---|---|
| System | Processor | Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 520 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 | ||
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High-Definition Audio | |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A) | ||
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| CFast | 1x CFast Socket (Gen3) | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L) | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 1x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector | ||
| Other Function | Instant Reboot | Support 0.2sec Instant Reboot technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| External Fan Connector | 1x External Fan Connector, 4-pin Terminal Block | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only) | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 220 x 54mm | 254.5 x 220 x 72 mm |
| Weight Information | 2.92 kg | 3.18 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| Operating Stystem | Microsoft® Windows® | Windows®10, Windows® 8.1, Windows® 7 | |
| Linux | Linux® Kernel 4.4 | ||
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 85C | ||
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CV-112HR-R10/P2002-i5-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CV-112HR-R10/P2002E-i5-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CV-112HR-R10/P2002E-i5-E4-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CV-112HR-R10/P2002E-i5-PI-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, 1x PCI Expansion |
| CV-112HC-R11/P2002-i5-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CV-112HC-R11/P2002E-i5-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CV-112HC-R11/P2002E-i5-E4-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CV-112HC-R11/P2002E-i5-PI-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| CV-112HR-R10/P2002-i3-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CV-112HR-R10/P2002E-i3-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CV-112HR-R10/P2002E-i3-E4-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CV-112HR-R10/P2002E-i3-PI-R10 | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, 1x PCI Expansion |
| CV-112HC-R11/P2002-i3-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface |
| CV-112HC-R11/P2002E-i3-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CV-112HC-R11/P2002E-i3-E4-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CV-112HC-R11/P2002E-i3-PI-R10 | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| CV-112HR | CV-112HC | P2002(i3/i5) | P2002E(i3/i5/E4/PI) | |
|---|---|---|---|---|
| CV-112HR/P2002 | V | -- | V | -- |
| CV-112HC/P2002 | -- | V | V | -- |
| CV-112HR/P2002E | V | -- | -- | V |
| CV-112HC/P2002E | -- | V | -- | V |
| √ CV-112H/P2002 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Panel Mounting Kit x 1 | √ Screw Pack x 1 |
| √ Fan Terminal Block Connector x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ DIO Terminal Block Connector (Female) x 2 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports |
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only) |
| CFM-PoE101 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002E only) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot(For P2002E only) |
| RC-PI-01 | Riser Card with 1x PCI Slot(For P2002E only) |
| UB0503 | Universal Bracket with 2x DB9 Cutout |
| UB0504 | Universal Bracket with 4x DB9 Cutout |
| UB0511 | Universal Bracket with 2x RJ45 Cutout |
| UB0514 | Universal Bracket with 2x USB Cutout |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
