DX-1200

13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

PRODUCTS FEATURES

Intel® 13/12th Gen Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
Quad Independent Display (HDMI / DP / DVI-I)
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
CMI Technology for Optional I/O Module Expansions
CFM Technology for Power Ignition Sensing & PoE Function
Wide Operating Temperature -40°C to 70°C
Safety Standard: UL, cUL, CB, IEC, EN 62368-1

CERTIFICATIONS

OVERVIEW
SPECIFICATION
ORDERING INFORMATION
DOWNLOADS

OVERVIEW

Cincoze P1201, A Slim and Power Efficient Computer For Embedded and Panel-PC Application

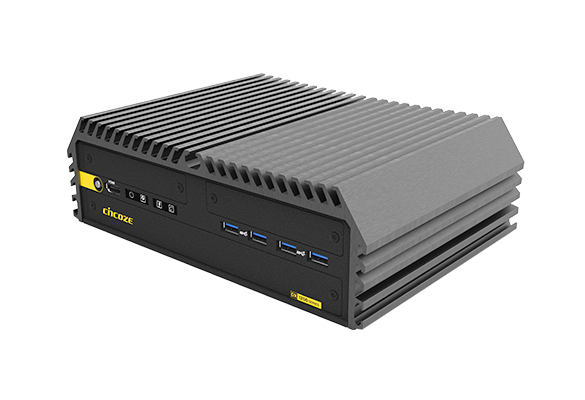

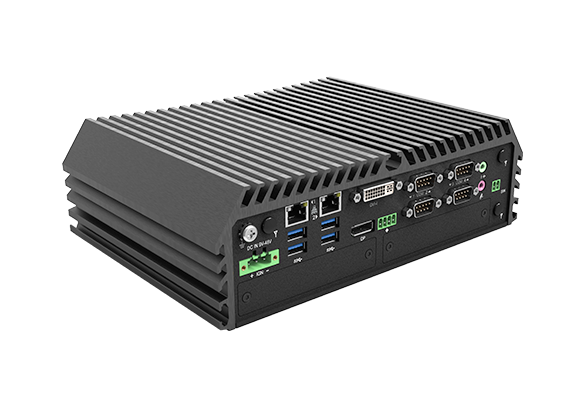

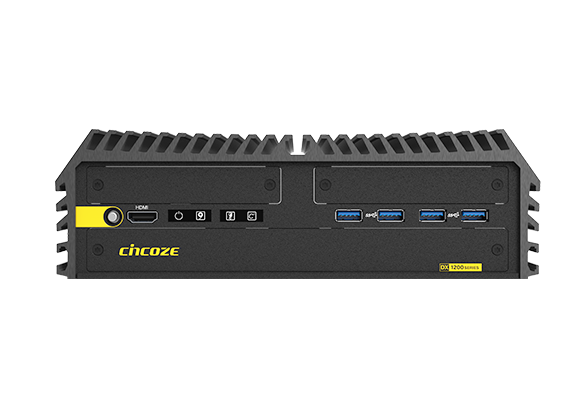

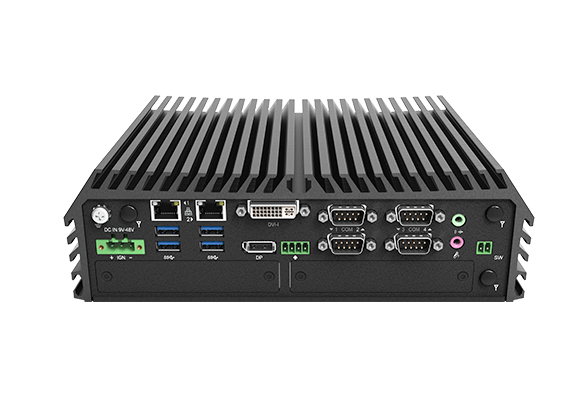

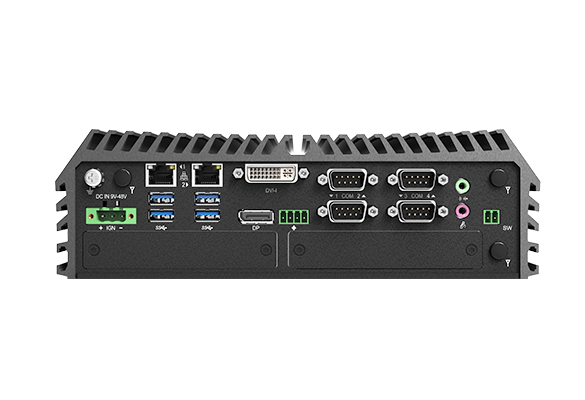

The DX-1200 is a fanless embedded computer that packs extreme performance into a rugged, compact chassis, making it the ideal choice for smart manufacturing, machine vision, and edge AI applications. 13/12th gen Intel® Core™ (Raptor Lake-S / Alder Lake-S) processor (TDP up to 65W) and DDR5 4800 MHz memory provide high-speed computing performance, while additional functions, including rich native I/O and modular expansion design, meet the requirements for a wide range of applications.

Product Category >>>> Rugged Embedded Fanless PC

Rapid Processing and Inference

——

The DX-1200 supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel^® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8× the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.

High-speed, Safe Memory

——

Two DDR5 SO-DIMM slots support up to 64GB of 4800MHz memory and include ECC (Error Correction Code) technology, giving the extra stability and reliability needed for industrial automation applications.

Rich and Diverse Expandability

——

To cater to the widest range of industrial applications, the DX-1200 provides one M.2 Key E slot and two Mini PCIe slots for the addition of WiFi, GNSS, 4G, and Bluetooth. The Mini PCIe slots also support I/O expansion cards, frame grabber cards, and more, to meet different application requirements.

High-speed, Reliable Data Transmission

——

To improve the transfer rate of videos or large files, the DX-1200 supports up to four high-speed 10Gbps LAN ports. And for application environments that require multiple network connections, the DX-1200 supports up to 8× PoE, providing data and power through the same cable to reduce the difficulty of wiring.

Robust and Reliable

——

The DX-1200 is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155 and the EN 45545-2 fire protection standard.

Video

NEED HELP ?

info@cincoze.com

SPECIFICATION

Model Name		DX-1200
System	Processor	13th Generation Intel® Raptor Lake-S Series CPU: - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W - Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W 12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	Intel R680E Chipset
	Memory	2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
	BIOS	AMI BIOS
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
	Maximum Display Output	Supports Quad Independent Display
	DVI	1x DVI-I Connector - VGA: 1920 x 1080 @ 60 Hz - DVI-D: 1920 x 1200 @ 60 Hz
	DP	1x DP Connector: 4096 x 2304 @ 60Hz * Verified maximum resolution: 3840 x 2160 @ 60Hz
	HDMI	1 x HDMI Connector (3840x2160@30Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE) - GbE1: Intel® I219 - GbE2: Intel® I210
	COM	4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	4 x USB 3.2 Gen2x1 (10Gbps), Type A 4 x USB 3.2 Gen1x1 (5Gbps), Type A
Storage	SSD/HDD	2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
	mSATA	2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
	RAID	Support RAID 0/1/5/10
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	M.2 E Key Socket	1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
	SIM Socket	1x SIM Socket
	CMI (Combined Multiple I/O) Interface	2x High Speed CMI Interface for optional CMI Module Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion
	CFM (Control Function Module) Interface	1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function	External FAN Connector	1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
	Instant Reboot	Support 0.2sec Instant Reboot Technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power	Power Button	1 x ATX Power On/Off Button
	Power Mode Switch	1 x AT/ATX Mode Switch
	Power Input	9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	1 x Remote Power On/Off, 2-pin Terminal Block
	Max. Power Consumption	• 35W CPU - OS Idle Mode: 86.14 W - Full Loading: 201.17 W • 65W CPU - OS Idle Mode: 99.89 W - Full Loading: 274.80 W
	Inrush Current (Peak)	• 35W CPU: 4.151 A@24V • 65W CPU: 4.360 A@24V
Physical	Dimension ( W x D x H )	242 x 173 x 75 mm
	Weight Information	3.05 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / DIN-RAIL / VESA / Side Mount
	Physical Design	• Fanless Design • Cableless Design • Jumper-less Design • Unibody Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	394,488 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	Windows®11, Windows®10
Operating System	Linux	Ubuntu 22.04
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-40°C to 85°C
	Relative Humidity	95% RH @ 70°C (Non-condensing)
	Shock	MIL-STD-810G
	Vibration	MIL-STD-810G
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-Mark
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1
	Fire Protection	EN 45545-2

ORDERING INFORMATION

Available Models
Model No.	Product Description
DX-1200-R10	13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

Package Checklist
√ DX-1200 Rugged Computer x1	√ Power Terminal Block Connector x1
√ CPU Heatsink Pack x1	√ Remote Power On/Off Terminal Block Connector x 1
√ Screw Pack x 1	√ Fan Terminal Block Connector x 1
√ Wall Mounting Kit x1	√ DVI-I to VGA Adaptor x 1

Optional Modules and Accessories
Model No.	Description
CFM-PoE01	CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CMI-LAN01-R12	CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports
CMI-10GLAN05-R10	CMI Module with 2x Intel 10GbE LAN, RJ45 Port
CMI-M12LAN01-R12	CMI Module with 4 x M12 Intel I210 1GbE LAN Ports
CMI-XM12LAN01-R10	CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports
CMI-DIO01	CMI Module with 16DIO (8in 8out)
CMI-COM01	CMI Module with 2x RS232/422/485 (Support 5V/12V)
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
UB0930-R10	Universal Bracket with 4x M12 X-Coded Cutout
UB1303	Universal Bracket with 2x DB9 Cutout
UB1311	Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1318	Universal Bracket with DIO Cutout
UB1710-R10	Universal Bracket with 4x M12 A-Coded Cutout
UB1712-R10	Universal Bracket with 4x RJ45 Cutout
UB1728-R10	Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
SIDE-DX	DX Series side mount kit
DIN01	DIN-RAIL Mount Kit, KMRH-K175
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
FAN-EX101	External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
