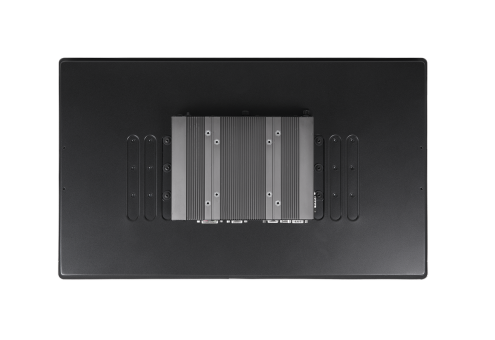

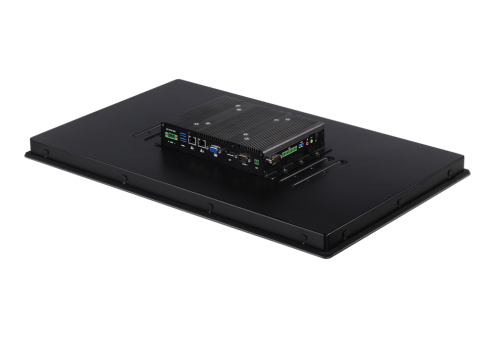

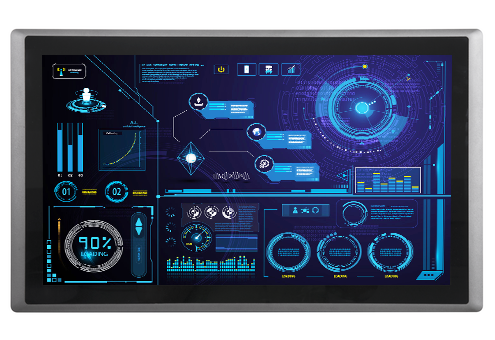

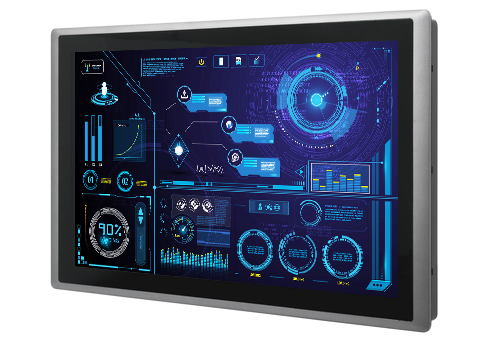

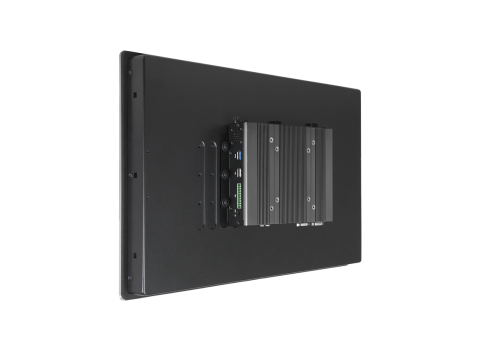

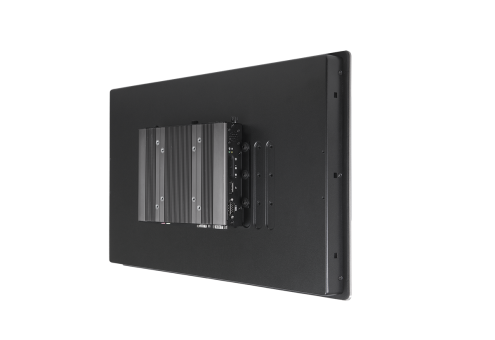

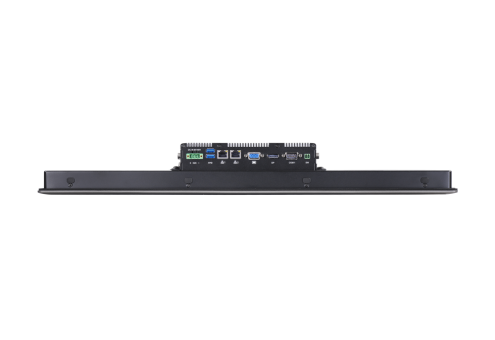

CV-W124 / P1001 Series

24" TFT Full HD 16:9 Panel PC w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort

PRODUCTS FEATURES
  • 24" Full HD TFT-LCD with Resistive 5-wire Touch, P-Cap. Touch, or Glass Only
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM Socket, Support Up to 8 GB
  • Integrated Intel® HD Graphics Support Dual Display
  • 1x 2.5” SATA HDD Bay, 1x CFast Socket and 1x SIM Card Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 1x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Convertible Display System (CDS) Supported
  • Rich I/O (2x GbE LAN, 2x COM, 4x USB, 8x Isolated DIO)
  • Universal I/O Bracket Expandable Version Available (For P1001E only)
ADD TO INQUIRY DATASHEET
OVERVIEW
The 24" widescreen (16:9) all-in-one panel PC offers LED backlight LCD with resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W124/P1000 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame with rugged body structure that can be able to apply in industrial applications. CV-W124/P1000 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-W124/P1000 Series carries single touch function with resistive 5-wire touch screen, multi touch function with projected capacitive touch screen or glass screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-W124/P1000 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes 2x Universal I/O Bracket. (For P1001E only)

CV-W124/P1000 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W124/P1000 Series can be deployed and powered for various industrial applications.

Product Category >>>> Modular Panel PC & Industrial Monitor
RESOURCES
Cincoze Industrial Panel PCs — the Comprehensive HMI Solution
2024-10-24
Cincoze Industrial Panel PCs — the Comprehensive HMI Solution
Industrial PC: Development History, Characteristics, and Solutions
2024-09-10
Industrial PC: Development History, Characteristics, and Solutions
Cincoze Industrial Panel PC for Automated Meat Weighing
2024-08-22
Cincoze Industrial Panel PC for Automated Meat Weighing
[ Product Spotlight ] Cincoze Panel PC Solution Lineup
2024-07-18
[ Product Spotlight ] Cincoze Panel PC Solution Lineup
What is HMI: Definition, Trends, and Key Features You Must Know
2024-01-11
What is HMI: Definition, Trends, and Key Features You Must Know
A Practical Guide to Selecting an Industrial Panel PC
2023-03-28
A Practical Guide to Selecting an Industrial Panel PC
Cincoze CV-W124/P1101 Provides HMI for Label Printer with Flexible Digital Printing
2022-03-30
Cincoze CV-W124/P1101 Provides HMI for Label Printer with Flexible Digital Printing
Cincoze CV-117/P1001 Enhanced Productivity for Stone Processing Machine
2020-03-27
Cincoze CV-117/P1001 Enhanced Productivity for Stone Processing Machine
Modular Panel PC Deployed in Manufacturing of Rubber Air Springs
2019-09-20
Modular Panel PC Deployed in Manufacturing of Rubber Air Springs
SPECIFICATION

CV-W124 Series

Model NameCV-W124RCV-W124CCV-W124G
DisplayLCD Size24” (16:9)
Max. Resolution1920 x 1080
Brightness (cd/m2)300
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V)178 / 178
Backlight LED Life Time50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected CapacitiveGlass Screen
PhysicalDimension (W x D x H)605 x 373 x 63.2 mm
Weight Information6.92 kg6.64 kg
Mechanical ConstructionDie-Casting Flat Surface
PowerPower Consumption23.8W (Max.)23.75W (Max.)23.3W (Max.)
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating TemperatureAmbient with Air flow: -20°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 50°C (non-Condensing)
Vibration Operating, 1 Grms,
10-500 Hz, 3 Axes
(w/ P2102E only,
according to IEC60068-2-6)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-W124R-R10/P1001-R10

24" TFT Full HD 16:9 Panel PC with Resistive 5-wire Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort

CV-W124C-R11/P1001-R1024" TFT Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort
CV-W124G-R10/P1001-R1024" TFT Full HD 16:9 Panel PC without Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort
CV-W124R-R10/P1001E-R1024" TFT Full HD 16:9 Panel PC with Resistive 5-wire Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets
CV-W124C-R11/P1001E-R1024" TFT Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets
CV-W124G-R10/P1001E-R1024" TFT Full HD 16:9 Panel PC without Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets

Model Configuration
 CV-W124RCV-W124CCV-W124GP1001P1001E
CV-W124R/P1001V----V--
CV-W124C/P1001--V--V--
CV-W124G/P1001----VV--
CV-W124R/P1001EV------V
CV-W124C/P1001E--V----V
CV-W124G/P1001E----V--V

Package Checklist
√ CV-W124/P1001 Series Panel PC x 1√ Power Terminal Block Connector (Female)x 1
√ Panel Mounting Kit x 1√ Screw Pack x 1
√ DIO Terminal Block Connector (Female)x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (For P1001E only)
UB03111x Universal Bracket with 2x RJ45 Cutout (For P1001E only)
UB03141x Universal Bracket with 2x USB Cutout (For P1001E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
