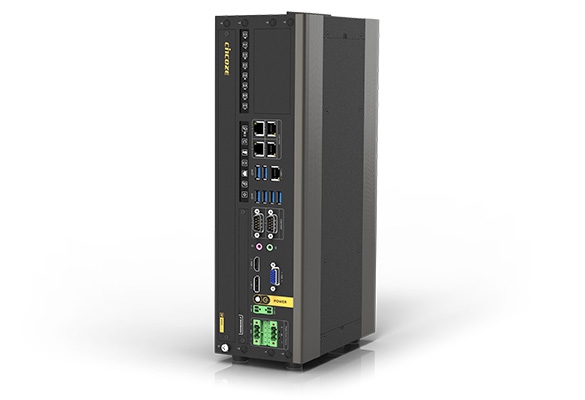

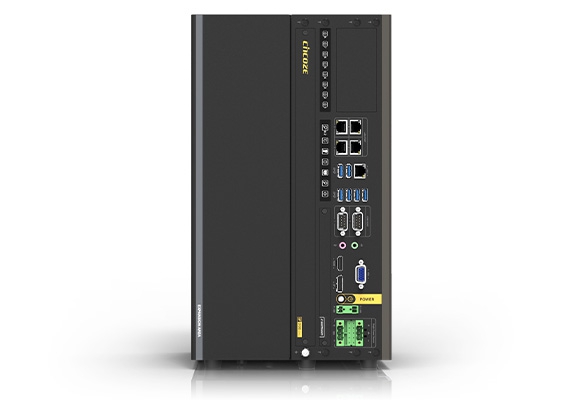

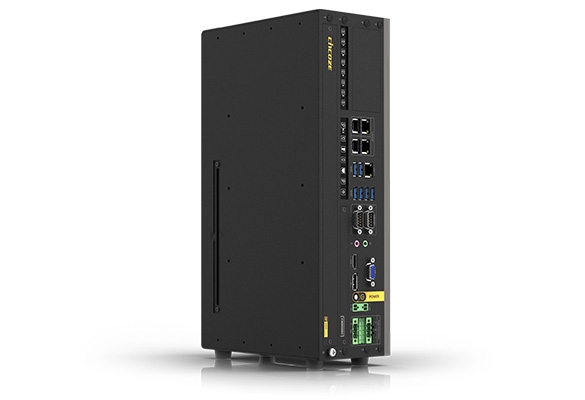

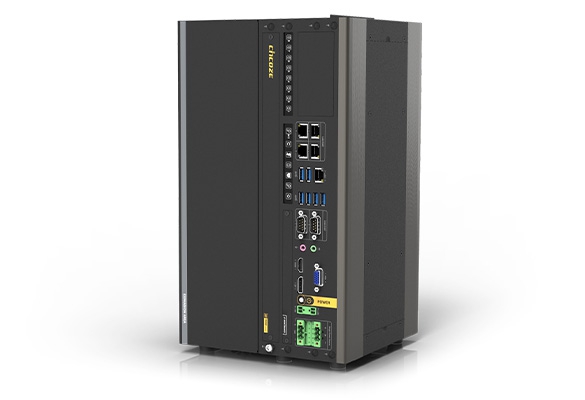

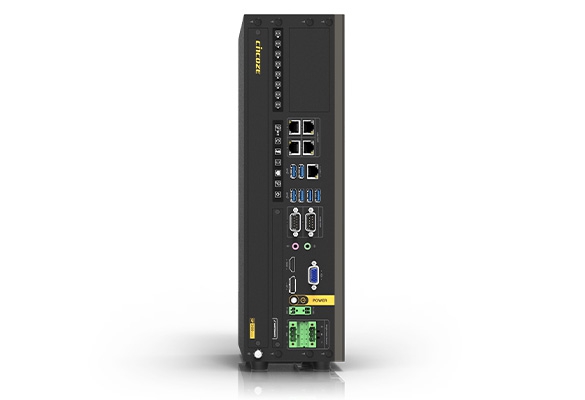

GP-3100

14/13/12 代 Intel® Core™ 模組化 GPU 電腦,支援雙全長 GPU 擴充,功率高達 500W
產品特點
  • Intel® 14/13/12 代 Core™ i9/i7/i5/i3 處理器(最大 65 W TDP)
  • 2 個 DDR5 SO-DIMM 插槽,支援 ECC / 非 ECC 記憶體類型,最高 4800MHZ,64GB
  • 4x 2.5GbE LAN 和選配 2x 10GbE LAN
  • 1x M.2 Key E 2230 型插槽,用於無線 / Intel CNVi 模組擴充
  • 1x M.2 Key B 3052/3042 型插槽,用於 5G / 儲存 / 擴充卡擴充
  • 1x M.2 Key B 2280 型插槽,用於擴充卡擴充
  • 4 個 2.5" 可熱插拔 SATA III HDD/SSD 硬碟槽(最大高度 15 mm),1x M.2 key M 用於 NVMe SSD
  • 選配 CMI & CFM 模組,用於 I/O 擴充及電源點火感應功能

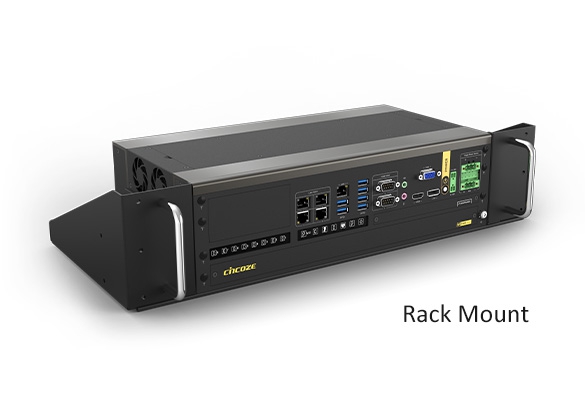

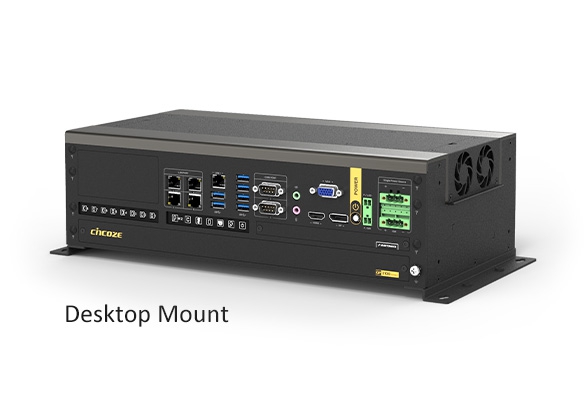

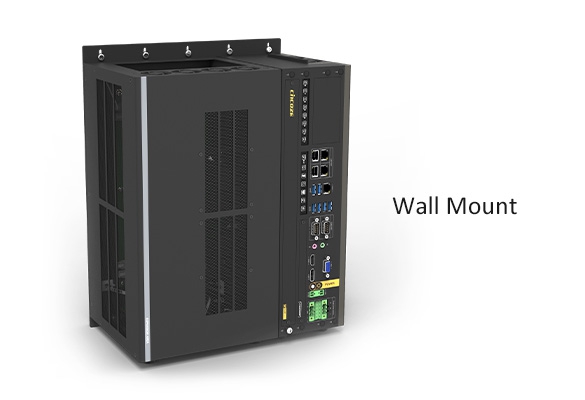

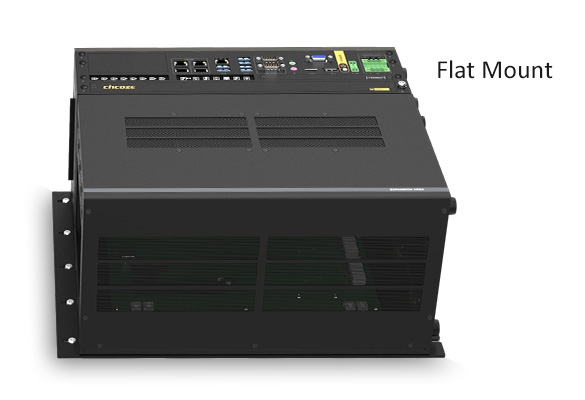

  • 多樣化的安裝方式(塔式支架 / 桌面 / 19”機架 / 平面 / 壁掛)
  • 寬廣操作溫度範圍 -40°C 至 70°C
產品認證
  • EN 50121-3-2
  • MIL-STD-810H
產品介紹
GP-3100

GP-3100 是一款專為工業 AI 和機器視覺應用打造的高效能 GPU 電腦,搭載 Intel® Core CPU,支援最多兩張 250W GPU 全長卡,透過卓越效能、大量儲存與高速 I/O 展現強大運算能力。具備從使用者需求出發的三大專利設計,完善了擴充、散熱與穩固功能,是應對複雜且精密的 Edge AI 應用的理想選擇。




CPU + GPU 展現極致效能

——

搭載第 14 代 Intel® Raptor Lake-S Refresh Core 處理器,運算效能較前代機種提升 3 倍。GP-3100 支援最多兩張 250W 高階顯示卡,搭配 5600MHz DDR5 記憶體,並支援 ECC 偵錯與修正技術,完美滿足 AI 運算需求。

CPU + GPU 展現極致效能

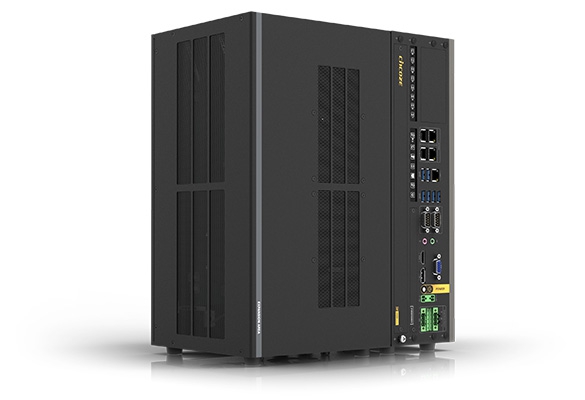

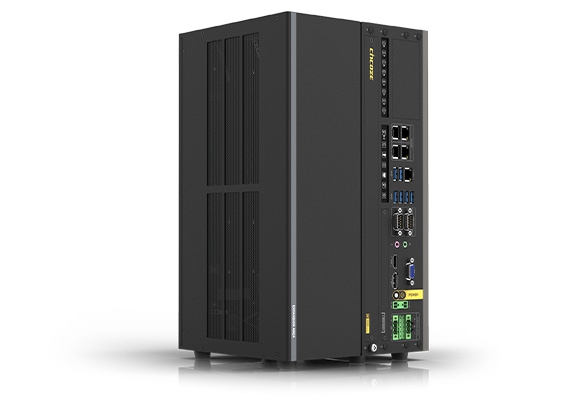

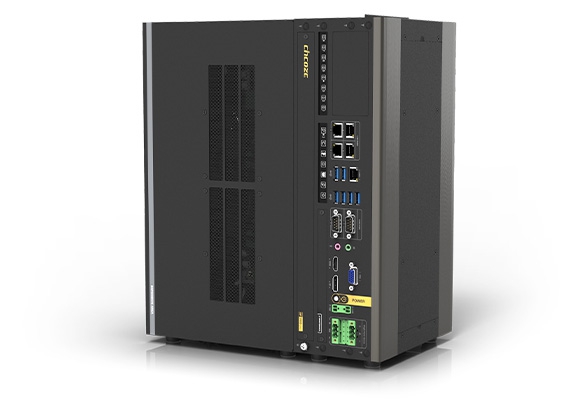

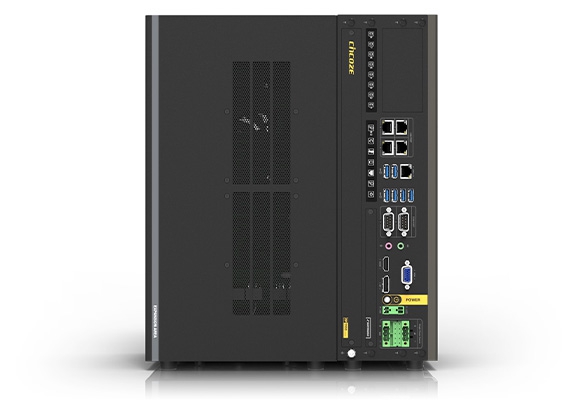

兼具擴充與升級性的 GPU 擴充盒


兼具擴充與升級性的 GPU 擴充盒

——

雙專利的 GEB (GPU 擴充盒) 可支援最多兩張 328mm 的高階全長 GPU 卡,具備多個 PCIe 內建插槽可靈活搭配高速 I/O 或影像擷取卡。專利的可調式 3D GPU 卡固定架是為高震動環境設計,可鎖固各類 GPU 卡。而未來的升級彈性,只需更換 GEB 即可搭載更多高階 GPU 卡或增加擴充卡。

專利號碼:I779496、I763318




全方位 散熱設計

——

為了解決高功耗和散熱難題,GP-3100 專利設計的散熱通道,能有效排出熱量並防止灰塵進入機體。GEB (GPU 擴充盒) 四周則配置了外部智能風扇,即便在 CPU 和 GPU 滿載時,仍能高效散熱。

專利號碼:I778522
全方位散熱設計

豐富的模組化設計與擴充性


豐富的模組化設計 與擴充性

——

完全符合 AI 應用的高速傳輸與大量儲存的需求,配置 4x 2.5GbE LAN、6x USB 3.2,並支援 4x 前抽取式 2.5" HDD/SSD 和 NVMe SSD。豐富的擴充性除了展現在獨家模組化技術 (CMI & CFM) 外,還可透過 M.2 增添 CAN Bus 模組等,滿足各種應用需求。




國際標準 與認證

——

GP-3100 的強固設計符合多項工業級標準與認證,如 MIL-STD-810H 美國軍規抗衝擊震動標準、E-mark 車載認證、軌道交通的 EN 50155(僅 EN 50121-3-2),確保各類應用場景的高度可靠性。

國際標準與認證

影片
詳細規格
Model NameGP-3100
SystemProcessor

14th Generation Intel® Raptor Lake-S Refresh Series CPU (Coming Soon)
13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W
12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel R680E Chipset
Memory• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Triple Independent Display
HDMI• 1x HDMI Connector (3840 x 2160@30Hz)
  * Verified maximum resolution: 3840x2160 @ 30Hz
DP• 1x DisplayPort Connector (4096 x 2304@60Hz)
  * Verified maximum DP resolution: 3840x2160 @ 60Hz
VGA• 1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1x Line-out, Phone Jack 3.5mm
Mic-in• 1x Mic-in, Phone Jack 3.5mm
I/OLAN• 4x 2.5GbE LAN, RJ45 (Intel I225)
• 1x 1GbE LAN, RJ45 (Intel I219)
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 6x USB 3.2 Gen1x1 (5Gbps), Type A
StorageSSD/HDD• 4x 2.5" Front Accessible SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0)
(Up to 15mm in Height)
M.2 SSD• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD
• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
RAID• Supports RAID 0 / 1 / 5 / 10
ExpansionPCIe• Optional GPU Expansion Box
  - 1 x PCIe x 16 Slot ( PCIe x 16 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W)
    * 1x GPU: Max 300W
  - 2 x PCIe x 16 Slot ( PCIe x 8 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W) + 1 x PCIe x 1 Slot (Max. 25W)
    * 1x GPU: Max 300W
    * 2x GPU: Max 500W
SIM Socket• 2 x Front Accessible SIM Socket
M.2 E Key Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2), Support Wireless/Intel CNVi Module Expansion
M.2 B Key Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2280 Socket (PCIe Gen 3x1), Support Add-on Card Expansion
CMI (Combined Multiple I/O) Interface• 1 x High Speed CMI Interface for optional CMI Module Expansion
• 1 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM PoE Interface for optional CFM-PoE Module Expansion
Other FunctionFAN• 2x Fan Kits ( Air-flow isolated from the electronics )
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Holes• 7x Antenna Holes
PowerPower Button• 1x ATX Power On/Off Button
Power Input Voltage• 9 - 48VDC, Single Power Input
Connector• 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
  - Dual power connect must be used at the same time due to 15A current limitation at each power connector.
Power Mode Switch• 1x AT/ATX Mode Switch
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption• 35W CPU: 201.05W
• 65W CPU: 306.48W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing.
Inrush Current (Peak)• 35W CPU: 9.221A@24V
• 65W CPU: 8.976A@24V
PhysicalDimension ( W x D x H )• 105 x 195 x 370 mm
Weight Information• 7.7 Kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount)
Physical Design• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 30A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 432,065 Hours
  -  Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu Desktop 22.04 LTS
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor with external FAN: -40°C to 60°C
  * PassMark BurnInTest: 100% CPU, 2D/3D Graphics   (without thermal throttling)
  * With extended temperature peripherals; Ambient with air flow
  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 95%RH @ 70°C (non-Condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Fire Protection• EN 45545-2
訂購資訊
Available Model
Model No.Description
GP-3100-R1014/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

Package Checklist
GP-3100 GPU Computer x1Wall Mount Bracket x1
Desktop Mount Kit x1Rubber Foot Kit x1
CPU Heatsink and Thermal Pad Kit x1Remote Terminal Block Connector x2
Screw Pack x4Remote Function Terminal Block Connector x2
M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional GPU Expansion Box
Model No.Description
GEB-3301-R10GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots
GEB-3601-R10GPU Expansion Box with 2x PCIex16 (PCIex8 Signal),1x PCIe x4, and 1x PCIe x1 Slot

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port
CMI-M12LAN01-R12CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN02-R10CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port
CMI-DIO04-R11CMI Module with 16DIO (8in 8out)
CMI-COM04-R10CMI Module with 2x RS232/422/485 (Support 5V/12V)
CFM-PoE01CFM Module with PoE Control Function, Individual Port 25.5W (Enable PoE function for onboard LAN 2 to LAN 5)
CFM-PoE07-R10CFM Module with PoE Control Function, Individual Port 25.5W (Enable PoE function for CMI-LAN Module)
  * Due to the height of the CFM-PoE07 module, the M.2 I/O expansion is not available when the CFM-PoE07 is installed.
CFM-IGN03-R11CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1812-R10Universal Bracket with 4x RJ45 Cutout
UB1828-R10Universal Bracket with 2x RJ45 Cutout
UB1810-R10Universal Bracket with 4x M12 Cutout
UB1830-R10Universal Bracket with 4x M12 X-Coded Cutout
UB1818-R10Universal Bracket with DIO Cutout
UB1803-R10Universal Bracket with 2x DB9 Cutout
RM01-R1019" Rack Mount Kit for GP-3000
RM02-R1019" Rack Mount Kit for GP-3000/GEB-33 Series
RM03-R1019" Rack Mount Kit for GP-3000/GEB-36 Series
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
RSD-200D-24Railway Single Output DC-DC Converter 200W / DC 24V
SDR-480-24DIN Rail Power Supply 480W 24V, SDR-480-24
HEP-1000-24Power Supply 1000W 24V, HEP-1000-24
US Power Cord1.8M US Power Cord, Stripped and Tinned End with Tube
EU Power Cord1.8M EU Power Cord, Stripped and Tinned End with Tube
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
