DS-1400

第 13/12 代 Intel® Core™ 系列處理器,高性能、可擴充、模組化強固型嵌入式電腦
產品特點
  • Intel® 第 13/12 代 Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 處理器(最大 65 W TDP)
  • 2 個 DDR5 SO-DIMM 插槽,支援 ECC/非 ECC 類型記憶體,高達 4800MHz,64GB
  • 2 個 GbE LAN 和可選的 2 個 10GbE LAN
  • 2 個 2.5 英寸 SATA 存儲、3 個 mSATA 插槽、1 個用於 NVMe SSD 的 M.2 key M
  • 用於 I/O 擴充的選配 CMI 模組
  • 用於點火感應和 PoE 的選配 CFM 模組
  • 寬工作溫度 -40°C 至 70°C
  • MIL-STD-810G 軍用標準和 EN50155(EN 50121-3-2 only)
  • 安全標準:UL、cUL、CB、IEC、EN 62368-1
  • 支援 Intel® OpenVINO™ 開發套件
  • Intel® ESDQ(邊緣軟體裝置品質認證)認證:Edge Insights for AMR 軟體套件
產品認證
  • EN 50121-3-2
  • MIL-STD-810G
  • EN 62368-1
  • CB
  • UL
產品介紹

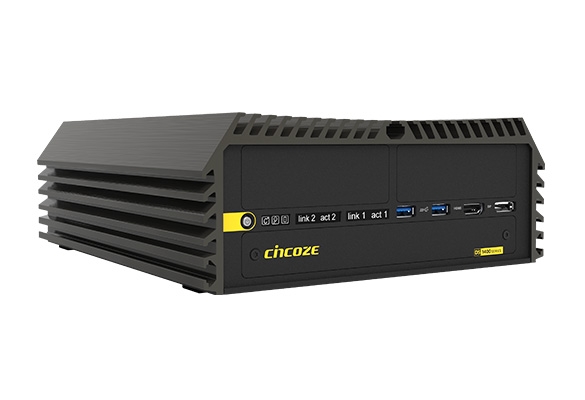

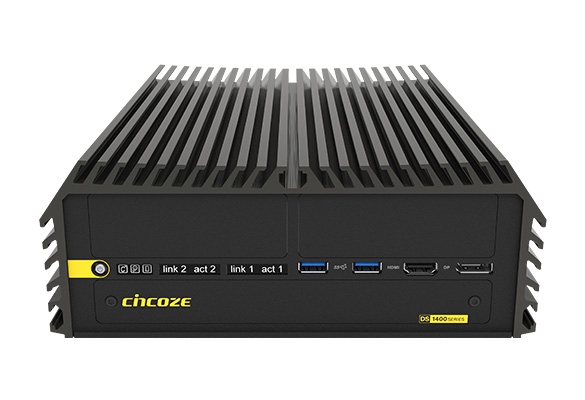

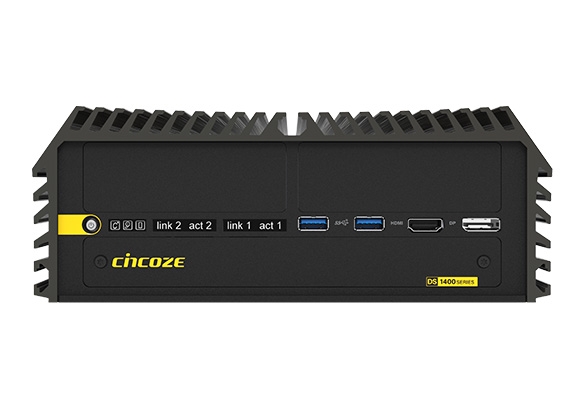

DS-1400, 12th Gen. Intel Alder Lake-S Rugged Embedded Computer

DS-1400 是一款高效能、可擴充的強固型嵌入式電腦,除了卓越的性能外,更擁有豐富的 I/O 接口和強大的功能性。為了滿足不同的應用需求,可透過 Cincoze 特有的 CMI、CFM、MEC 擴充模組,輕鬆靈活地增加所需的 I/O 和特定功能。同時,DS-1400 通過多項國際認證,確保在多樣化的嚴苛環境中發揮穩定可靠的效能,是智能製造和軌道交通等應用的理想選擇。

Product Category >>>> Rugged Embedded Fanless PC




卓越的 運算效能

——

DS-1400 可搭載 Intel® 7 製程的第 13/12 代 Core™ i9/i7/i5/i3(Raptor Lake-S/Alder Lake-S)處理器,最高可擁有 24 核心(8P + 16E)及 32 線程的配置,處理效能是 Comet Lake-S 的 1.35 倍以上。此外,透過 Intel® Xe 架構的 UHD 770 顯示晶片,在 GPU 圖像分類推理效能則是 Comet Lake-S 的 2.8 倍,非常適用於 AI 和各種邊緣運算,展現卓越的處理效能。

卓越的 運算效能

高速、安全兼備的 記憶體

高速、安全兼備的 記憶體

——

兩組 DDR5 SO-DIMM 插槽最高可支援 64GB 4800 MHz 記憶體。此外,還支援記憶體 ECC 錯誤修正技術(Error Correction Code),對於穩定性和可靠度要求極高的工控領域至關重要。




I/O 接口與
模組化擴充

——

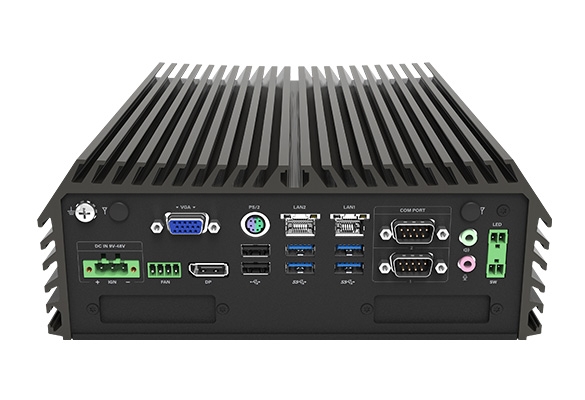

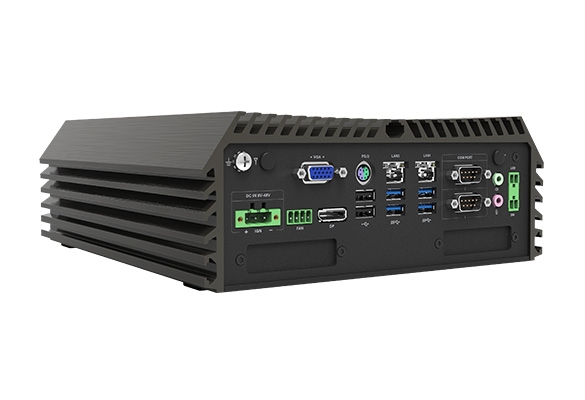

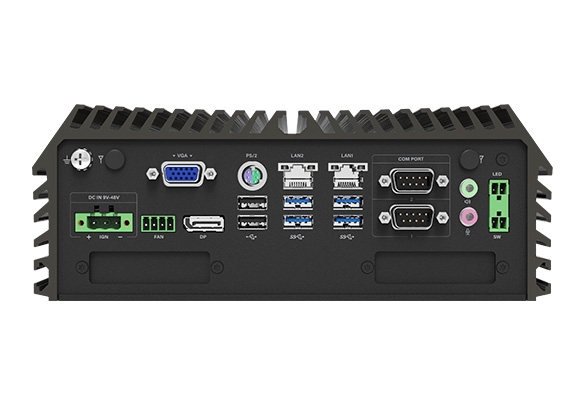

DS-1400 擁有豐富且專為工業需求設計的 I/O,包括最多 2x 1 GbE LAN、6x USB 3.2、2x USB 2.0、2x RS232/422/485、2x 2.5 吋 SATA、3x mSATA、1x M.2 key M(適用於 NVMe SSD)、2x SIM 卡插槽、3x Mini-PCIe,以及獨立的四顯輸出(DisplayPort、HDMI、VGA)。此外,尚可透過 Cincoze 專屬的 CMI/CFM 模組可增加額外的 I/O 或其他功能,如 10 GbE LAN、PoE(Power over Ethernet)和 IGN(電源點火感測)等功能。

I/O 接口與模組化擴充

強固設計 穩健可靠


強固設計 穩健可靠

——

DS-1400 的強固性可從其工業級保護設計及不同領域行業認證中體現。除了寬溫(-40 - 70°C)、寬電壓(9 - 48 VDC)、過電壓、過電流和靜電保護(ESD)等特點,還符合美國軍規衝擊震動標準 MIL-STD-810G。透過國際認可的 UL 62368-1 安全認證,進一步確保產品的安全性和可靠性。為提供更安心的軌道交通解決方案,還通過 EN 50155 中的電磁相容(EMC)EN 50121-3-2 標準。


影片
詳細規格
Model NameDS-1400
SystemProcessor

• 13th Generation Intel® Raptor Lake-S Series CPU:
  - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
  - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
  - Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
  - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
  - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
  - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
  - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series CPU:
  - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
  - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
  - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
  - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
  - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
  - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
  - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
  - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
  - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
  - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
  - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel R680E Chipset
Memory• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1080 @ 60Hz
DP• 2x DP Connector : 4096 x 2304 @ 60Hz
  * Verified maximum DP resolution: 3840x2160 @ 60Hz
HDMI• 1x HDMI Connector : 4096x2160 @ 30Hz
  * Verified maximum resolution: 3840x2160 @ 30Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 2 x GbE LAN, RJ45
  - GbE1: Intel® I219
  - GbE2: Intel® I210
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 4 x USB 3.2 Gen1x1 (5Gbps), Type A
• 2 x USB 2.0 (480Mbps), Type A
PS/2• 1 x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD• 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA• 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD• 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID• Support RAID 0/1/5/10
ExpansionMini PCI Express• 3 x Full-size Mini-PCIe Socket
SIM Socket• 2 x SIM Socket
CMI (Combined Multiple I/O) Interface• 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface• 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch• 1 x Clear CMOS Switch
Reset Button• 1 x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 227 x 261 x 88 mm
Weight Information• 4.5 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 371,274 Hours
  - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C
Relative Humidity• 95%RH @ 70°C (non-Condensing)
Shock• MIL-STD-810G
Vibration• MIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety• UL, cUL, CB, IEC, EN 62368-1
訂購資訊
Available Model
Model No.Description
DS-1400-R1013/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

Package Checklist
√ DS-1400 Embedded System x1√ Heatsink Pack x1
√ Wall Mounting Kit x1√ Screw Pack x1
√ Power Terminal Block Connector x 1√ Remote Function Terminal Block Connector x 2
√ Fan Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN03-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port
CMI-COM02CMI Module with 4x RS232/422/485 Serial Ports
CMI-ICOM01CMI Module with 4x Electrical Isolated RS-232 Serial Ports
CMI-DIO02CMI Module with 16x Optical Isolated DIO (8 in/8 out)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
UB1010Universal Bracket with 4x M12 Cutout
UB1012Universal Bracket with 4x RJ45 Cutout
UB1018Universal Bracket with DIO Cutout
UB1028Universal Bracket with 2x RJ45 Cutout
UB1030-R10Universal Bracket with 4x M12 X-Coded Cutout
UB03032x Universal Bracket each with 1x DB9 Cutout
UB0311Universal Bracket with 2x RJ45 Cutout
UB0314Universal Bracket with 2x USB Cutout
CFM-PoE03CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
