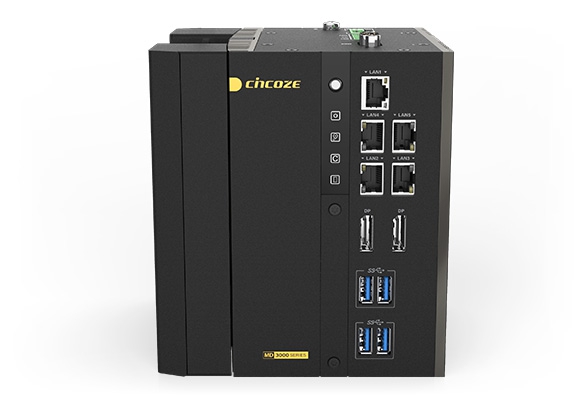

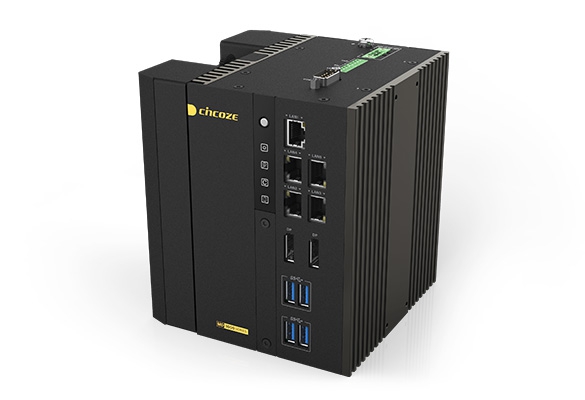

MD-3000

第 14/13/12 代 Intel Core 系列處理器，高效能與可擴展的 DIN 導軌電腦

產品特點

Intel® 第 14/13/12 代 Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 處理器
可擴展設計，配備可選購的可擴展延伸甲板，用於 I/O 模組擴充
精巧尺寸，支援 DIN 導軌安裝
支援具備 RAID 功能的雙 PCIex4 NVMe 固態硬碟 (SSD)

產品認證

加入諮詢清單規格表

產品介紹
詳細規格
訂購資訊
相關下載

產品介紹

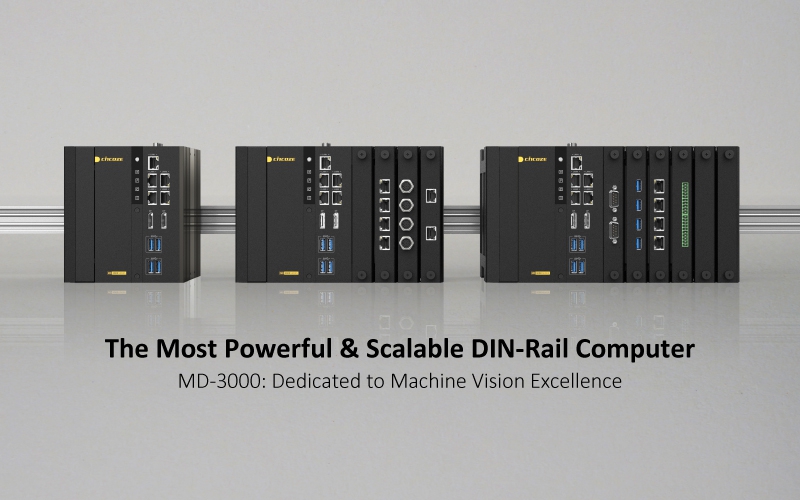

The Most Powerful & Scalable DIN-Rail Computer, MD-3000: Dedicated to Machine Vision Excellence

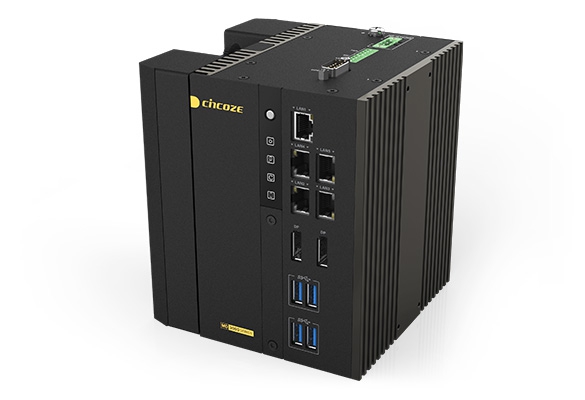

專為機器視覺與智慧製造的工作站及設備機台應用而設計的 Cincoze MD-3000 系列，是市面上少見同時兼具精巧體積、卓越效能、全面擴充性與高可靠性的 DIN-Rail 嵌入式電腦。小而強悍：僅 150 mm 高的機身卻可搭載 Intel® Core™ Desktop 等級 CPU，能輕鬆應對高速影像處理與 AI 應用需求；小而全面：除原生高速及工業用 I/O 與 M.2 擴充槽外，可搭配最多 6-Slot SED 擴充槽（Scalable Expansion Deck），依應用需求靈活增添 I/O 接口、儲存與無線傳輸等功能；小而可靠：延續 Cincoze 一貫的強固設計，亦通過多項工業標準（耐震動、抗衝擊、EMC、安全性等），確保在嚴苛環境中能長時間穩定運行，成為智慧製造現場端機器視覺應用的最佳運算平台。

優異的運算效能

——

可搭載 Intel® 第 14/13/12 代 Core™ CPU（35–65W），支援最高 96GB 5600MHz DDR5 記憶體與 2x NVMe SSD，提供優異的運算效能能滿足多樣的機器視覺應用，如視覺引導機器人、檢測、量測或可視化等需求。

關鍵的散熱技術

——

兩大特殊散熱設計是維持高運算效能的關鍵。專利的動態散熱機構（Dynamic Thermal Mechanism）設計，密合 CPU 散熱塊與上蓋，提升導熱效率；透過外部風扇迅速帶走熱能，且無須擔心進塵；專利的 Smart OTP（Over Temperature Protection）可自主偵測風扇狀態進行適當調整，確保 CPU 能持續不間斷運行。

[ 專利號 I893729、I870277 ]

全方位的擴展選項

——

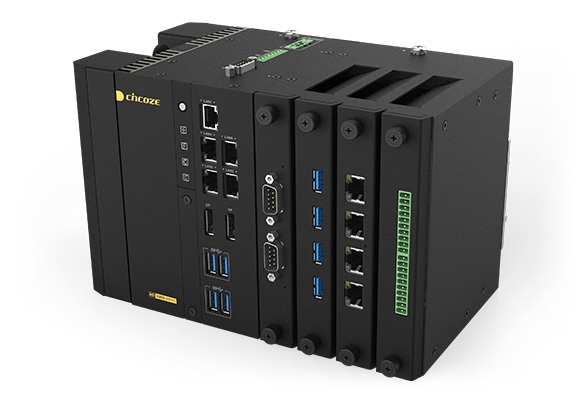

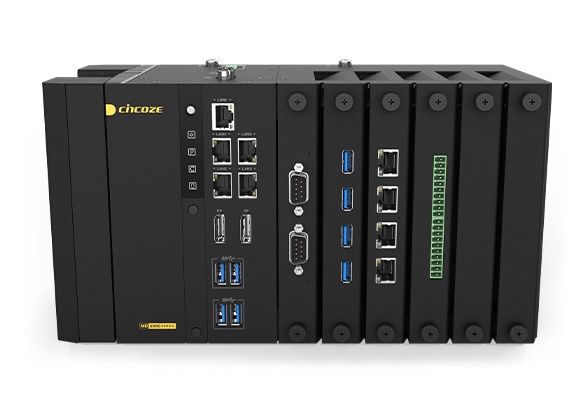

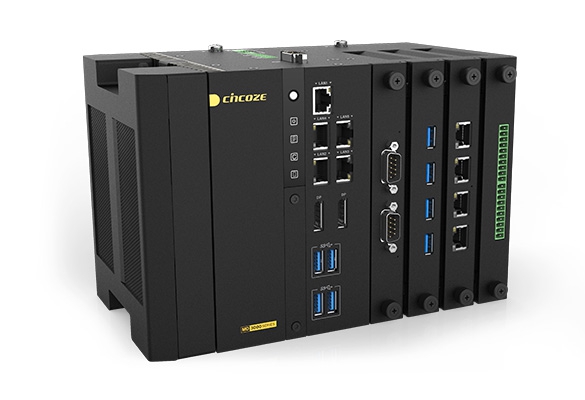

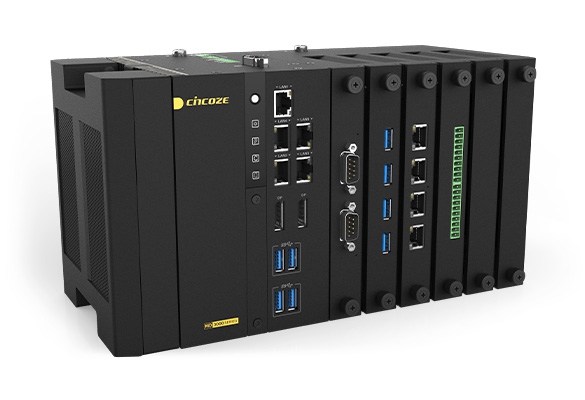

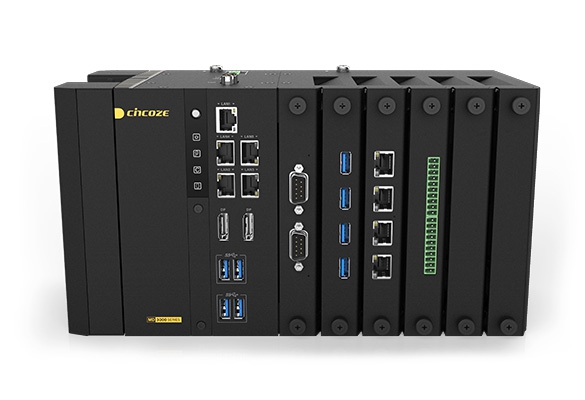

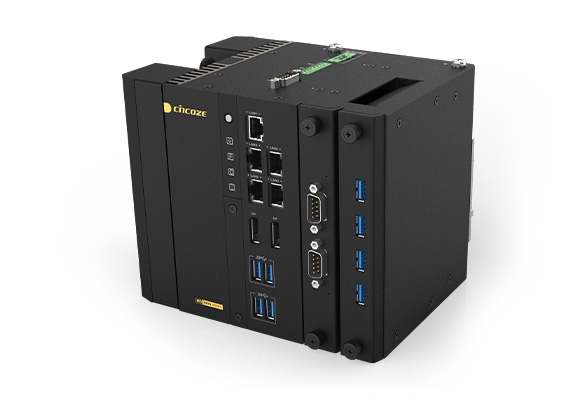

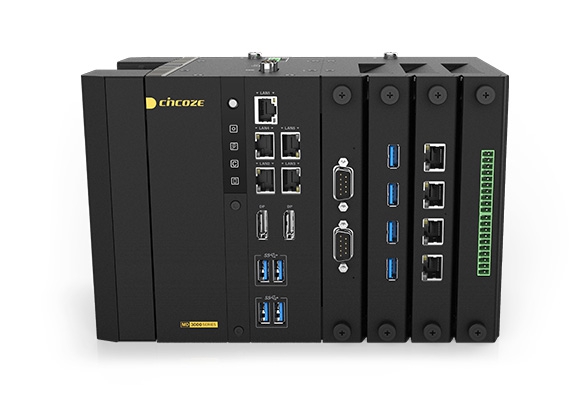

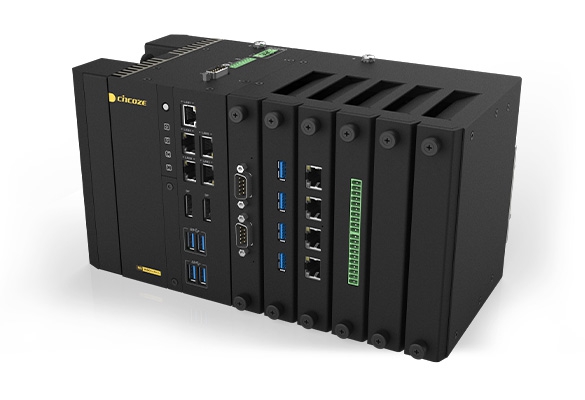

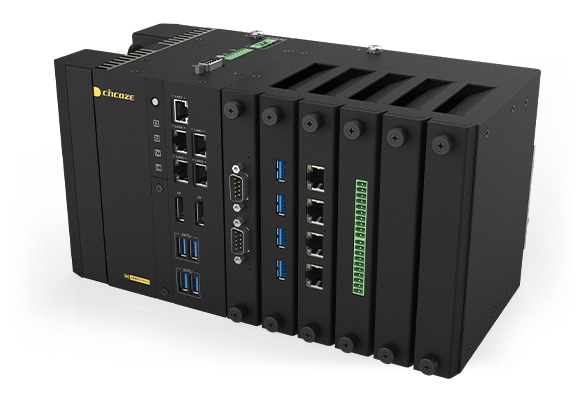

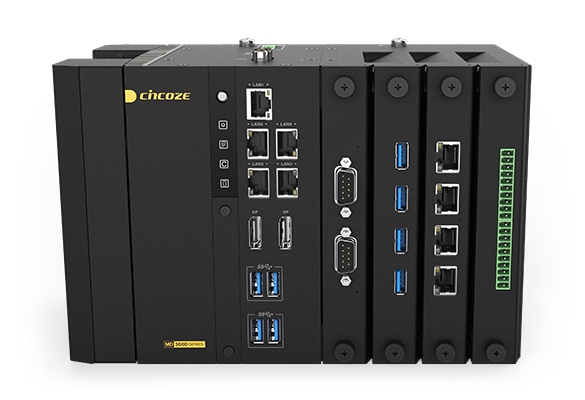

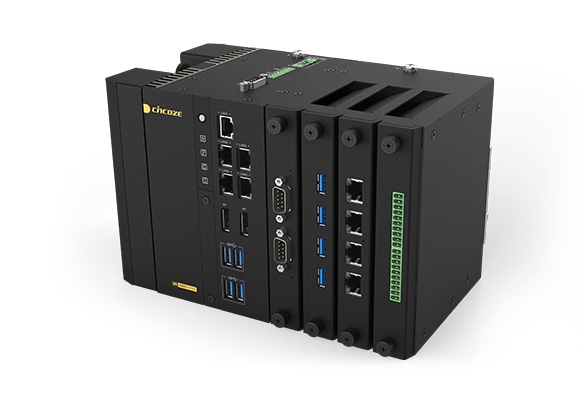

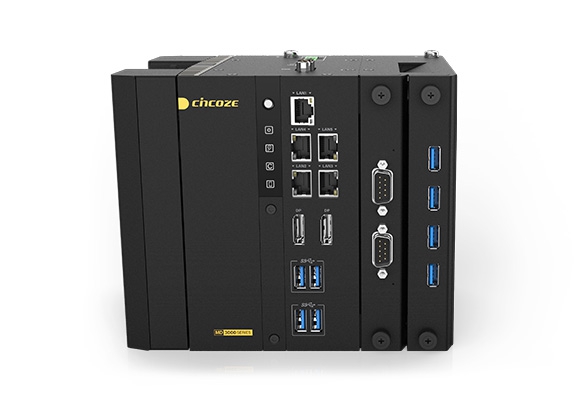

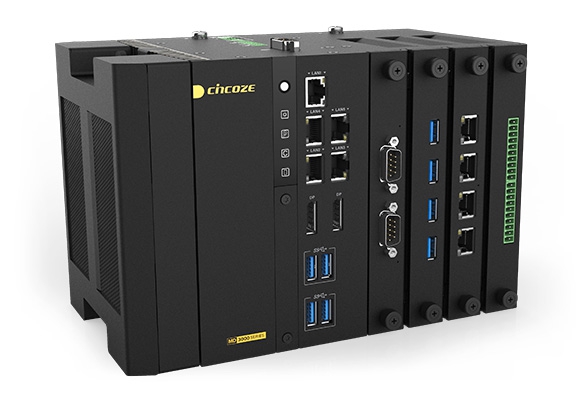

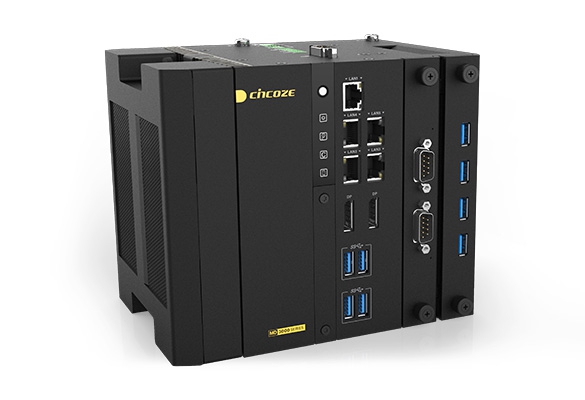

可透過 2x、4x、6-Slot SED 擴充槽，可靈活安裝 SEM 模組（如 I/O、PoE、M.2 擴充或 2.5” 儲存等），輕鬆實現接口、功能的增添、無線傳輸或是大容量儲存等多元化應用需求。

輕鬆配置隨插即用

——

Cincoze 齊全完整的 SEM 模組，除了可靈活增添外，所有模組均具備熱插拔特性與導軌設計 (Guiding Rail Alignment) 讓安裝更簡單、更快速。

貼心的安裝設計

——

專為機箱、機櫃的安裝環境量身打造，僅 150 mm 高的機身設計結合 DIN-Rail 安裝方式，所有指示燈、維護區與操作區皆集中於前方，讓安裝佈線更便利、操作維護更輕鬆。

強固與可靠

——

支援寬溫（-40°C - 65°C）、寬壓（9 - 48 VDC）與耐衝擊與震動設計外，亦符合工業環境 EMC 標準（EN 61000-6-2/4），為嚴苛的現場環境提供穩定運行的可靠基礎。

影片

需要協助嗎？

聯絡我們

info@cincoze.com

詳細規格

Model Name		MD-3000
System	Processor	• 14th Generation Intel® Raptor Lake-S Refresh Series CPU: - Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W - Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W - Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W - Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W - Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W - Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W - Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W - Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W - Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W - Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W - Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W - Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W - Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W - Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W - Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W - Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W - Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W - Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W - Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W • 13th Generation Intel® Raptor Lake-S Series CPU: - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W - Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W • 12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	• Intel R680E Chipset
	Memory	• 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory. - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor
	Maximum Display Output	• Supports Dual Independent Display
	Display Port	• 2x DisplayPort Connector: 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz
I/O	LAN	• 5x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2~5: Intel® I210
	COM	• 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 4x USB 3.2 Gen1x1 (5Gbps), Type A
Storage / Expansion	M.2 Key M Socket	• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support Storage / Add-on Card Expansion • 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion
Storage / Expansion	Expansion Deck	• 1x PCIex16 interface for Optional Scalable Expansion Deck
Other Function	RAID	• Supports RAID 0/1
	External FAN Connector	• 1x External FAN Connector (Support Smart Fan by BIOS)
	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Watchdog Timer	• Software Programmable, Supports 256 Levels System Reset
	Status LED Indicator	• Power LED • Storage LED • Thermal LED • GPIO LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	• 1x Remote Power LED, 2-pin Terminal Block
	Max Power Consumption	• 35W CPU: 195.2W • 65W CPU: 279.4W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• 35W CPU: 9.0A@24V • 65W CPU: 9.026A@24V
Physical	Dimension ( W x D x H )	• 135.5 x 132 x 152.2 mm
	Weight Information	• 3.03 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / DIN-RAIL Mount
	Physical Design	• Cableless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 356,683 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	• Windows®11, Windows®10
Operating System	Linux	• Ubuntu 22.04
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 65°C (-40℉ to 149℉) • 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉) • 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With external fan, extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 85°C (-40℉ to 185℉)
	Relative Humidity	• 95%@65℃
	Shock	• Operating, 30 Grms, Half-sine 11 ms Duration (w/ External Fan & SSD, according to IEC60068-2-27)
	Vibration	• Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-64) • Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ External Fan & SSD, according to IEC60068-2-6)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Industrial Environment	• EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019

訂購資訊

Available Model
Model No.	Description
MD-3000-R10	14/13/12th Generation Intel Core Series Processors, High Performance and Scalable DIN-Rail Computer

Package Checklist
MD-3000 DIN-Rail Computer x1	CPU Heatsink Kit x1
Screw Pack x1	Power Terminal Block Connector x1
Remote Function Terminal Block Connector x 1

Optional Scalable Expansion Deck
Model No.	Description
SED-201-R10	2-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules
SED-401-R10	4-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules
SED-402-R10	4-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules and 2 Storage Modules
SED-601-R10	6-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules and 2 Storage Modules

Optional Scalable Expansion Module
Model No.	Description
SEM-LAN101-R10	Scalable Expansion Module with 4x 1GbE LAN Ports, RJ45 Connector, 1 Deck
SEM-MLAN101-R10	Scalable Expansion Module with 4x 1GbE LAN Ports, M12 A-Coded Connector, 1 Deck
SEM-POE201-R10	Scalable Expansion Module with 4x 1GbE PoE Ports, RJ45 Connector, 2 Decks
SEM-MPOE201-R10	Scalable Expansion Module with 4x 1GbE PoE Ports, M12 A-Coded Connector, 2 Decks
SEM-10GLAN101-R10	Scalable Expansion Module with 2x 10GbE LAN Ports, RJ45 Connector, 1 Deck
SEM-10GPOE201-R10	Scalable Expansion Module with 2x 10GbE PoE Ports, RJ45 Connector, 2 Decks
SEM-USB101-R10	Scalable Expansion Module with 4x USB3.2 Gen1 (5Gbps), Type A, 1 Deck
SEM-COM101-R10	Scalable Expansion Module with 2x RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck
SEM-ICOM101-R10	Scalable Expansion Module with 2x Isolated RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck
SEM-DIO101-R10	Scalable Expansion Module with 16x Isolated DIO (8-in/8-out), 20-pin Terminal Block, 1 Deck
SEM-M2B101-R10	Scalable Expansion Module with 1x M.2 Key B Socket Type 2242/3052/2260/2280, 1 Deck
SEM-M2E101-R10	Scalable Expansion Module with 1x M.2 Key E Socket Type 2230, 1 Deck
SEM-SAT101-R10	Scalable Expansion Module with 1x 2.5” HDD/SSD SATA Drive Bay, 1 Deck

Optional Accessories
Model No.	Description
SDR-480-24	DIN Rail Power Supplies 480W 24V 20A PFC Function, SDR-480-24
Power Cable	1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
WALL01-R10	Wall Mount Kit for DA & MD Series
