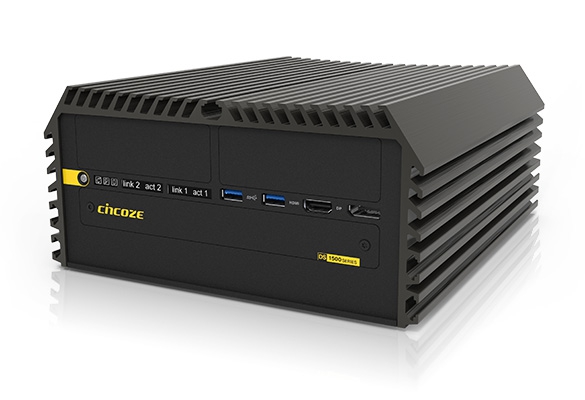

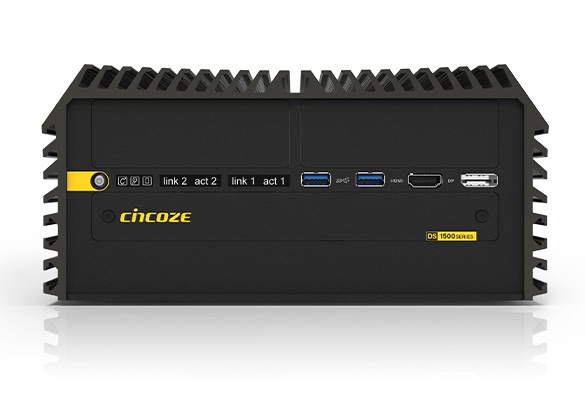

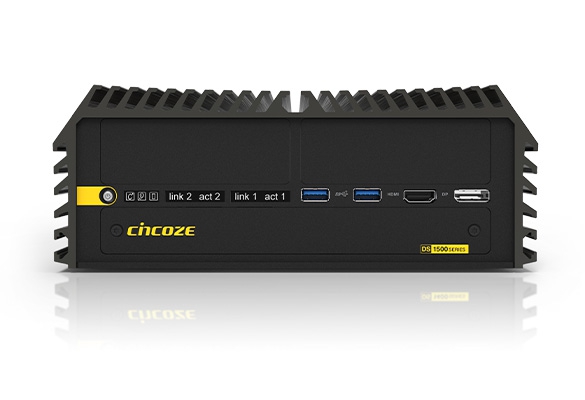

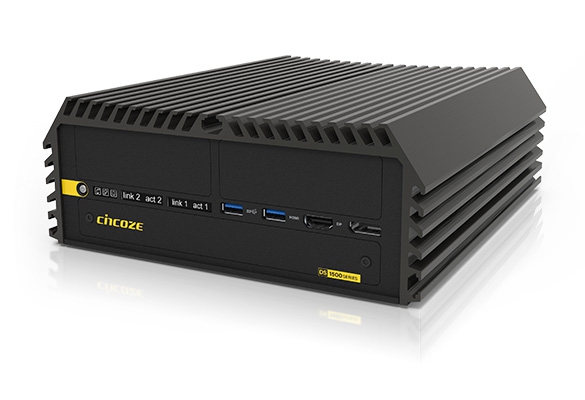

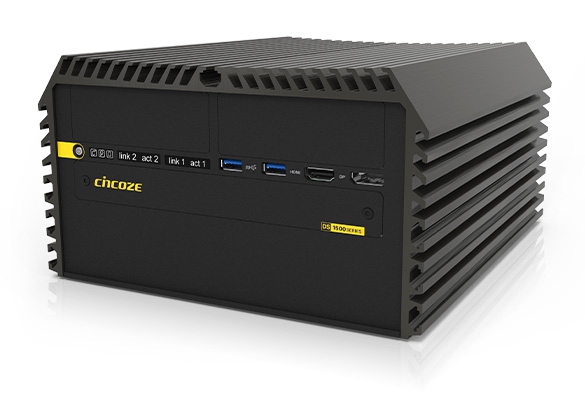

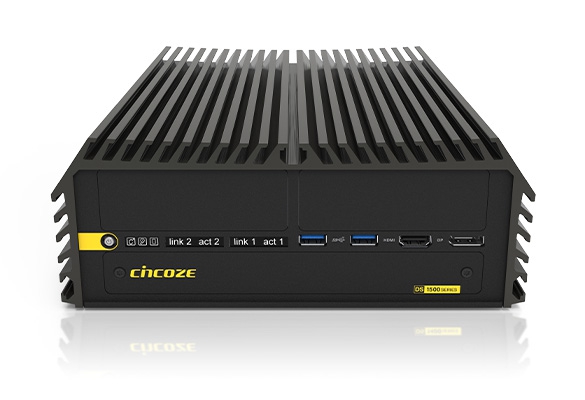

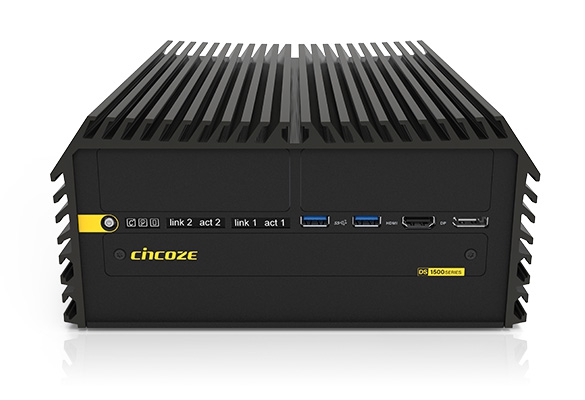

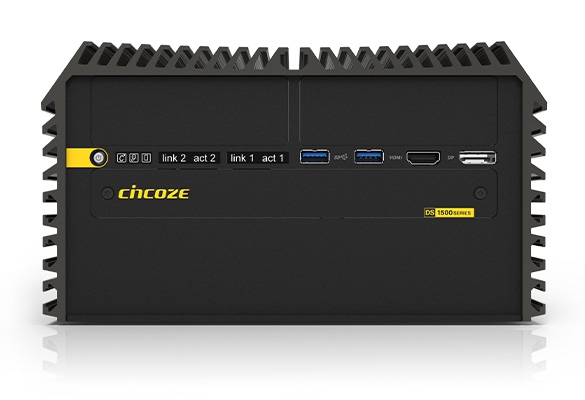

DS-1500 Series

Intel® Arrow Lake-S Core™ Ultra 200S 系列處理器，高效能且支援 PCIe 擴充的強固型嵌入式電腦，支援最多 2 張 PCI/PCIe 擴充卡
產品特點
  • Intel® Arrow Lake-S Core™ Ultra 200S 系列（最高 65W TDP）
  • 2 個 DDR5 SODIMM/CSODIMM 插槽，最高 6400MHz，96GB
  • 2 個 PCI/PCIe 擴充槽，最高支援 130W 擴充
  • 可選配 CMI 模組以擴充 I/O
  • 可選配 CFM 模組，支援硬體 TPM、點火偵測與 PoE
  • 寬溫運作範圍 -40°C 至 60°C
產品認證
  • EN 50121-3-2
  • MIL-STD-810H
  • EN 45545
加入諮詢清單 規格表
產品介紹
High Performance, Highly Expandable, DS-1500 Series, Intel Arrow Lake-S Rugged Embedded Computer

DS-1500 系列是一款高效能、可擴充的強固型嵌入式電腦，除了卓越的性能外，更擁有豐富的 I/O 接口和強大的功能性。為滿足不同的應用需求，除了擁有最多 2x PCI/PCIe 擴充能力外，獨家的模組化設計能靈活擴充 I/O 和特定功能。此外，DS-1500 系列通過多項國際認證，確保在多樣化的嚴苛環境中發揮穩定可靠的效能，是智能製造和軌道交通等應用的理想選擇。

Product Category >>>> Rugged Embedded Fanless PC



優異的 AI 運算能力

——

可搭載 Intel Core Ultra 200S series 處理器，最高支援 24 核心與 24 執行緒。透過 CPU 與整合式 GPU、NPU 的協同運作，AI 運算效能大幅提升至 36 TOPS，是前一代機種的 3.5 倍，為 AI 加速帶來顯著效益，是 Edge AI 應用的理想選擇。

優異的 AI 運算能力
6400MHz DDR5 CSODIMM 記憶體



6400MHz DDR5 CSODIMM 記憶體

——

配備兩組記憶體插槽，可支援最新 96GB 6400MHz DDR5 CSODIMM 記憶體，並具備 ECC（Error Correction Code）錯誤修正技術，對於穩定性與可靠性要求極高的工控領域至關重要。

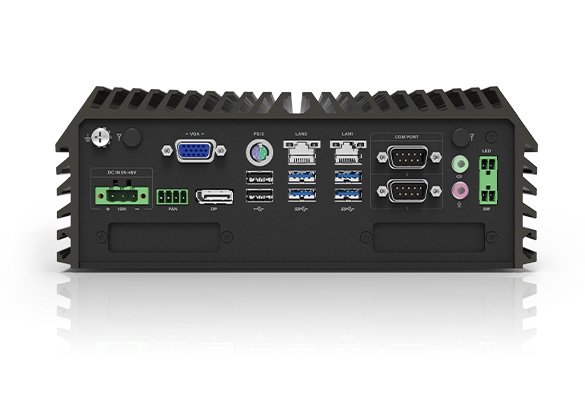

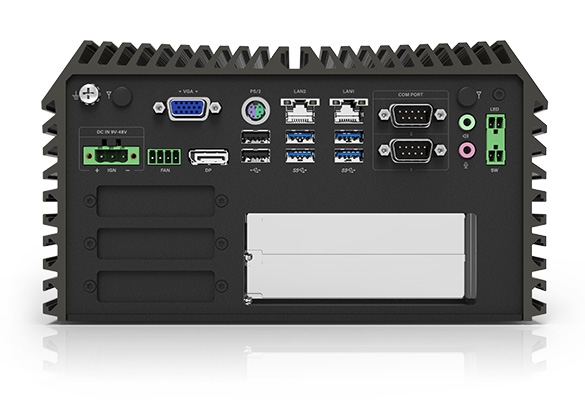

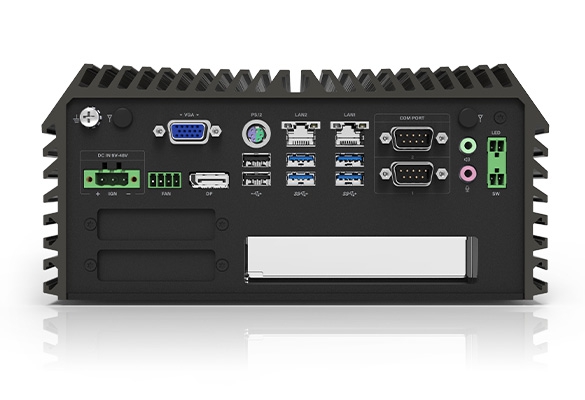

完整豐富的 I/O 與擴充性

——

透過原生與模組化設計，DS-1500 提供全面且完整的介面配置。無論是高速傳輸（1 / 2.5 / 10 GbE LAN、USB 3.2 / 2.0）或工業用 I/O（COM、DIO、PS/2）、顯示輸出等，皆能滿足多樣化應用需求。此外，支援 M.2 Key B / M / E 插槽，可搭配無線通訊模組或 NVMe SSD，為連線、儲存與擴充應用提供強大支援。

完整豐富的 I/O 與擴充性
PCI/PCIe 擴充卡與專利固定架



PCI/PCIe 擴充卡 與專利固定架

——

支援最多 2x PCI/PCIe 擴充槽（DS-1502），可安裝各類 I/O、影像擷取、資料採集及運動控制等擴充卡，亦可支援單張功耗最高 130W、尺寸 111 x 235 mm 的 GPU 卡。透過專利的可調式固定架，能在高振動環境中穩妥固定擴充卡，確保長時間穩定運行。



強固設計 穩健可靠

——

具備寬溫（-40°C - 60°C）、寬電壓（9 - 48 VDC）、過電壓、過電流及靜電放電（ESD）等強固設計與防護機制，確保嚴苛環境下的穩定運行。高可靠性亦體現在多項垂直市場認證中，包括美國軍規衝擊與震動標準（MIL-STD-810H），以及軌道交通標準 EMC（EN 50121-3-2）與防火標準（EN 45545-2）。


強固設計 穩健可靠
RESOURCES
[ 產品聚焦 ] Cincoze 高階效能 & PCIe 擴充型工業電腦（DS-1500 系列）
2025-09-18
[ 產品聚焦 ] Cincoze 高階效能 & PCIe 擴充型工業電腦（DS-1500 系列）
詳細規格
Model NameDS-1500DS-1501DS-1502
SystemProcessor

• Arrow Lake-S Ultra 200S Series CPU:
  - Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W
  - Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W
  - Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W
  - Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W
  - Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W
  - Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W
  - Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W

Chipset• Intel W880 Chipset
Memory• 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type
  - Ultra 9 / 7: Supports Up to 6400MHz, 96GB
  - Ultra 5: Supports Up to 5600MHz, 96GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® Xe LPG Graphics
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1200@60Hz
DP• 2x DP Connector : 4096 x 2304@60Hz
  - Support cable switch HDMI 4096 x 2160@30Hz
  * Verified maximum resolution: 3840 x 2160@60Hz
HDMI• 1x HDMI Connector : 4096 x 2160@30Hz
  * Verified maximum resolution: 3840 x 2160@30Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 1x 2.5 GbE LAN, RJ45
  - GbE1: Intel® I225
• 1x GbE LAN, RJ45
  - GbE2: Intel® I219
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2x 10Gbps USB 3.2 Gen2x1, Type A
• 4x 5Gbps USB 3.2 Gen1x1, Type A
• 2x 480Mbps USB 2.0, Type A
PS/2• 1 x PS/2, 6 Pin Mini-DIN Female Connector
Storage / Expansion2.5" SSD / HDD• 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 )
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion
• 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion
M.2 Key M Socket• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion
PCI Express　• 1 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
  * Supports GPU card up to 75W		• 2 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
  * Supports GPU card up to 130W
SIM• 2x SIM Socket
CMI (Combined Multiple I/O) Socket• 2x High Speed CMI Interface for optional CMI Module Expansion
• 2x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Socket• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM-TPM Interface for optional CFM-TPM Module Expansion
Other FunctionRAID• Support RAID 0/1/5/10
External FAN Connector• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
TPM• Support Discrete TPM2.0 (with Optional CFM Module)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Holes• 2
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption• 35W CPU: 163W
• 65W CPU: 262.8W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• 35W CPU: 5.812 A@24V
• 65W CPU: 5.983 A@24V
PhysicalDimension ( W x D x H )• 227x261x88 mm• 227x261x108 mm• 227x261x128 mm
Weight Information• 4.9 KG• 5.3 KG• 5.7 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall Mount
Physical Design• Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 307,224
  - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 24.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉)
• 65W TDP Processor: TBC
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C (-40℉ to 185℉)
Relative Humidity• 95%@60°C (non-Condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Railway• EMC:
  EN 50155: 2021 Clause 4.4.6, 13.4.9
  - EN 50121-1 : 2017
  - EN 50121-3-2: 2016 + A1: 2019
Fire Protection• EN 45545-2
訂購資訊
Available Model
Model No.Description
DS-1500-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer
DS-1501-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors,  High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 1x PCI/PCIe Expansion Card
DS-1502-R10Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 2x PCI/PCIe Expansion Cards

Package Checklist
DS-1500 Series Embedded System x 1Heatsink Pack x 1
Wall Mounting Kit x 1Screw Pack x 1
Power Terminal Block Connector x 1Remote Function Terminal Block Connector x 2
Fan Terminal Block Connector x 1M.2 Key B Type 3052 to 3042 Adapter Bracket x 3

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN03-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port
CMI-COM02CMI Module with 4x RS232/422/485 Serial Ports
CMI-ICOM01CMI Module with 4x Electrical Isolated RS232/422/485 Serial Ports
CMI-DIO02CMI Module with 16x Optical Isolated DIO (8 in/8 out)
CFM-PoE03CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-TPM01-R10CFM Module with Hardware TPM 2.0
RC-E16-01Riser Card with 1 x PCIex16 Slot
RC-PI-01Riser Card with 1 x PCI Slot
RC-E8E8-R10Riser Card with 2 x PCIex8 Slots
RC-E16E1-01Riser Card with 1x PCIex16, 1x PCIex1 slots, supports GPU card up to 75W
RC-E16E1-02-R10Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports GPU card up to 130W
RC-E16PI-01Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card)
RC-PIPI-01Riser Card with 2x PCI Slots
AC-BE01-R10M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
UB1004Universal Bracket with 4x DB9 Cutout
UB1010Universal Bracket with 4x M12 Cutout
UB1012Universal Bracket with 4x RJ45 Cutout
UB1018Universal Bracket with DIO Cutout
UB1028Universal Bracket with 2x RJ45 Cutout
UB1030-R10Universal Bracket with 4x M12 X-Coded Cutout
UB03032x Universal Bracket each with 1x DB9 Cutout
UB0311Universal Bracket with 2x RJ45 Cutout
UB0331-R10Universal Bracket with 2x Antenna Hole
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
FAN-UB100Internal Exhaust Fan with 4pin Connector
FAN-UB101Internal Intake Fan with 4pin Connector
MEC-LAN-2002i-SM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃),  2x RJ45 Connector, Cervoz
MEC-LAN-2002iM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector, Cervoz
MEC-LAN-2602iM.2 2280 (B+M key) 2-port 2.5GbE isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz
MEC-COM-2012M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and Tubes, Level VI
RSD-200D-24Railway Single Output DC-DC Converter 200W / DC 24V
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
