入門開放式架構平板電腦 (CO-100/P1000系列)

入門開放式架構平板電腦 (CO-100/P1000系列)

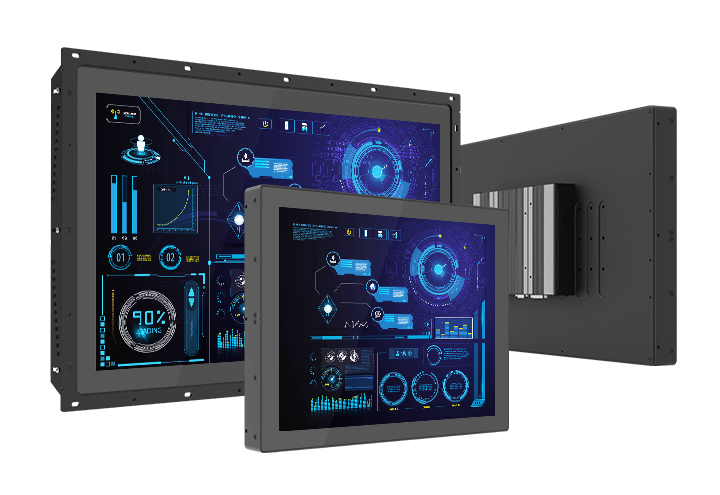

德承節能開放式架構平板電腦 (CO-100/P1000系列),採用 Intel® Atom® / Pentium® 系列處理器,支援多顯功能。除具備豐富的原生 I/O 如 LAN、USB、COM、DIO 外,部分系列支持 CFM 技術 (CO-100/P1101系列),能依據需求擴展應用功能,如 Power Ignition Sensing (IGN) 及 Power over Ethernet (PoE)。此外,一體式設計、獨家可調式安裝支架以及支援多款安裝模式,除了能完美結合於不同材質、厚度的機櫃外殼,呈現整體一致性外,其強固設計也兼顧工業嚴苛環境現場端的應用需求。
ProductModel NameDisplayCPUI/OExpansion
CO-119C / P1301 SeriesCO-119C / P1301 Series19" TFT
1280x1024 (5:4)
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CO-119C / P1201 SeriesCO-119C / P1201 Series19" TFT
1280x1024 (5:4)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CO-119C / P1101 SeriesCO-119C / P1101 Series19" TFT
1280x1024 (5:4)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
4x COM
8x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CO-119C / P1001 SeriesCO-119C / P1001 Series19" TFT
1280x1024 (5:4)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
1x USB 3.2 Gen1x1 (5Gbps)
3x USB 2.0 (480Mbps)
2x COM
8x DIO
1x Mini-PCIe
CO-W121C / P1301 SeriesCO-W121C / P1301 Series21.5" TFT
1920x1080 (16:9)
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CO-W121C / P1201 SeriesCO-W121C / P1201 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CO-W121C / P1101 SeriesCO-W121C / P1101 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
4x COM
8x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CO-W121C / P1001 SeriesCO-W121C / P1001 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
1x USB 3.2 Gen1x1 (5Gbps)
3x USB 2.0 (480Mbps)
2x COM
8x DIO
1x Mini-PCIe
CO-W124C / P1301 SeriesCO-W124C / P1301 Series24" TFT
1920x1080 (16:9)
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CO-W124C / P1201 SeriesCO-W124C / P1201 Series24" TFT
1920x1080 (16:9)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
3x USB 3.2 Gen2x1 (10Gbps)
1x USB 2.0 (480Mbps)
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CO-W124C / P1101 SeriesCO-W124C / P1101 Series24" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.2 Gen1x1 (5Gbps)
4x COM
8x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CO-W124C / P1001 SeriesCO-W124C / P1001 Series24" TFT
1920x1080 (16:9)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
1x USB 3.2 Gen1x1 (5Gbps)
3x USB 2.0 (480Mbps)
2x COM
8x DIO
1x Mini-PCIe
