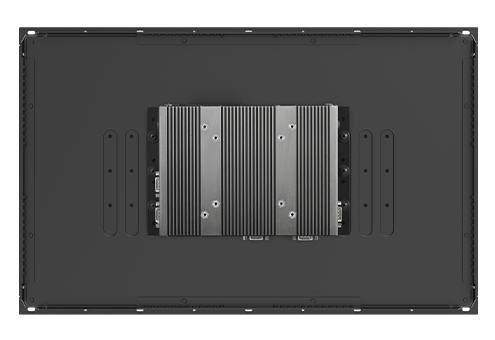

CO-W121C / P1101 Series
21.5" TFT Full HD 16:9 Panel PC with Intel® Atom® / Pentium® Processor
產品特點
- 21.5" TFT-LCD with Projected Capacitive Touch
- Onboard Intel® Atom® / Pentium® Processor
- 1x DDR3L SO-DIMM max. up to 8GB
- Designed with Adjustable Mounting Bracket
- Support Flat / Standard / VESA / Rack Mount
- Front Panel IP65 Compliant
- Wide Operating Temperature
- Cincoze Patent CDS Technology Support
產品介紹
德承節能開放式架構平板電腦(CO-W121C/P1101 Series)，採用Intel® Atom® / Pentium®系列處理器，支援多顯功能。除具備豐富的原生I/O如LAN, USB, COM, DIO外，全系列支持專屬CFM技術，能依據需求擴展應用功能，如Power Ignition Sensing (IGN)及Power over Ethernet (PoE)。此外，一體式設計、獨家可調式安裝支架以及支援多款安裝模式，除了能完美結合於不同材質、厚度的機櫃外殼，呈現整體一致性外，其強固設計也兼顧工業嚴苛環境現場端的應用需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
節能與 多顯
——
Intel® Atom® / Pentium®系列處理器處理器，支援多顯功能。
豐富I/O 靈活擴展
——
除原生I/O包含了LAN、USB、 COM、DIO與Mini-PCIe、SIM 插槽外，還可透過獨家的CFM技術，擴展應用功能，如Power Ignition Sensing (IGN) 及Power over Ethernet (PoE)。
CDS
專利技術
——
透過CDS (Convertible Display System)專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換面板尺寸或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908
可調式設計
安裝簡易
——
獨家可調式安裝支架，擁有厚度調整的選擇以及支援多款鎖固方式 (Panel Type/Boss Type)，對於使用全平面安裝與標準安裝的工業機台，提供更簡易、便捷的整合關鍵。
Patent No.: D224544, D224545, I802427一體式 設計
——
彈性與可靠兼具，除了是開放式架構的平板電腦，可佈署於設備機台中。其一體式的設計，在卸除安裝支架後，可直接透過VESA安裝作為單機使用，或是安裝於19”機架中提供顯示功能。
強固可靠兼具
耐用度提升
——
前框IP65防水防塵、無風扇、9-48V寬壓電力輸入及寬溫設計，在嚴峻的工業環境中，均能穩定持續運作，高度滿足工業現場端HMI的應用需求。
影片
![[ 產品聚焦 ] Cincoze 工業平板電腦解決方案](data/images/202407/1721098630791648051.jpg)
詳細規格
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight LED Life Time | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Power | Power Consumption | 24.8W (Max.) |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1101
| Model Name | P1101 | |
|---|---|---|
| System | Processor | Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | • 1x DDR3L 1333/1600/1866 MHz SO-DIMM Socket, with up to 1600 MHz operation • Supports Un-buffered and Non-ECC Type, Up to 8GB | |
| Graphics | Graphics Engine | Integrated Intel® HD Graphics 505 |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| VGA | 1x VGA (1920 x 1200 @60Hz) | |
| DP | 1x DisplayPort (4K x 2K @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| USB | 4x USB 3.2 Gen1 (Type A) | |
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| DIO | 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” HDD Drive Bay (SATA 3.0) |
| SIM Socket | 1 x SIM Socket | |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Sockets |
| CFM (Control Function Module) Interface | Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function | |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| Antenna Holes | 4x Antenna Holes | |
| Other Function | Instant Reboot | Support 0.2sec |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Internal Speaker | AMP 2W + 2W | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Reset Button | 1x Reset Button | |
| Power | Power Switch | 1x Power Switch |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | |
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.49kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Physical Design | Fanless Design Jumper-less Design | |
| Mounting | Wall / VESA / CDS / DIN Mounting | |
| Reliability & Protection | Reverse Power Input | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | Time: 294,617 hours | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) |
| Storage Temperature | -40°C to 85°C | |
| Relative humidity | 95% RH @ 75˚C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • LVD IEC/EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P1101-E50-R11 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch |
| CO-W121C-R10/P1101-N42-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch |
| CO-W121C | P1101-E50 | P1101-N42 | |
|---|---|---|---|
| CO-W121C/P1101-E50 | V | V | -- |
| CO-W121C/P1101-N42 | V | -- | V |
| √ CO-W121C/P1101 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
