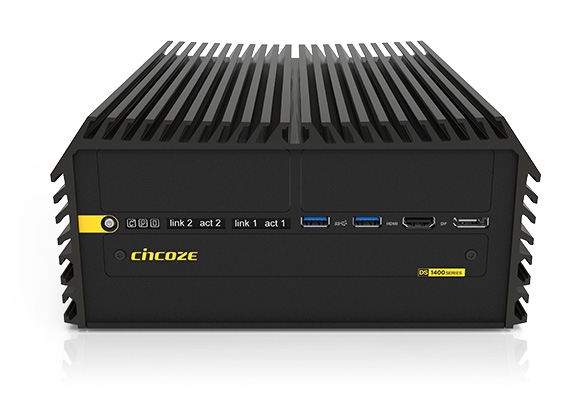

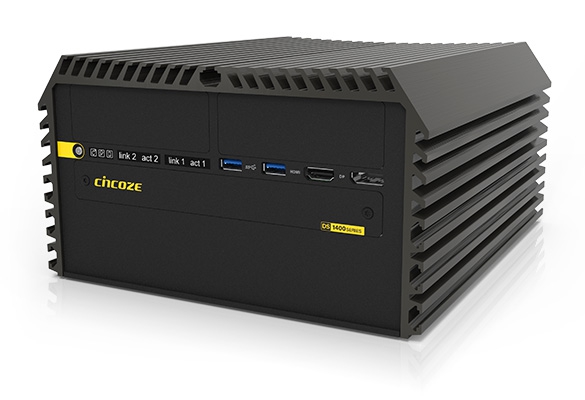

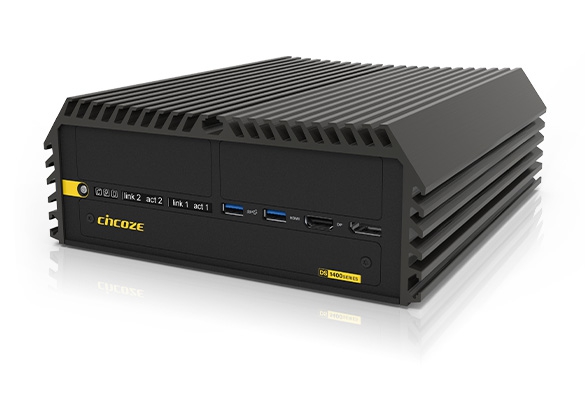

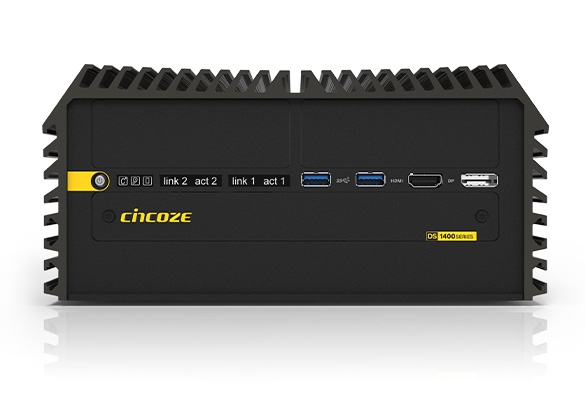

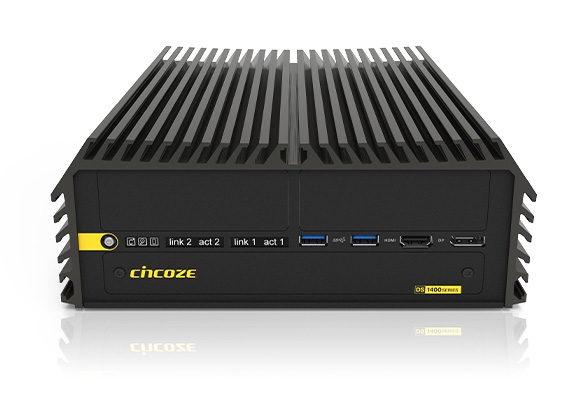

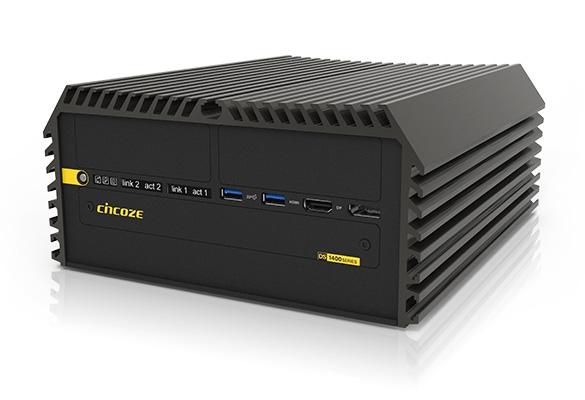

DS-1400 Series

13/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supports up to 2x PCI/PCIe Expansion Slot

PRODUCTS FEATURES
  • Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • Up to 2x PCI/PCIe expansion slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
  • Support Intel® OpenVINO™ Dev Kit
  • Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
CERTIFICATIONS
  • EN 50121-3-2
  • MIL-STD-810G
  • EN 62368-1
  • CB
  • UL
OVERVIEW

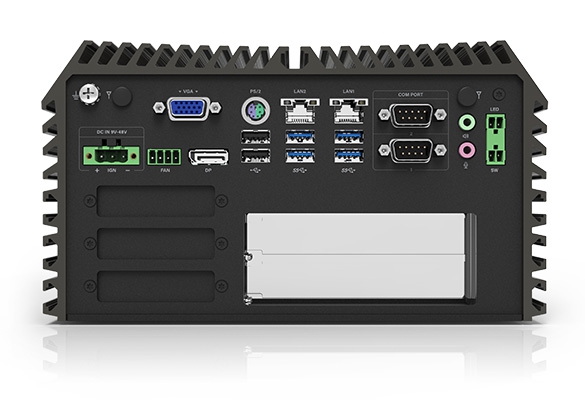

DS-1402, 12th Gen. Intel Alder Lake-S Rugged Embedded Computer

The DS-1400 Series is a high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities. To meet various application needs, it has dual PCI/PCIe expansion capability and it can also flexibly expand the required I/O and specific functions through Cincoze's unique CMI, CFM, and MEC modules. Moreover, the DS-1400 Series has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.

Product Category >>>> Rugged Embedded Fanless PC




Rapid Processing and Inference

——

The DS-1400 Series supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8x the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.

Rapid Processing and Inference

Industrial I/O and Modular Expansion


Industrial I/O and
Modular Expansion

——

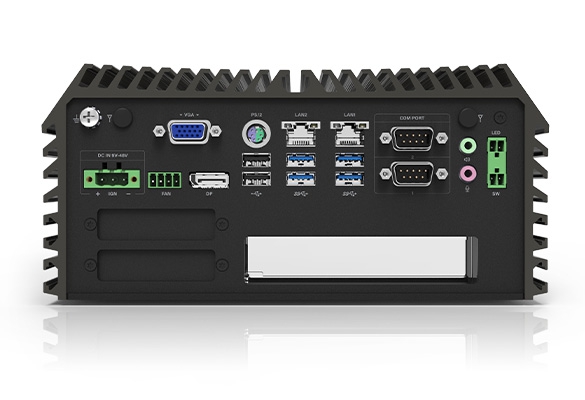

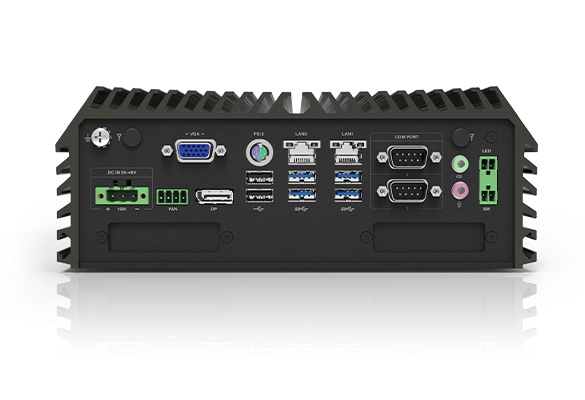

The DS-1400 Series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and quad independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and IGN (power ignition sensing).




PCI/PCIe
Add-on Cards

——

The DS-1400 Series accommodates up to dual PCI/PCIe expansion slots. It can support a maximum of one 110W add-on card with dimensions of 111 x 235 mm. This flexible slot allows integration of I/O, GPU, image capture, data acquisition, and motion control cards to suit specific application needs.

PCI/PCIe Add-on Cards

Adjustable PCIe Card Retainer



Adjustable
PCIe Card Retainer

——

A patented adjustable PCIe card retainer can securely fasten add-on cards. This unique design effectively prevents the cards from loosening due to vibrations in high-vibration environments, ensuring the stable operation of the system.

Patent No. I773359



Robust and Reliable

——

The DS-1400 Series is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155.

Robust and Reliable

Video
SPECIFICATION
Model NameDS-1400DS-1401DS-1402
SystemProcessor

• 13th Generation Intel® Raptor Lake-S Series CPU:
  - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
  - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
  - Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
  - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
  - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
  - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
  - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series CPU:
  - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
  - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
  - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
  - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
  - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
  - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
  - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
  - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
  - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
  - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
  - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel R680E Chipset
Memory• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Quad Independent Display
VGA• 1x VGA Connector : 1920 x 1080 @ 60Hz
DP• 2x DP Connector : 4096 x 2304 @ 60Hz
  * Verified maximum DP resolution: 3840x2160 @ 60Hz
HDMI• 1x HDMI Connector : 4096x2160 @ 30Hz
  * Verified maximum resolution: 3840x2160 @ 30Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 2 x GbE LAN, RJ45
  - GbE1: Intel® I219
  - GbE2: Intel® I210
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 4 x USB 3.2 Gen1x1 (5Gbps), Type A
• 2 x USB 2.0 (480Mbps), Type A
PS/2• 1 x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD• 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA• 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD• 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID• Support RAID 0/1/5/10
ExpansionPCI Express • 1 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
• 2 x PCI/PCIe Expansion Slot with Optional Riser Card
  * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
Mini PCI Express• 3 x Full-size Mini-PCIe Socket
SIM Socket• 2 x SIM Socket
CMI (Combined Multiple I/O) Interface• 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface• 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch• 1 x Clear CMOS Switch
Reset Button• 1 x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption• 35W CPU
  - OS Idle Mode: 92.52W
  - Full Loading: 206.93W
• 65W CPU
  - OS Idle Mode: 105.70W
  - Full Loading: 250.56W
Inrush Current (Peak)• 35W CPU: 6.283 A@24V
• 65W CPU: 6.655 A@24V
PhysicalDimension ( W x D x H )• 227 x 261 x 88 mm• 227 x 261 x 108 mm• 227 x 261 x 128 mm
Weight Information• 4.5 KG• 5.02 KG• 5.44 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 371,274 Hours
  - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C
Relative Humidity• 95%RH @ 70°C (non-Condensing)
Shock• MIL-STD-810G
Vibration• MIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety• UL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Model
Model No.Description
DS-1400-R1013/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
DS-1401-R1013/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot
DS-1402-R1013/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot

Package Checklist
√ DS-1400 Series Embedded System x1√ Heatsink Pack x1
√ Wall Mounting Kit x1√ Screw Pack x1
√ Power Terminal Block Connector x 1√ Remote Function Terminal Block Connector x 2
√ Fan Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN03-R10CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port
CMI-COM02CMI Module with 4x RS232/422/485 Serial Ports
CMI-ICOM01CMI Module with 4x Electrical Isolated RS-232 Serial Ports
CMI-DIO02CMI Module with 16x Optical Isolated DIO (8 in/8 out)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
UB1004Universal Bracket with 4x DB9 Cutout
UB1010Universal Bracket with 4x M12 Cutout
UB1012Universal Bracket with 4x RJ45 Cutout
UB1018Universal Bracket with DIO Cutout
UB1028Universal Bracket with 2x RJ45 Cutout
UB1030-R10Universal Bracket with 4x M12 X-Coded Cutout
UB03032x Universal Bracket each with 1x DB9 Cutout
UB0311Universal Bracket with 2x RJ45 Cutout
UB0314Universal Bracket with 2x USB Cutout
CFM-PoE03CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
FAN-UB100Exhaling fan with 4pin Connector, Universal Bracket
FAN-UB101Inhaling fan with 4pin Connector, Universal Bracket
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
RC-E16-01Riser Card with 1 x PCIex16 Slot
RC-PI-01Riser Card with 1 x PCI Slot
RC-E8E8-R10Riser Card with 2 x PCIex8 Slots
RC-E16E1-01Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 75W.
RC-E16E1-02Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 130W.
RC-E16PI-01Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card)
RC-PIPI-01Riser Card with 2x PCI Slots
