Achieving High-Performance Machine Vision: DS-1300 for Accelerated Precision Inspection and Recognition
Machine vision, an essential application for industrial intelligence, integrates cameras, optical components, and image processing technology to enable machines to "see." When combined with AI, it further empowers machines with intelligent functions such as automatic inspection, recognition, and decision-making. Consequently, machine vision is widely applied in fields like manufacturing inspection, precision measurement, robotic picking, and logistics sorting.

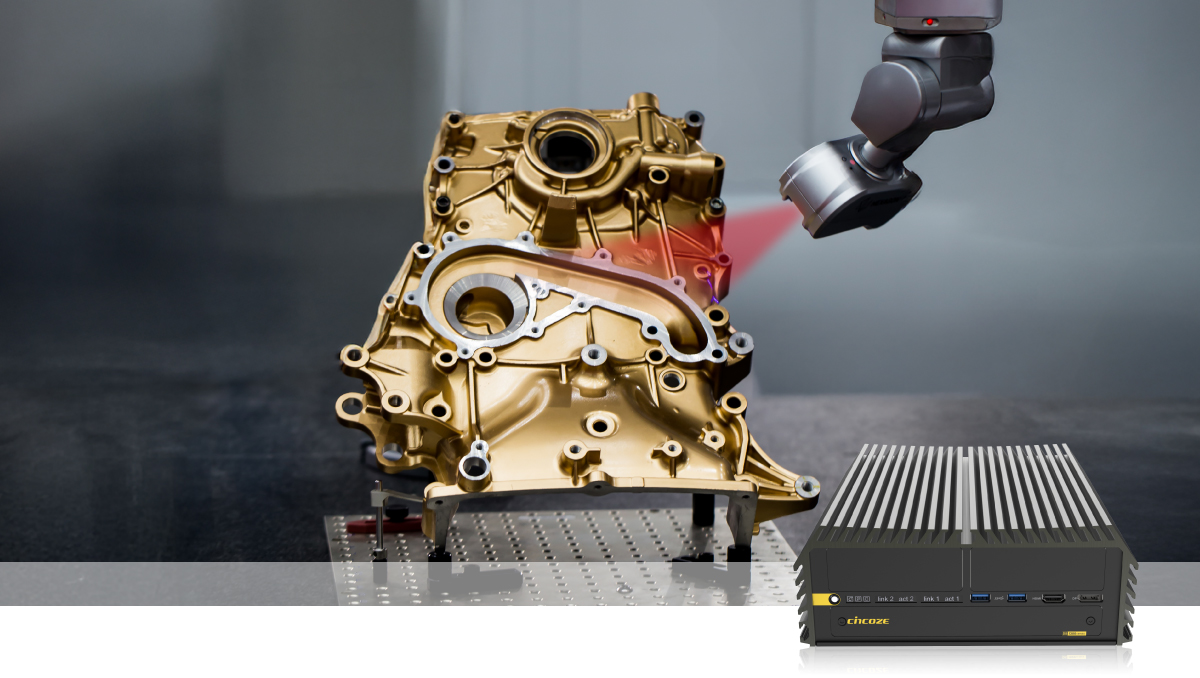

A leading European machine vision equipment manufacturer integrated the Cincoze DS-1300 embedded computer as the core component across various machine vision systems. The DS-1300's exceptional computing power and expandability enable real-time and accurate processing of large volumes of images from cameras and sensors. This integration significantly boosts inspection speed and accuracy while simultaneously reducing production costs and enhancing overall competitiveness.

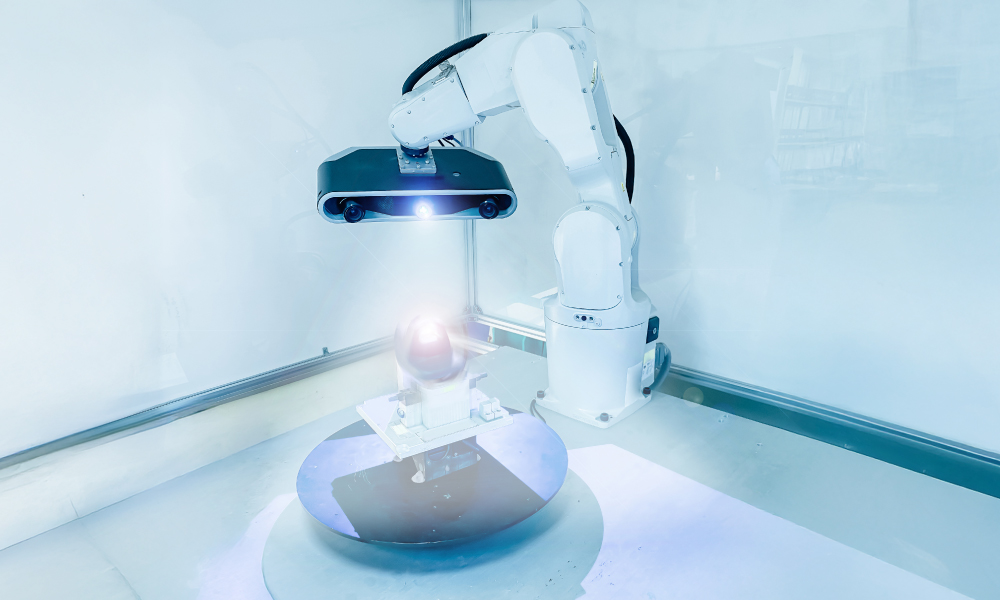

Product requirements
High-speed image processing capabilities
The embedded computer requires a lot of computing power to analyze extensive image data from cameras and 2D/3D profile sensors in real time. It must accurately identify and measure object characteristics such as position, shape, size, and defects, ensuring high-precision and efficient inspection.
Seamless connection with various peripherals
Machine vision applications require embedded computers to connect to cameras, sensors, and light sources as well as control robot arms to execute subsequent actions based on detection outcomes. The embedded computer needs a wide variety of I/O interfaces and expandability to connect to peripheral devices and complete tasks.
Uninterrupted stable operation
Machine vision systems significantly enhance detection speed and accuracy, leading to reduced production costs. Consequently, the computer's ability to operate stably over extended periods is crucial for maintaining efficient and uninterrupted production lines.
Why Cincoze?
High-end processor support for accelerated execution efficiency
The DS-1300 supports an Intel® Xeon®/Core™ processor, up to 64GB of DDR4 memory, and an NVMe SSD through an M.2 Key M slot, providing the high-speed image processing and storage essential for automatic inspection and precision measurement.
High-speed data transfer and flexible expansion
The DS-1300 addresses the fundamental need for rapid data transmission and collaborative control. Its high-speed I/O interfaces, which include up to 10GbE LAN and 10Gbps USB 3.2 Gen2x1, are more than fast enough for machine vision image and data transmission. Its native I/O and modular expansion design allow for the flexible configuration of LAN, USB, COM, DIO, and various display outputs, enabling connections to multiple devices, such as cameras, sensors, lighting, and displays. The built-in mini-PCIe slot can accommodate a Fieldbus module to support real-time control tasks like machine arm sorting and adjustment.
Rugged design for 24/7 stable operation
The DS-1300 provides the stable, uninterrupted performance required for sustained high production line efficiency, even in the face of heat and electromagnetic interference in enclosed cabinets. It tackles high heat and electromagnetic interference with a fanless design, wide temperature support (-40°C to 70°C), and wide voltage input (9-48V). The DS-1300 meets CE and FCC EMC standards and passes US military standards for shock and vibration resistance (MIL-STD-810G), ensuring reliable performance of tasks over extended periods, even under demanding conditions.
