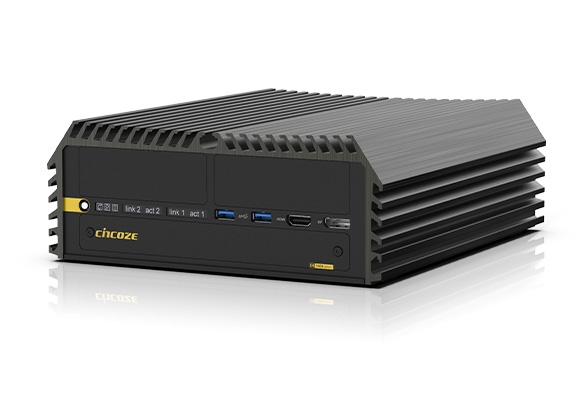

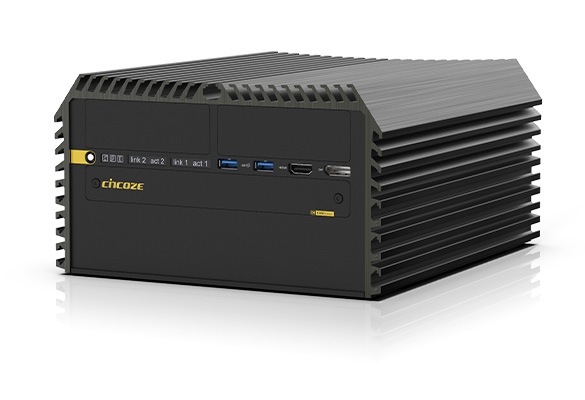

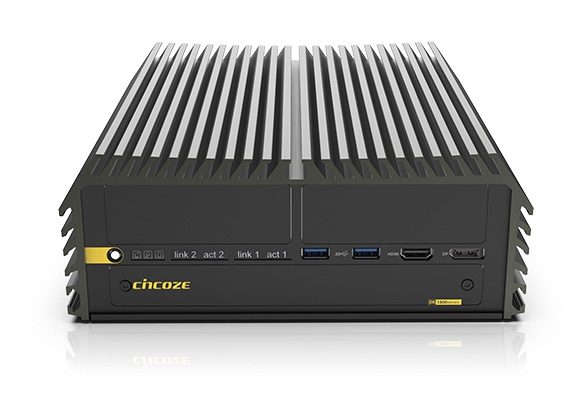

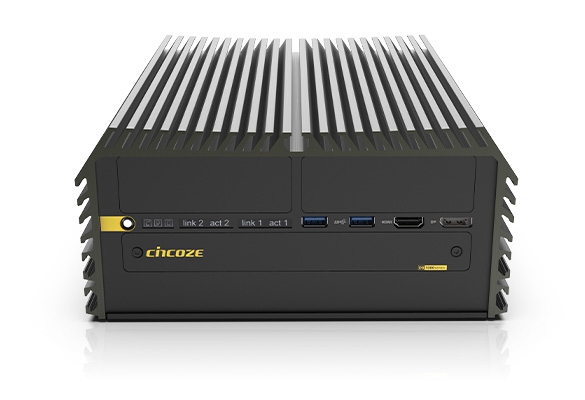

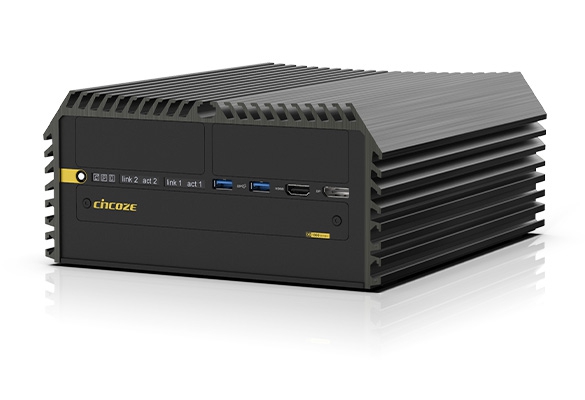

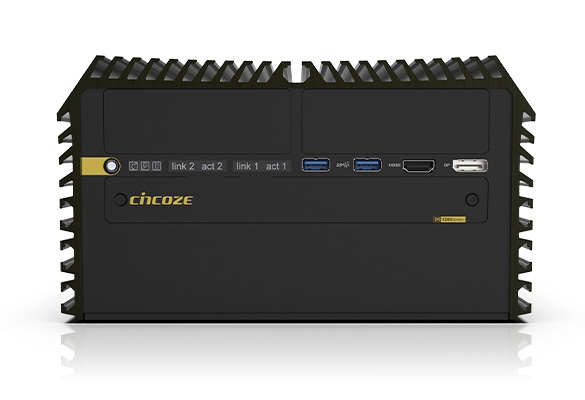

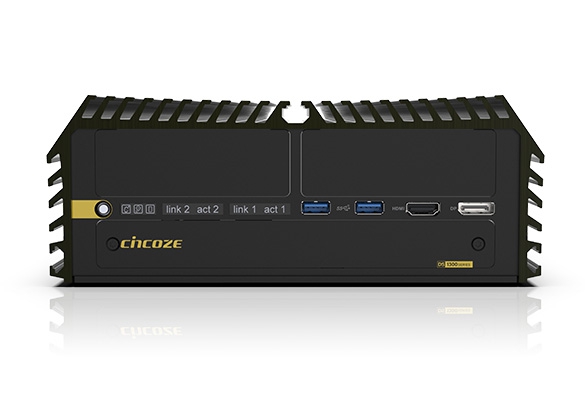

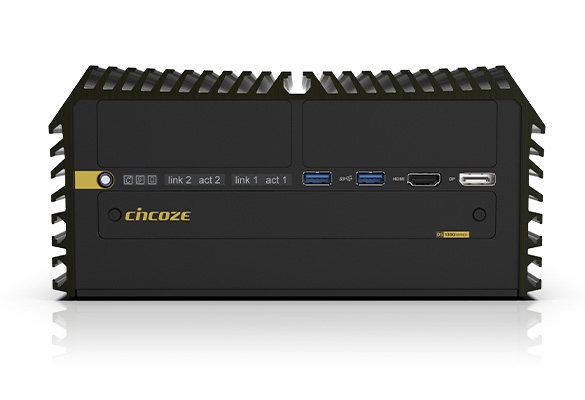

DS-1300 Series
10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer and PCIe Expandable Rugged Embedded Computer, Supports up to 2x PCI/PCIe Expansion Slot
- 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Up to 2x PCI/PCIe expansion slots
- 3x full-size Mini PCIe sockets, 2x SIM card slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
The DS-1300 Series is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has dual PCI/PCIe expansion capability. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1300 Series meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.
Product Category >>>> Rugged Embedded Fanless PC
10-Core,
Up To 80 W CPU
——
The DS-1300 series, powered by a workstation-grade 10th-gen Intel® Xeon® or Core™ i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 Series supports Xeon® CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.
More Powerful & Faster
Multiplies Productivity
——
The DS-1300 series's 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications.
* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU
** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.
Industrial I/O and
Modular Expansion
——

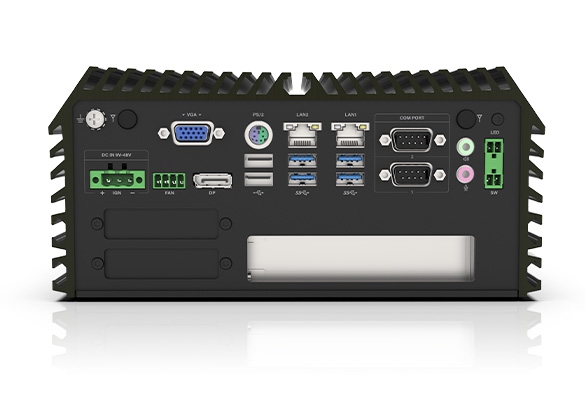

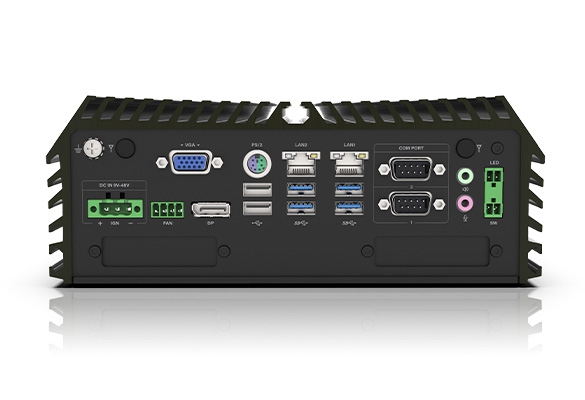

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.

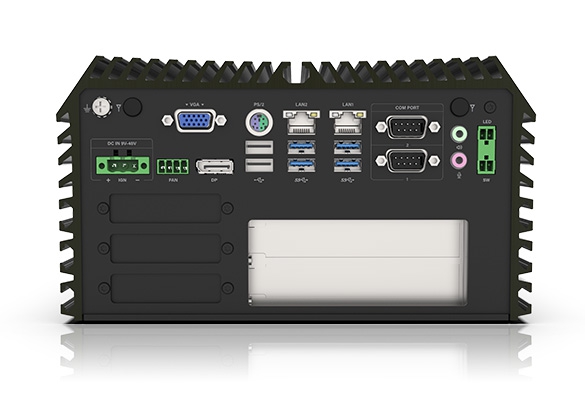

PCI/PCIe
Add-on Cards
——
DS-1300 Series can accommodate up to dual PCI/PCIe add-on cards up to 111 mm x 235 mm (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.
Adjustable
PCIe Card Retainer
——
The PCI/PCIe expansion slots include two adjustable card retainers that firmly secure the PCI/PCIe add-on cards. The retainer is a cool feature that provides the extra protection needed to prevent add-on cards from shaking loose in high-vibration environments like rolling stock.
Patent No. I773359Rugged Reliability
Against Rigorous Environments
——
The DS-1300 series's fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.
| Model Name | DS-1300 | DS-1301 | DS-1302 | |
|---|---|---|---|---|
| System | Processor | Intel® Xeon® Series Processor ( 80W / 35W ): • Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W • Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W • Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W • Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W Intel® Core® Series Processor ( 65W / 35W ): • Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W • Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W • Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W • Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W • Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W • Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W | ||
| Chipset | Intel® W480E Chipset | |||
| Memory | 2x DDR4 2933/2666/2400 SO-DIMM Socket * Xeon / i9 / i7 Processor Supports Up to 2933MHz * i5 / i3 Processor Supports Up to 2666 MHz Supports Un-buffered and Non-ECC Type Up to 64GB | |||
| BIOS | AMI BIOS | |||
| Graphics | Graphics Engine | Integrated Intel® UHD-630 Graphics | ||
| Maximum Display Output | Supports Triple Independent Display | |||
| HDMI | 1 x HDMI Connector (4096 x 2160@30Hz) | |||
| DP | 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |||
| VGA | 1 x VGA Connector (1920 x 1200 @60Hz) | |||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | ||
| Line-out | 1 x Line-out, Phone Jack 3.5mm | |||
| Mic-in | 1 x Mic-in, Phone Jack 3.5mm | |||
| I/O | LAN | • 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 | ||
| COM | 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9 | |||
| USB | • 2 x 10Gbps USB 3.2 Gen2, Type A • 4 x 5Gbps USB 3.2 Gen1, Type A • 2 x 480Mbps USB 2.0, Type A | |||
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector | |||
| Storage | SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) | ||
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |||
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 ) | |||
| RAID | Support RAID 0/1/5/10 | |||
| Expansion | PCI Express | • 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111 x 235 mm | • 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111 x 235 mm | |
| Mini PCI Express | 3 x Full-size Mini-PCIe Socket | |||
| SIM Socket | 2 x SIM Socket | |||
| CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion | |||
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion | |||
| Other Function | External FAN Connector | 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) | ||
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |||
| Clear CMOS Switch | 1 x Clear CMOS Switch | |||
| Reset Button | 1 x Reset Button | |||
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |||
| Power | Power Button | 1 x ATX Power On/Off Button | ||
| Power Mode Switch | 1 x AT/ATX Mode Switch | |||
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |||
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block | |||
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block | |||
| Total Power Budget | 180W | |||
| Physical | Dimension ( W x D x H ) | 227 x 261 x 88 mm | 227 x 261 x 108 mm | 227 x 261 x 128 mm |
| Weight Information | 4.5 KG | 5.04 KG | 5.4 KG | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | Wall Mount | |||
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |||
| Reliability & Protection | Reverse Power Input Protection | Yes | ||
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | 15A | |||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| MTBF | • 371,393 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |||
| Operating System | Windows | Windows® 10 | ||
| Linux | Supports by project | |||
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) | ||
| Storage Temperature | -40°C to 85°C | |||
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |||
| Ingress Protection | IP30 Compliant * According to IEC60529 | |||
| Shock | MIL-STD-810G | |||
| Vibration | MIL-STD-810G | |||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | IEC/EN 62368-1 | |||
| Model No. | Description |
|---|---|
| DS-1300-R10 | 10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
| DS-1301-R10 | 10th Generation Intel Xeon/Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| DS-1302-R10 | 10th Generation Intel Xeon/Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2 PCI/PCIe Expansion Slot |
| √ DS-1300 Series Embedded System x1 | √ Heatsink Pack x1 |
| √ Wall Mount Kit x1 | √ Screw Pack x1 |
| √ Remote Function Terminal Block Connector x 2 | √ Power Terminal Block Connector x1 |
| √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
| CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS-232 Serial Ports |
| CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| UB1004 | Universal Bracket with 4x DB9 Cutout |
| UB1010 | Universal Bracket with 4x M12 Cutout |
| UB1012 | Universal Bracket with 4x RJ45 Cutout |
| UB1018 | Universal Bracket with DIO Cutout |
| UB1028 | Universal Bracket with 2x RJ45 Cutout |
| UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
| UB0311 | Universal Bracket with 2x RJ45 Cutout |
| UB0314 | Universal Bracket with 2x USB Cutout |
| CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| FAN-UB100 | Exhaling fan with 4pin Connector, Universal Bracket |
| FAN-UB101 | Inhaling fan with 4pin Connector, Universal Bracket |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| RC-E16-01 | Riser Card with 1 x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| RC-E8E8-R10 | Riser Card with 2 x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 75W. |
| RC-E16E1-02 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 130W. |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
