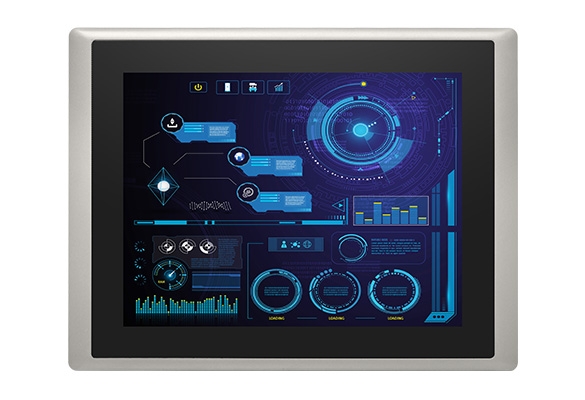

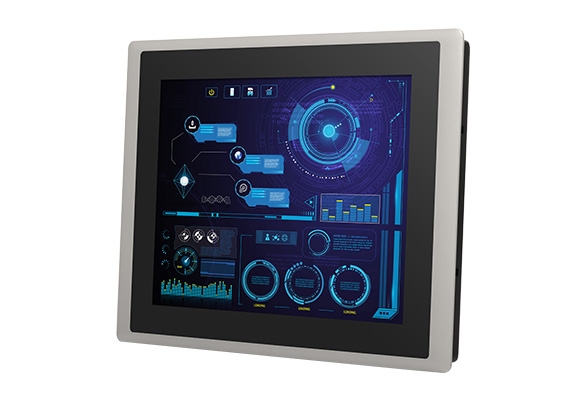

CV-112H / P1201 Series

12.1" TFT-LCD Modular Panel PC with Intel® Elkhart Lake Atom® x6000E Series Processor

PRODUCTS FEATURES
  • 12.1” TFT-LCD XGA with Resistive 5-wire / Projected Capacitive Touch
  • Intel® Elkhart Lake Atom® x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Support Panel / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support
OVERVIEW
Cincoze power efficient industrial panel pc - CV-100/P1000 Series

The CV-100/P1201 series is a modular industrial panel PC with an Intel® Atom® (Elkhart Lake) processor. Available in a selection of screen sizes, the CV-100/P1201 has flexible expansion options, including rich native I/O interfaces (GbE LAN, USB 3.2, COM, and DIO), Mini PCIe and M.2 Key E Type 2230 expansion slots, and exclusive CFM expansion to add functions such as PoE and IGN. Cincoze’s exclusive patented Convertible Display System (CDS) technology enables further flexible future computer performance upgrades and screen replacements. The robust CV-100/P1201 series is well suited for equipment HMI and production process visualization applications.

Product Category >>>> Modular Panel PC & Industrial Monitor




Next-gen Performance

——

The CV-100/P1201 supports up to an Intel® Atom® x6425E (Elkhart Lake) 4-core processor, with 1.7 times the single-thread performance, 1.5 times the multi-thread performance, and double the graphics performance of the previous-generation Apollo Lake processor. Up to 32 GB of 3200 MHz DDR4 is supported.

Next-gen Performance

Patented CDS Technology


Patented CDS Technology

——

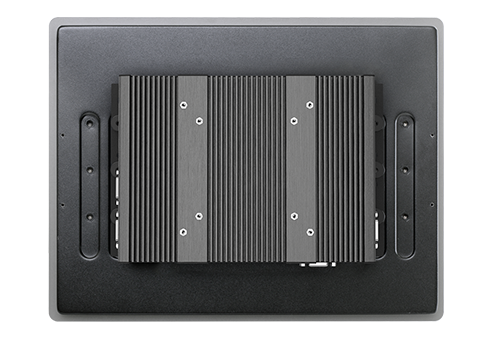

Convertible Display System (CDS), the patented technology that connects the CV-100 display module to the P1201 embedded computer, has the advantages of easy maintenance in the field and easy future upgrades because the screen size can be changed and performance can be improved by only replacing a single part, rather than the whole system, saving on upgrade costs.

Patent No. M482908

Comprehensive Range of Sizes

——

The CV-100/P1201 series has a diverse selection of screen sizes (8.4” to 24”), aspect ratios (4:3, 5:4, 16:9), and touch technologies (multi-point capacitive, single-point resistive) available to suit various application needs.

Comprehensive Range of Sizes

Robust, Safe, Reliable


Robust, Safe, Reliable

——

The CV-100/P1201 series has industrial-grade protections, including wide operating temperature (-20 to 70°C), wide-range DC power input (9 to 48 VDC), and IP65 front panel dust and water resistance, to face harsh and dangerous use environments such as on-site HMI and production process visualization. The CV-100/P1201 (19"-24" only) has separately passed product safety standards (UL certification) for information and communication technology and audio-visual equipment in the United States, an assurance of product safety.


Video
SPECIFICATION

CV-112H Series

Model NameCV-112HRCV-112HC
DisplayLCD Size12.1" (4:3)
Max. Resolution1024 x 768
Brightness (cd/m2)500
Contrast Ratio700 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24 (H) x 0.24 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected Capacitive
PhysicalDimension (W x D x H)345 x 265.3 x 57 mm
Weight Information3.16 kg
Mechanical ConstructionDie-Casting Flat Surface
PowerPower Consumption9.11W (Max.)9.06W (Max.)
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 75°C (with Industrial Grade peripherals; Ambient with air flow)-20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 40°C (Non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P1201

Model NameP1201
SystemProcessor• Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
• Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
Memory• 1x DDR4 SO-DIMM Socket
• Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector (1920 x 1080 @60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
* Verified maximum resolution: 3840 x 2160 @60Hz
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x 1GbE LAN, RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
COM3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 3x 10Gbps USB 3.2 Gen2, Type A
• 1x 480Mbps USB 2.0, Type A
DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0)
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
ExpansionMini PCI Express1x Full-size Mini-PCIe Socket
SIM Socket1 x SIM Socket
M.21x M.2 Key E Type 2230 Socket, Support Wireless Module
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM PoE Interface for optional CFM-PoE Module Expansion
CDS (Convertible Display System) Interface1x CDS Interface for Convertible Display Module
Other FunctionClear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
OSD ButtonLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Status LED IndicatorPower LED, HDD LED, Temperature LED
PowerPower Button1x ATX Power On/Off Button
Power Mode Switch1x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1x Remote Power LED, 2-pin Terminal Block
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.54 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS / DIN Rail
Physical Design• Fanless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EnvironmentOperating Temperature-40°C to 70°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockOperating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-112HR-R10/P1201-X6425E-R1012.1" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and Resistive 5-wire Touch
CV-112HC-R11/P1201-X6425E-R1012.1" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and P-Cap. Touch
CV-112HR-R10/P1201-X6211E-R1012.1" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and Resistive 5-wire Touch
CV-112HC-R11/P1201-X6211E-R1012.1" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and P-Cap. Touch

Model Configuration
 CV-112HRCV-112HCP1201-X6425EP1201-X6211E
CV-112HR/P1201-X6425EV--V--
CV-112HC/P1201-X6425E--VV--
CV-112HR/P1201-X6211EV----V
CV-112HC/P1201-X6211E--V--V

Package Checklist
√ CV-112H/P1201 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Thermal Pad (for CPU Thermal Block) x 1√ Screw Pack x 1
√ DIO Terminal Block Connector (Female) x 1√ Remote Power On/Off Terminal Block Connector x 1
√ Panel Mounting Kit x 8

Optional Modules and Accessories
Model No.Description
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
