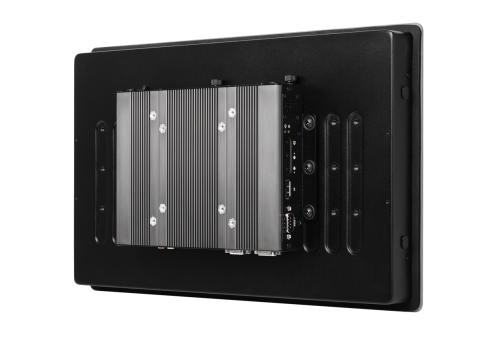

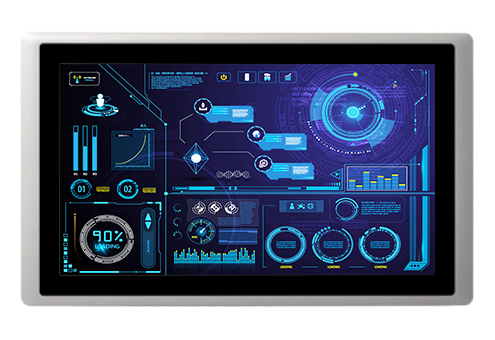

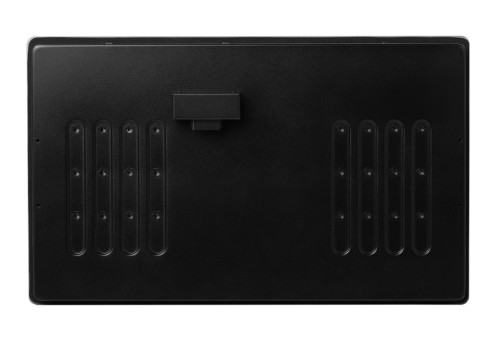

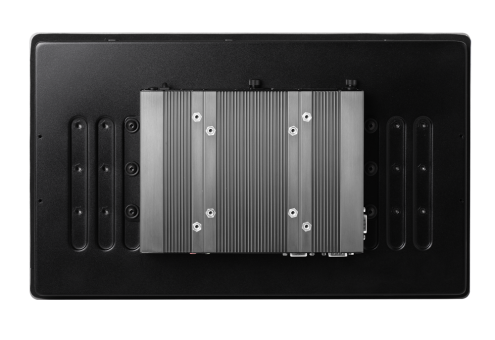

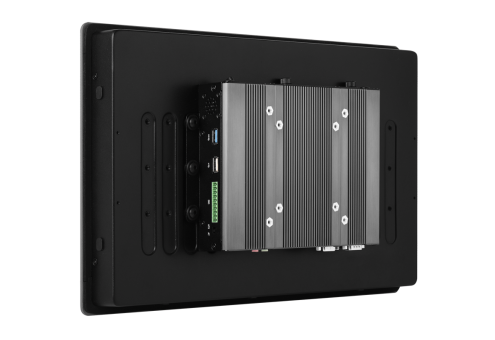

CV-W115 / P1001 Series
15.6" TFT WXGA 16:9 Panel PC with Resistive 5-wire / Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
PRODUCTS FEATURES
- 15.6" TFT WXGA 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
- 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 2W Internal Speakers
- 2x Universal I/O Brackets (For P1001E only)
OVERVIEW
The 15.6" wide screen (16:9) all-in-one panel PC offers LED backlight LCD with resolution up to 1366x768 (WXGA) and 400 nits brightness. CV-W115/P1001 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-W115/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-W115/P1001 Series carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-W115/P1001E Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes 2x Universal I/O Bracket. (For P1001E only)
CV-W115/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W115/P1001 Series can be deployed and powered for various industrial applications.
Product Category >>>> Modular Panel PC & Industrial Monitor
CV-W115/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W115/P1001 Series can be deployed and powered for various industrial applications.
Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION
CV-W115 Series
Model Name | CV-W115R | CV-W115C | |
---|---|---|---|
Display | LCD Size | 15.6" (16:9) | |
Max. Resolution | 1366 x 768 (WXGA) | ||
Brightness (cd/m2) | 400 | ||
Contrast Ratio | 500 : 1 | ||
LCD Color | 16.2M | ||
Pixel Pitch (mm) | 0.252 (H) x 0.252 (V) | ||
Viewing Angle (H-V) | 170 / 160 | ||
Backlight MTBF | 50,000 hrs (LED Backlight) | ||
Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
Physical | Dimension (W x D x H) | 420 x 254 x 66.2 mm | |
Weight Information | 4.25 kg | ||
Mechanical Construction | Die-Casting Flat Surface | ||
Power | Power Consumption | 11.5W (Max.) | 11.45W (Max.) |
Reliability & Protection | Front Panel Protection | IP 65 Compliant | |
Surge Protection | 2kV | ||
Environment | Operating Temperature | 0°C to 60°C (with Industrial Grade peripherals; Ambient with air flow) | |
Storage Temperature | -20°C to 60°C | ||
Relative Humidity | 80% RH @ 50°C (Non-Condensing) | ||
EMC | CE, UKCA, FCC, ICES-003 Class A | ||
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
Safety | UL, cUL, CB, IEC, EN 62368-1 |
P1001 Series
Model Name | P1001 | P1001E | |
---|---|---|---|
System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz | |
Memory | 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB | ||
BIOS | AMI 64Mbit SPI BIOS | ||
Graphics | CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
VGA | 1x VGA Connector (1920x1080@60Hz) | ||
DP | 1x DisplayPort Connector (1920x1080@60Hz) | ||
Audio | Line-out | 1x Line-out, Phone Jack 3.5mm | |
Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) | ||
Serial Port | 2x RS-232/422/485 with Auto Flow Control Support, DB9 | ||
DIO | 8x Isolated Digital I/O (4in/4out) | ||
Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive | |
SIM Socket | 1 x Front Accessible SIM Socket | ||
CFast | 1 x Front Accessible CFast Socket | ||
Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module | |
Universal Bracket | 2x Universal I/O Brackets | ||
Other Function | Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
Internal Speaker | AMP 2W + 2W | ||
OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
Reset Button | 1x Reset Button | ||
Power | Power Button | 1x ATX Power On/Off Switch | |
Power Mode Switch | 1x AT/ATX Mode Switch | ||
Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W | ||
Physical | Dimension ( W x D x H ) | 204.5 x 149 x 37.5 mm | 204.5 x 150 x 60 mm |
Weight Information | 1.34kg | 1.54kg | |
Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
Mounting | Wall / VESA / CDS Mounting | ||
Physical Design | Fanless Design Jumper-less Design | ||
Reliability & Protection | Reverse Power Input | Yes | |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
Over Current Protection | 20A | ||
Operating Stystem | Microsoft® Windows® | Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7 | |
Linux | Supports by project | ||
Environment | Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
StorageTemperature | -30°C to 85°C | ||
Relative Humidity | 10%~95% (non-condensing) | ||
Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
EMC | CE, UKCA, FCC, ICES-003 Class A | ||
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
ORDERING INFORMATION
Model No. | Product Description |
---|---|
CV-W115R-R10/P1001-R10 | 15.6" TFT WXGA 16:9 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
CV-W115C-R11/P1001-R10 | 15.6" TFT WXGA 16:9 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
CV-W115R-R10/P1001E-R10 | 15.6" TFT WXGA 16:9 Panel PC with Resistive 5-wire Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
CV-W115C-R11/P1001E-R10 | 15.6" TFT WXGA 16:9 Panel PC with Projected Capacitive Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
CV-W115R | CV-W115C | P1001 | P1001E | |
---|---|---|---|---|
CV-W115R/P1001 | V | -- | V | -- |
CV-W115C/P1001 | -- | V | V | -- |
CV-W115R/P1001E | V | -- | -- | V |
CV-W115C/P1001E | -- | V | -- | V |
√ CV-W115/P1001 Series Panel PC x 1 | √ Power Terminal Block Connector (Female)x 1 |
√ Panel Mounting Kit x 1 | √ HDD Screw Pack x 1 |
√ DIO Terminal Block Connector (Female)x 1 | √ Mini PCIe Screw Pack x 1 |
Model No. | Description |
---|---|
MEC-COM-M212-DB9 | Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only) |
MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only) |
MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only) |
UB0303 | 2x Universal Bracket each with 1x DB9 Cutout (For P1001E only) |
UB0311 | 1x Universal Bracket with 2x RJ45 Cutout (For P1001E only) |
UB0314 | 1x Universal Bracket with 2x USB Cutout (For P1001E only) |
URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
