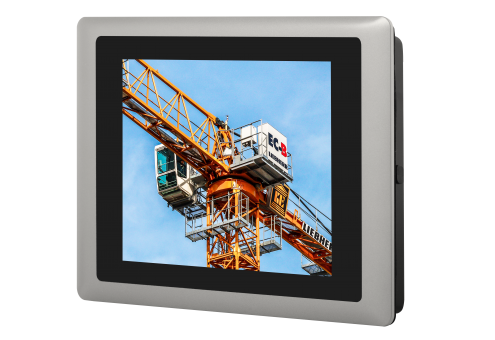

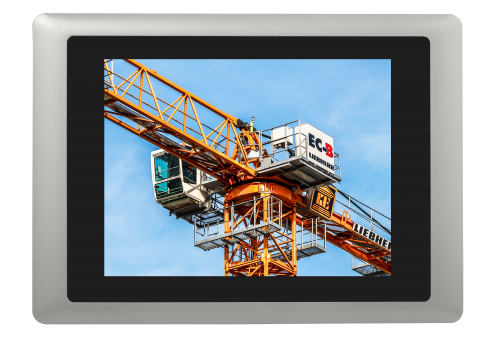

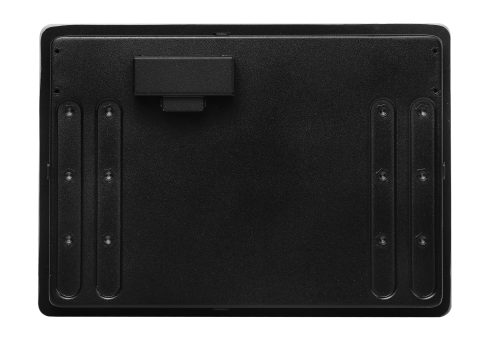

CS-108
8.4“ TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch
PRODUCTS FEATURES
- 8.4” TFT-LCD with Projected Capacitive Touch
- Ultra High Brightness up to 1,600 nits
- Resolution up to 800 x 600 (SVGA)
- 50,000 hrs LED Backlight Life
- Wide Range Operating Temperature
- IP65 Front Panel Protection
- Flat Rugged Aluminum Die-casting Bezel
- Convertible Display System (CDS) Technology Supported
- Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
CS-108 is 8.4“ TFT-LCD touch display module. It offers 1,600 nits ultra high brightness and 800 x 600 (SVGA) resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-108 is a rugged and reliable display solution featuring wide range operating temperature , a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-108 allows you to configure, upgrade and maintain your display system according to your need.
>>>> Embedded Computers Technology
>>>> Embedded Computers Technology
![[ Product Spotlight ] Cincoze Panel PC Solution Lineup](data/images/202407/1721099187139892399.jpg)
SPECIFICATION
CS-108
| Model Name | CS-108 | |
|---|---|---|
| Display | LCD Size | 8.4" (4:3) |
| Max. Resolution | 800 x 600 (SVGA) | |
| Brightness (cd/m2) | 1600 | |
| Contrast Ratio | 600 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 262 x 186.2 x 56.2 mm |
| Weight Information | 1.58kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Power | Power Consumption | 9.48W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 85% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CS-108C-R10 | 8.4" TFT-LCD 1600 nits SVGA 4:3 Display Module with Projected Capacitive Touch |
| √ CS-108 Display Module x 1 | √ Panel Mounting Kit x 1 |
