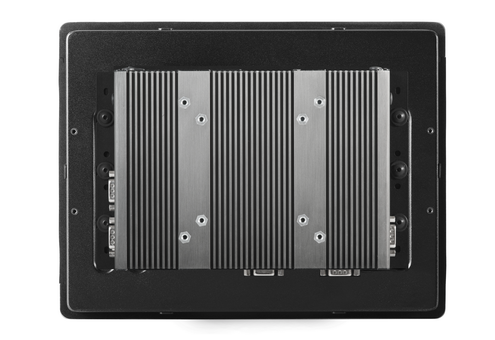

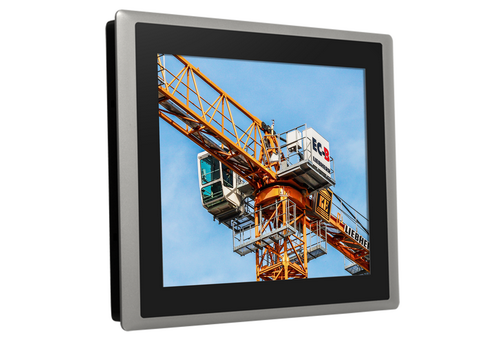

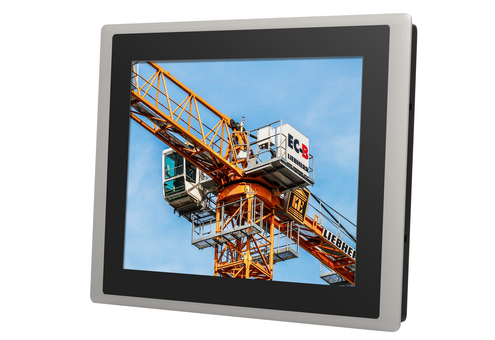

CS-110H / P1101 Series

10.4" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom® / Pentium® Processor

PRODUCTS FEATURES
  • 10.4" TFT-LCD XGA with Ultra High Brightness up to 1,500 nits
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)
  • Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
  • 2x Full Size Mini-PCIe, 1x 2.5" SATA Drive Bay, 1x mSATA Socket
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
  • Supports Panel / VESA / Rack Mounting
OVERVIEW
CS-110H/P1101 Series is a 10.4" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-110H/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.

Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CS-110H/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.

Featuring with rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CS-110H/P1101 Series is appropriate for harsh environments and critical applications.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CS-110H

Model NameCS-110H
DisplayLCD Size10.4" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)1500
Contrast Ratio1000 : 1
LCD Color16.2M
Pixel Pitch (mm)0.2055 (H) x 0.2055 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF70,000 hours (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)295 x 227.3 x 56.2 mm
Weight Information2.24 kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Bezel
PowerPower Consumption15.3W (Typ.)
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 40°C (Non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P1101

Model NameP1101
SystemProcessorOnboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
Memory1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
Supports up to 8GB (un-buffered and non-ECC)
GraphicsGraphics EngineIntegrated Intel® HD Graphics 505
Maximum Display OutputSupports Triple Independent Display
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA (1920 x 1200 @60Hz)
DP1x DisplayPort (4K x 2K @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB4x USB 3.2 Gen1 (Type A)
Serial Port4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” HDD Drive Bay (SATA 3.0)
SIM Socket1 x SIM Socket
mSATA1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
ExpansionMini PCI Express2x Full-size Mini-PCIe Sockets
CFM (Control Function Module) InterfaceOptional CFM IGN Module for Power Ignition Function
Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
Antenna Holes4x Antenna Holes
Other FunctionInstant RebootSupport 0.2sec
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Clear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
PowerPower Switch1x Power Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.49kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
Physical DesignFanless Design
Jumper-less Design
MountingWall / VESA / CDS / DIN Mounting
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBFTime: 294,617 hours
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 85°C
Relative humidity95% RH @ 75˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-110HC-R12/P1101-E50-R1010.4" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch
CS-110HC-R12/P1101-N42-R1010.4" TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch

Model Configuration
 CS-110HCP1101-E50P1101-N42
CS-110HC/P1101-E50VV--
CS-110HC/P1101-N42V--V

Package Checklist
√ CS-110H/P1101 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1√ HDD Screw Pack x 1
√ DIO Terminal Block Connector (Female) x 1√ Mini PCIe Screw Pack x 1

Optional Modules and Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-110H / P1101 Series Datasheet2023/07/25Download
Manual
SubjectRelease DateDownload
CS-100 / P1101 Series User Manual2024/11/01Download
Driver
SubjectRelease DateDownload
P1101 COM Driver (Windows 10 Version)2018/08/16Download
P1101 Audio Driver (Windows 10 Version)2018/08/16Download
P1101 Chipset Driver (Windows 10 Version)2018/08/16Download
P1101 Graphics Driver (Windows 10 Version)2018/08/16Download
P1101 LAN Driver (Windows 10 Version)2018/08/16Download
P1101 Serial I/O Driver (Windows 10 Version)2018/08/16Download
P1101 TXE Driver (Windows 10 Version)2018/08/16Download
