Entry Performance Sunlight Readable Panel PC (CS-100/P1000 Series)

Entry Performance Sunlight Readable Panel PC (CS-100/P1000 Series)

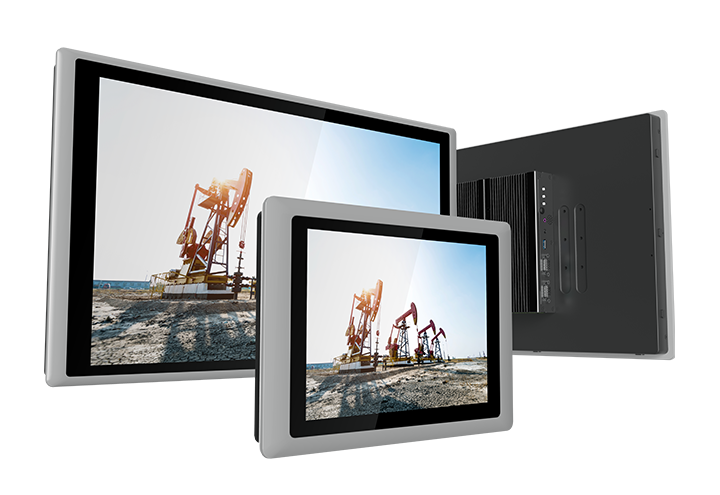

This all-in-one Sunlight Readable Panel PC series is available from 8.4"~24" displays with projected capacitive touch screen, powered by Intel® Atom™ Quad Core Processor. It is a rugged and reliable panel PC solution with brightness up to 1800 nits dedication to outdoor industrial applications.
ProductModel NameDisplayCPUI/OExpansion
CS-108 / P1301 SeriesCS-108 / P1301 Series8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-108 / P1201 SeriesCS-108 / P1201 Series8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-108 / P1001 SeriesCS-108 / P1001 Series8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-108 / P1101 SeriesCS-108 / P1101 Series8.4" TFT
800 x 600 (4:3)
1600 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-110H / P1301 SeriesCS-110H / P1301 Series10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-110H / P1201 SeriesCS-110H / P1201 Series10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-110H / P1101 SeriesCS-110H / P1101 Series10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-110H / P1001 SeriesCS-110H / P1001 Series10.4" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-112H / P1301 SeriesCS-112H / P1301 Series12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-112H / P1201 SeriesCS-112H / P1201 Series12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-112H / P1101 SeriesCS-112H / P1101 Series12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-112H / P1001 SeriesCS-112H / P1001 Series12.1" TFT
1024 x 768 (4:3)
1500 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-115 / P1301 SeriesCS-115 / P1301 Series15" TFT
1024 x 768 (4:3)
1800 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-115 / P1201 SeriesCS-115 / P1201 Series15" TFT
1024x768 (4:3)
1800 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-115 / P1101 SeriesCS-115 / P1101 Series15" TFT
1024x768 (4:3)
1800 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-115 / P1001 SeriesCS-115 / P1001 Series15" TFT
1024x768 (4:3)
1800 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-117 / P1301 SeriesCS-117 / P1301 Series17" TFT
1280 x 1024 (5:4)
1500 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-117 / P1201 SeriesCS-117 / P1201 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-117 / P1101 SeriesCS-117 / P1101 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-117 / P1001 SeriesCS-117 / P1001 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-119 / P1301 SeriesCS-119 / P1301 Series19" TFT
1280 x 1024 (5:4)
1600 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-119 / P1201 SeriesCS-119 / P1201 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-119 / P1101 SeriesCS-119 / P1101 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-119 / P1001 SeriesCS-119 / P1001 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-W121 / P1301 SeriesCS-W121 / P1301 Series21.5" TFT
1920 x 1080 (16:9)
1000 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-W121 / P1201 SeriesCS-W121 / P1201 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-W121 / P1101 SeriesCS-W121 / P1101 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W121 / P1001 SeriesCS-W121 / P1001 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CS-W124 / P1301 SeriesCS-W124 / P1301 Series24" TFT
1920 x 1080 (16:9)
1500 nits
Intel® Core i3-N305
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CS-W124 / P1201 SeriesCS-W124 / P1201 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CS-W124 / P1101 SeriesCS-W124 / P1101 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W124 / P1001 SeriesCS-W124 / P1001 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
