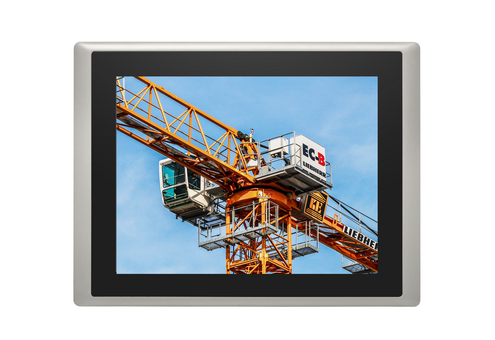

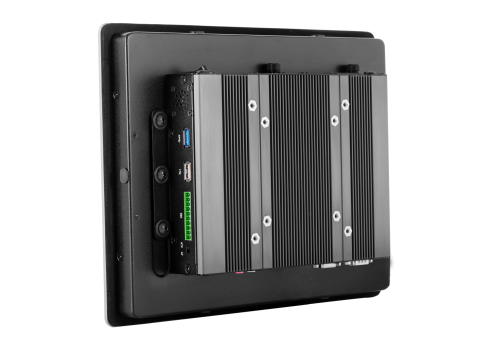

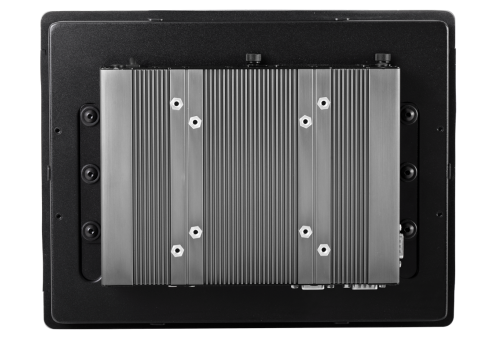

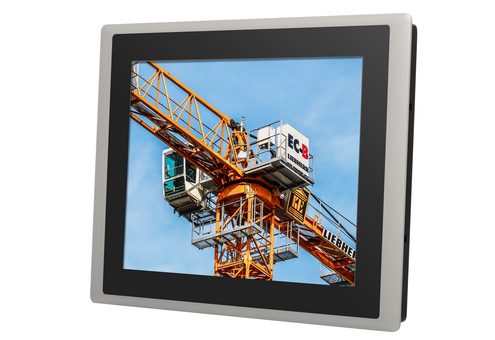

CS-110H / P1001 Series

10.4" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor

PRODUCTS FEATURES
  • 10.4" TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
  • 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
  • 2x Universal I/O Bracket (For P1001E only)
OVERVIEW
CS-110/P1001 Series is a 10.4" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot, 1x SIM socket, and 2x Universal I/O Bracket(For P1001E only) for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.

CS-110/P1001 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. Furthermore, CS-110/P1001 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CS-110H

Model NameCS-110H
DisplayLCD Size10.4" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)1500
Contrast Ratio1000 : 1
LCD Color16.2M
Pixel Pitch (mm)0.2055 (H) x 0.2055 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF70,000 hours (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)295 x 227.3 x 56.2 mm
Weight Information2.24 kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Bezel
PowerPower Consumption15.3W (Typ.)
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 40°C (Non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-110HC-R12/P1001-R1010.4" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor and P-Cap. Touch
CS-110HC-R12/P1001E-R1010.4" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket

Model Configuration
 CS-110HCP1001P1001E
CS-110HC/P1001VV--
CS-110HC/P1001EV--V

Package Checklist
√ CS-110H/P1001 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1√ HDD Screw Pack x 1
√ DIO Terminal Block Connector (Female) x 1√ Mini PCIe Screw Pack x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (For P1001E only)
UB03111x Universal Bracket with 2x RJ45 Cutout (For P1001E only)
UB03141x Universal Bracket with 2x USB Cutout (For P1001E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
