產品介紹

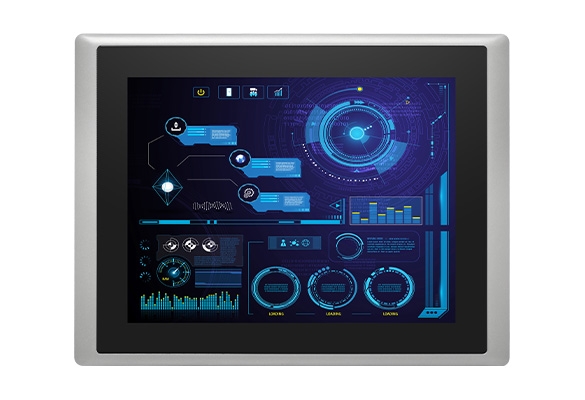

CV-100/P1201 系列是一款模組化工業平板電腦，搭載 Intel® Elkhart Lake Atom® 處理器。齊全完整的螢幕尺寸選擇與靈活的擴充性是特色之一，除原生豐富的 I/O 接口 (GbE LAN、USB3.2、COM 和 DIO) 外，也具備 Mini PCIe、M.2 Key E Type 2230 擴充槽，還可利用獨家 CFM 擴充模組增添 PoE/IGN 等功能。透過德承獨家的 CDS 專利技術，對於未來電腦效能升級或是更換螢幕更加具有彈性。強固的 CV-100/P1201 系列可滿足設備機台的 HMI 與生產流程可視化的多元應用。
Product Category >>>> Modular Panel PC & Industrial Monitor
效能大躍進
——
CV-100/P1201 系列可搭載最高 Intel® Elkhart Lake 平台 Atom® x6425E 四核處理器，Elkhart Lake 與上一代 Apollo Lake 相比，CPU Single - Thread 效能提升高達 1.7 倍，Multi-thread 效能提升高達 1.5 倍。圖形效能也提升了 2 倍。且支援最高 3200 MHz 的 DDR4 32GB 記憶體。
CDS 專利技術
——

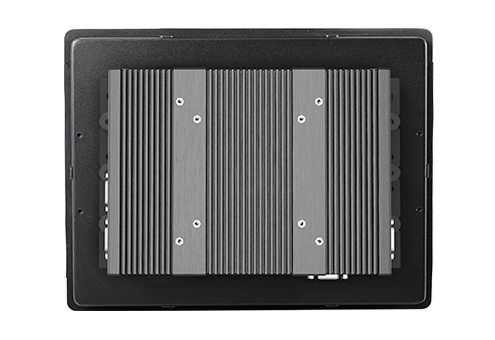

透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908尺寸齊全完整
——
CV-100/P1201 系列擁有多樣化的產品組合，從螢幕尺寸 (8.4 - 24 吋)、顯示比例 (4:3 / 5:4 / 16:9) 到觸控方式 (多點電容式及單點電阻式)，可針對應用需求進行選擇。
強固、安全、更可靠
——
面對嚴苛險峻的使用環境，CV-100/P1201 系列備有一系列的工業級防護， 包括寬工作溫度範圍、寬範圍直流電源輸入（9 至 48VDC）、IP65 前面板防塵/防水等，有利於現場端 HMI 或生產流程可視化等應用。此外， CV-100/P1201 還各自通過美國資訊通信技術和視聽設備的產品安全標準 (UL 認證) ，高度確保產品的安全性。
影片
![[ 產品聚焦 ] Cincoze 工業平板電腦解決方案](data/images/202407/1721098630791648051.jpg)
詳細規格
CV-110H Series
| Model Name | CV-110HR | CV-110HC | |
|---|---|---|---|
| Display | LCD Size | 10.4" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 470 cd/m² | ||
| Contrast Ratio | 1000 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.2055 (H) x 0.2055 (V) | ||
| Viewing Angle (H-V) | 178 / 178 | ||
| Backlight LED Life Time | 70,000 hours (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 295 x 227.3 x 56.2 mm | |
| Weight Information | 2.24 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | ||
| Power | Power Consumption | 4.99W (Typ.) | 4.94W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals) | Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
P1201
| Model Name | P1201 | |
|---|---|---|
| System | Processor | • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| Memory | • 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| COM | 3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A | |
| DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| Expansion | Mini PCI Express | 1x Full-size Mini-PCIe Socket |
| SIM Socket | 1 x SIM Socket | |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Wireless Module | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| CDS (Convertible Display System) Interface | 1x CDS Interface for Convertible Display Module | |
| Other Function | Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Button | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, HDD LED, Temperature LED | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.54 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-110HR-R11/P1201-X6425E-R11 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and Resistive 5-wire Touch |
| CV-110HC-R12/P1201-X6425E-R11 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and P-Cap. Touch |
| CV-110HR-R11/P1201-X6211E-R11 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and Resistive 5-wire Touch |
| CV-110HC-R12/P1201-X6211E-R11 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and P-Cap. Touch |
| CV-110HR | CV-110HC | P1201-X6425E | P1201-X6211E | |
|---|---|---|---|---|
| CV-110HR/P1201-X6425E | V | -- | V | -- |
| CV-110HC/P1201-X6425E | -- | V | V | -- |
| CV-110HR/P1201-X6211E | V | -- | -- | V |
| CV-110HC/P1201-X6211E | -- | V | -- | V |
| √ CV-110H/P1201 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Panel Mounting Kit x 6 |
| Model No. | Description |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
