產品介紹

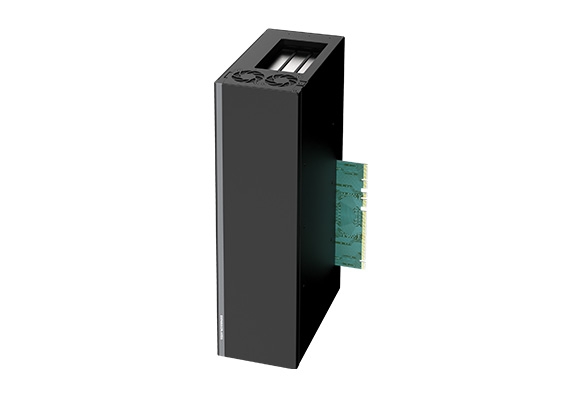

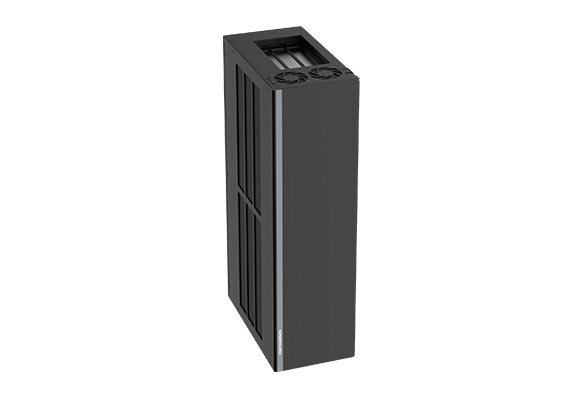

GEB-3301 是兼容 GP-3000 系列的 GPU 擴充盒，可擴充 1 個 350w 的 NVIDIA®/AMD® 328mm 全長顯卡。除了具備 1 個 PCIe x16 插槽用於 GPU 顯卡安裝之外，還有 1 個 PCIe x4 插槽可用於高速 I/O、數據採集、影像擷取卡等附加卡的擴充。
詳細規格
| Expansion Slot | • 1 x PCIe x 16 Slot ( PCIe x 16 Signal ) for GPU Card * 1 x GPU: Max 300W • 1 x PCIe x 4 Slot (Max. 25W) |
| GPU Card Dimension | • Card Length : 328mm • Card Height : 64mm ( Standard Triple-Deck ) • Card Width : 138mm |
| Internal USB | • 1 x USB 2.0, Type A |
| Internal Power Connector | • 2 x 8-Pin Connector for GPU Card |
| Weight Information | • 3.2kg |
| Dimension ( W x D x H ) | • 104 x 195 x 360 mm |
| MTBF | • 2,713,254 hr |
| Shock | • MIL-STD-810H * Test with system (w/ GP series) |
| Vibration | • MIL-STD-810H * Test with system (w/ GP series) |
| EMC | • CE, UKCA, FCC, ICES-003 Class A * Test with system (w/ GP series) |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
| Safety | • UL, cUL, CB, IEC, EN62368-1 |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 * Test with system (w/ GP series) |
| In-Vehicle | • E-mark * Test with system (w/ GP series) |
訂購資訊
| Model No. | Product Description |
|---|---|
| GEB-3301-R10 | GPU Expansion Box with 1 x PCIe x 16 and 1 x PCIe x 4 Slots |
| √ Wall Mount Bracket |
| √ 8 Pin to 6+2 Pin GPU Power Cable x 2 |
| √ Screw Pack x 2 |
| √ GPU Card Retainer Screw Pack x 1 |
| √ Rubber Foot Kit x 1 |
| √ Sponge x 2 |
| Model | Architecture | Dimesion (D x W mm) | Slot | Power Consumption |
|---|---|---|---|---|
| RTX PRO 6000 Blackwell Max-Q Workstation Edition | Blackwell | 266.7 x 111.8 | dual slot | 300W |
| RTX PRO 5000 Blackwell | Blackwell | 266.7 x 111.8 | dual slot | 300W |
| RTX PRO 4500 Blackwell | Blackwell | 241.3 x 111.8 | dual slot | 200W |
| RTX PRO 4000 Blackwell | Blackwell | 266.7 x 111.8 | single slot | 140W |
| RTX 6000 | Ada Lovelace | 266.7 x 111.8 | dual slot | 300W |
| RTX 5000 | Ada Lovelace | 266.7 x 111.8 | dual slot | 250W |
| RTX 4500 | Ada Lovelace | 266.7 x 111.8 | dual slot | 210W |
| RTX 4000 | Ada Lovelace | 241.3 x 111.8 | single slot | 130W |
| RTX 4000 SFF | Ada Lovelace | 167.6 x 68.6 | dual slot | 70W |
| RTX 2000 | Ada Lovelace | 167.6 x 68.6 | dual slot | 70W |
| A800 40GB Active | Ampere | 266.7 x 111.8 | dual slot | 240W |
| RTX A6000 | Ampere | 266.7 x 111.8 | dual slot | 300W |
| RTX A5500 | Ampere | 266.7 x 111.8 | dual slot | 230W |
| RTX A5000 | Ampere | 266.7 x 111.8 | dual slot | 230W |
| RTX A4500 | Ampere | 266.7 x 111.8 | dual slot | 200W |
| RTX A4000 | Ampere | 241.3 x 111.8 | single slot | 140W |
| RTX A2000 | RTX A2000 12GB | Ampere | 167.6 x 68.6 | dual slot | 70W |
