Leistungsstarke Industrie Panel PCs (CV-100/P2000 Serie)

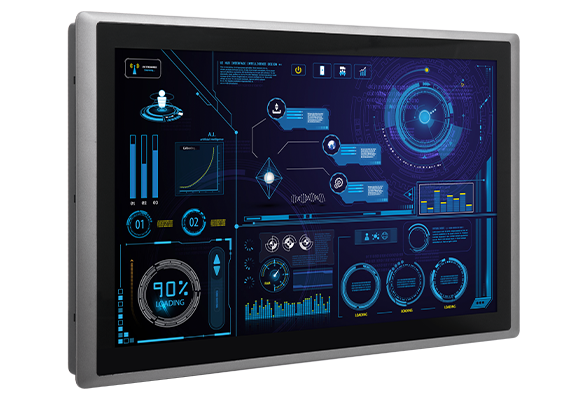

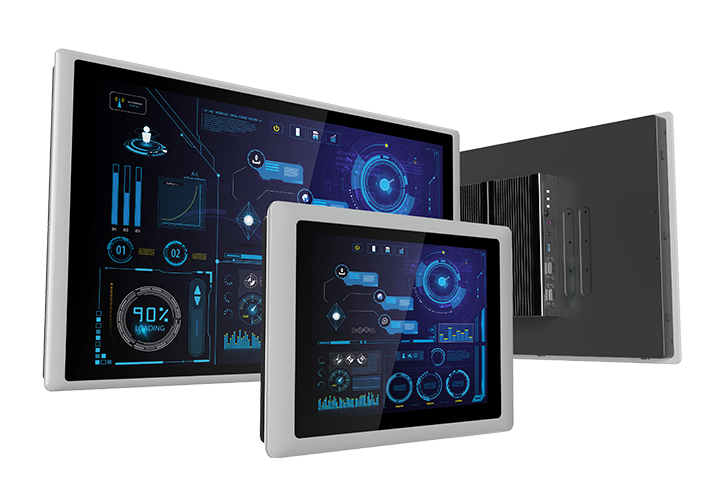

Die Cincoze CV-100/P2000-Serie ist ein leistungsstarker lüfter- und jumperloser robuster Touchpanel-PC mit Intel® Core™-Prozessor der U-Serie, der mehr Rechenleistung, schnellere Datenverarbeitung und verbesserte Grafikleistung bietet und dabei nur 15 W Strom verbraucht. Es steht eine große Auswahl an Displaygrößen von 12,1" bis 24" mit einem Seitenverhältnis von 4:3 und 16:9 zur Verfügung.Die CV-100/P2000-Serie unterstützt die CFM (Control Function Module)-Technologie, eine von Cincoze selbst definierte Schnittstelle mit integrierter Leistungssteigerung und Steuersignal, die es Ihnen ermöglicht, PoE- und Zündungserkennungsfunktionen mit zusätzlichen CFM-Karten zu erweitern.
| Produkt | Modell Name | Display | CPU | I/O | Erweiterung |
|---|---|---|---|---|---|

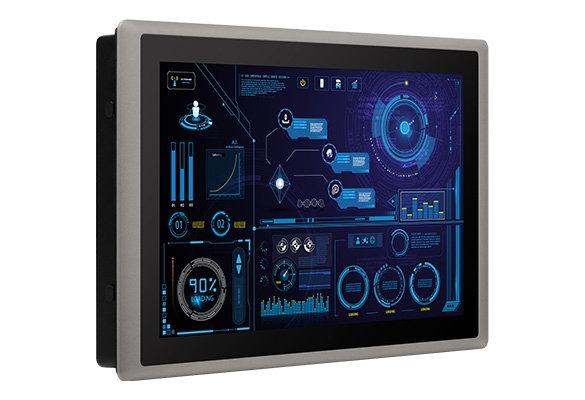

NEW  | CV-112H / P2302 Series | 12.1" TFT 1024x768 (4:3) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |

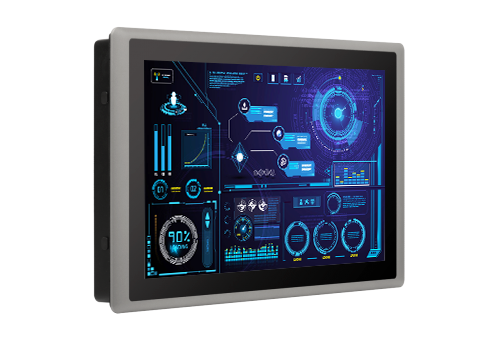

 | CV-112H / P2202 Series | 12.1" TFT 1024x768 (4:3) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-112H / P2102 Series | 12.1" TFT 1024 x 768 (4:3) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-112H / P2002 Series | 12.1" TFT 1024x768 (4:3) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |

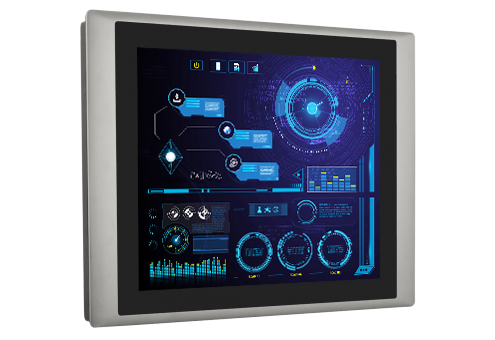

NEW  | CV-115 / P2302 Series | 15" TFT 1024x768 (4:3) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-115 / P2202 Series | 15" TFT 1024x768 (4:3) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-115 / P2102 Series | 15" TFT 1024x768 (4:3) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-115 / P2002 Series | 15" TFT 1024x768 (4:3) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |

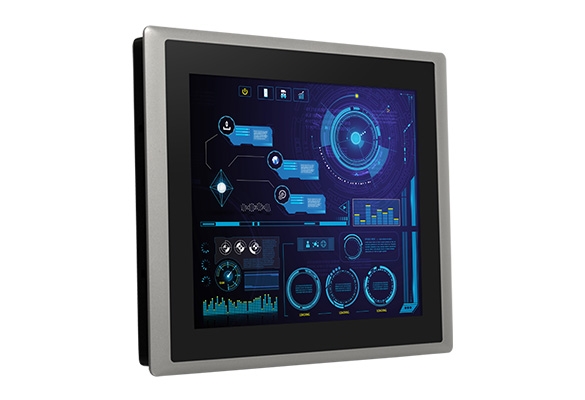

NEW  | CV-117 / P2302 Series | 17" TFT 1280x1024 (5:4) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-117 / P2202 Series | 17" TFT 1280x1024 (5:4) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |

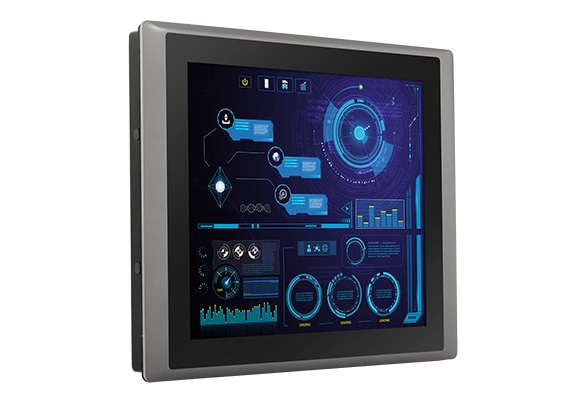

 | CV-117 / P2102 Series | 17" TFT 1280x1024 (5:4) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-117 / P2002 Series | 17" TFT 1280x1024 (5:4) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |

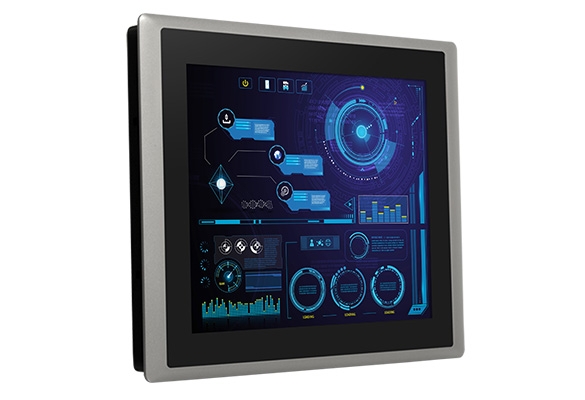

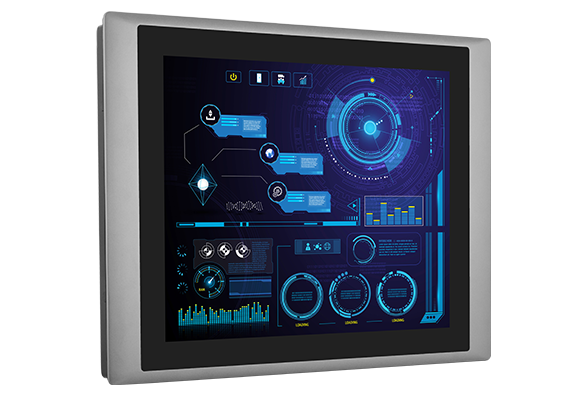

NEW  | CV-119 / P2302 Series | 19" TFT 1280x1024 (5:4) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-119 / P2202 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-119 / P2102 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-119 / P2002 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |

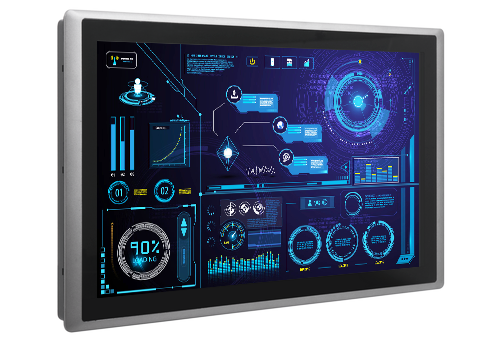

NEW  | CV-W115 / P2302 Series | 15.6" TFT 1366x768 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-W115 / P2202 Series | 15.6" TFT 1366x768 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-W115 / P2102 Series | 15.6" TFT 1366 x 768 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-W115 / P2002 Series | 15.6" TFT 1366x768 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
NEW  | CV-W115FH / P2302 Series | 15.6" TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
NEW  | CV-W115FH / P2202 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 3x 10Gbps USB3.2 Gen2x1 1x 480Mbps USB 2.0 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
NEW  | CV-W115FH / P2102 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 3x 10Gbps USB3.2 Gen2x1 2x 480Mbps USB 2.0 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
NEW  | CV-W115FH / P2002 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 4x 5Gbps USB3.2 Gen1X1 1x 480Mbps USB 2.0 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
NEW  | CV-W121 / P2302 Series | 21.5" TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-W121 / P2202 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-W121 / P2102 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-W121 / P2002 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
NEW  | CV-W124 / P2302 Series | 24" TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
 | CV-W124 / P2202 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CV-W124 / P2102 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CV-W124 / P2002 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
