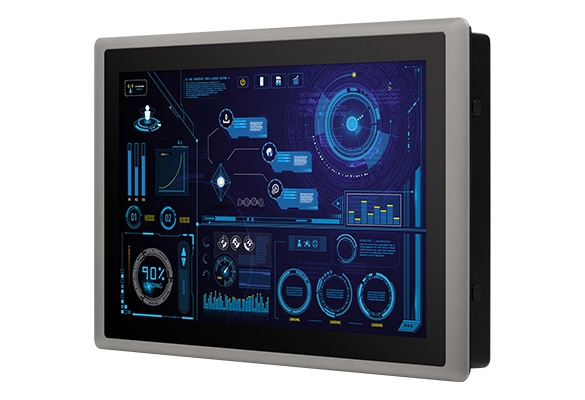

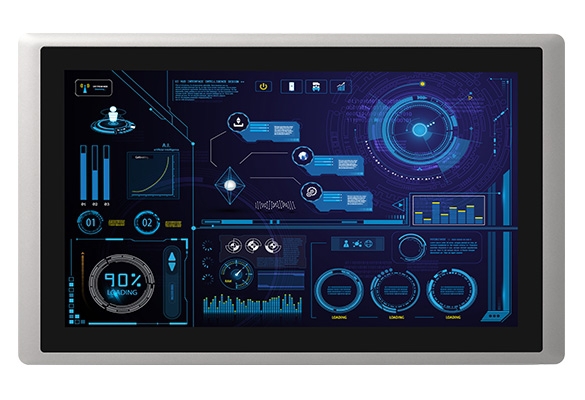

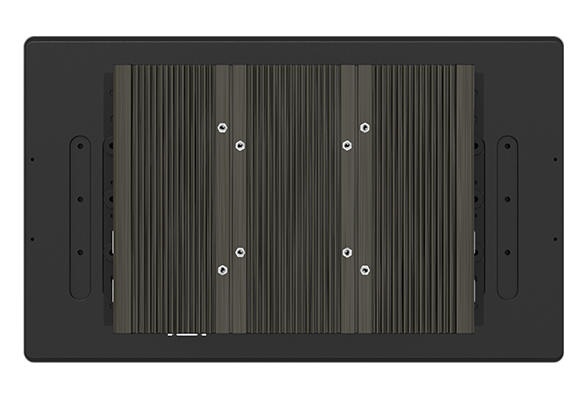

CV-W115FH / P2202 Series
- 15.6" TFT-LCD FHD 16:9 with Resistive 5-wire / Projected Capacitive Touch
- Onboard Intel® Alder Lake-P U-Series Core™ Processor
- 2x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- Designed with Aluminum Die-cast Front Bezel
- Front Panel IP65 Compliant
Die CV-100/P2202-Serie ist ein leistungsstarker modularer Industrie-Panel-PC mit einem Intel® Core™ U-Series (Alder Lake-P)-Prozessor, einer umfassenden Auswahl an Bildschirmgrößen und flexibler Erweiterung. Er umfasst eine Vielzahl nativer E/A-Schnittstellen (1 GbE LAN, USB 3.2 Gen 2x1, COM und DIO), verfügt über Mini-PCIe- und M.2 Key E Type 2230-Erweiterungssteckplätze und unterstützt das exklusive CFM-Erweiterungsmodul, um PoE- und IGN-Funktionen hinzuzufügen. Die exklusive, patentierte CDS-Technologie von Cincoze bietet Flexibilität für zukünftige Leistungserweiterungen des Computers oder den Austausch von Displays. Die robuste CV-100/P2202-Serie eignet sich für die verschiedensten Anwendungen der Maschinen-HMI und der Visualisierung von Produktionsprozessen.
Produktkategorie >>>> Modularer Panel PC & Industriemonitor
Ausgezeichnete Rechenleistung
——
Die CV-100/P2202-Serie ist mit dem Intel® Core™ i5/i3 U-Serien-Prozessor der 12. Generation (Alder Lake-P) ausgestattet, der auf dem Intel® 7-Prozess basiert. Die U-Serie hat einen geringen Stromverbrauch von nur 15 W, bietet eine hervorragende Leistung mit bis zu 10 Kernen (2P+8E) und verfügt über die integrierte Intel® Iris Xe-Grafik, um die Bildklassifizierungsleistung beim KI-Deep-Learning problemlos zu bewältigen.
CDS Patentierte Technologie
——
Die patentierte Technologie des Cincoze Convertible Display System (CDS) erleichtert die Wartung vor Ort und künftige Aufrüstungen. Für den Austausch eines Displays oder die Verbesserung der Systemleistung muss nur eine einzige Komponente ausgetauscht werden, was die Aufrüstungskosten erheblich senkt.
Patent Nr. M482908Komplettes Größensortiment
——
Die CV-100/P2202-Serie verfügt über ein breit gefächertes Produktportfolio, das von der Bildschirmgröße (12 bis 24 Zoll) über das Anzeigeverhältnis (4:3, 5:4 und 16:9) bis hin zu den Touchmethoden (Multi-Point-P-Cap und Single-Point-Resistiv) reicht, die je nach Anwendungsanforderungen ausgewählt werden können.
Robuster, sicher und zuverlässig
——
Um rauen und robusten Einsatzumgebungen gerecht zu werden, verfügt der CV-100/P2202 über eine Reihe von industrietauglichen Schutzvorrichtungen, einschließlich eines weiten Betriebstemperaturbereichs, eines weiten Eingangsspannungsbereichs (9 bis 48VDC) und einer staub- und wasserfesten IP65-Frontblende, was für Anwendungen wie HMI oder Produktionsprozessvisualisierung von Vorteil ist.
CV-W115FH Series
| Model Name | CV-W115FHR | CV-W115FHC | |
|---|---|---|---|
| Display | LCD Size | • 15.6" (16:9) | |
| Max. Resolution | • 1920 x 1080 (Full HD) | ||
| Brightness (cd/m2) | • 350 | ||
| Contrast Ratio | • 800 : 1 | ||
| LCD Color | • 16.7M | ||
| Pixel Pitch (mm) | • 0.17925(H) x 0.17925 (W) | ||
| Viewing Angle (H-V) | • 178 / 178 | ||
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | • Resistive 5-wire | • Projected Capacitive |
| Physical | Dimension (W x D x H) | • 420 x 254 x 66.2 mm | |
| Weight Information | • 3.78kg | • 3.84kg | |
| Mechanical Construction | • Die-Casting Flat Surface | ||
| Power | Power Consumption | • 11.5W (Max.) | • 11.45W (Max.) |
| Environment | Front Panel Protection | • IP 65 Compliant | |
| Operating Temperature | • -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | ||
| Storage Temperature | • -40°C to 80°C | ||
| Relative Humidity | • 90% RH @ 39°C (Non-condensing) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | ||
P2202 Series
| Model Name | P2202 | P2202E | |
|---|---|---|---|
| System | Processor | • Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W | |
| Memory | • 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay (SATA3.0) | |
| RAID | Support RAID 0/1 | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | -- | 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1x SIM Socket | ||
| M.2 | • 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | ||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, HDD LED | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • i5-1245UE CPU: 5.381 A @ 24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 22.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 41.5 mm | • 254.5 x 190 x 61 mm |
| Weight Information | • 2.22 kg | • 2.74 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 70°C | |
| Storage Temperature | • -40°C to 70°C | ||
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV | ||
| Safety | • UL, cUL, CB, IEC/EN 62368-1 | ||
| Model No. | Description |
|---|---|
| CV-W115FHR-R10/P2202-i5-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch |
| CV-W115FHR-R10/P2202E-i5-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch |
| CV-W115FHC-R10/P2202-i5-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CV-W115FHC-R10/P2202E-i5-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CV-W115FHR-R10/P2202-i3-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch |
| CV-W115FHR-R10/P2202E-i3-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch |
| CV-W115FHC-R10/P2202-i3-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CV-W115FHC-R10/P2202E-i3-R10 | 15.6" TFT-LCD Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CV-W115FHR | CV-W115FHC | P2202(i3/i5) | P2202E(i3/i5) | |
|---|---|---|---|---|
| CV-W115FHR/P2202 | V | -- | V | -- |
| CV-W115FHC/P2202 | -- | V | V | -- |
| CV-W115FHR/P2202E | V | -- | -- | V |
| CV-W115FHC/P2202E | -- | V | -- | V |
| CV-W115FH/P2202 Series Panel PC x1 | Thermal Pad x1 |
| Power Terminal Block x1 | Screw Pack x5 |
| Remote Power On/Off Terminal Block Connector x1 | Panel Mounting Kit x10 |
| DIO Terminal Block Connector x2 | DIN Rail Mounting Kit x1 |
| PCI / PCIe Card Installation Kit x1 (For P2202E Only) |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only) |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2202E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2202E Only) |
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only) |
| UB1203 | 1x Universal Bracket with 2x DB9 Cutout (For P2202E Only) |
| UB1211 | 1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only) |
| UB1214 | 1x Universal Bracket with 2x USB Cutout (For P2202E Only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only) |
