Produkt
- Leistungsstarke Industrie Panel PCs (CV-100/P2000 Serie)
- Energiesparende Industrie Panel PCs (CV-100/P1000 Serie)
Energiesparende Industrie Panel PCs (CV-100/P1000 Serie)

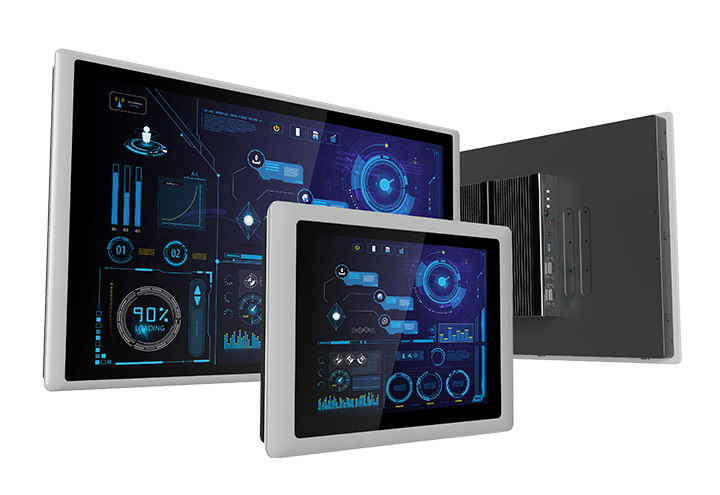

Der wandelbare Cincoze Panel PC umfasst All-in-One-Geräte, die einen hochauflösenden Bildschirm, einen Touchscreen und einen Computer integrieren. Es gibt eine große Auswahl an Displaygrößen von 8,4" bis 24" mit einem Format von 4:3 und 16:9 und ausgewählter Computerleistung.| Produkt | Modell Name | Display | CPU | I/O | Erweiterung |
|---|---|---|---|---|---|
 | CV-108 / P1301 Series | 8.4" TFT 800x600 (4:3) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-108 / P1201 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-108 / P1101 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-108 / P1001 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-110 / P1301 Series | 10.4" TFT 800x600 (4:3) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-110 / P1201 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-110 / P1101 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-110 / P1001 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-110H / P1301 Series | 10.4" TFT 1024x768 (4:3) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-110H / P1201 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-110H / P1101 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-110H / P1001 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-112H / P1301 Series | 12.1" TFT 1024x768 (4:3) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-112H / P1201 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-112H / P1101 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-112H / P1001 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-115 / P1301 Series | 15" TFT 1024x768 (4:3) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-115 / P1201 Series | 15" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-115 / P1101 Series | 15" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-115 / P1001 Series | 15" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-117 / P1301 Series | 17" TFT 1280x1024 (5:4) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-117 / P1201 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-117 / P1101 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-117 / P1001 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-119 / P1301 Series | 19" TFT 1280x1024 (5:4) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-119 / P1201 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-119 / P1101 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-119 / P1001 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W115 / P1301 Series | 15.6" TFT 1366x768 (16:9) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W115 / P1201 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W115 / P1101 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W115 / P1001 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W121 / P1301 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W121 / P1201 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W121 / P1101 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W121 / P1001 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W124 / P1301 Series | 24" TFT 1920x1080 (16:9) | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W124 / P1201 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W124 / P1101 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W124 / P1001 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
