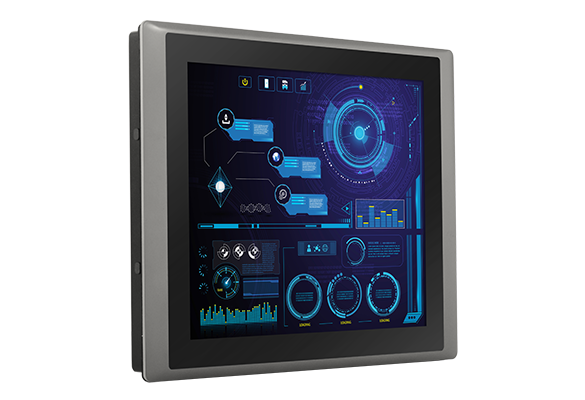

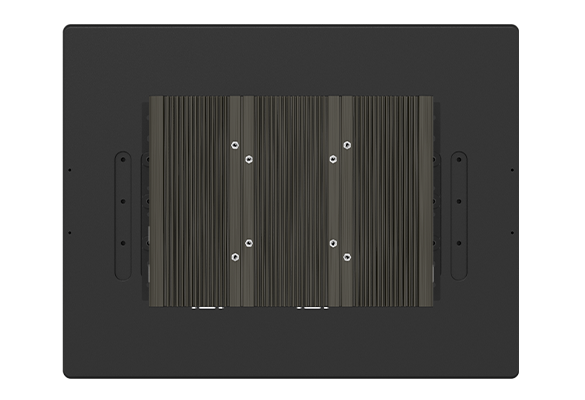

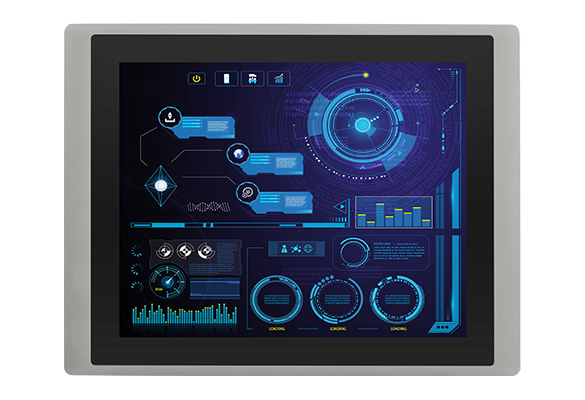

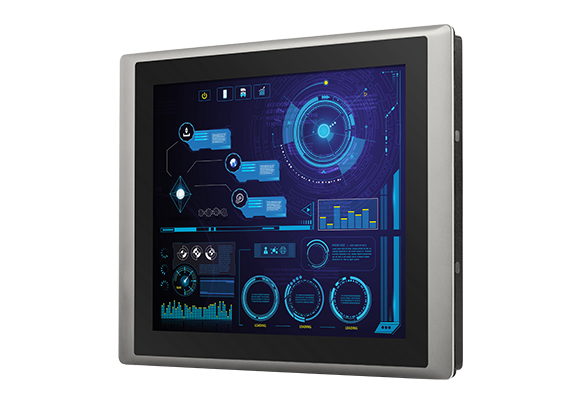

CV-117 / P2302 Series
17" TFT SXGA 5:4 Display Modulares Panel-PC mit Intel Meteor Lake-PS Core Serie (LGA-Sockel) Embedded-Computer
PRODUKTEIGENSCHAFTEN
- 17" TFT SXGA 5:4 LCD mit 5-Draht-Widerstandstouch / Projektiv-Kapazitiv-Touch / Nur-Glas-Version
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Prozessor
- 2 x DDR5 SO-DIMM-Steckplätze, unterstützt bis zu 5600MHz 96GB Speicher
- Vierfache unabhängige Anzeige (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Typ 2230 Steckplatz für Wireless / Bluetooth-Modul-Erweiterung
- 1x M.2 Key B Typ 3052/3042 Steckplatz für 5G / GNSS / Speicher / Erweiterungskarte
- 1x M.2 Key B Typ 3042 Steckplatz für Speicher / Erweiterungskarte
- Design mit Aluminium-Druckguss-Frontblende
- Frontblende entspricht IP65-Standard
ÜBERBLICK
Bei der CV-100/P2302-Serie handelt es sich um leistungsstarke modulare industrielle Panel-PCs, die die neuesten Intel® Core Ultra Prozessoren (Meteor Lake-PS) unterstützen und in 20 Modellvarianten mit flexiblen Erweiterungsmöglichkeiten erhältlich sind. Die Serie bietet umfangreiche integrierte I/O-Schnittstellen und unterstützt verschiedene Erweiterungsslots, darunter M.2 Key B und Key E, PCI/PCIe (nur P2302E) sowie modulare CFM- und MEC-Erweiterungen (nur P2302E), um bei Bedarf drahtlose Kommunikation, NVMe-Speicher und I/O-Funktionen hinzuzufügen. Das robuste Design macht die CV-100/P2302-Serie ideal für vielfältige Anwendungsbereiche wie HMI-Systeme für Maschinensteuerung und die Visualisierung von Produktionsprozessen.
Product Category >>>> Modular Panel PC & Industrial Monitor
Verbesserte Leistung x
Energieeffizienz x KI-Boost
——
Die CV-100/P2302-Serie unterstützt Prozessoren der Intel® 4 Core Ultra i7/i5/i3 U Serie (Meteor Lake-PS) mit bis zu 12 Kernen und einer niedrigen Leistungsaufnahme von 15 W, wodurch sie eine 1,8-fache Leistung im Vergleich zum Vorgängermodell bietet. Die integrierte Intel NPU ermöglicht eine schnellere und effizientere KI-Beschleunigung für hochperformante Bildverarbeitung und KI-Erkennung.
Hohe Flexibilität, unbegrenzte Einsatzmöglichkeiten
——
Die CV-100/P2302 Serie bietet herausragende Flexibilität. Für die passende Leistung kann der entsprechende LGA-Prozessoren der Core Ultra U-Serie ausgewählt werden. Es stehen M.2-Key-B/E-Steckplätze zur Erweiterung um 5G, Wi-Fi, Bluetooth, NVMe-SSDs und I/O-Funktionen zur Verfügung. Die CV-100/P2302E Serie unterstützt zusätzlich PCI/PCIe-Steckplätze für Erweiterungskarten (bis zu 75 W, 111 × 169 mm) und ermöglicht so vielfältige Einsatzmöglichkeiten.
CDS-Technologie
——
Unsere exklusive CDS (Convertible Display System)-Technologie ermöglicht eine einfache Wartung vor Ort und vereinfacht zukünftige Upgrades. Der Austausch des Displays oder eine Leistungssteigerung des Systems erfordert lediglich den Wechsel eines einzelnen Komponentenmoduls, was die Upgrade-Kosten erheblich reduziert.
Umfassende Größenauswahl
——
Die CV-100/P2302-Serie bietet ein breites Produktspektrum mit Bildschirmgrößen von 12" bis 24", verschiedenen Seitenverhältnissen (4:3 / 5:4 / 16:9) und wählbaren Touch-Technologien (projektiv-kapazitiv und einpunkt-resistiv), sodass sie flexibel an unterschiedliche Anwendungsanforderungen angepasst werden kann.
Robust, sicher und besonders zuverlässig
——
Die CV-100/P2302-Serie verfügt über mehrere industrielle Schutzmechanismen für den Einsatz in anspruchsvollen Industrieumgebungen, beispielsweise als HMI-Systeme an Maschinen oder zur Visualisierung von Produktionsprozessen. Industrielle Schutzfunktionen umfassen ein erweitertes Temperatur- und Spannungsdesign sowie eine wasser- und staubdichte Frontblende mit IP65-Schutzklasse.
Video
SPEZIFIKATION
CV-117 Series
| Model Name | CV-117R | CV-117C | CV-117G | |
|---|---|---|---|---|
| Display | LCD Size | 17" (5:4) | ||
| Max. Resolution | 1280 x 1024 | |||
| Brightness (cd/m2) | 350 | |||
| Contrast Ratio | 800 : 1 | |||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |||
| Viewing Angle (H-V) | 160 / 140 | |||
| Backlight LED Life Time | 50,000 hrs (LED Backlight) | |||
| Touch Screen | Touch Type | Resistive 5-wire | Projected Capacitive | Non-Touch (Glass Cover) |
| Wet Touch Tracking | -- | V | -- | |
| Physical | Dimension (W x D x H) | 450 x 350 x 63.2mm | ||
| Weight Information | 5.64kg | |||
| Mechanical Construction | Die-Casting Flat Surface | |||
| Power | Power Consumption | 18.9W (Max.) | 18.85W (Max.) | 18.4W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant | ||
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) (With Industrial Grade peripherals; Ambient with air flow) | |||
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) | |||
| Relative Humidity | 90% RH @ 40°C (Non-condensing) | |||
| EMC | CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |||
P2302 Series
| Model Name | P2302 | P2302E | |
|---|---|---|---|
| System | Processor | • Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W | |
| Memory | • 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Intel® Graphics | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304@60Hz) * Verified maximum resolution: 3840x2160@ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1080 @60Hz) | ||
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio | |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 3.2 Gen1x1 (5Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage / Expansion | 2.5" SSD/HDD | • 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) | |
| M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion | ||
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/GNSS/Storage/Add-on Card Expansion • 1x M.2 Key B Type 3042 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion | ||
| PCI Express | -- | • 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card) • Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1 x Front Accessible SIM Socket | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | RAID | • RAID 0/1 | |
| Clear CMOS Switch | • 1x Clear CMOS Switch | ||
| Reset Button | • 1x Reset Button | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, Storage LED | ||
| Antenna Holes | • 6x Antenna Holes | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • Intel Core™ Ultra 7 Processor 165UL: 79.7W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 24.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 49.5 mm | • 254.5 x 190 x 69 mm |
| Weight Information | • 2.16kg | • 2.26kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 206,043 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 65°C (-40°F to 149°F) * PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (withoutthermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | |
| Storage Temperature | • -40°C to 85°C (-40°F to 185°F) | ||
| Relative Humidity | • 95%RH @ 65°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/SSD, according to IEC60068-2-27) • MIL-STD-810H | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-6) • MIL-STD-810H | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | ||
| Industrial Environment | • EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | ||
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | ||
BESTELLINFORMATIONEN
| Model No. | Description |
|---|---|
| CV-117R-R10/P2302-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and Resistive 5-wire Touch |
| CV-117R-R10/P2302E-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and Resistive 5-wire Touch |
| CV-117C-R11/P2302-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and Projected Capacitive Touch |
| CV-117C-R11/P2302E-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and Projected Capacitive Touch |
| CV-117G-R10/P2302-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and without Touch |
| CV-117G-R10/P2302E-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and without Touch |
| CV-117R | CV-117C | CV-117G | P2302 | P2302E | |
|---|---|---|---|---|---|
| CV-117R/P2302 | V | -- | -- | V | -- |
| CV-117C/P2302 | -- | V | -- | V | -- |
| CV-117G/P2302 | -- | -- | V | V | -- |
| CV-117R/P2302E | V | -- | -- | -- | V |
| CV-117C/P2302E | -- | V | -- | -- | V |
| CV-117G/P2302E | -- | -- | V | -- | V |
| • CV-117/P2302 Series Panel PC x1 | • PCI / PCIe Card Installation Kit x 1 (For P2302E Only) |
| • Power Terminal Block x1 | • Screws Pack x4 |
| • Remote Power On/Off Terminal Block Connector x1 | • Heatsink kit x1 |
| • DIO Terminal Block Connector x2 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| • Panel Mounting Kit x10 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W(For P2302 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W(For P2302E Only) |
| MEC-LAN-2002i | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-40°C~+85°C), 2x RJ45 Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-0°C~+70°C), 2x RJ45 Connector |
| MEC-USB-2002-SP | M.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C), w/ IDE 20P 90° Cable, 2x USB Type A Connector *Only one MEC-USB-2002-SP can be installed on the P2302E |
| MEC-USB-2002C | M.2 2242/2260/2280 2-port USB 3.2 Board(-0°C~+70°C), 2x USB Type C Connector |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M Key) 2x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 2x DB9 Connector |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M Key) 4x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 4x DB9 Connector |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M Key) 2-port RS-232 Serial Board (-40°C~+85°C), 2x DB9 Connector |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2302E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2302E Only) |
| UB1203 | Universal Bracket with 2x DB9 Cutout for MEC-COM & MEC-CAN Expansion |
| UB1211 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1233-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
| UB1234-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
