CV-221C / P1201 Series
21.5 吋 FHD 16:9 超窄邊框 Panel PC，搭載 Intel® Atom® 嵌入式電腦，支援投射電容式觸控與防眩光塗層
產品特點
- 21.5 吋 Full HD LCD（1920 x 1080），16:9 顯示比例
- 投射電容式觸控，搭配防眩光（AG）塗層
- 178° / 178° 超廣視角
- Intel® Elkhart Lake Atom® x6425E / x6211E 處理器
- 支援三獨立顯示輸出
- 1 組 M.2 Key E Type 2230 插槽，支援無線模組
- 採用強固型鋁合金壓鑄前框設計
- 前面板符合 IP66 防護等級
產品介紹
CV-200/P1201 系列為入門級窄邊框模組化工業平板電腦，搭載 Intel® Elkhart Lake Atom® 處理器，提供穩定可靠的基礎運算效能。除原生具備豐富 I/O 介面（GbE LAN、USB 3.2、COM 與 DIO）外，亦支援 Mini PCIe 與 M.2 Key E Type 2230 擴充槽，並可透過 Cincoze CFM 擴充模組 彈性擴充 PoE、IGN 等功能。全系列支援 Full HD 顯示並提供 10” – 21.5” 多尺寸選擇，搭配工業等級強固設計，適合應用於設備機台 HMI 與生產流程可視化等多元工業場域。
Product Category >>>> Modular Panel PC & Industrial Monitor
效能大躍進
——
CV-200/P1201 系列可搭載最高 Intel® Elkhart Lake 平台 Atom® x6425E 四核處理器，Elkhart Lake 與上一代 Apollo Lake 相比，CPU Single - Thread 效能提升高達 1.7 倍，Multi-thread 效能提升高達 1.5 倍。圖形效能也提升了 2 倍。且支援最高 3200 MHz 的 DDR4 32GB 記憶體。
CDS 專利技術
——

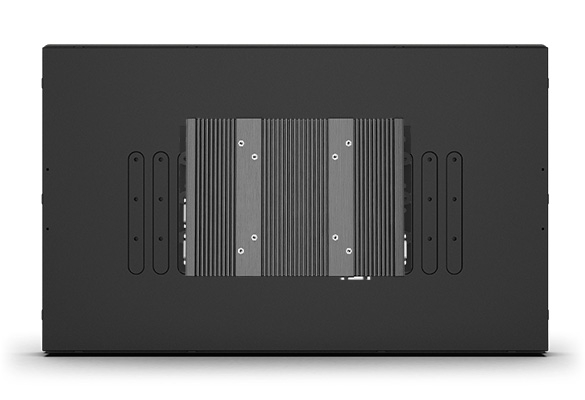

透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
超窄邊框
——
依據不同顯示尺寸，邊框寬度 ≤ 3 mm，可有效降低外型對設備整合的限制，特別適合櫃體空間受限或重視外觀整合的工業設備。
觸控升級
——
全系列支援 P-Cap 投射式電容觸控、防眩光（AG）塗層與濕態觸控（Wet Tracking）技術，即使在潮濕環境或高亮度室內照明條件下，仍能穩定操作與清晰顯示
強固、安全、更可靠
——
面對嚴苛險峻的使用環境，CV-200/P1201 系列備有一系列的工業級防護， 包括寬工作溫度範圍、寬範圍直流電源輸入（9 至 48VDC）、IP66 前面板防塵/防水等，有利於現場端 HMI 或生產流程可視化等應用。此外， CV-200/P1201 還各自通過美國資訊通信技術和視聽設備的產品安全標準 (UL 認證) ，高度確保產品的安全性。
影片
詳細規格
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P1201
| Model Name | P1201 | |
|---|---|---|
| System | Processor | • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| Memory | • 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| COM | 3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A | |
| DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| Expansion | Mini PCI Express | 1x Full-size Mini-PCIe Socket |
| SIM Socket | 1 x SIM Socket | |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Wireless Module | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| CDS (Convertible Display System) Interface | 1x CDS Interface for Convertible Display Module | |
| Other Function | Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Button | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, HDD LED, Temperature LED | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.54 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-221C-R10/P1201-X6425E-R11 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom® x6425E Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P1201-X6211E-R11 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom® x6211E Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C | P1201-X6425E | P1201-X6211E | |
|---|---|---|---|
| CV-221C/P1201-X6425E | V | V | -- |
| CV-221C/P1201-X6211E | V | -- | V |
| CV-221C/P1201 Series Panel PC x1 | Power Terminal Block Connector (Female) x 1 |
| Thermal Pad (for CPU Thermal Block) x 1 | Screw Pack x 1 |
| DIO Terminal Block Connector (Female) x 1 | Remote Power On/Off Terminal Block Connector x 1 |
| Panel Mounting Kit x 14 |
| Model No. | Description |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
