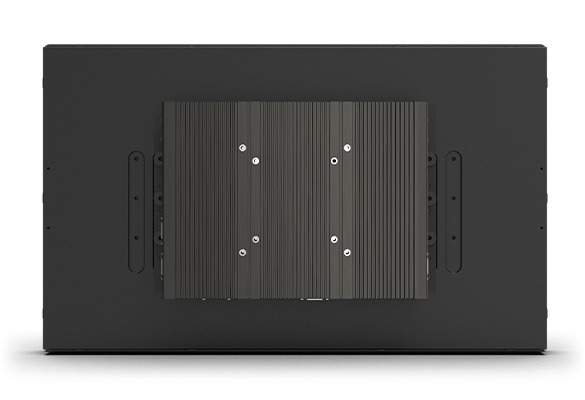

CV-221C / P2302 Series
21.5 吋 FHD 16:9 超窄邊框 Panel PC，搭載 Intel Meteor Lake-PS Core 系列（LGA Socket）嵌入式電腦，支援投射電容式觸控與防眩光塗層
產品特點
- 21.5 吋 Full HD LCD（1920 x 1080），16:9 顯示比例
- 投射電容式觸控，搭配防眩光（AG）塗層
- 178° / 178° 超廣視角
- Intel® Meteor Lake-PS Core™ Ultra 7 / 5 / 3 處理器
- 四獨立顯示輸出（CDS / HDMI / DP / VGA）
- 1 組 M.2 Key E Type 2230 插槽，支援無線 / 藍牙模組擴充
- 1 組 M.2 Key B Type 3052 / 3042 插槽，支援 5G / GNSS / 儲存 / 擴充卡
- 1 組 M.2 Key B Type 3042 插槽，支援儲存 / 擴充卡
- 前面板符合 IP66 防護等級
產品介紹
CV-200 / P2302 系列為高效能窄邊框模組化工業平板電腦，搭載最新 Intel® Core™ Ultra（Meteor Lake-PS）處理器，在提供優異運算效能的同時，兼顧系統整合彈性與現代化外觀設計。超窄邊框與模組化架構為其兩大核心優勢。內建豐富 I/O 接口，並支援多樣化擴充選項，包括 M.2 Key B、M.2 Key E，以及 PCI / PCIe 擴充槽（P2302E 專屬），同時支援 CFM 與 MEC 模組化擴充技術（P2302E 專屬），可依需求靈活擴充無線通訊、NVMe 儲存與各類 I/O 功能。全系列支援 Full HD 顯示並提供 10” – 21.5” 多尺寸選擇，搭配工業等級強固設計，特別適合設備機台HMI、產線操作介面與生產流程可視化等工業應用。
Product Category >>>> Modular Panel PC & Industrial Monitor
效能提升 x 低功耗 x AI 加速
——
CV-200/P2302 系列可搭載 Intel® 4 製程 Core Ultra 7/5/3 U 系列（Meteor Lake-PS）CPU，擁有最高 12 核心與 15W 低功耗的卓越效能，相比前一代機種，效能大幅提升 1.8 倍。全新內建的 Intel NPU，為大量圖像運算與 AI 辨識，提供更快、更高效的 AI 加速能力。
高度彈性 應用無限
——
CV-200/P2302 系列具備高度彈性，效能上可自由搭載 Core Ultra U 系列 LGA CPU，功能上透過 M.2 Key B/E 擴充 5G、Wi-Fi、藍牙、NVMe SSD 與 I/O。CV-200/P2302E 更支援 PCI/PCIe，安裝最高 75W（111 x 169 mm）擴充卡，靈活滿足多元應用。
CDS 技術
——
透過 CDS（Convertible Display System）獨家技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
超窄邊框
——
依據不同顯示尺寸，邊框寬度 ≤ 3 mm，可有效降低外型對設備整合的限制，特別適合櫃體空間受限或重視外觀整合的工業設備
觸控升級
——
全系列支援 P-Cap 投射式電容觸控、防眩光（AG）塗層與濕態觸控（Wet Tracking）技術，即使在潮濕環境或高亮度室內照明條件下，仍能穩定操作與清晰顯示
強固、安全、更可靠
——
面對嚴苛的使用環境，CV-200/P2302 系列具備一系列的工業級防護，包括寬溫設計、寬壓設計、IP66 前面板防塵防水等，有利於現場端 HMI 或生產流程可視化等應用。
影片
詳細規格
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P2302 Series
| Model Name | P2302 | P2302E | |
|---|---|---|---|
| System | Processor | • Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W | |
| Memory | • 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Intel® Graphics | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304@60Hz) * Verified maximum resolution: 3840x2160@ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1080 @60Hz) | ||
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio | |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 3.2 Gen1x1 (5Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage / Expansion | 2.5" SSD/HDD | • 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) | |
| M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion | ||
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/GNSS/Storage/Add-on Card Expansion • 1x M.2 Key B Type 3042 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion | ||
| PCI Express | -- | • 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card) • Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1 x Front Accessible SIM Socket | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | RAID | • RAID 0/1 | |
| Clear CMOS Switch | • 1x Clear CMOS Switch | ||
| Reset Button | • 1x Reset Button | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, Storage LED | ||
| Antenna Holes | • 6x Antenna Holes | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • Intel Core™ Ultra 7 Processor 165UL: 79.7W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 24.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 49.5 mm | • 254.5 x 190 x 69 mm |
| Weight Information | • 2.16kg | • 2.26kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 206,043 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 65°C (-40°F to 149°F) * PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (withoutthermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | |
| Storage Temperature | • -40°C to 85°C (-40°F to 185°F) | ||
| Relative Humidity | • 95%RH @ 65°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/SSD, according to IEC60068-2-27) • MIL-STD-810H | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-6) • MIL-STD-810H | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | ||
| Industrial Environment | • EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | ||
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | ||
訂購資訊
| Model No. | Description |
|---|---|
| CV-221C-R10/P2302-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2302E-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C | P2302 | P2302E | |
|---|---|---|---|
| CV-221C/P2302 | V | V | -- |
| CV-221C/P2302E | V | -- | V |
| • CV-221C/P2302 Series Panel PC x1 | • PCI / PCIe Card Installation Kit x 1 (For P2302E Only) |
| • Power Terminal Block x1 | • Screws Pack x4 |
| • Remote Power On/Off Terminal Block Connector x1 | • Heatsink kit x1 |
| • DIO Terminal Block Connector x2 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| • Panel Mounting Kit x14 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE08-R10 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2302 Only) |
| CFM-PoE09-R10 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2302E Only) |
| MEC-LAN-2002i | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-40°C~+85°C), 2x RJ45 Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-0°C~+70°C), 2x RJ45 Connector |
| MEC-USB-2002-SP | M.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C), w/ IDE 20P 90° Cable, 2x USB Type A Connector *Only one MEC-USB-2002-SP can be installed on the P2302E |
| MEC-USB-2002C | M.2 2242/2260/2280 2-port USB 3.2 Board(-0°C~+70°C), 2x USB Type C Connector |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M Key) 2-port RS-232 Serial Board (-40°C~+85°C), 2x DB9 Connector |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2302E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2302E Only) |
| UB1203 | Universal Bracket with 2x DB9 Cutout for MEC-COM Expansion |
| UB1211 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1233-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
| UB1234-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
