產品介紹

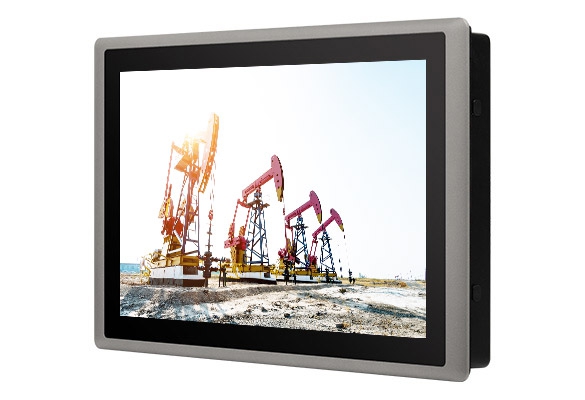

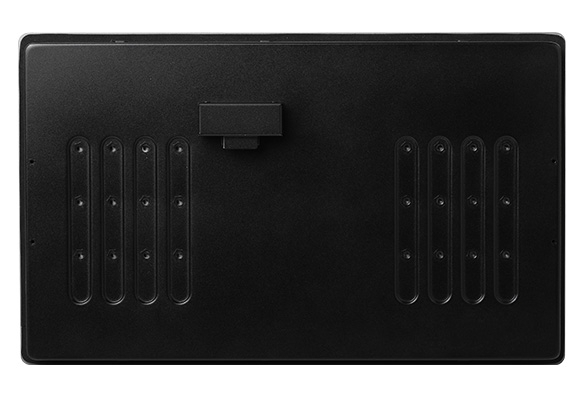

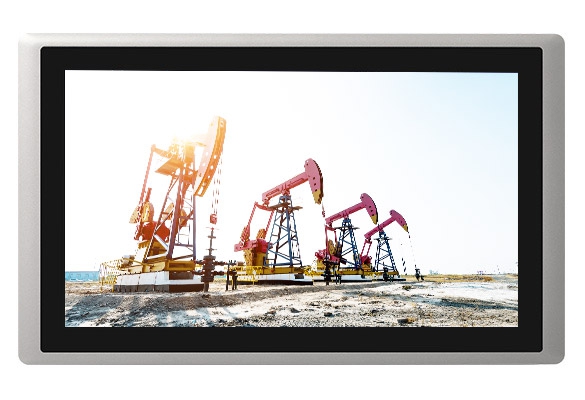

CS-W115FH 為 15.6 吋寬螢幕 TFT-LCD 顯示模組，搭載投射式電容觸控螢幕。其解析度最高可達 1920 x 1080（Full HD），亮度達 1,200 尼特。CS-W115FH 採用平面設計，且前面板具備 IP65 防塵防水等級。此外，前框採用堅固的鋁合金壓鑄設計，確保在工業環境中具備高耐用性與可靠性。透過支援可轉換顯示系統（CDS）技術，CS-W115FH 可讓您輕鬆配置、升級與維護您的可轉換顯示系統。
>>>> Panel PC Technology
詳細規格
CS-W115FH
| Model Name | CS-W115FH | |
|---|---|---|
| Display | LCD Size | • 15.6" (16:9) |
| Max. Resolution | • 1920 x 1080 (Full HD) | |
| Brightness (cd/m2) | • 1,200 | |
| Contrast Ratio | • 800 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Physical | Dimension (W x D x H) | • 420 x 254 x 66.2 mm |
| Weight Information | • 3.58 kg | |
| Mechanical Construction | • Flat Rugged Aluminum Die-casting Bezel | |
| Power | Power Consumption | • 25W (Max.) |
| Environment | Front Panel Protection | • IP 65 Compliant |
| Operating Temperature | • -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | • -40°C to 80°C | |
| Relative Humidity | • 90% RH @ 39°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R20 | 15.6" TFT-LCD 1200 nits Full HD 16:9 Display Module with Projective Capacitive Touch |
| CS-W115FH Display Module x 1 | Panel Mounting Kit x 10 |
