CS-W115FHC / P1001
EOL Model

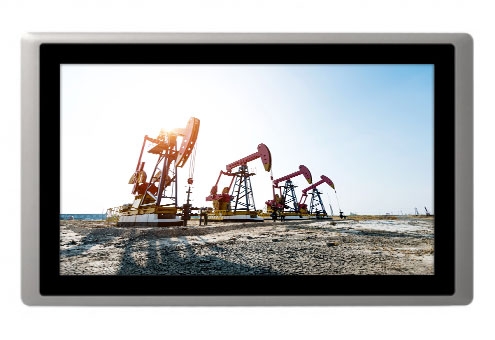

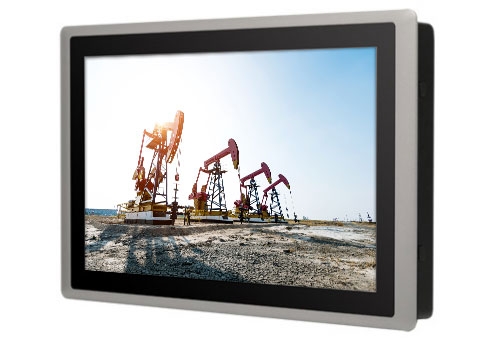

15.6" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor
產品特點
- 15.6” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920 x 1080 Resolution
- Onboard Intel® Atom™ E3845 Processor
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
產品介紹

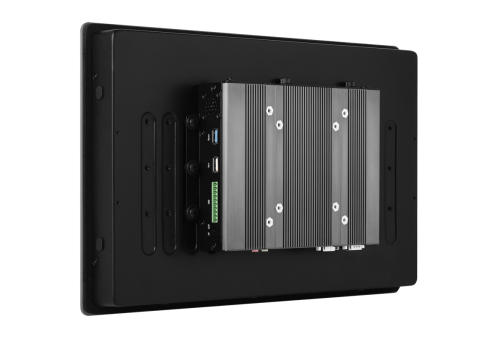

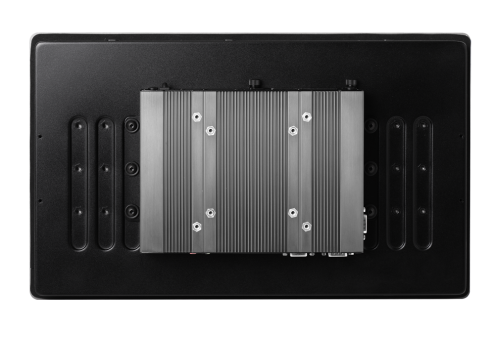

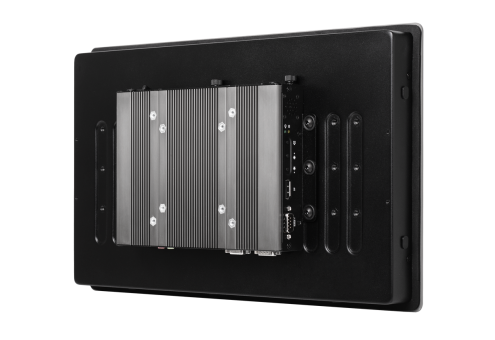

CS-W115FHC/P1000 Series is a 15.6" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.

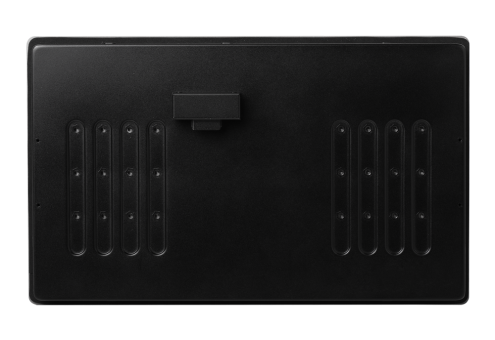

CS-W115FHC/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.
Furthermore, CS-W115FHC/P1000 Series is a truly rugged display system supporting wide range operating temperature (-10°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
CS-W115FHC/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.
Furthermore, CS-W115FHC/P1000 Series is a truly rugged display system supporting wide range operating temperature (-10°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
詳細規格
| Model Name | CS-W115FHC / P1001 | |
|---|---|---|
| Display | LCD Size | 15.6” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz with AMI 64Mbit SPI BIOS |
| Memory | 1x 204-Pin SO-DIMM DDR3L 1066/ 1333MHz (un-buffered and non-ECC), max. up to 8GB | |
| Graphics | Graphics Engine | Integrated Intel® HD Graphics |
| Maximum Display Output | Supports Dual Display - VGA + DP - VGA + CDS - DP + CDS | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Speaker-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| External I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920x1080@60Hz |
| DP | 1x DP connector, Up to 1920x1080@60Hz | |
| LAN | 2x 10/100/1000 Mbps, RJ45 - GbE1: Intel I210 - GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE | |
| USB | • 1x USB 3.0, Type-A • 3x USB 2.0, Type-A | |
| COM | 2x RS-232/422/485, DB9 Support 5V/12V | |
| CDS | Supports Convertible Display System (CDS) Technology | |
| DIO | DIO | • 4x Digital Input (Source Type) - Input Voltage (Dry Contact): Logic 0: Close to GND Logic 1: Open - Input Voltage: Logic 0: 3V (Min/DI to COM+) • 4x Digital Output - Supply Voltage: 9~30VDC - Sink Current: 1A Max. |
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD |
| cFast | 1x CFast Socket | |
| Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module |
| SIM Socket | 1x SIM Socket | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down (With Display Module) | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Power Adapter (Optional) | Optional AC/DC 12V/5A, 60W | |
| Physical | Dimension (WxHxD) | 420 x 254 x 75mm |
| Weight Information | 5.34 Kg | |
| Front Panel Construction | Die-Casting Flat Surface | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | Fanless Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 20A | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | • Windows® 10 • Windows® 8.1 • Windows® 7 |
| Linux | Support by Project | |
| Environment | Operating Temperature | Ambient with air flow: -10°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10/P1001-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
| √ CS-W115FHC/P1001 Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Panel Mounting Kit x 1 | √ HDD Screw Pack x 1 |
| √ Utility DVD Driver x 1 | √ Mini PCIe Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 |
| Model No. | Description |
|---|---|
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
