CV-112 / P2102E
EOL Model

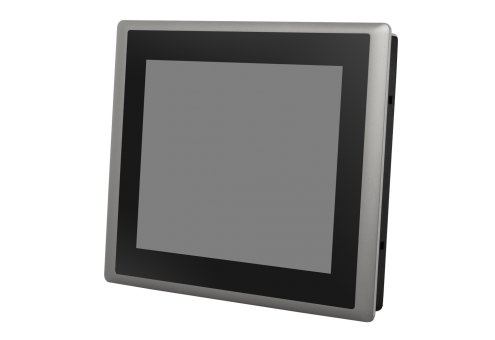

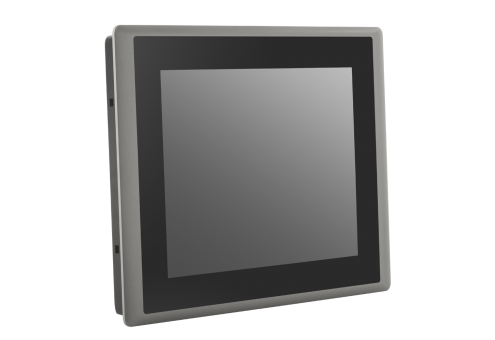

12.1" TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel® Core™ U Series Processor
產品特點
- 12.1" 800 x 600 (SVGA) TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch
- Onboard 8th Generation Intel® Core™ U Series Processor
- 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
- Supports Triple Independent Display
- Integrated USB 3.2 Gen 2 supports up to 10Gbps
- M.2 E Key Socket for Wireless Module or Intel CRF Module
- Supports Ignition Sensing Function (IGN) (with optional CFM module)
- Supports 2x PoE+ Function (with optional CFM module)
- 1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
- Designed with Rugged Aluminum Die-casting Front Bezel
- True Flat IP65 Compliant Front Panel Protection
- Supports Panel / VESA / Rack Mounting
產品介紹
The CV-112/P2102E is a 12.1" TFT-LCD expandable panel PC with Intel® 8th generation Core™ U Series Processor and suitable for the high-performance requirement in factory and machine automation applications. The processor brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the panel PC is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.
For expansion requirements, the CV-112/P2102E has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CV-112/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-112/P2102E is appropriate for harsh environments and critical industrial applications.
Furthermore, the CV-112/P2102E supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
For expansion requirements, the CV-112/P2102E has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CV-112/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-112/P2102E is appropriate for harsh environments and critical industrial applications.
Furthermore, the CV-112/P2102E supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
RESOURCES
詳細規格
| Model Name | CV-112/P2102E | ||
|---|---|---|---|
| Model No. | CV-112R/P2102E | CV-112C/P2102E | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| Processor System | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W | ||
| Memory | 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC) | ||
| Graphics | Integrated Intel® UHD Graphics 620 | ||
| Supports Triple Independent Display (via VGA and DisplayPort Outputs) | |||
| Audio | Realtek® ALC888-GR | ||
| High Definition Audio | |||
| I/O Interface | 1x VGA (1920 x 1200 @60Hz) | ||
| 1x DisplayPort (4096 x 2304 @ 60Hz) | |||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210IT | |||
| 3x USB 3.2 Gen2 (Type A) | |||
| 2x USB 2.0 (Type A) | |||
| 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |||
| 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm | |||
| 1x ATX Power On/Off Button | |||
| 1x Reset Button | |||
| 1x AT/ATX Mode Switch | |||
| 1x Clear CMOS Switch | |||
| 1x Remote Power On/Off Connector, 2-pin Terminal Block | |||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | |||
| 1x Ignition DIP Switch (12V/24V, need to work with CFM module) | |||
| Storage | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 | ||
| Expansion | 2x Full-size Mini-PCIe Socket | ||
| 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module | |||
| 2x Control Function Module (CFM) Interface | |||
| 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) | |||
| 1x Front Accessible SIM Socket | |||
| 4x Antenna Hole | |||
| Other Function | Watchdog Timer: Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker AMP 2W + 2W | |||
| OSD Function: LCD On/Off, Brightness Up, Brightness Down | |||
| SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| Supports Instant Reboot Technology (0.2 sec) | |||
| Power Requirement | Support AT/ATX Power Mode | ||
| Power Input Voltage 9~48VDC | |||
| 1x 3-pin Terminal Block | |||
| Power Adapter (Optional): AC/DC 12V/5A 60W, AC/DC 24V/5A 120W or 24V/9.2A 220W | |||
| Physical | Dimension (WxDxH, mm): 345 x 265.3 x 89 mm | ||
| Weight: 5.9 kg | |||
| Construction: Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis | |||
| Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | |||
| Jumper-less Design | |||
| Protection | Reverse Power Input Protection | ||
| Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection: 15A | |||
| ESD Protection: +/-8kV (air), +/-4kV (contact) | |||
| Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform) | |||
| Operating Stystem | Windows® 10 | ||
| Linux: Supports by project | |||
| Environment | Operating Temperature: -30°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow) | ||
| Storage Temperature: -30°C to 70°C | |||
| Relative Humidity: 80% RH @ 40˚C (Non-condensing) | |||
| Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |||
| Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |||
| IP Level: IP65 Compliant Front Panel | |||
| EMC: CE, FCC Class A | |||
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-112R-R10/P2102E-i5-R10 | 12.1” SVGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch |
| CV-112C-R10/P2102E-i5-R10 | 12.1” SVGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch |
| CV-112R-R10/P2102E-i3-R10 | 12.1” SVGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
| CV-112C-R10/P2102E-i3-R10 | 12.1” SVGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch |
| √ CV-112/P2102E Panel PC x 1 |
| √ Utility DVD Driver x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 |
| √ Screws Pack x 5 |
| √ Power Terminal Block Connector x 1 |
| √ Panel Mounting Kit x 1 |
| √ Remote Power On/Off Terminal Block Connector x 1 |
| √ PCI / PCIe Card Installation Kit x 1 |
| √ DIO Terminal Block Connector x 2 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot for P2102E |
| RC-PI-02 | Riser Card with 1x PCI Slot for P2102E |
| MEC-COM-M212-TDB9/UB1203 | Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for P2102E |
| MEC-COM-M334-TDB9/2xUB1203 | Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable / 2x Universal Bracket each with 2x DB9 Cutout for P2102E |
| MEC-USB-M102-30/UB1214 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable / 1x Universal Bracket with 2x USB Cutout for P2102E |
| MEC-LAN-M102-30/UB1211 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2102E |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
