DI-1000-i5
6th Generation Intel® Core™ Processor (Skylake-U) High Performance, Compact and Modular Rugged Embedded Computer
PRODUCTS FEATURES
- Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
- 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
- Triple Independent Display (DVI-I, DisplayPort)
- Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
- 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
- Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO

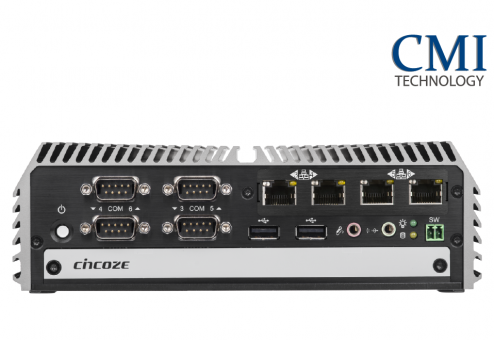

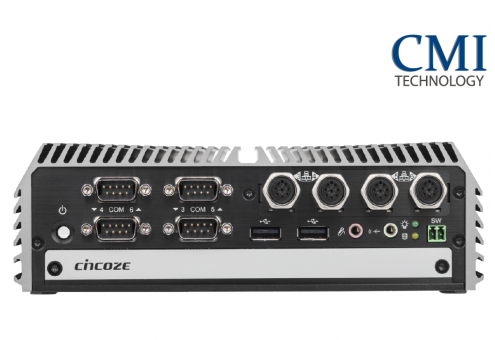

- Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
- Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
- Cincoze MEC Module Kits for Various I/O Expansion

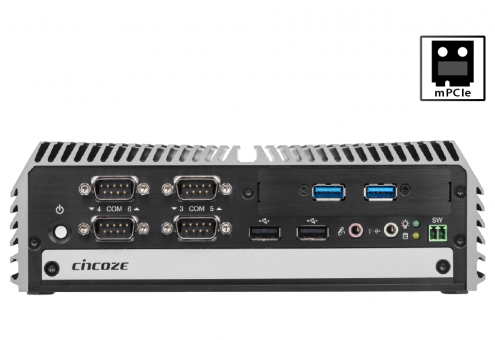

- 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
- Wide Operating Temperature (-40°C to 70°C)
- EN50121-3-2 Certified for Railway Application
- E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application
OVERVIEW

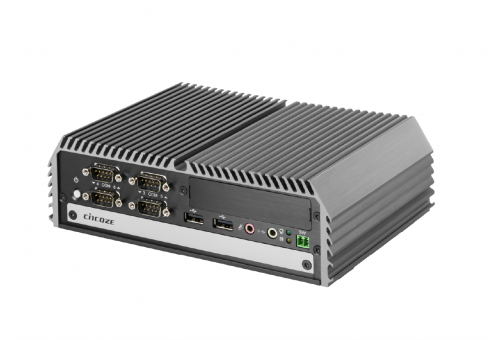

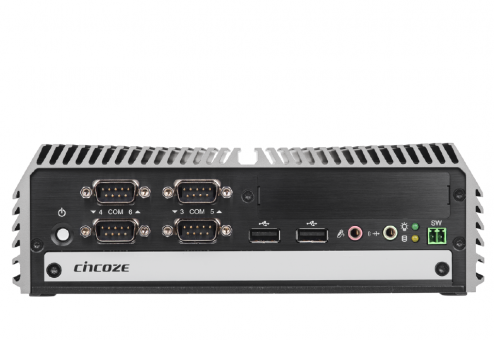

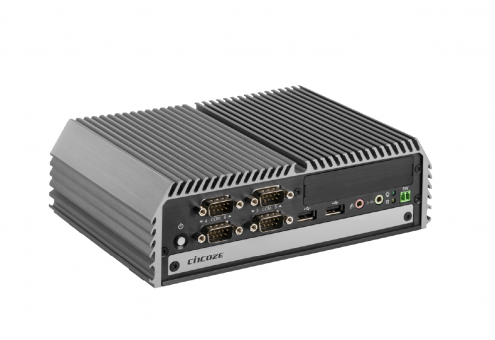

Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer powered by 6th generation Intel® Core™ mobile processor (Skylake-U), it integrates Intel® HD graphic engine and accommodates one DDR4 socket up to 32 GB which allows DI-1000 Series to fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x 66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000 Series to be expanded according to the specific needs. The options of ready-to-use modules including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O interface, making DI-1000 series application-ready platform for factory automation, machine vision, in-vehicle, and mobile surveillance applications.
RESOURCES
SPECIFICATION
| Model Name | DI-1000-i5 | |
| System | Processor | Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP) |
| Chipset | SoC | |
| Memory | 1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB (2133MHz, Un-buffered and Non-ECC type) | |
| Graphics | • Integrated Intel® HD Graphics • Three Independent Display | |
| Audio | • Realtek® ALC888-GR • High Definition Audio | |
| BIOS | AMI 8Mbit SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I Connector, Resolution 1920 x 1080 |
| DP | 1x DisplayPort Connector, Resolution 3840 x 2160 | |
| LAN | 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 - GbE1: Intel I210 - GbE2: Intel I219-LM | |
| Serial Port | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | ．4x USB 3.0, Type-A ．2x USB 2.0, Type-A | |
| PS/2 Port | 1x PS/2, 6-Pin Mini-DIN Female Connector | |
| Isolated DIO | 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible & Hot-swappable) |
| mSATA | 2x mSATA (Shared by Mini-PCIe Socket) (Gen3) | |
| Expansion | CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules |
| CMI (Combine Multiple I/O) Interface | 1x CMI Interface for CMI Modules | |
| Mini PCI Express | 2x Full-size Mini PCIe Supports Wireless & I/O Expansion | |
| SIM Socket | 1x SIM Socket | |
| Other Function | CFM | Support CFM (Control Function Module) Technology |
| CMI | Support CMI (Combined Multiple I/O) Technology | |
| Instant Reboot | Support 0.2sec | |
| Super Cap | Super Cap integrated for CMOS Battery Maintenance-free | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W | |
| Physical | Dimension (WxDxH) | 203 x 142 x 66.8 mm |
| Weight Information | 1.65 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / Side / DIN-RAIL / VESA | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Cable-less Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Surge | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| MTBF | Time | 360, 145 Hours |
| Calculation Model | Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | GB, GC | |
| Temperature | 40°C | |
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
| Environment | Operating Temperature | Operating Temperature: -40°C to 70°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, FCC Class A, EN50121-3-2, E-Mark (E13, No. 10R-0514273) | |
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DI-1000-i5 | 6th Gen. Intel® Core™ i5-6300U High Performance, Compact and Modular Rugged Embedded Computer |
Package Checklist
| √ DI-1000 Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ CPU Heatsink Thermal Pad x 1 | √ Remote Power On/Off Terminal Block Connector x 2 |
| √ Utility DVD Driver x 1 | √ DIO Terminal Block Connector x 2 |
| √ Screw Pack x 1 | √ DVI-I to VGA Adaptor |
| √ Wall Mounting Kit x 1 |
Optional Accessories
| Model No. | Description |
| CFM-IGN102 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V |
| CMI-LAN01-R12/UB0712 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket |
| CMI-M12LAN01-R12/UB0710 | CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket |
| MEC-COM-M212/UB0703 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets |
| MEC-LAN-M102-15/UB0711 | Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket |
| MEC-USB-M102-15/UB0714 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| SIDE01 | SIDE Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI |
