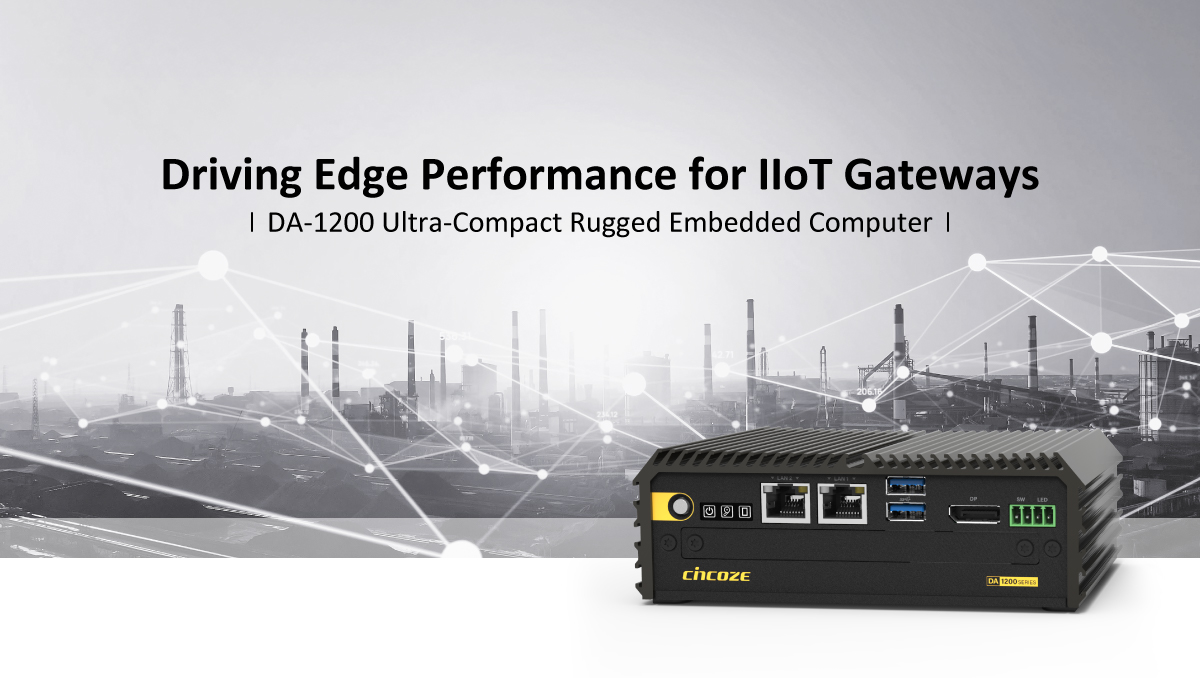

DA-1200 Ultra-Compact Embedded Computer for IIoT Gateways
The DA-1200, part of the Cincoze’s Rugged Computing – DIAMOND product line is designed for space-constrained industrial automation applications. With a palm-sized form factor and highly competitive pricing, it has long been the preferred choice for IIoT gateways, widely deployed in smart manufacturing, smart cities, and intelligent logistics. It helps customers build highly reliable, connected IIoT applications.
Palm-Sized Design
With a palm-sized footprint of 150 x 105 x 52.3 mm, the DA-1200 easily integrates with robotic arms, automated guided vehicles (AGVs), and EV charging stations.
Enhanced Edge Capabilities
Powered by a 12W low-power Intel Alder Lake‑N CPU, the DA‑1200 comes with 16GB DDR5 memory and offers storage options including 2.5" SSD, Half-Slim SSD, and M.2 SSD, making it an ideal solution for edge computing in essential industrial applications.
Industrial I/O Connectivity
Along with native 2.5GbE LAN, 10Gbps USB 3.2 Gen2x1, and DP output, it also offers flexible COM, DIO, and additional display expansion to support diverse industrial applications.
Flexible Mounting Options
Offering wall, side, and DIN-rail mounting options, the DA-1200 easily adapts to space-constrained industrial environments.
WHY CHOOSE CINCOZE DA-1200

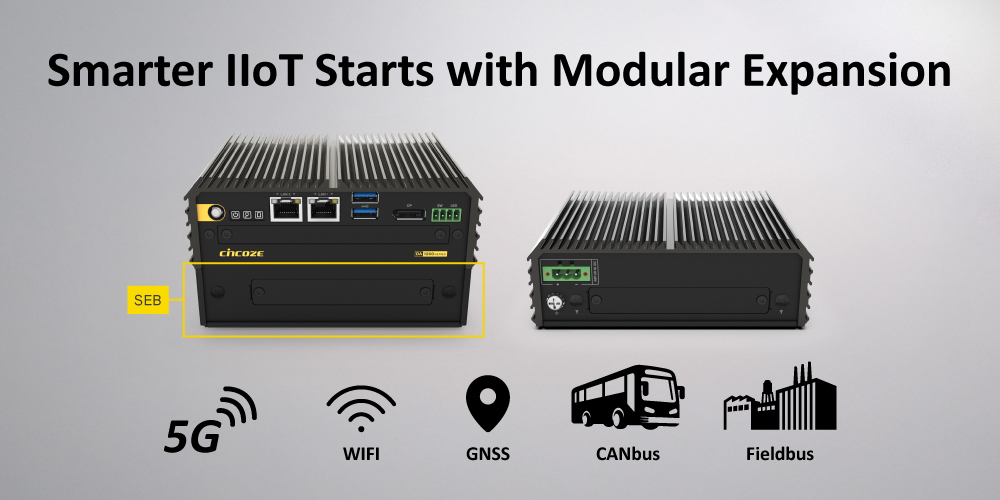

Optimal Modular Expansion for Rapid Deployment
It features two built-in M.2 Key B slots, which can be converted to M.2 Key E via a dedicated adapter card, enabling easy storage expansion or support for diverse wireless communication technologies such as 5G, Wi-Fi, and GNSS. In addition, the optional stackable expansion box (SEB) leverages the M.2 slots to further maximize scalability for functional modules such as I/O, CANbus, and Fieldbus. This allows seamless deployment across applications including smart manufacturing, smart logistics, and energy management.

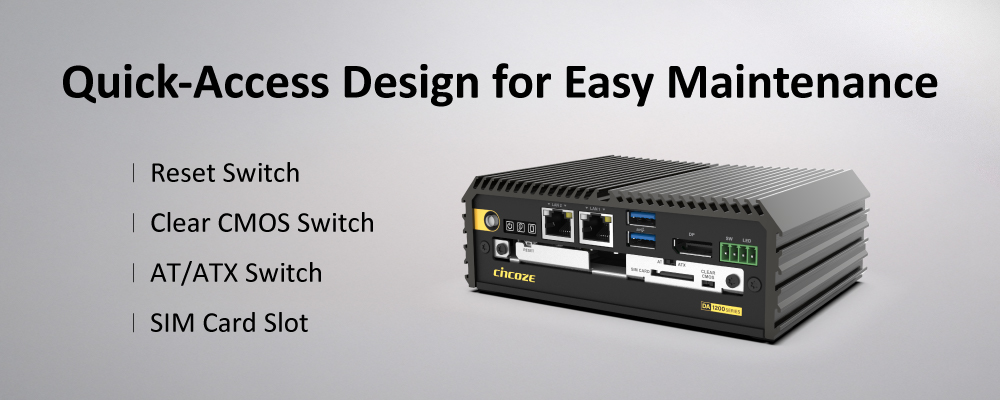

Easy Maintenance, Minimal Downtime Costs
For easy configuration and adjustment, the DA-1200 places key controls—such as Reset, AT/ATX mode switch, and the SIM card slot—together in the front maintenance area. This intuitive design allows users to complete setup or installation without opening the chassis, effectively reducing downtime and minimizing maintenance costs.

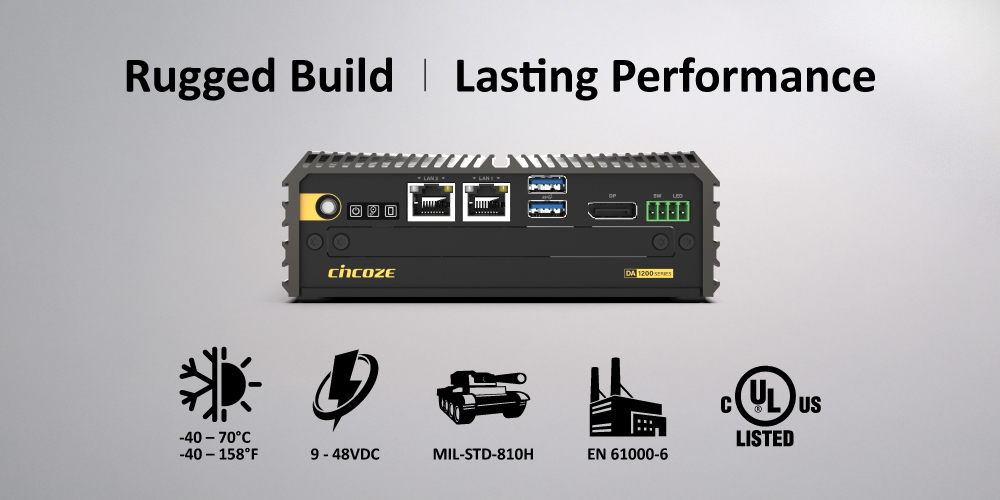

Certified Rugged Design for Reduced TCO
Although positioned as an IIoT gateway, the DA-1200 still follows Cincoze’s rugged industrial design. It offers a wide operating temperature range (-40–70°C) and wide voltage input (9–48 V), and complies with key reliability and safety standards, including MIL-STD-810H for shock and vibration resistance, EN IEC 61000-6-2 / -6-4 for industrial EMC, and UL safety certification. These rugged features ensure stable, long-term operation even in harsh environments, giving customers confidence in deployment and everyday use. Its durable construction and long service life also help reduce the total cost of ownership (TCO).
DA-1200 Rugged Embedded Computer
| DA-1200 | |
| Processor | Intel® Alder Lake-N Processor N97 Quad Core |
| Memory | Support 1x DDR5 SO-DIMM, up to 16GB (4800MHz) |
| I/O | • 2x 2.5 GbE LAN, RJ45 • 2x 10Gbps USB 3.2 Gen2x1 |
| Display | 2 independent displays: onboard DP + optional CMI (VGA/DP/HDMI) |
| Storage | 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| Expansion | • 1x M.2 Key B Type 3042/3052 • 1x M.2 Key B Type 2242 • 1x CMI Interface for I/O Module Expansion • Supports stackable expansion box (SEB) |
